P-721.02Q
Thread adapter set for PIFOC focus scanners, M26 x 0.75 mm, aperture diameter 21 mm, for objective and microscope
P-721.xxQ Thread Adapters for PIFOC Focus Scanners
Simple Setup with Fast Locking Mechanism (Suitable for P-725.CDD / ND72Z2LAQ)
- Thread adapters to easily adapt PIFOC positioners to a microscope
- Microscope side quick lock for twist-free cable routing

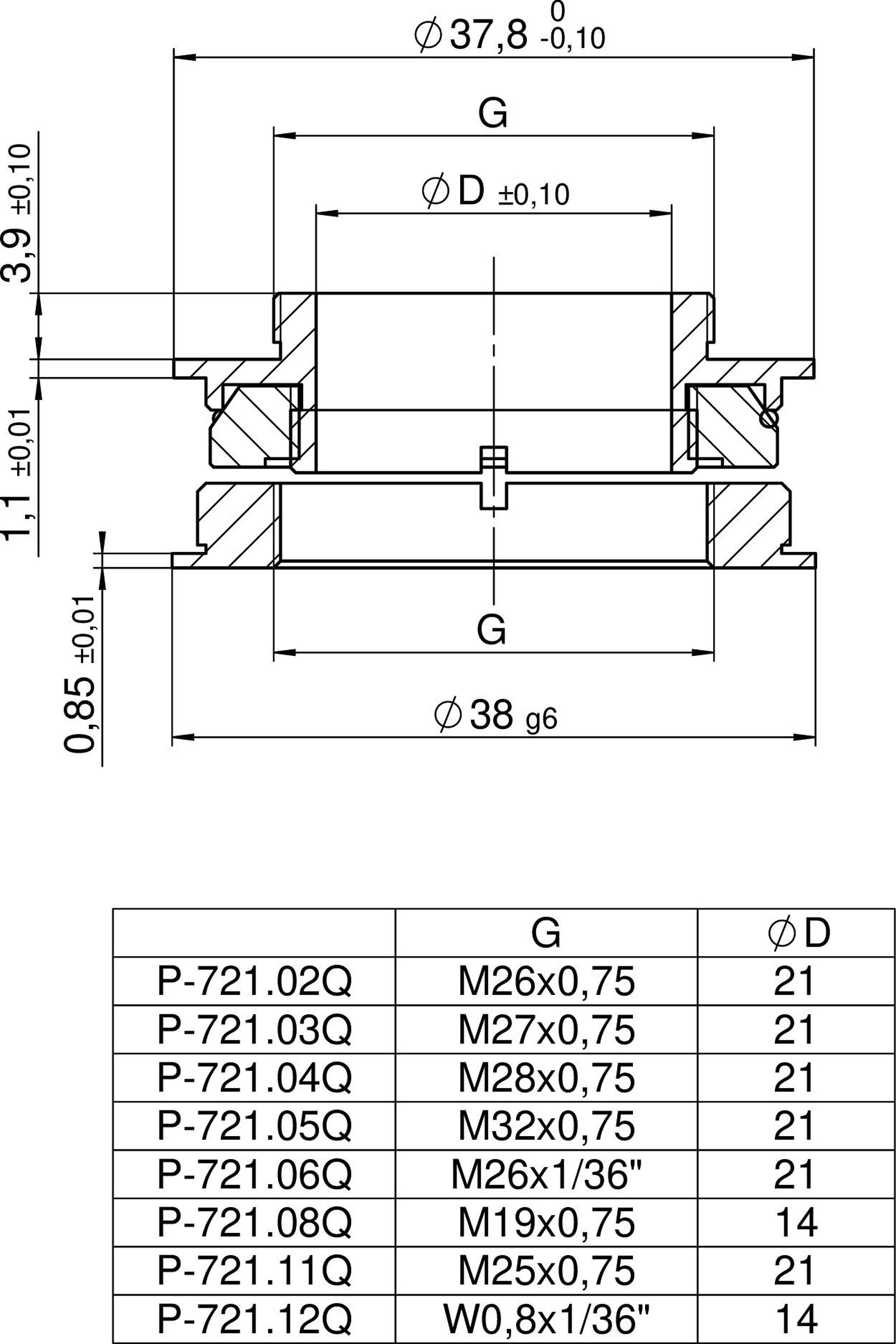

P-721.02Q to .12Q, dimensions in mm
P-721.xxQ Thread Adapters for PIFOC Focus Scanners
제품 설명
사양
다운로드
견적 / 주문

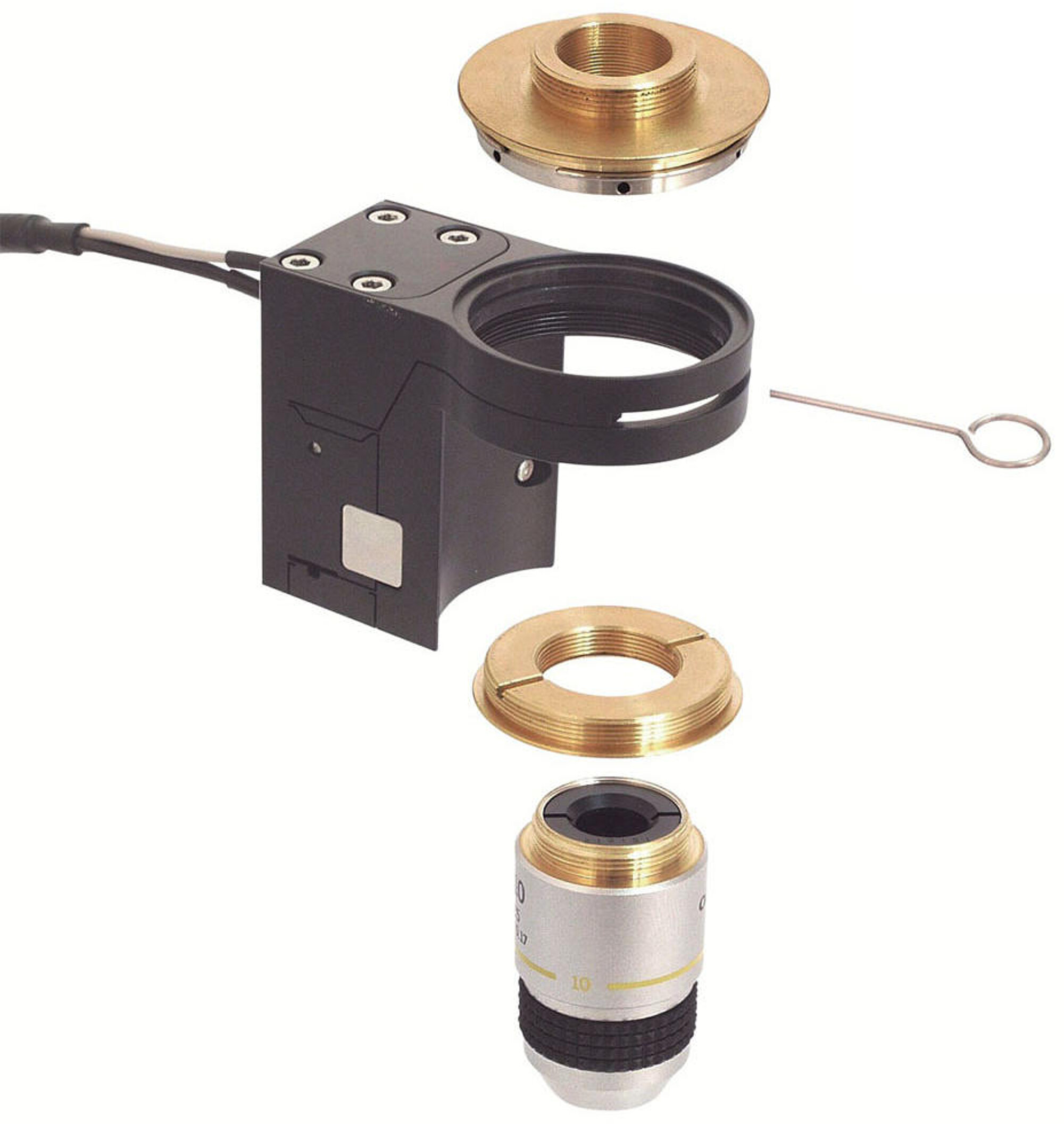

The PIFOC objective positioners are inserted with the thread adapters between the microscope's revolving nosepiece and objective. After the adapter has been screwed into the revolving nosepiece, the PIFOC positioner is orientated as desired and fixed to the adapter. It is not necessary to turn the PIFOC positioner while doing this, which simplifies cable routing.
Specifications
Specifications
| P-721.02Q | P-721.03Q | P-721.04Q | P-721.05Q | P-721.06Q | P-721.08Q | P-721.11Q | P-721.12Q | ||
|---|---|---|---|---|---|---|---|---|---|
| Aperture diameter | 21 mm | 21 mm | 21 mm | 21 mm | 21 mm | 14 mm | 21 mm | 14 mm | |
| Material | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | |
| Thread on the microscope side | M26 × 0.75 mm | M27 × 0.75 mm | M28 × 0.75 mm | M32 × 0.75 mm | M26 × 1/36" | M19 × 0.75 mm | M25 × 0.75 mm | W0.8 × 1/36" | |
| Thread on the objective side | M26 × 0.75 mm | M27 × 0.75 mm | M28 × 0.75 mm | M32 × 0.75 mm | M26 × 1/36" | M19 × 0.75 mm | M25× 0.75 mm | W0.8 × 1/36" | |
| Overall mass | 22 g | 22 g | 22 g | 22 g | 22 g | 22 g | 24 g | 24 g | |
| Operating temperature range | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C |
Downloads
Datasheet
Documentation
Documentation
Installation Instructions P721T0002
P-721 Thread Adapters for P-721 / P-725.xxx PIFOC Objective Scanners
버전 / 날짜
2022-04-01
pdf - 795 KB
버전 / 날짜
2022-04-01
pdf - 804 KB
3-D Models
3-D Models
3-D model P-721.xxQ
버전 / 날짜
2021-12-23
zip - 350 KB
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
