PICMA® 피에조 리니어 액추에이터

올세라믹 단열재를 사용한 멀티레이어 피에조 액추에이터

PI Ceramic의 PICMA® Stack 피에조 리니어 액추에이터는 낮은 피에조 전압의 리니어 변위를 특징으로 합니다. 물이나 기름이 튀는 환경에서 사용할 수 있는 캡슐화된 버전이 제공됩니다.

높이가 2mm에 불과한 소형 액추에이터 PICMA®은 내부 홀이 있는 원형 버전으로도 제공됩니다. 이 초소형 피에조 액추에이터는 높은 공진 주파수로 역동성을 극대화하는 것이 특징입니다. PICMA® 칩 피에조 액추에이터는 쉽게 결합하여 스택 액추에이터를 구성할 수 있습니다.

PICMA® 액추에이터

NEW

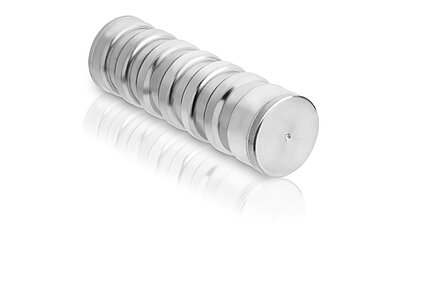

Encapsulated PICMA® Encapsulated PICMA® Stack Piezo Actuators

With ceramic-insulated high-performance actuators
  • Splash-resistant full encapsulation
  • Superior lifetime
  • High temperature stability
  • High displacement
  • High blocking force
  • High degree of stiffness
  • μs response time
  • Subnanometer resolution
  • UHV-compatible to 10-9 hPa
NEW

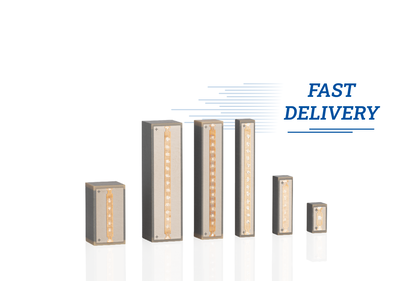

PICMA® PLUS Stack Multilayer Piezo Actuators

Ceramic Insulated High-Power Actuators
  • Longer travel ranges
  • Superior lifetime
  • High stiffness
  • µs response time
  • Subnanometer resolution
  • UHV-compatible to 10⁻⁹ hPa

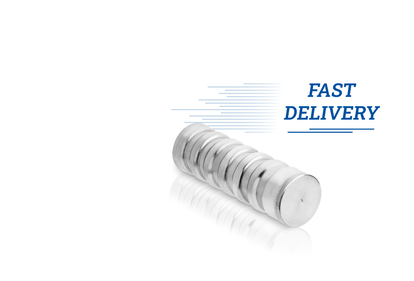

Encapsulated PICMA® Stack Piezo Actuators

P-88x.x5 Encapsulated PICMA® Stack Piezo Actuators

For Harsh Industrial Environments
  • For Harsh Industrial Environments
  • Splash-resistant full encapsulation
  • Superior lifetime
  • High stiffness
  • Microsecond response
  • Subnanometer resolution
  • UHV-compatible to 10⁻⁹ hPa.

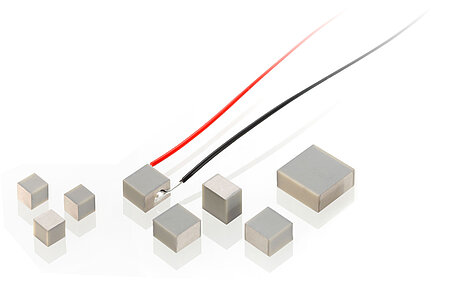

PICMA® Chip Actuators

PL0xx PICMA® Chip Actuators

Miniature Multilayer Piezo Actuators

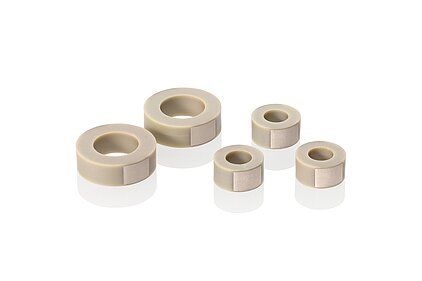

Round PICMA® Chip miniature piezo actuators, lapped end surfaces.

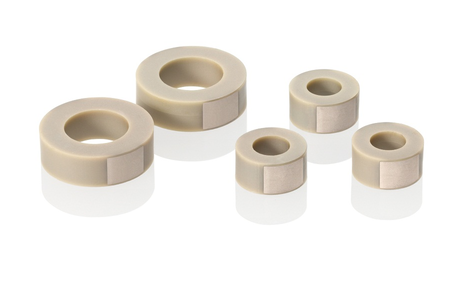

PD0xx • PD1xx Round PICMA® Chip Actuators

Miniature Multilayer Piezo Actuators with and without Inner Hole

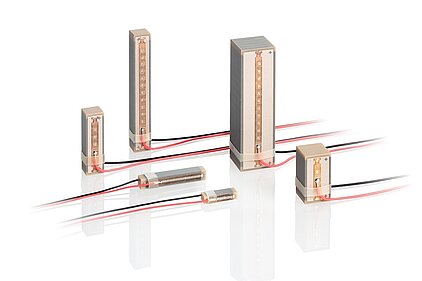

P-882 – P-888 PICMA® Stack Multilayer Piezo Actuators

Ceramic-Insulated High-Power Actuators
  • Superior lifetime
  • High stiffness
  • Microsecond response
  • Subnanometer resolution
  • UHV-compatible to 10-9 hPa

P-810 • P-830 Piezo Actuators

For Medium Loads and Push Forces

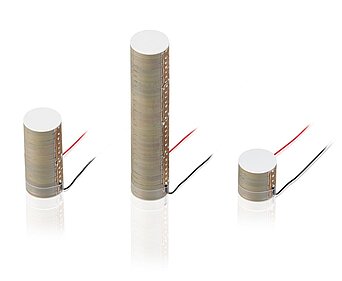

P-088 Round PICMA® Stack Multilayer Piezo Actuator

High Blocking Force
  • Multilayer
  • Flexible
  • Adaptable overall height
  • OEM versions available
  • UHV-compatible to 10-9hPa

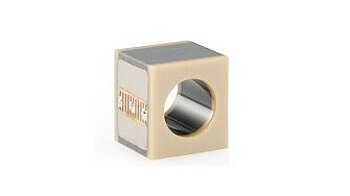

P-080 PICMA® Stack Multilayer Ring Actuator

With Inner Hole
  • Multilayer
  • Inner hole: preload/aperture
  • Superior lifetime
  • Microsecond response
  • Subnanometer resolution

PiezoMove®

P-604 Compact PiezoMove Linear Actuator

Inexpensive, with 300 µm Travel Range

P-603 Inexpensive PiezoMove Linear Actuator

Friction-Free Guides and Travel Ranges to 0.5 mm

P-601 PiezoMove Linear Actuator with Guides

With Optional Position Sensor

예압형 액추에이터

P-845 Preloaded Piezo Actuators

For Very High Loads and Forces, with Position Sensor

P-844 Preloaded Piezo Actuators

For Very High Loads and Forces

P-840 Preloaded Piezo Actuators

Compact Actuators for High Loads and Forces

P-820 Preloaded Piezo Actuators

For Medium Loads and Forces

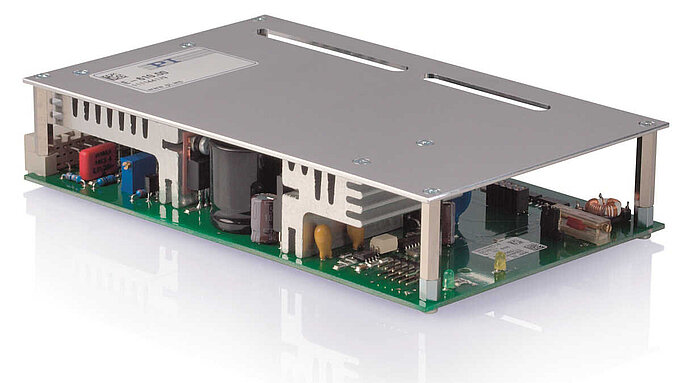

컨트롤러

맞춤 제작

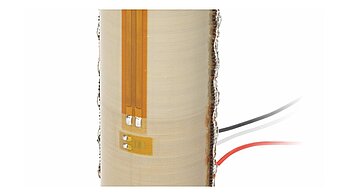

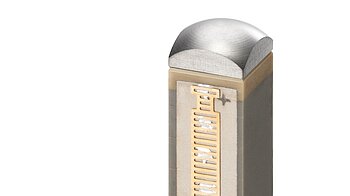

PICMA® 멀티레이어 피에조 액추에이터는 다양한 모양으로 생산됩니다. 응용 사례에 따라 적합한 세라믹 또는 금속 엔드 피스, 추가 코팅, 온도 센서 등으로 조립할 수도 있습니다. 요청 시 맞춤형 제품을 기꺼이 제공해 드립니다.

응용 분야 및 시장

  • 임상 연구 및 진단
  • 고속 스위치
  • 이동식 테스트 스트립
  • 생명과학 및 바이오 기술
  • 나노 포지셔닝
  • 현미경 및 치료 응용 분야
  • 능동 광학 및 적응 광학
  • 에어로졸 생산
  • 계측 및 간섭 측정
