선형, 토크, 스테퍼 및 DC 서보 모터용 모션 컨트롤러 및 드라이버

선형, 토크, 스테퍼 및 DC 서보 모터용 모션 컨트롤러 및 드라이버

PI는 구동 장치와 애플리케이션의 요구 사항에 최적화된 기능을 제공하기 위해 모션 제어 솔루션을 자체적으로 개발합니다. PI의 모션 컨트롤러는 단일 채널 또는 다중 채널 장치로 제공되며, 벤치탑, 랙마운트, OEM 버전 중에서 선택할 수 있습니다.
표준 헥사포드 컨트롤러는 두 개의 DC 모터 축에 대한 모션 제어를 추가적으로 제공합니다. 그 외의 구성에 대해서는 당사에 문의해 주시기 바랍니다.

PIMag® 마그네틱 리니어 및 토크 모터용

NEW

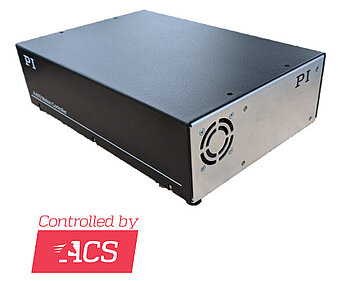

A-811.CE PIglide Motion Controller for One Axis

For Stages with Direct Drive, TCP/IP Interface
  • Motion controller for motor stages with air bearings. High end for industrial precision automation - linear and rotary motion.

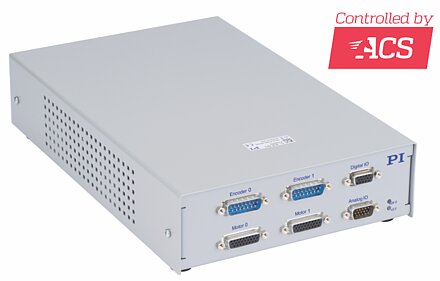

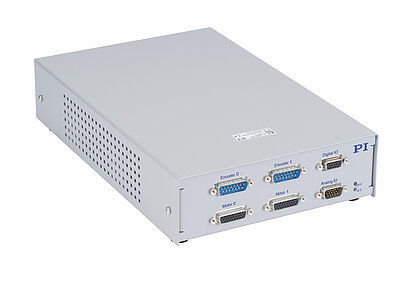

G-910.RC01 • RC03 ACS Driver Module for Low Power Requirement

For 2 Drive Axes with AC Servo Motor, DC Motor, Voice Coil Motor, Stepper Motor

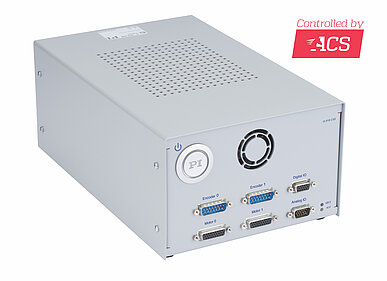

G-910.RC02 Motion Controller for Low Power Requirement

Integrated Driver for up to 2 Axes, EtherCAT Master for Synchronizing up to 4 Axes
  • Fully integrated solution with ACS motion controller and ACS driver module for 2 axes in a compact housing, directly compatible with positioners from PI.

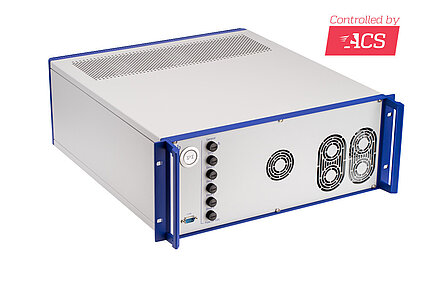

G-901 Motion Controller for High Power Requirement

Integrated Driver for up to 4 Drive Axes with AC Servo Motor, DC Motor, Voice Coil Motor, Stepper Motor

C-891.130300 PIMag® Motion Controller for Magnetic Direct Drives

1 Axis, for 3-Phase Linear Motors
  • Magnetic direct drive
  • For 3-phase linear motors
  • PID controller
  • Point to point movement

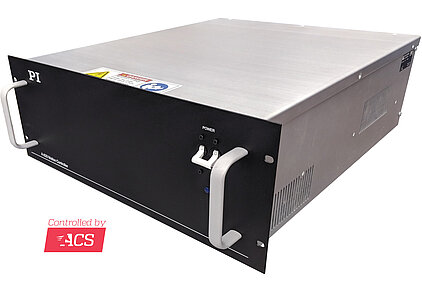

A-82x PIglide Motion Controller for 4, 6 or 8 Axes

For Stages with Direct Drive and High Power Requirements, TCP/IP Interface
  • High power motion controller for linear motor stages with air bearings. High end for industrial precision automation - linear and rotary motion.

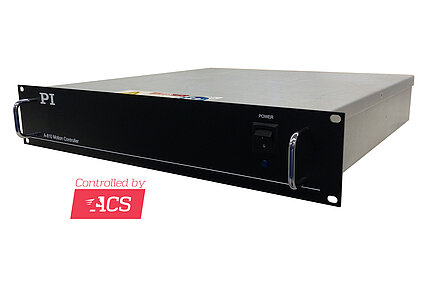

A-81x PIglide Motion Controller for 1, 2 or 4 Axes

For Stages with Direct Drive, TCP/IP Interface
  • Direct Drive, TCP/IP Interface
  • 1, 2, & 4 motion axes
  • Quiet PWM drives
  • Output 10A continuous/20A peak/axis

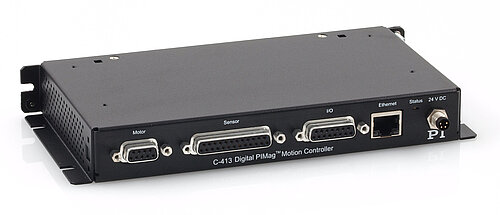

C-413 PIMag® Motion Controller

Control of Force, Position, and Velocity
  • Control: Force, Position, Velocity
  • 1 or 2 Motor Channels
  • Real-time SPI interface
  • Servo update rate to 10kHz

DC 및 브러시리스 DC(BLDC) 서보 모터용

NEW

A-811.CE PIglide Motion Controller for One Axis

For Stages with Direct Drive, TCP/IP Interface
  • Motion controller for motor stages with air bearings. High end for industrial precision automation - linear and rotary motion.

G-910.RC01 • RC03 ACS Driver Module for Low Power Requirement

For 2 Drive Axes with AC Servo Motor, DC Motor, Voice Coil Motor, Stepper Motor

G-910.RC02 Motion Controller for Low Power Requirement

Integrated Driver for up to 2 Axes, EtherCAT Master for Synchronizing up to 4 Axes
  • Fully integrated solution with ACS motion controller and ACS driver module for 2 axes in a compact housing, directly compatible with positioners from PI.

G-901 Motion Controller for High Power Requirement

Integrated Driver for up to 4 Drive Axes with AC Servo Motor, DC Motor, Voice Coil Motor, Stepper Motor

A-82x PIglide Motion Controller for 4, 6 or 8 Axes

For Stages with Direct Drive and High Power Requirements, TCP/IP Interface
  • High power motion controller for linear motor stages with air bearings. High end for industrial precision automation - linear and rotary motion.

A-81x PIglide Motion Controller for 1, 2 or 4 Axes

For Stages with Direct Drive, TCP/IP Interface
  • Direct Drive, TCP/IP Interface
  • 1, 2, & 4 motion axes
  • Quiet PWM drives
  • Output 10A continuous/20A peak/axis

C-884.4DC • C-884.6DC Motion Controller for DC Motors, 4 or 6 Axes

For Positioners with Closed-Loop DC Motor, USB, RS-232, TCP/IP, SPI, I/O, Joystick
  • 6-Axis or 4-Axis
  • Trapezoidal velocity profil
  • detailed motion system analysis
  • Cost Efficient

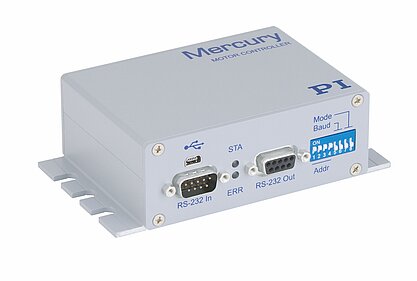

C-863 Mercury Servo Controller

1 Axis, for DC Motors and PWM Motor Drivers
  • High performance
  • Precision motion control
  • High-speed encoder input
  • Powerful programming language
  • Low cost

C-863.20C885 DC Motor Controller Module for C-885 PIMotionMaster

For DC Motors and Brushless DC Motors, 2 Axes
  • High-speed encoder input
  • PID controller
  • Powerful programming language
  • Extensive software support

스테퍼 모터용

G-910.RC01 • RC03 ACS Driver Module for Low Power Requirement

For 2 Drive Axes with AC Servo Motor, DC Motor, Voice Coil Motor, Stepper Motor

G-910.RC02 Motion Controller for Low Power Requirement

Integrated Driver for up to 2 Axes, EtherCAT Master for Synchronizing up to 4 Axes
  • Fully integrated solution with ACS motion controller and ACS driver module for 2 axes in a compact housing, directly compatible with positioners from PI.

G-901 Motion Controller for High Power Requirement

Integrated Driver for up to 4 Drive Axes with AC Servo Motor, DC Motor, Voice Coil Motor, Stepper Motor

C-663.12C885 Mercury Step Stepper Motor Controller Module

For the C-885 PIMotionMaster Modular Controller System
  • High microstep resolution
  • Fast-running motor
  • Closed-loop operation
  • Fast startup

C-663.12 Mercury Step Stepper Motor Controller, 1 Axis

For Closed-Loop and Open-Loop Operation, HD Sub-D 26, 48 V
  • High microstep resolution
  • Closed- & Open-Loop Operation
  • Operating voltage up to 48 V
  • Support for external sensors
