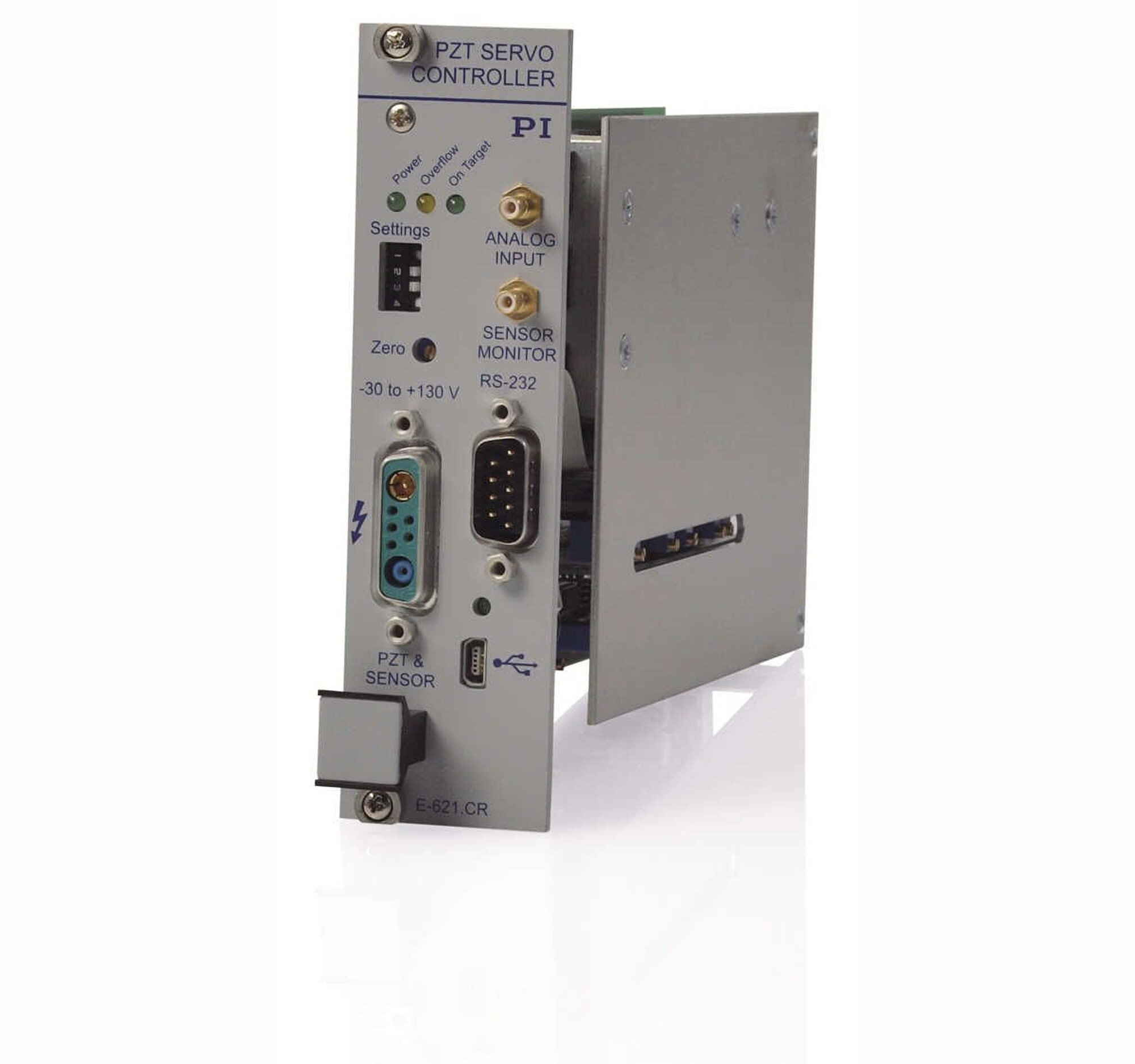

E-621 Piezo Amplifier / Servo Controller Module
1 Channel, for Capacitive or Strain Gauge Sensors, Fast USB Interface
- Integrated 24-bit USB interface

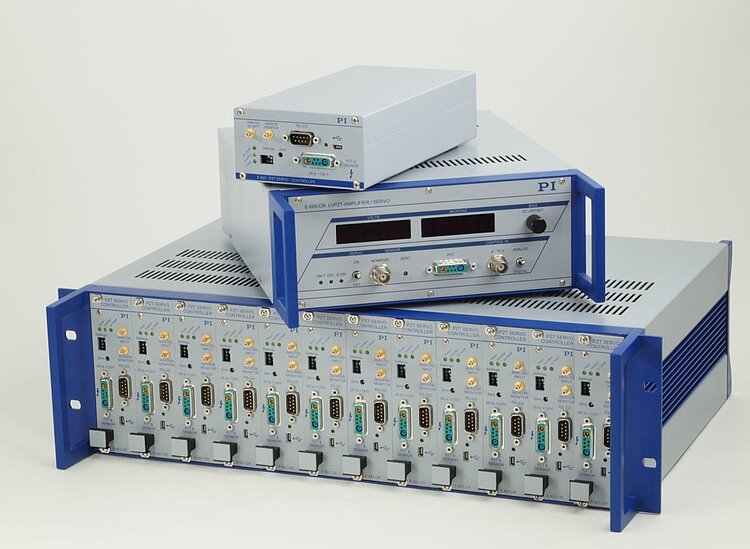

- Network capability with up to 12 channels
- Peak current up to 120mA
- Position control for SGS and capacitive sensors
- Notch filter for higher bandwidth
- Additional broadband analog interface

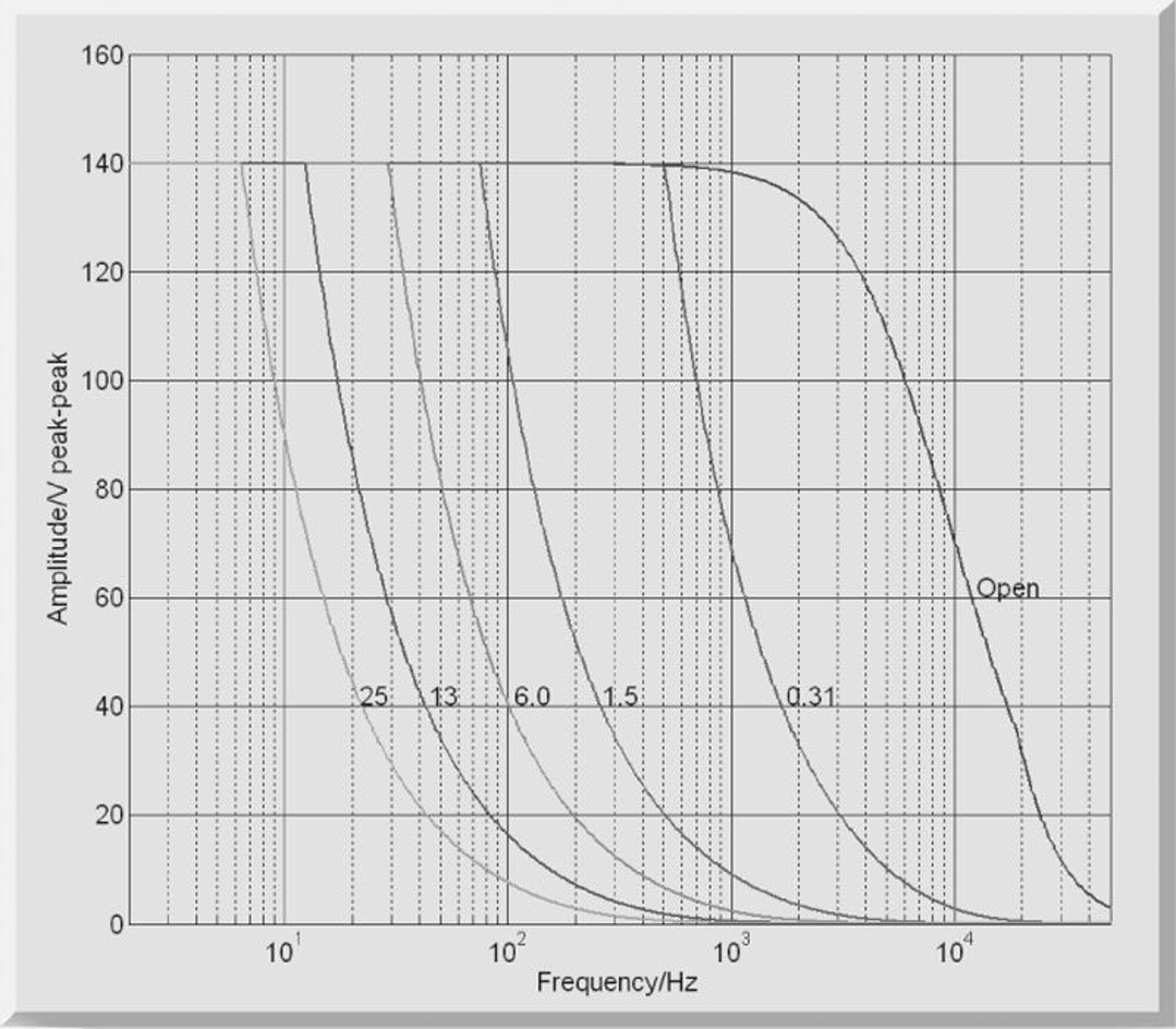

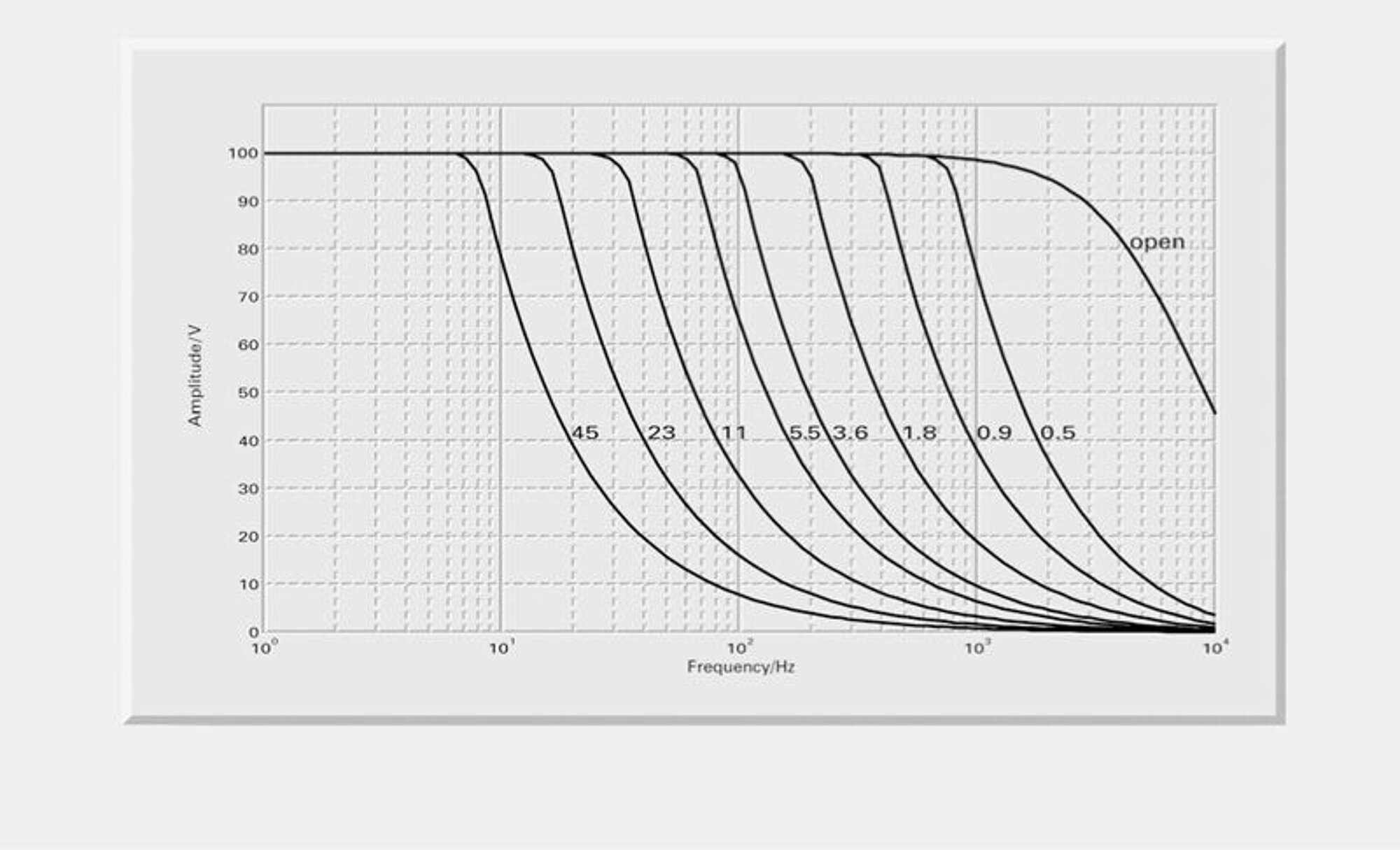

Piezo servo controller with position control
1 channel. Position control for capacitive or strain gauge sensors. RS-232 and USB computer interfaces, high-resolution 24-bit transducers. Low-noise amplifier for inputting and outputting peak currents of 120 mA in the low-voltage range.
Specifications
Specifications
Interfaces and operation | E-621.SR / E-621.CR |
---|---|
Communication interfaces | USB, RS-232 (Sub-D 9 (m)), 24-bit A/D, 20-bit D/A |
Piezo connection | LEMO ERA.00.250.CTL (.SR) / Sub-D special (.CR) |
Sensor connection | LEMO EPL.0S.304.HLN (.SR) / Sub-D special (.CR) |
Analog input | SMB |
Sensor monitor output | SMB |
Controller network | up to 12 channels, parallel |
Command set | PI General Command Set (GCS) |
User software | PIMikroMove |
Software drivers | NI LabVIEW drivers, DLLs |
Supported functions | Wave table, 256 data points, external trigger, 16 macros |
DC offset setting | External potentiometer (not in the scope of delivery), adds 0 to 10 V to the input voltage |
