L-886 Compact and Versatile Goniometer

High-Performance and Cost-Efficient

  • Compact design; 60 mm wide, low height
  • Rotation range from 12° to 17°
  • Load capacity up to 35 N
  • Stepper motor
  • Linear encoder
  • Can be mounted onto L-836
L-886 Compact and Versatile Goniometer
제품 설명 사양 다운로드 견적 / 주문

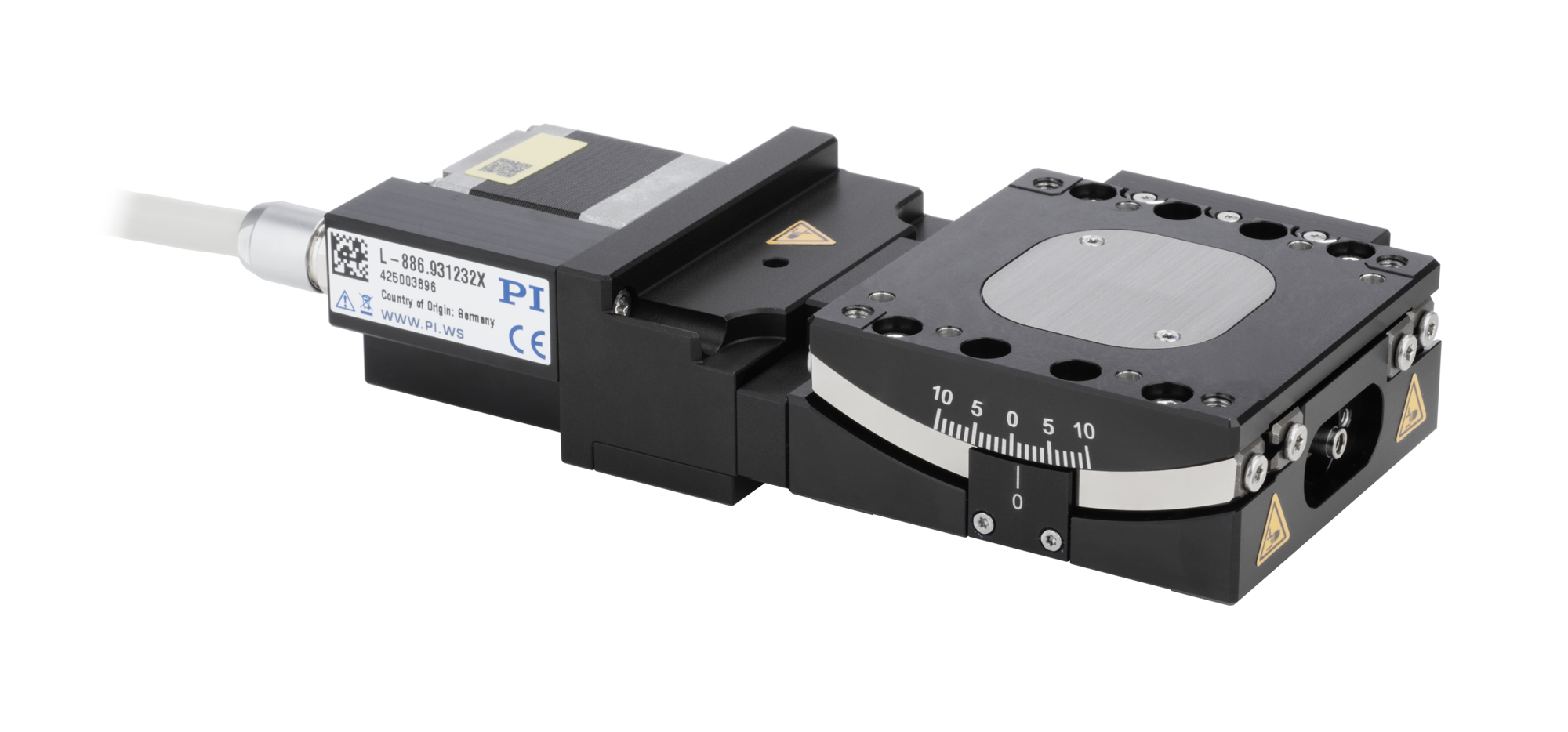

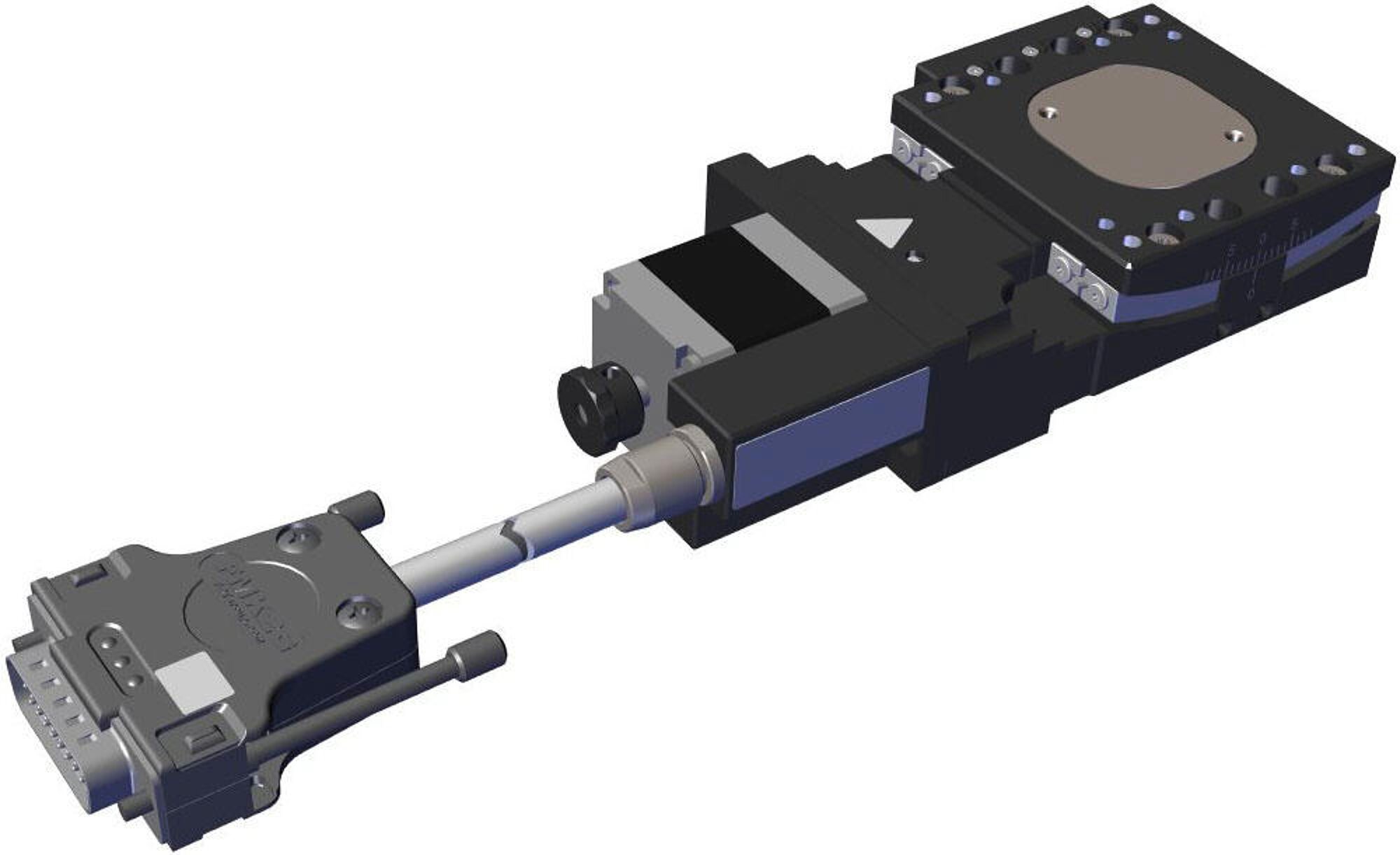

Precision-class goniometer stage

The L-886 spindle-driven goniometer stages are ideally suited for industrial applications requiring high performance in a compact design. Their high performance is powered by high-resolution stepper motors, high-precision four-point bearings, and precision linear encoders.

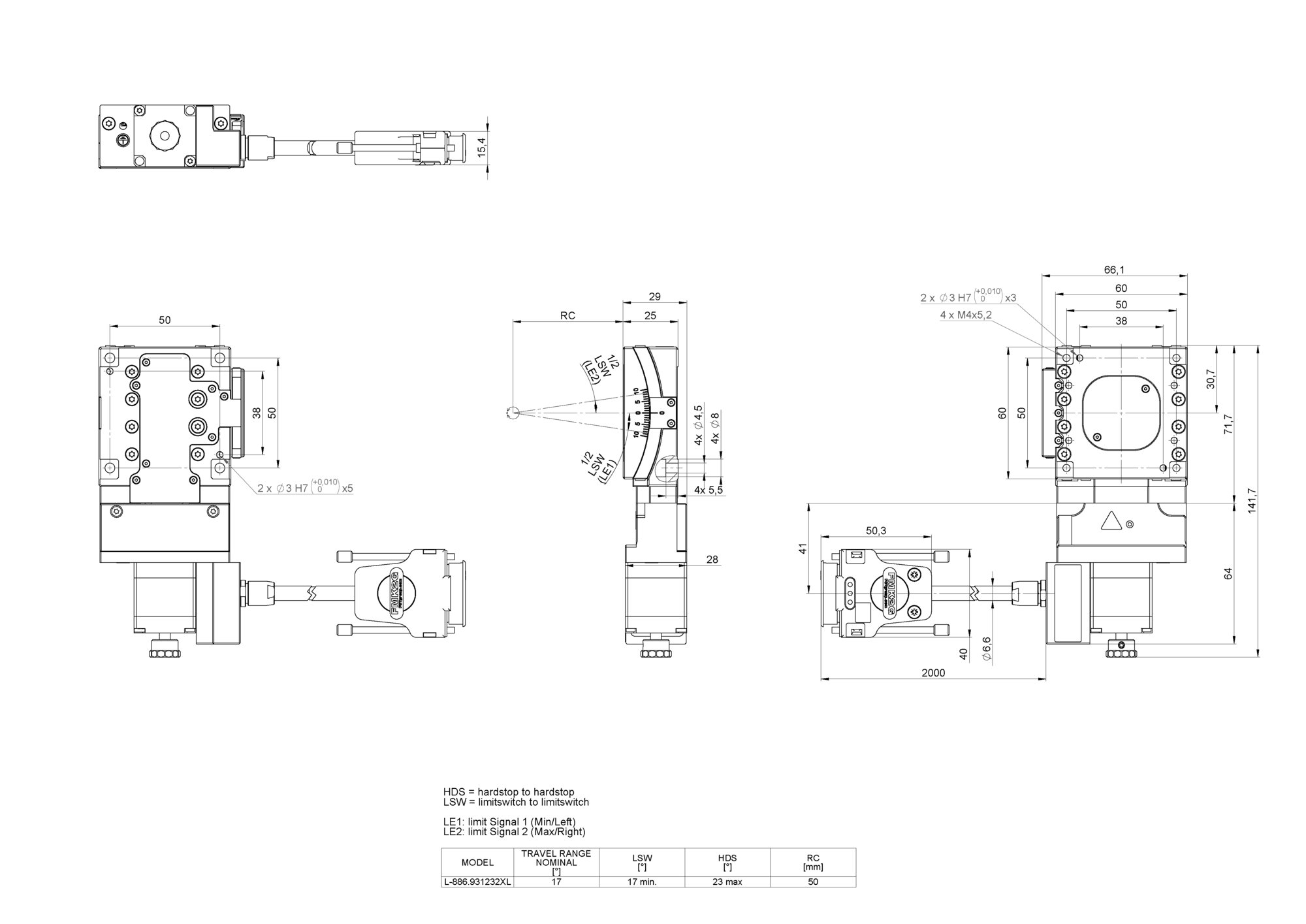

Combination options

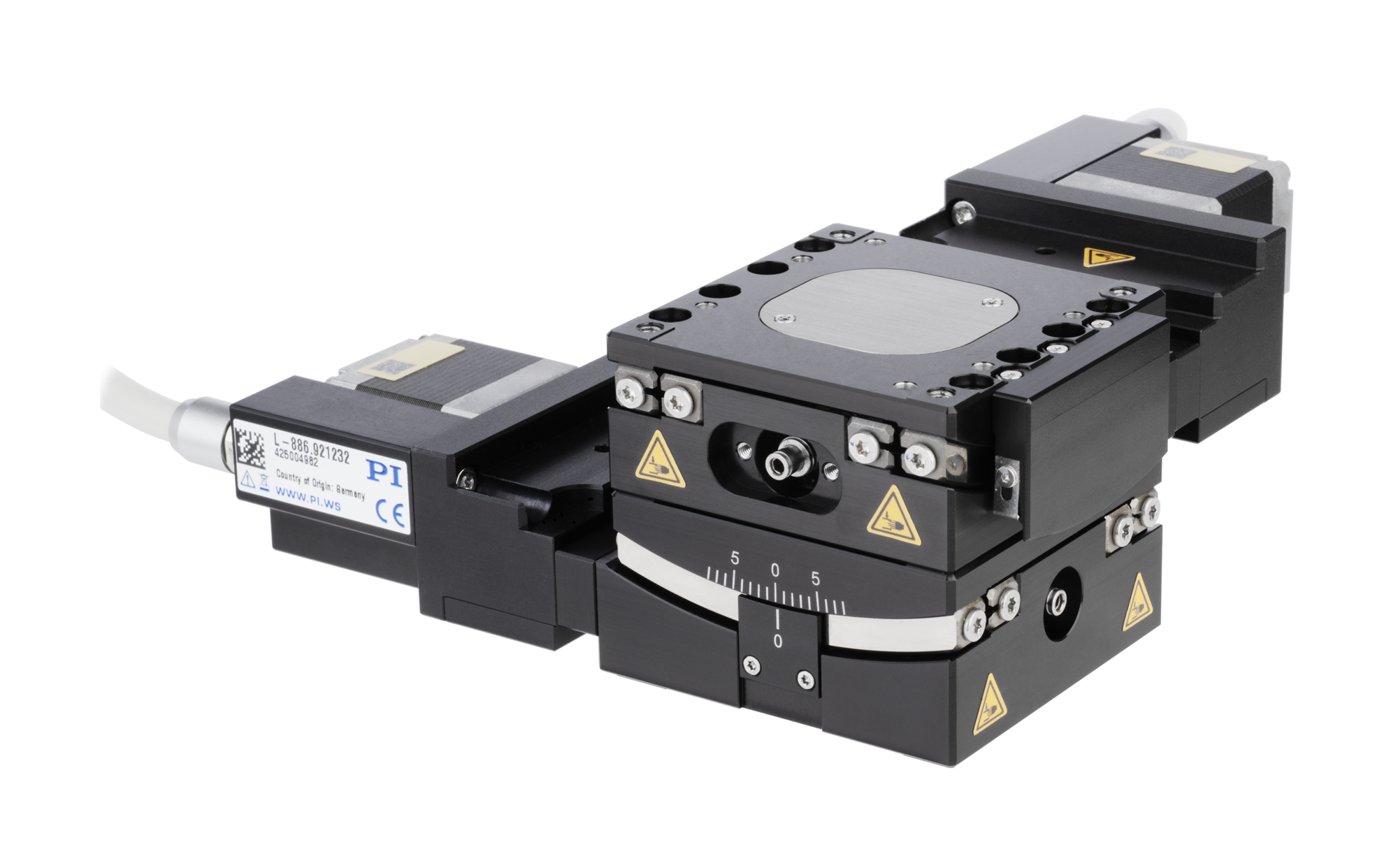

The goniometers can be mounted onto L-836 linear stages. The L-886 models are stackable for 2-axis motion. If an L-886.931232X is mounted onto an L-886.921232[X], the models will have a common center of rotation.

Stepper motor and digital linear encoder

High-resolution 2-phase motors offer performance comparable to that of 5-phase stepper motors, but without the need for expensive drive electronics. Additional linear encoders provide high repeatability during operation.

Application fields

Photonics. Precision micro-assembly. Applications that require dynamic performance and precision, reliable repeatability, and short settling times.





Specifications

Datasheet

Datasheet L-886

버전 / 날짜
2025-10-02
pdf - 595 KB
버전 / 날짜
2025-10-02
pdf - 594 KB

Downloads

Datasheet

Datasheet

Datasheet L-886

버전 / 날짜
2025-10-02
pdf - 595 KB
버전 / 날짜
2025-10-02
pdf - 594 KB

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

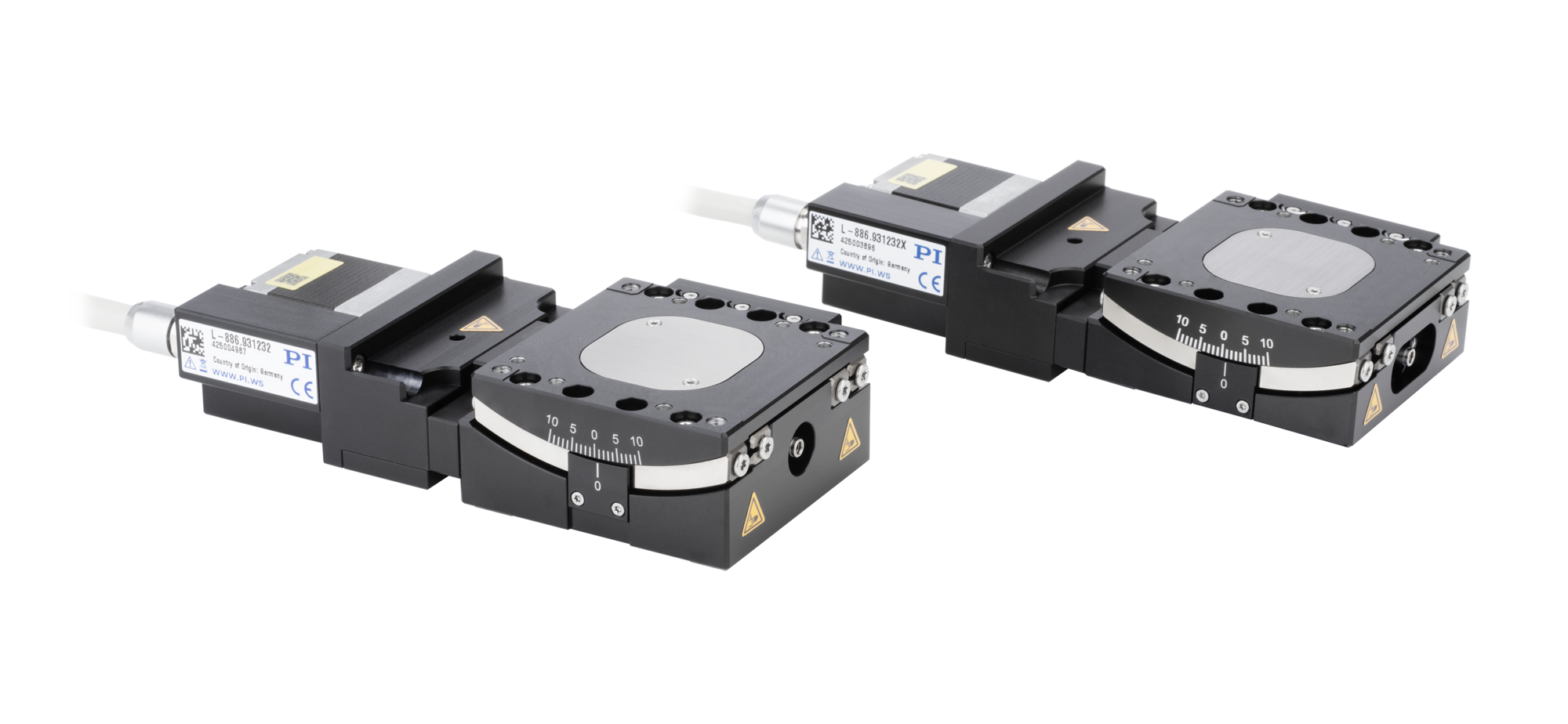

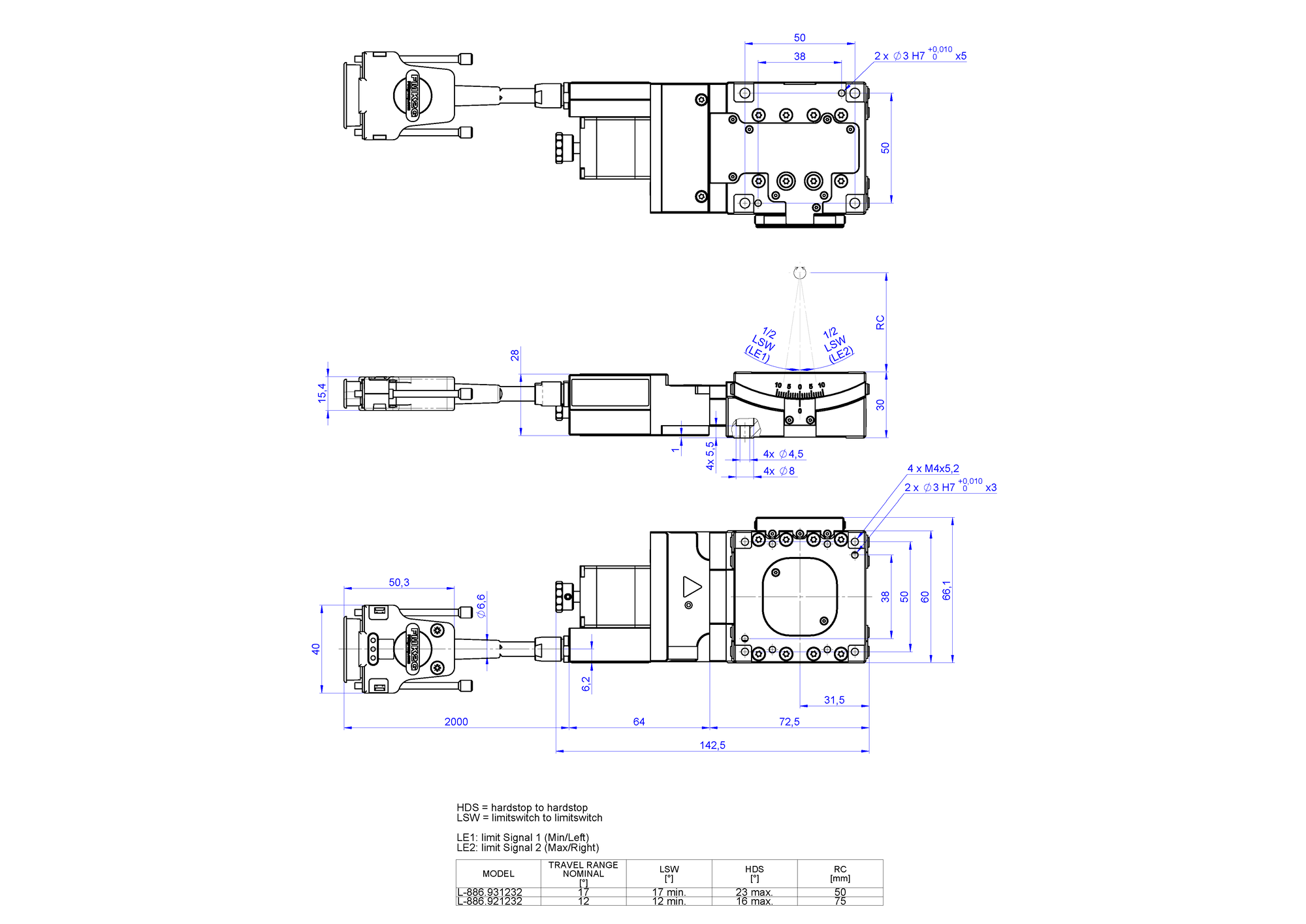

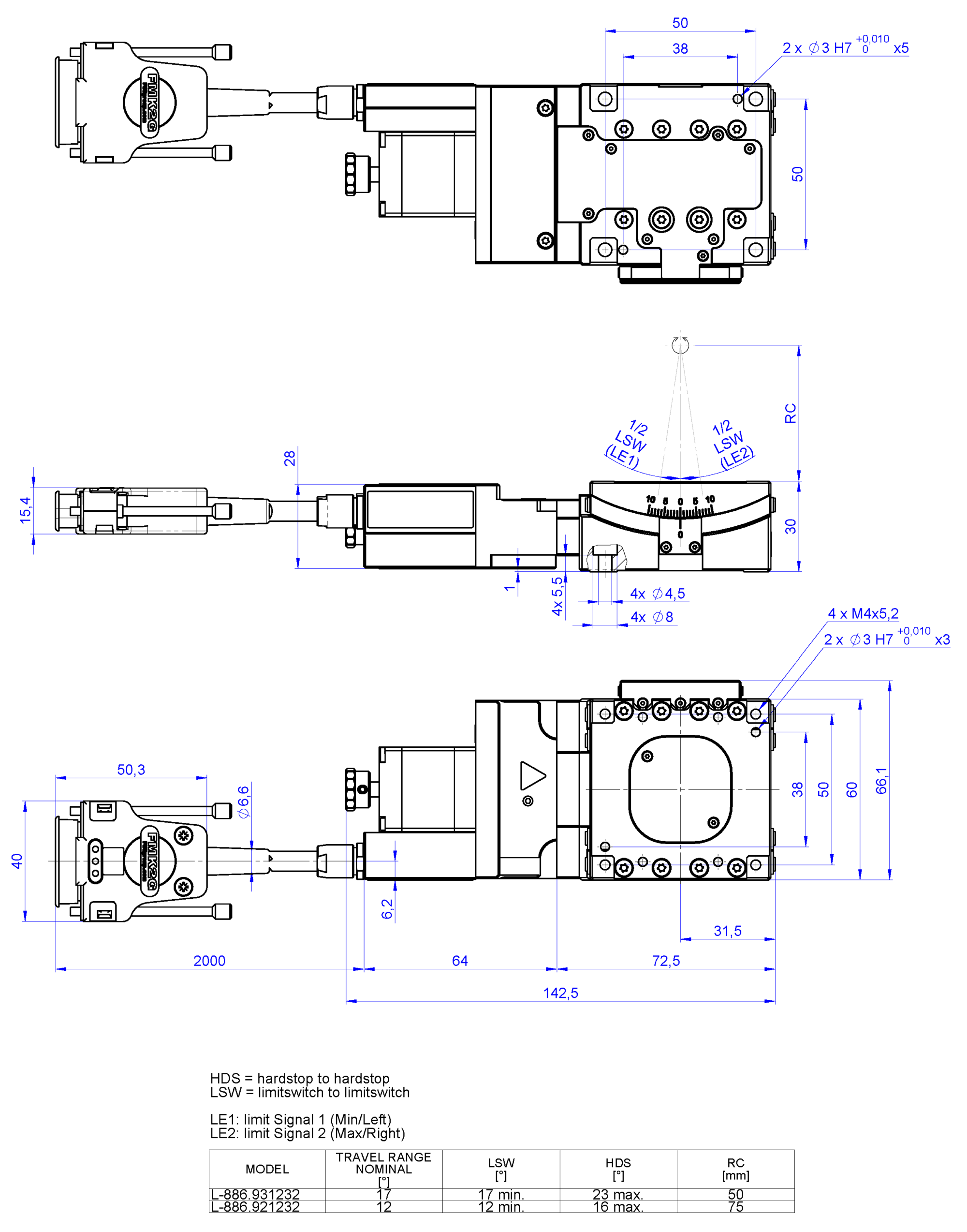

L-886.921232 NEW!

Goniometer with flat contact surface; 12° rotational angle; 75 mm distance pivot point to platform; 2-phase stepper motor; 35 N load capacity; 10°/s maximum angular velocity; ball screw; incremental linear encoder, 0.8305 µrad sensor resolution, rotational, A/B quadrature, RS-422; magnetic limit switches

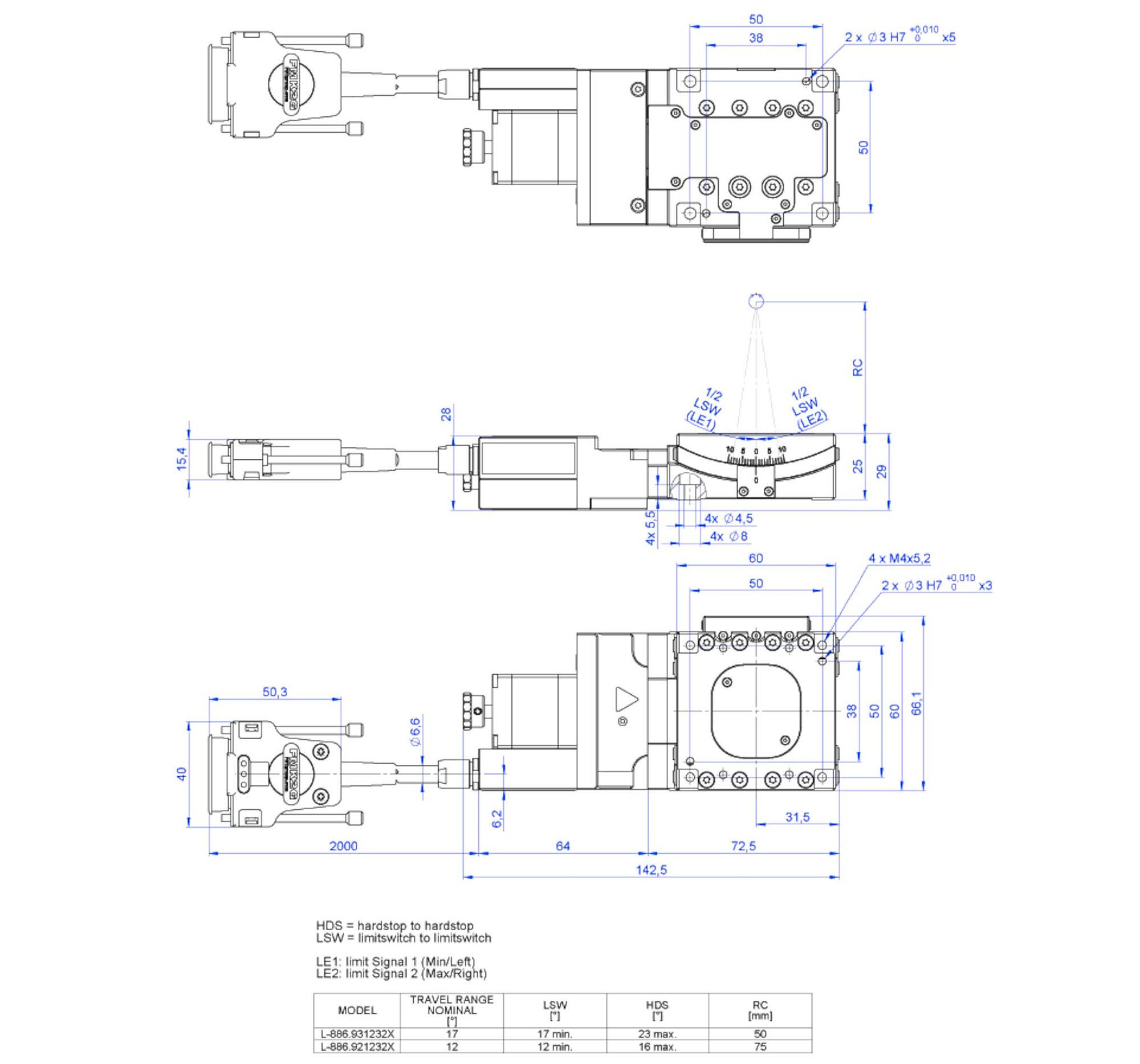

L-886.921232X NEW!

Goniometer for stacked systems; 12° rotational angle; 75 mm distance pivot point to platform; 2-phase stepper motor; 35 N load capacity; 10°/s maximum angular velocity; ball screw; incremental linear encoder, 0.8305 µrad sensor resolution, rotational, A/B quadrature, RS-422; magnetic limit switches

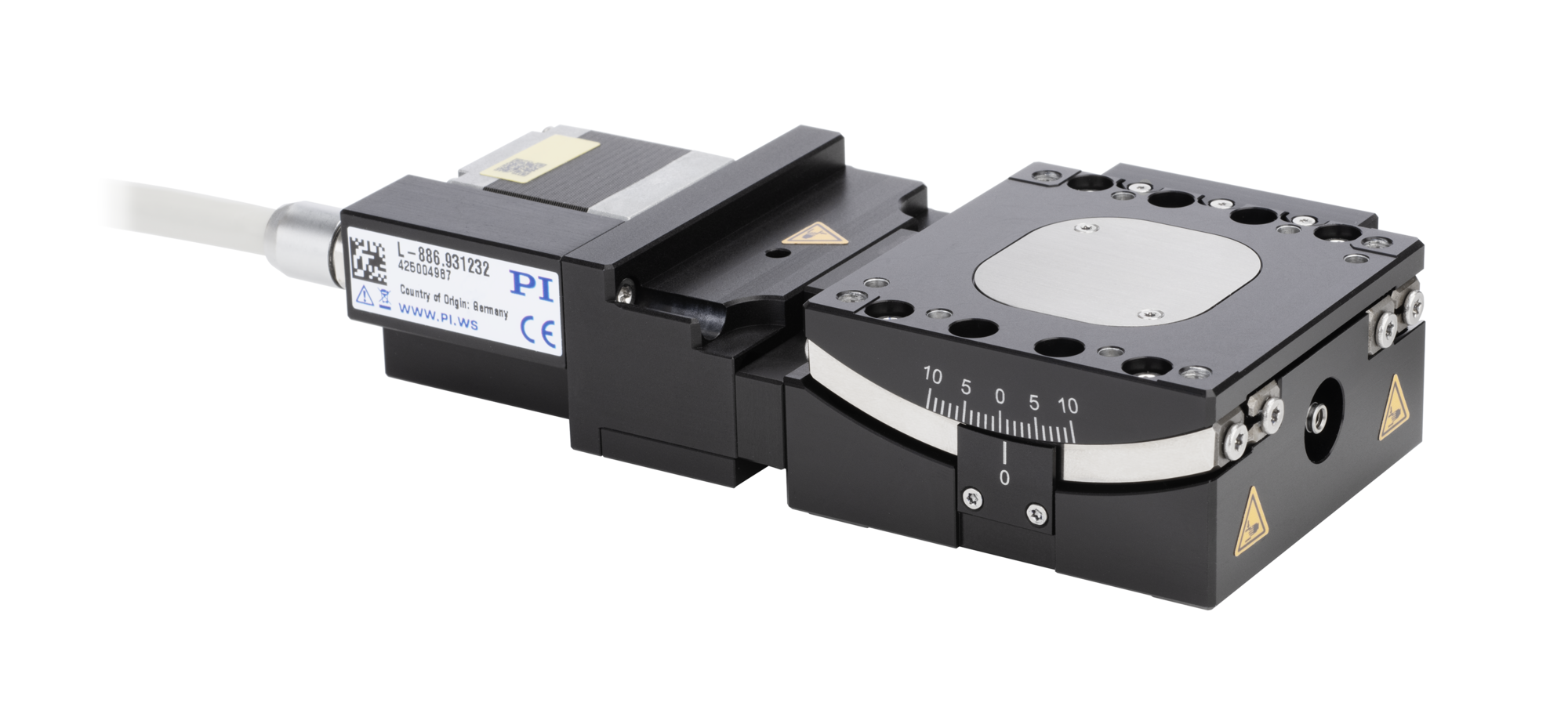

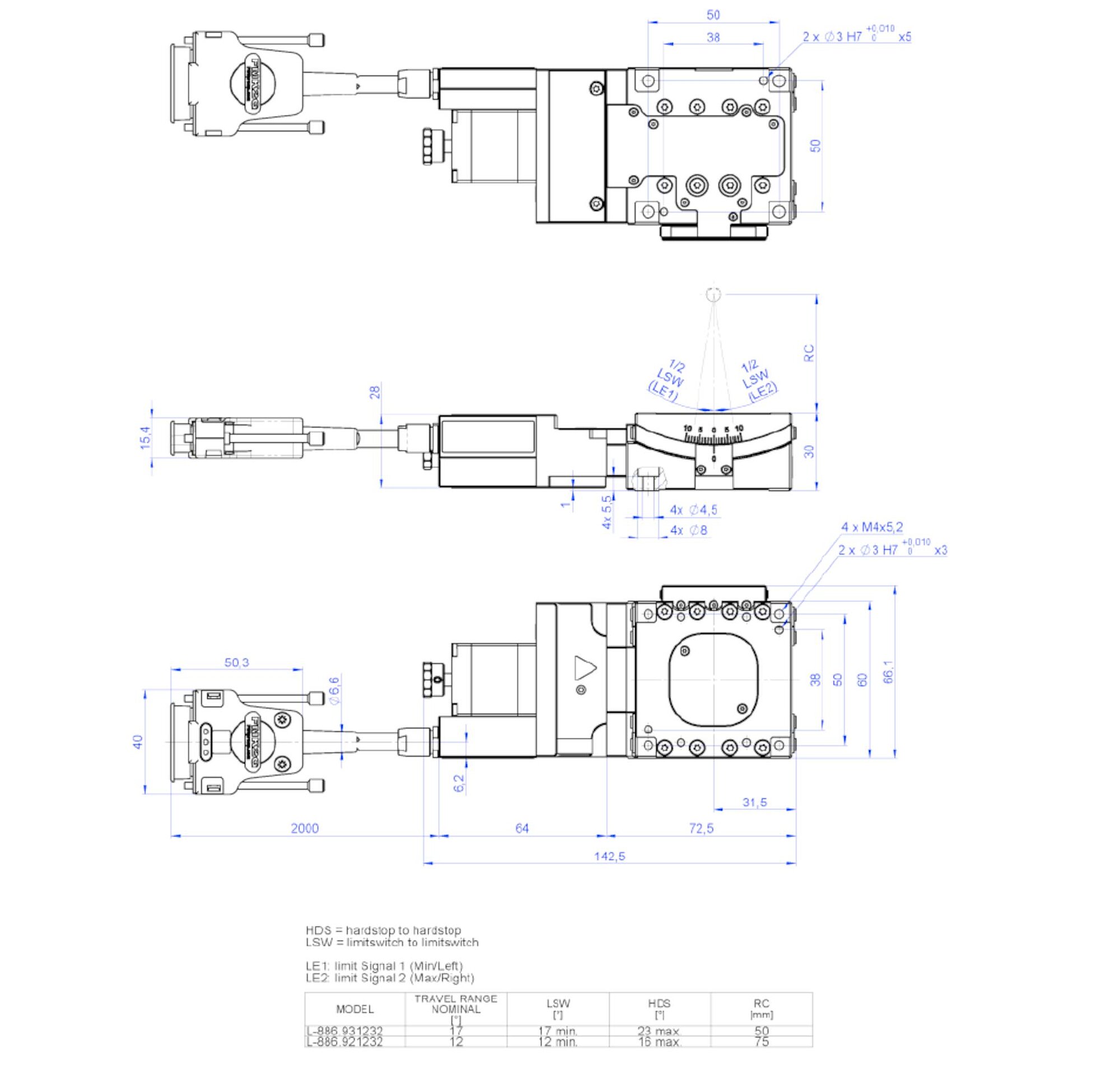

L-886.931232 NEW!

Goniometer with flat contact surface; 17° rotational angle; 50 mm distance pivot point to platform; 2-phase stepper motor; 35 N load capacity; 10°/s maximum angular velocity; ball screw; incremental linear encoder, 1.122 µrad sensor resolution, rotational, A/B quadrature, RS-422; magnetic limit switches

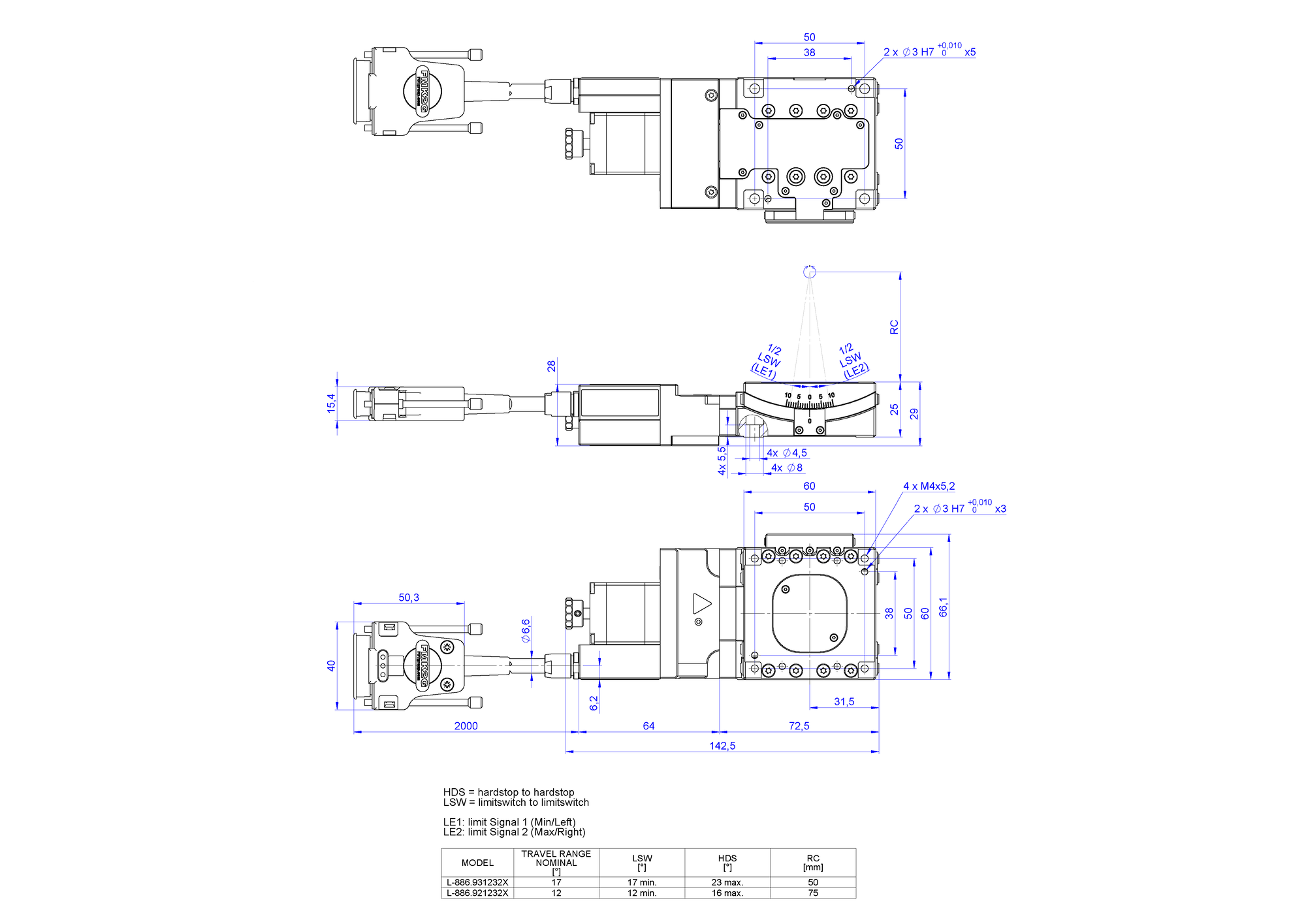

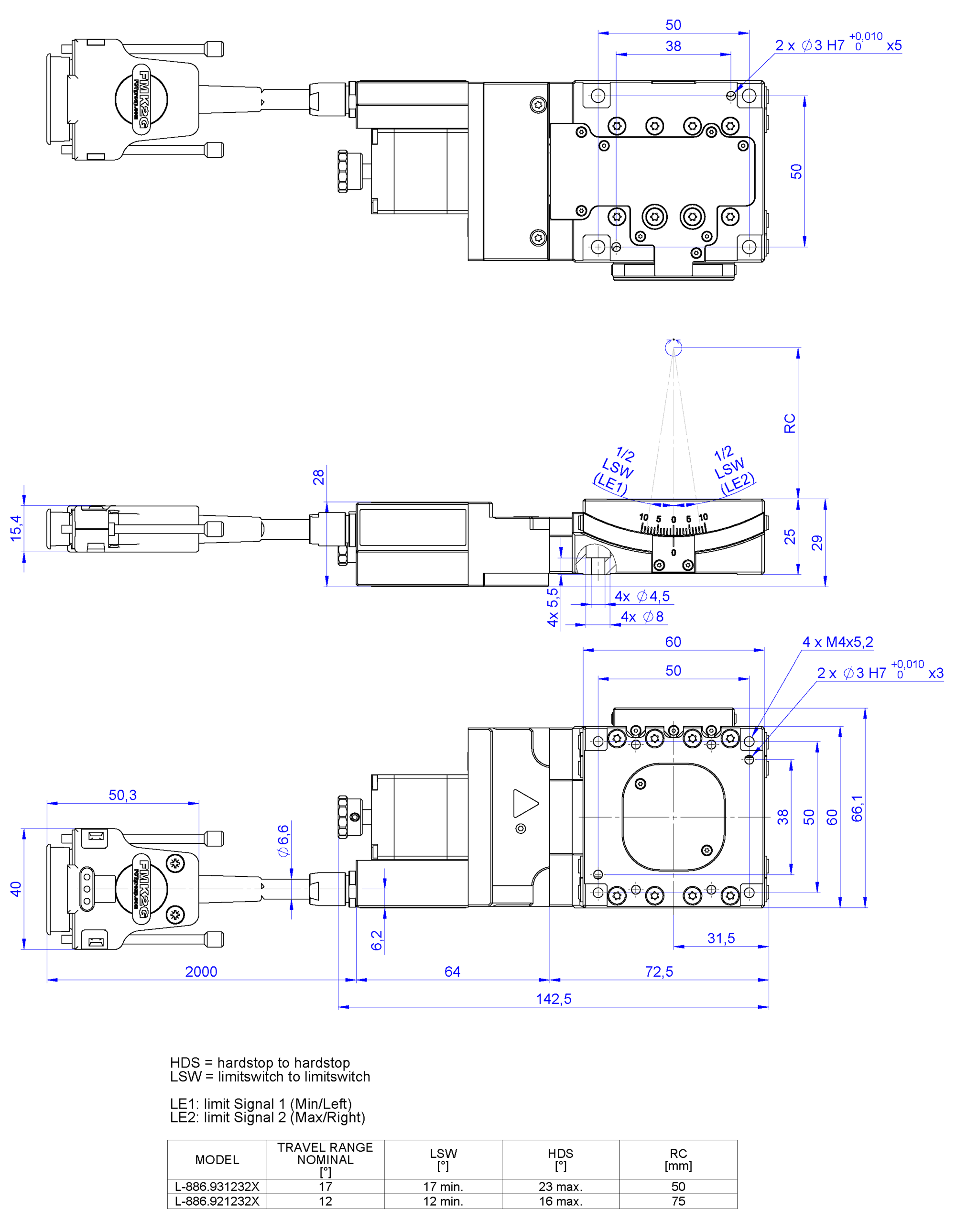

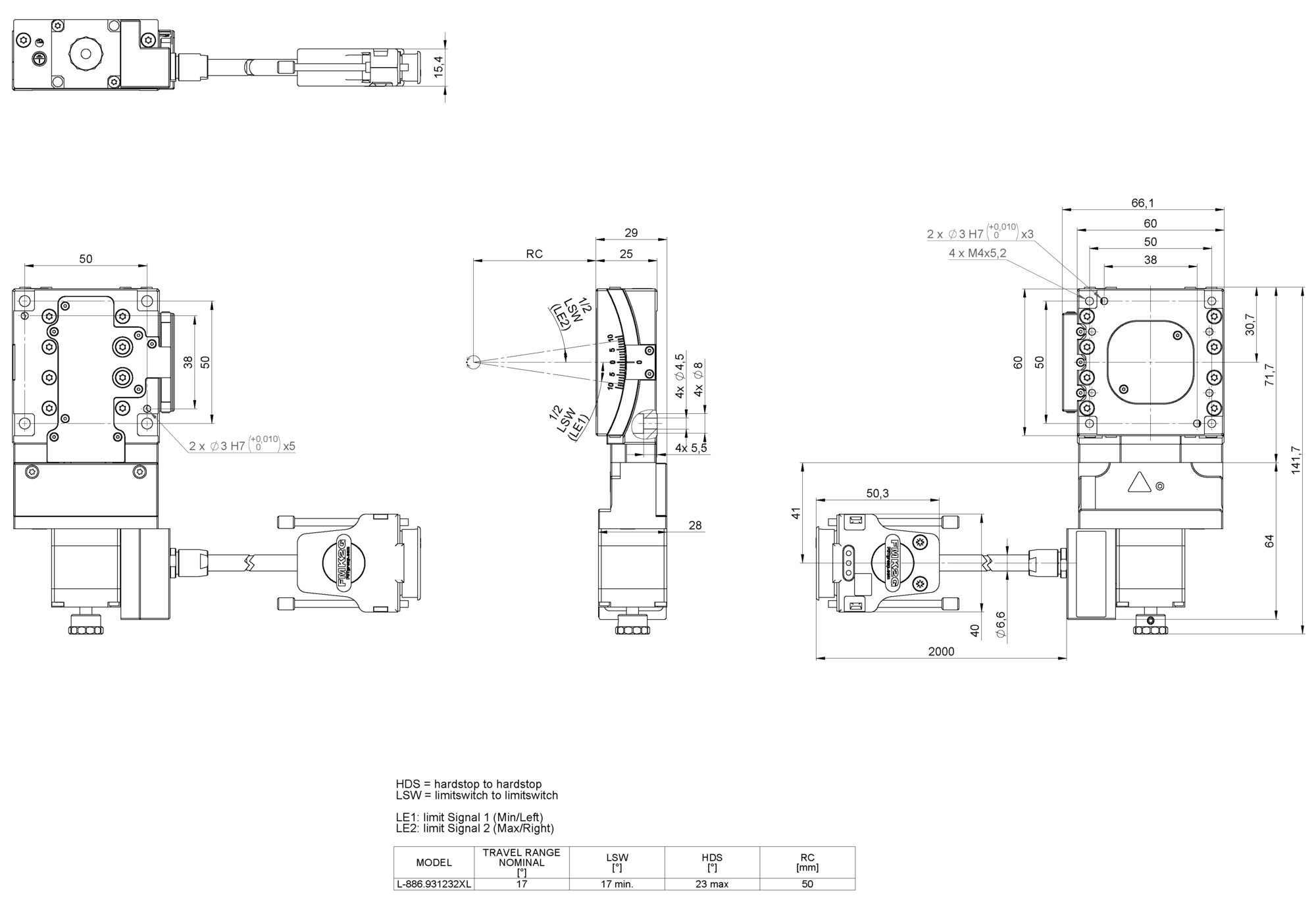

L-886.931232X NEW!

Goniometer for stacked systems; 17° rotational angle; 50 mm distance pivot point to platform; 2-phase stepper motor; 35 N load capacity; 10°/s maximum angular velocity; ball screw; incremental linear encoder, 1.122 µrad sensor resolution, rotational, A/B quadrature, RS-422; magnetic limit switches
