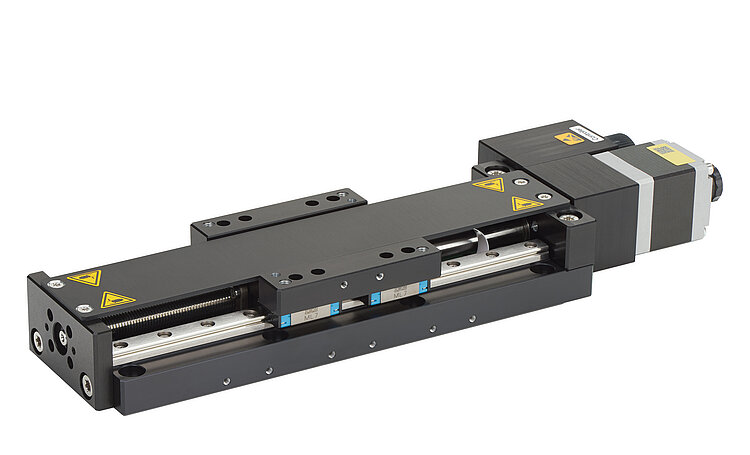

L-836.501200D
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 25 mm travel range; 150 N load capacity; 40 mm/s maximum velocity; ball screw
L-836 Stackable, Highly Compact, Universal Linear Stage
Versatile in Use • Spindle Drive • Cost Effective • Suitable for Industrial Applications in X, XY, & XYZ
- Width 60 mm, low profile
- Travel ranges from 25 mm to 200 mm, load capacity to 150 N
- Precision ball screw and recirculating ball bearing guides
- Stepper motor, optionally with folded drivetrain for an even more compact design
- Optional linear encoder
- Models with holding brake for vertical mounting

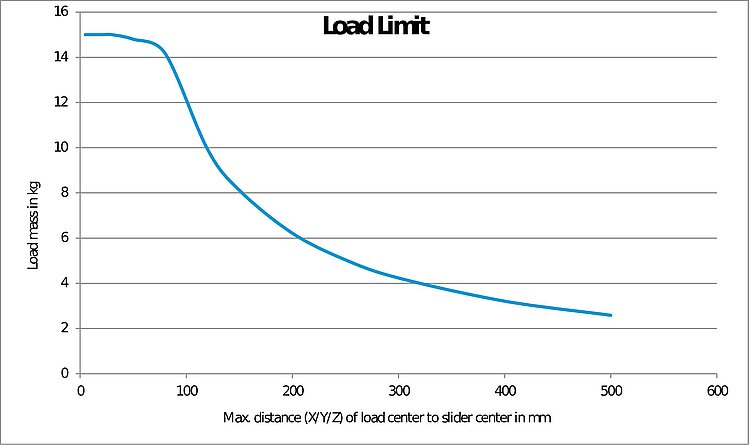

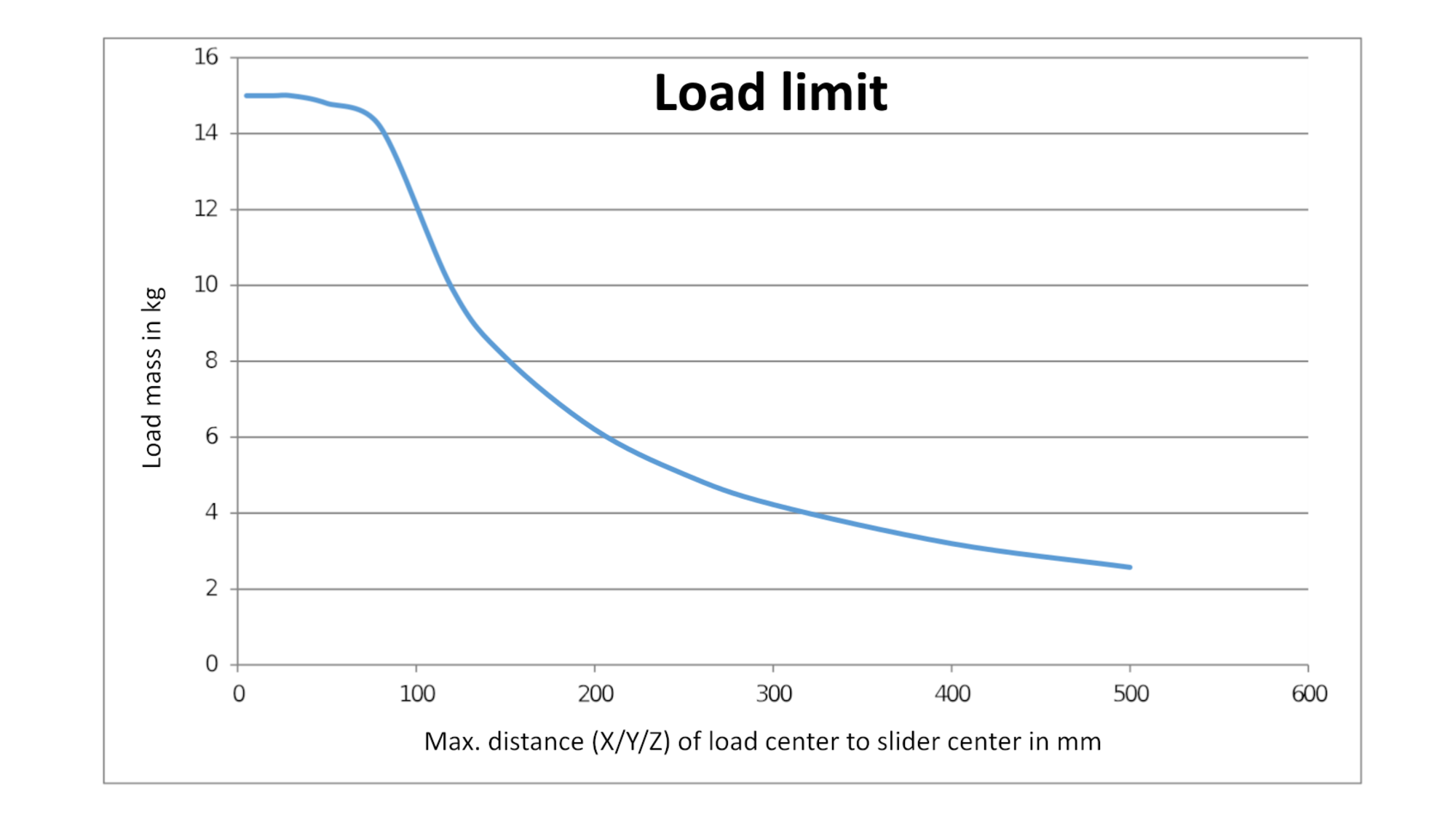

Load limit of the L-836 depending on the load mass and the distance between the load's center of gravity and the center of the slider

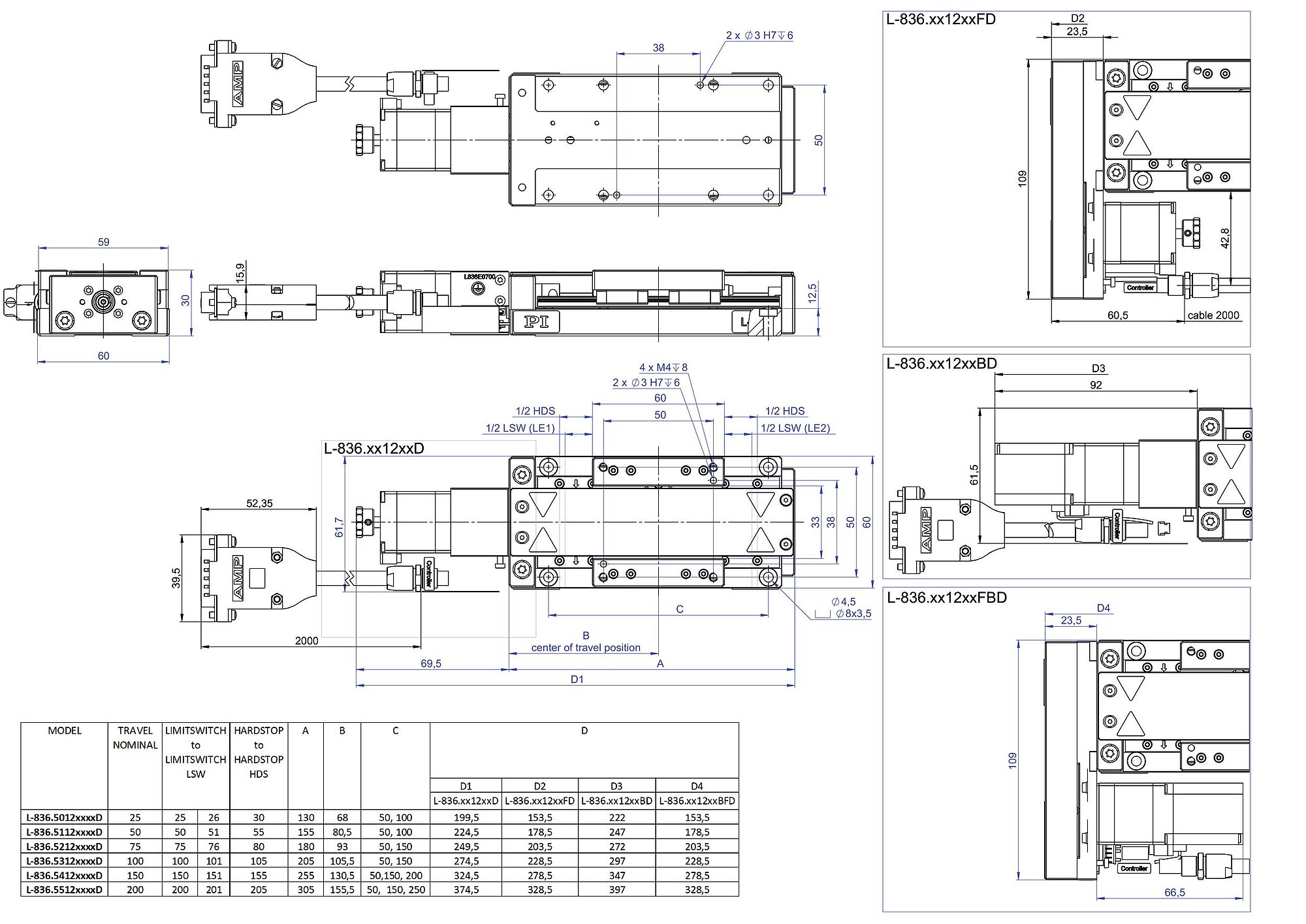

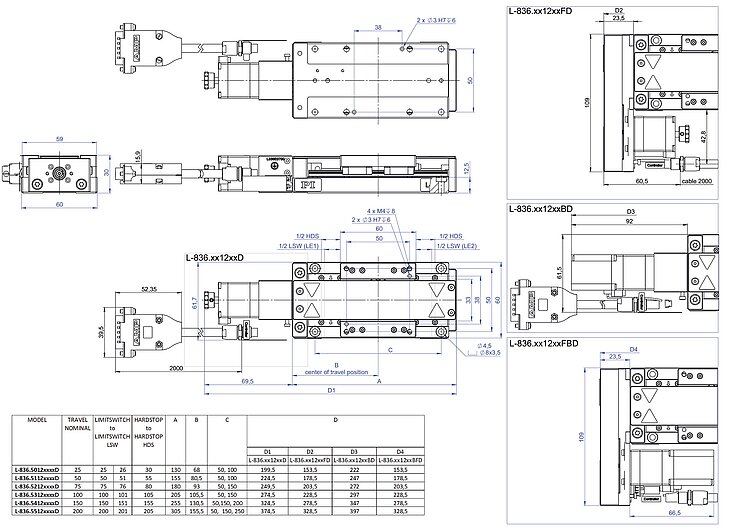

L-836.xx12xx[x[x]]D, dimensions in mm

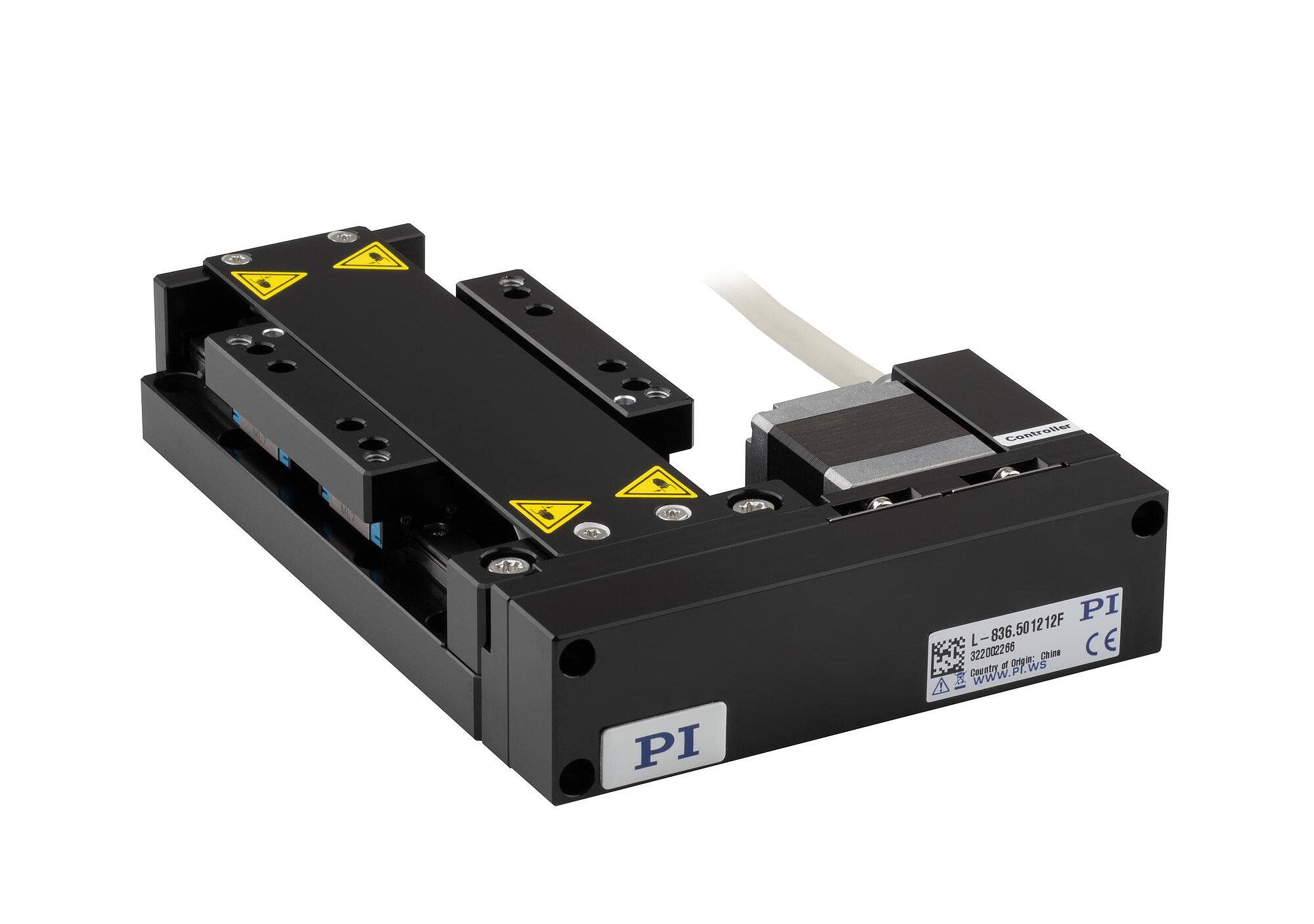

L-836.501212FD

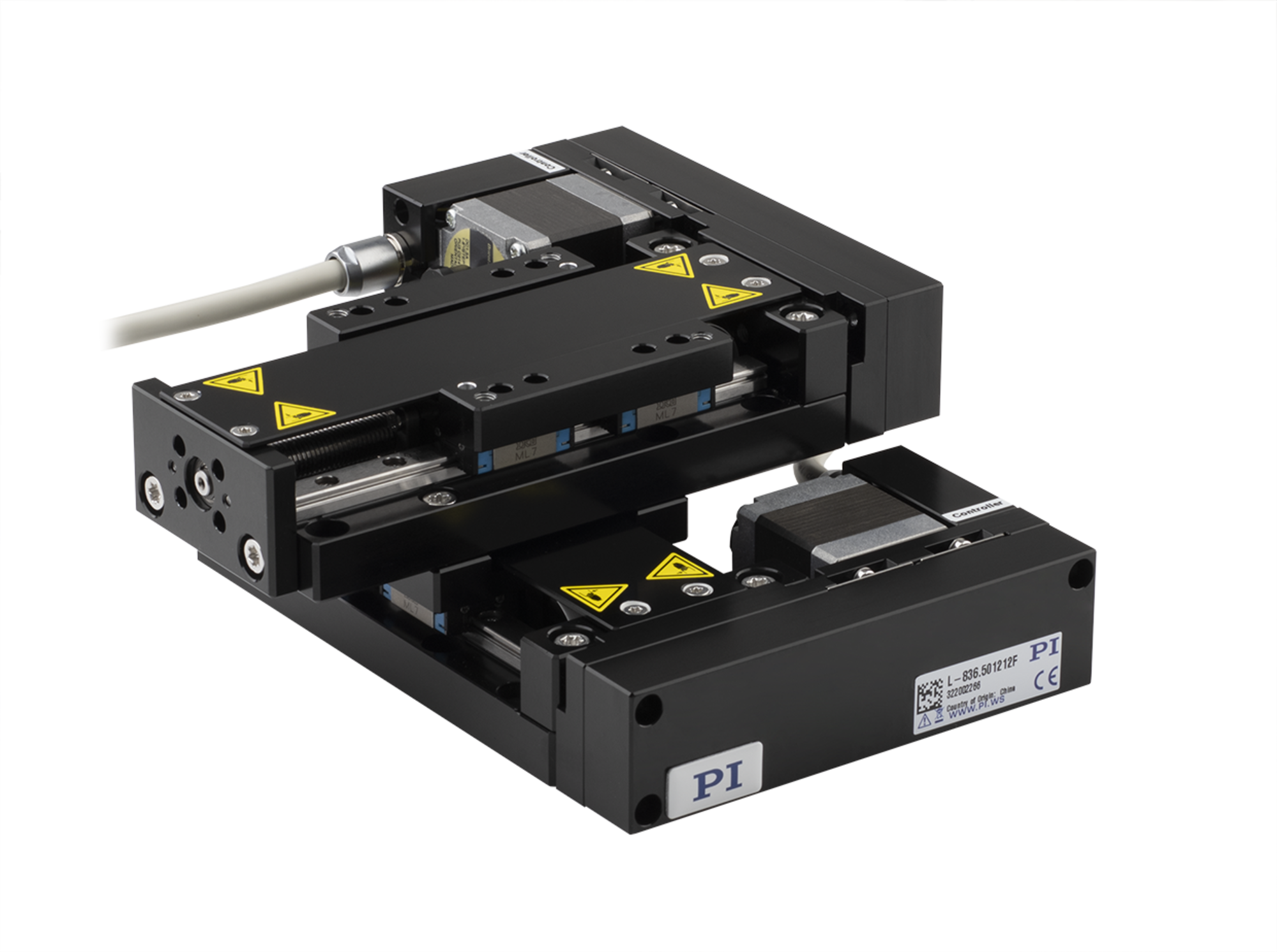

XY setup of two L-836.501212FD linear stages
L-836 Stackable, Highly Compact, Universal Linear Stage
제품 설명
사양
다운로드
견적 / 주문
The L-836 linear stage series with precision ball screw is suited for industrial applications that require high performance in compact design. High performance is achieved by high-resolution stepper motors, precision recirculating ball bearing guides, and precision linear encoders.
Application and use cases
Laser materials processing
Testing capability
Electronics manufacturing
Optical cable manufacturing
Optics assembly
Quantum photonics
Silicon photonics
Innovative manufacturing technologies
Additive manufacturing processes
Technology
Pioneering design
Optional features make the L-836 a versatile stage for a wide range of applications requiring high resolution, high repeatability, and high velocity in a compact design. The foldback option allows the motor to be mounted on the side of the stage, which further reduces the system's footprint.
Stepper motors and digital linear encoders
High-resolution 2-phase motors offer performance comparable to that of 5-phase stepper motors, but without the need for expensive drive electronics. Stages with longer travel ranges reach even higher velocities. Additional linear encoders provide high repeatability during operation.
Options
Digital incremental linear encoder
Stepper motor with foldback option for reduced overall length
Optional accessories: L-836.APx mounting bracket
Specifications
Specifications
Motion | Tolerance | L-836.501200D | L-836.501200FD | L-836.501212D | L-836.501212FD |
|---|---|---|---|---|---|
Active axes |
| X | X | X | X |
Travel range in X [mm] |
| 25 | 25 | 25 | 25 |
Acceleration in X, unloaded [m/s2] | max. | 2 | 2 | 2 | 2 |
Maximum velocity in X, unloaded [mm/s] |
| 40 | 40 | 40 | 40 |
Straightness error in Y (straightness) [µm] | max. | ±2 | ±2 | ±2 | ±2 |
Straightness error in Z (flatness) [µm] | max. | ±2 | ±2 | ±2 | ±2 |
Angular error around Y (pitch) [µrad] | max. | ±60 | ±60 | ±60 | ±60 |
Angular error around Z (yaw) [µrad] | max. | ±60 | ±60 | ±60 | ±60 |
Positioning | Tolerance | L-836.501200D | L-836.501200FD | L-836.501212D | L-836.501212FD |
|---|---|---|---|---|---|
Minimum incremental motion in X [µm] | max. | 0.3 | 0.4 | 0.24 | 0.24 |
Positioning accuracy in X, uncalibrated [µm] | max. | ±6 | ±6 | ±6 | ±6 |
Bidirectional repeatability in X [µm] | max. | 2 | 4 | 0.8 | 0.8 |
Reference switch |
| Hall effect | Hall effect | Hall effect | Hall effect |
Limit switch |
| Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN |
Integrated sensor |
| — | — | Incremental linear encoder | Incremental linear encoder |
Sensor signal |
| — | — | A/B quadrature, RS-422 | A/B quadrature, RS-422 |
Sensor signal period [µm] |
| — | — | 80 | 80 |
Sensor resolution [nm] 1) |
| — | — | 80 | 80 |
Drive properties | Tolerance | L-836.501200D | L-836.501200FD | L-836.501212D | L-836.501212FD |
|---|---|---|---|---|---|
Drive type |
| 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor |
Operating voltage [V] |
| 24 to 48 | 24 to 48 | 24 to 48 | 24 to 48 |
Nominal current, RMS [A] | typ. | 1.5 | 1.5 | 1.5 | 1.5 |
Maximum power consumption [W] |
| 7 | 7 | 8 | 8 |
Motor resolution [full steps/U] |
| 200 | 200 | 200 | 200 |
Drive force in X [N] | typ. | 75 | 75 | 75 | 75 |
Resistance phase-phase [Ω] 2) | typ. | 1.18 | 1.18 | 1.18 | 1.18 |
Inductance phase-phase [mH] |
| 0.96 | 0.96 | 0.96 | 0.96 |
Mechanical properties | Tolerance | L-836.501200D | L-836.501200FD | L-836.501212D | L-836.501212FD |
|---|---|---|---|---|---|
Permissible push force in Y [N] | max. | 50 | 50 | 50 | 50 |
Permissible push force in Z [N] | max. | 150 | 150 | 150 | 150 |
Permissible torque in θX [Nm] | max. | 15 | 15 | 15 | 15 |
Permissible torque in θY [Nm] | max. | 15 | 15 | 15 | 15 |
Permissible torque in θZ [Nm] | max. | 10 | 10 | 10 | 10 |
Holding force in X, passive [N] |
| — | — | — | — |
Moved mass in X, unloaded [g] |
| 130 | 130 | 140 | 140 |
Drive screw type |
| Ball screw | Ball screw | Ball screw | Ball screw |
Drive screw pitch [mm] |
| 1 | 1 | 1 | 1 |
Guide |
| Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide |
Overall mass [g] |
| 710 | 770 | 720 | 780 |
Material |
| Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel |
Holding brake |
| — | — | — | — |
Miscellaneous | L-836.501200D | L-836.501200FD | L-836.501212D | L-836.501212FD |
|---|---|---|---|---|
Operating temperature range [°C] | 5 to 40 | 5 to 40 | 5 to 40 | 5 to 40 |
Connector | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) |
Recommended controllers/drivers | C-663 G-901 G-910 ACS modular controller | C-663 G-901 G-910 ACS modular controller | C-663 G-901 G-910 ACS modular controller | C-663 G-901 G-910 ACS modular controller |
Motion | Tolerance | L-836.511200D | L-836.511200FD | L-836.511212D | L-836.511212FD |
|---|---|---|---|---|---|
Active axes |
| X | X | X | X |
Travel range in X [mm] |
| 50 | 50 | 50 | 50 |
Acceleration in X, unloaded [m/s2] | max. | 2 | 2 | 2 | 2 |
Maximum velocity in X, unloaded [mm/s] |
| 40 | 40 | 40 | 40 |
Straightness error in Y (straightness) [µm] | max. | ±2 | ±2 | ±2 | ±2 |
Straightness error in Z (flatness) [µm] | max. | ±2 | ±2 | ±2 | ±2 |
Angular error around Y (pitch) [µrad] | max. | ±100 | ±100 | ±100 | ±100 |
Angular error around Z (yaw) [µrad] | max. | ±100 | ±100 | ±100 | ±100 |
Positioning | Tolerance | L-836.511200D | L-836.511200FD | L-836.511212D | L-836.511212FD |
|---|---|---|---|---|---|
Minimum incremental motion in X [µm] | max. | 0.3 | 0.4 | 0.24 | 0.24 |
Positioning accuracy in X, uncalibrated [µm] | max. | ±13 | ±13 | ±13 | ±13 |
Bidirectional repeatability in X [µm] | max. | 2 | 4 | 0.8 | 0.8 |
Reference switch |
| Hall effect | Hall effect | Hall effect | Hall effect |
Limit switch |
| Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN |
Integrated sensor |
| — | — | Incremental linear encoder | Incremental linear encoder |
Sensor signal |
| — | — | A/B quadrature, RS-422 | A/B quadrature, RS-422 |
Sensor signal period [µm] |
| — | — | 80 | 80 |
Sensor resolution [nm] 1) |
| — | — | 80 | 80 |
Drive properties | Tolerance | L-836.511200D | L-836.511200FD | L-836.511212D | L-836.511212FD |
|---|---|---|---|---|---|
Drive type |
| 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor |
Operating voltage [V] |
| 24 to 48 | 24 to 48 | 24 to 48 | 24 to 48 |
Nominal current, RMS [A] | typ. | 1.5 | 1.5 | 1.5 | 1.5 |
Maximum power consumption [W] |
| 7 | 7 | 8 | 8 |
Motor resolution [full steps/U] |
| 200 | 200 | 200 | 200 |
Drive force in X [N] | typ. | 75 | 75 | 75 | 75 |
Resistance phase-phase [Ω] 2) | typ. | 1.18 | 1.18 | 1.18 | 1.18 |
Inductance phase-phase [mH] |
| 0.96 | 0.96 | 0.96 | 0.96 |
Mechanical properties | Tolerance | L-836.511200D | L-836.511200FD | L-836.511212D | L-836.511212FD |
|---|---|---|---|---|---|
Permissible push force in Y [N] | max. | 50 | 50 | 50 | 50 |
Permissible push force in Z [N] | max. | 150 | 150 | 150 | 150 |
Permissible torque in θX [Nm] | max. | 15 | 15 | 15 | 15 |
Permissible torque in θY [Nm] | max. | 15 | 15 | 15 | 15 |
Permissible torque in θZ [Nm] | max. | 10 | 10 | 10 | 10 |
Holding force in X, passive [N] |
| — | — | — | — |
Moved mass in X, unloaded [g] |
| 130 | 130 | 140 | 140 |
Drive screw type |
| Ball screw | Ball screw | Ball screw | Ball screw |
Drive screw pitch [mm] |
| 1 | 1 | 1 | 1 |
Guide |
| Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide |
Overall mass [g] |
| 770 | 830 | 780 | 840 |
Material |
| Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel |
Holding brake |
| — | — | — | — |
Miscellaneous | L-836.511200D | L-836.511200FD | L-836.511212D | L-836.511212FD |
|---|---|---|---|---|
Operating temperature range [°C] | 5 to 40 | 5 to 40 | 5 to 40 | 5 to 40 |
Connector | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) |
Recommended controllers/drivers | C-663 G-901 G-910 ACS modular controller | C-663 G-901 G-910 ACS modular controller | C-663 G-901 G-910 ACS modular controller | C-663 G-901 G-910 ACS modular controller |
Motion | Tolerance | L-836.521200D | L-836.521200FD | L-836.521212D | L-836.521212FD |
|---|---|---|---|---|---|
Active axes |
| X | X | X | X |
Travel range in X [mm] |
| 75 | 75 | 75 | 75 |
Acceleration in X, unloaded [m/s2] | max. | 2 | 2 | 2 | 2 |
Maximum velocity in X, unloaded [mm/s] |
| 40 | 40 | 40 | 40 |
Straightness error in Y (straightness) [µm] | max. | ±2 | ±2 | ±2 | ±2 |
Straightness error in Z (flatness) [µm] | max. | ±2 | ±2 | ±2 | ±2 |
Angular error around Y (pitch) [µrad] | max. | ±120 | ±120 | ±120 | ±120 |
Angular error around Z (yaw) [µrad] | max. | ±120 | ±120 | ±120 | ±120 |
Positioning | Tolerance | L-836.521200D | L-836.521200FD | L-836.521212D | L-836.521212FD |
|---|---|---|---|---|---|
Minimum incremental motion in X [µm] | max. | 0.3 | 0.4 | 0.24 | 0.24 |
Positioning accuracy in X, uncalibrated [µm] | max. | ±20 | ±20 | ±20 | ±20 |
Bidirectional repeatability in X [µm] | max. | 2 | 4 | 0.8 | 0.8 |
Reference switch |
| Hall effect | Hall effect | Hall effect | Hall effect |
Limit switch |
| Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN |
Integrated sensor |
| — | — | Incremental linear encoder | Incremental linear encoder |
Sensor signal |
| — | — | A/B quadrature, RS-422 | A/B quadrature, RS-422 |
Sensor signal period [µm] |
| — | — | 80 | 80 |
Sensor resolution [nm] 1) |
| — | — | 80 | 80 |
Drive properties | Tolerance | L-836.521200D | L-836.521200FD | L-836.521212D | L-836.521212FD |
|---|---|---|---|---|---|
Drive type |
| 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor |
Operating voltage [V] |
| 24 to 48 | 24 to 48 | 24 to 48 | 24 to 48 |
Nominal current, RMS [A] | typ. | 1.5 | 1.5 | 1.5 | 1.5 |
Maximum power consumption [W] |
| 7 | 7 | 8 | 8 |
Motor resolution [full steps/U] |
| 200 | 200 | 200 | 200 |
Drive force in X [N] | typ. | 75 | 75 | 75 | 75 |
Resistance phase-phase [Ω] 2) | typ. | 1.18 | 1.18 | 1.18 | 1.18 |
Inductance phase-phase [mH] |
| 0.96 | 0.96 | 0.96 | 0.96 |
Mechanical properties | Tolerance | L-836.521200D | L-836.521200FD | L-836.521212D | L-836.521212FD |
|---|---|---|---|---|---|
Permissible push force in Y [N] | max. | 50 | 50 | 50 | 50 |
Permissible push force in Z [N] | max. | 150 | 150 | 150 | 150 |
Permissible torque in θX [Nm] | max. | 15 | 15 | 15 | 15 |
Permissible torque in θY [Nm] | max. | 15 | 15 | 15 | 15 |
Permissible torque in θZ [Nm] | max. | 10 | 10 | 10 | 10 |
Holding force in X, passive [N] |
| — | — | — | — |
Moved mass in X, unloaded [g] |
| 130 | 130 | 140 | 140 |
Drive screw type |
| Ball screw | Ball screw | Ball screw | Ball screw |
Drive screw pitch [mm] |
| 1 | 1 | 1 | 1 |
Guide |
| Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide |
Overall mass [g] |
| 840 | 900 | 850 | 910 |
Material |
| Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel |
Holding brake |
| — | — | — | — |
Miscellaneous | L-836.521200D | L-836.521200FD | L-836.521212D | L-836.521212FD |
|---|---|---|---|---|
Operating temperature range [°C] | 5 to 40 | 5 to 40 | 5 to 40 | 5 to 40 |
Connector | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) |
Recommended controllers/drivers | C-663 G-901 G-910 ACS modular controller | C-663 G-901 G-910 ACS modular controller | C-663 G-901 G-910 ACS modular controller | C-663 G-901 G-910 ACS modular controller |
Motion | Tolerance | L-836.531200D | L-836.531200FD | L-836.531200BD | L-836.531200BFD | L-836.531212D | L-836.531212FD | L-836.531212BD | L-836.531212BFD |
|---|---|---|---|---|---|---|---|---|---|
Active axes |
| X | X | X | X | X | X | X | X |
Travel range in X [mm] |
| 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
Acceleration in X, unloaded [m/s2] | max. | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
Maximum velocity in X, unloaded [mm/s] |
| 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
Straightness error in Y (straightness) [µm] | max. | ±3 | ±3 | ±3 | ±3 | ±3 | ±3 | ±3 | ±3 |
Straightness error in Z (flatness) [µm] | max. | ±3 | ±3 | ±3 | ±3 | ±3 | ±3 | ±3 | ±3 |
Angular error around Y (pitch) [µrad] | max. | ±180 | ±180 | ±180 | ±180 | ±180 | ±180 | ±180 | ±180 |
Angular error around Z (yaw) [µrad] | max. | ±180 | ±180 | ±180 | ±180 | ±180 | ±180 | ±180 | ±180 |
Positioning | Tolerance | L-836.531200D | L-836.531200FD | L-836.531200BD | L-836.531200BFD | L-836.531212D | L-836.531212FD | L-836.531212BD | L-836.531212BFD |
|---|---|---|---|---|---|---|---|---|---|
Minimum incremental motion in X [µm] | max. | 0.75 | 0.75 | 0.75 | 0.75 | 0.24 | 0.24 | 0.24 | 0.24 |
Positioning accuracy in X, uncalibrated [µm] | max. | ±25 | ±25 | ±25 | ±25 | ±25 | ±25 | ±25 | ±25 |
Bidirectional repeatability in X [µm] | max. | 4 | 6 | 4 | 6 | 0.8 | 0.8 | 0.8 | 0.8 |
Reference switch |
| Hall effect | Hall effect | Hall effect | Hall effect | Hall effect | Hall effect | Hall effect | Hall effect |
Limit switch |
| Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN |
Integrated sensor |
| — | — | — | — | Incremental linear encoder | Incremental linear encoder | Incremental linear encoder | Incremental linear encoder |
Sensor signal |
| — | — | — | — | A/B quadrature, RS-422 | A/B quadrature, RS-422 | A/B quadrature, RS-422 | A/B quadrature, RS-422 |
Sensor signal period [µm] |
| — | — | — | — | 80 | 80 | 80 | 80 |
Sensor resolution [nm] 1) |
| — | — | — | — | 80 | 80 | 80 | 80 |
Drive properties | Tolerance | L-836.531200D | L-836.531200FD | L-836.531200BD | L-836.531200BFD | L-836.531212D | L-836.531212FD | L-836.531212BD | L-836.531212BFD |
|---|---|---|---|---|---|---|---|---|---|
Drive type |
| 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor |
Operating voltage [V] |
| 24 to 48 | 24 to 48 | 24 to 48 | 24 to 48 | 24 to 48 | 24 to 48 | 24 to 48 | 24 to 48 |
Nominal current, RMS [A] | typ. | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
Maximum power consumption [W] |
| 7 | 7 | 7 | 7 | 8 | 8 | 8 | 8 |
Motor resolution [full steps/U] |
| 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
Drive force in X [N] | typ. | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
Resistance phase-phase [Ω] 2) | typ. | 1.18 | 1.18 | 1.18 | 1.18 | 1.18 | 1.18 | 1.18 | 1.18 |
Inductance phase-phase [mH] |
| 0.96 | 0.96 | 0.96 | 0.96 | 0.96 | 0.96 | 0.96 | 0.96 |
Mechanical properties | Tolerance | L-836.531200D | L-836.531200FD | L-836.531200BD | L-836.531200BFD | L-836.531212D | L-836.531212FD | L-836.531212BD | L-836.531212BFD |
|---|---|---|---|---|---|---|---|---|---|
Permissible push force in Y [N] | max. | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
Permissible push force in Z [N] | max. | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
Permissible torque in θX [Nm] | max. | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Permissible torque in θY [Nm] | max. | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Permissible torque in θZ [Nm] | max. | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
Holding force in X, passive [N] |
| — | — | 300 | 300 | — | — | 300 | 300 |
Moved mass in X, unloaded [g] |
| 130 | 130 | 130 | 130 | 140 | 140 | 140 | 140 |
Drive screw type |
| Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw |
Drive screw pitch [mm] |
| 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
Guide |
| Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide |
Overall mass [g] |
| 900 | 960 | 960 | 1010 | 910 | 970 | 970 | 1020 |
Material |
| Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel |
Holding brake |
| — | — | Electromagnetic safety brake | Electromagnetic safety brake | — | — | Electromagnetic safety brake | Electromagnetic safety brake |
Miscellaneous | L-836.531200D | L-836.531200FD | L-836.531200BD | L-836.531200BFD | L-836.531212D | L-836.531212FD | L-836.531212BD | L-836.531212BFD |
|---|---|---|---|---|---|---|---|---|
Operating temperature range [°C] | 5 to 40 | 5 to 40 | 5 to 40 | 5 to 40 | 5 to 40 | 5 to 40 | 5 to 40 | 5 to 40 |
Connector | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) |
Recommended controllers/drivers | C-663 G-901 G-910 ACS modular controller | C-663 G-901 G-910 ACS modular controller | G-901 G-910 ACS modular controller | G-901 G-910 ACS modular controller | C-663 G-901 G-910 ACS modular controller | C-663 G-901 G-910 ACS modular controller | G-901 G-910 ACS modular controller | G-901 G-910 ACS modular controller |
Motion | Tolerance | L-836.541200D | L-836.541200FD | L-836.541200BD | L-836.541200BFD | L-836.541212D | L-836.541212FD | L-836.541212BD | L-836.541212BFD |
|---|---|---|---|---|---|---|---|---|---|
Active axes |
| X | X | X | X | X | X | X | X |
Travel range in X [mm] |
| 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
Acceleration in X, unloaded [m/s2] | max. | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
Maximum velocity in X, unloaded [mm/s] |
| 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
Straightness error in Y (straightness) [µm] | max. | ±3 | ±3 | ±3 | ±3 | ±3 | ±3 | ±3 | ±3 |
Straightness error in Z (flatness) [µm] | max. | ±3 | ±3 | ±3 | ±3 | ±3 | ±3 | ±3 | ±3 |
Angular error around Y (pitch) [µrad] | max. | ±200 | ±200 | ±200 | ±200 | ±200 | ±200 | ±200 | ±200 |
Angular error around Z (yaw) [µrad] | max. | ±200 | ±200 | ±200 | ±200 | ±200 | ±200 | ±200 | ±200 |
Positioning | Tolerance | L-836.541200D | L-836.541200FD | L-836.541200BD | L-836.541200BFD | L-836.541212D | L-836.541212FD | L-836.541212BD | L-836.541212BFD |
|---|---|---|---|---|---|---|---|---|---|
Minimum incremental motion in X [µm] | max. | 0.75 | 0.75 | 0.75 | 0.75 | 0.24 | 0.24 | 0.24 | 0.24 |
Positioning accuracy in X, uncalibrated [µm] | max. | ±32 | ±32 | ±32 | ±32 | ±32 | ±32 | ±32 | ±32 |
Bidirectional repeatability in X [µm] | max. | 4 | 6 | 4 | 6 | 0.8 | 0.8 | 0.8 | 0.8 |
Reference switch |
| Hall effect | Hall effect | Hall effect | Hall effect | Hall effect | Hall effect | Hall effect | Hall effect |
Limit switch |
| Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN |
Integrated sensor |
| — | — | — | — | Incremental linear encoder | Incremental linear encoder | Incremental linear encoder | Incremental linear encoder |
Sensor signal |
| — | — | — | — | A/B quadrature, RS-422 | A/B quadrature, RS-422 | A/B quadrature, RS-422 | A/B quadrature, RS-422 |
Sensor signal period [µm] |
| — | — | — | — | 80 | 80 | 80 | 80 |
Sensor resolution [nm] 1) |
| — | — | — | — | 80 | 80 | 80 | 80 |
Drive properties | Tolerance | L-836.541200D | L-836.541200FD | L-836.541200BD | L-836.541200BFD | L-836.541212D | L-836.541212FD | L-836.541212BD | L-836.541212BFD |
|---|---|---|---|---|---|---|---|---|---|
Drive type |
| 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor |
Operating voltage [V] |
| 24 to 48 | 24 to 48 | 24 to 48 | 24 to 48 | 24 to 48 | 24 to 48 | 24 to 48 | 24 to 48 |
Nominal current, RMS [A] | typ. | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
Maximum power consumption [W] |
| 7 | 7 | 7 | 7 | 8 | 8 | 8 | 8 |
Motor resolution [full steps/U] |
| 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
Drive force in X [N] | typ. | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
Resistance phase-phase [Ω] 2) | typ. | 1.18 | 1.18 | 1.18 | 1.18 | 1.18 | 1.18 | 1.18 | 1.18 |
Inductance phase-phase [mH] |
| 0.96 | 0.96 | 0.96 | 0.96 | 0.96 | 0.96 | 0.96 | 0.96 |
Mechanical properties | Tolerance | L-836.541200D | L-836.541200FD | L-836.541200BD | L-836.541200BFD | L-836.541212D | L-836.541212FD | L-836.541212BD | L-836.541212BFD |
|---|---|---|---|---|---|---|---|---|---|
Permissible push force in Y [N] | max. | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
Permissible push force in Z [N] | max. | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
Permissible torque in θX [Nm] | max. | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Permissible torque in θY [Nm] | max. | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Permissible torque in θZ [Nm] | max. | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
Holding force in X, passive [N] |
| — | — | 300 | 300 | — | — | 300 | 300 |
Moved mass in X, unloaded [g] |
| 130 | 130 | 130 | 130 | 140 | 140 | 140 | 140 |
Drive screw type |
| Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw |
Drive screw pitch [mm] |
| 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
Guide |
| Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide |
Overall mass [g] |
| 1020 | 1080 | 1080 | 1130 | 1030 | 1090 | 1090 | 1140 |
Material |
| Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel |
Holding brake |
| — | — | Electromagnetic safety brake | Electromagnetic safety brake | — | — | Electromagnetic safety brake | Electromagnetic safety brake |
Miscellaneous | L-836.541200D | L-836.541200FD | L-836.541200BD | L-836.541200BFD | L-836.541212D | L-836.541212FD | L-836.541212BD | L-836.541212BFD |
|---|---|---|---|---|---|---|---|---|
Operating temperature range [°C] | 5 to 40 | 5 to 40 | 5 to 40 | 5 to 40 | 5 to 40 | 5 to 40 | 5 to 40 | 5 to 40 |
Connector | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) |
Recommended controllers/drivers | C-663 G-901 G-910 ACS modular controller | C-663 G-901 G-910 ACS modular controller | G-901 G-910 ACS modular controller | G-901 G-910 ACS modular controller | C-663 G-901 G-910 ACS modular controller | C-663 G-901 G-910 ACS modular controller | G-901 G-910 ACS modular controller | G-901 G-910 ACS modular controller |
Motion | Tolerance | L-836.551200D | L-836.551200FD | L-836.551200BD | L-836.551200BFD | L-836.551212D | L-836.551212FD | L-836.551212BD | L-836.551212BFD |
|---|---|---|---|---|---|---|---|---|---|
Active axes |
| X | X | X | X | X | X | X | X |
Travel range in X [mm] |
| 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
Acceleration in X, unloaded [m/s2] | max. | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
Maximum velocity in X, unloaded [mm/s] |
| 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
Straightness error in Y (straightness) [µm] | max. | ±3 | ±3 | ±3 | ±3 | ±3 | ±3 | ±3 | ±3 |
Straightness error in Z (flatness) [µm] | max. | ±3 | ±3 | ±3 | ±3 | ±3 | ±3 | ±3 | ±3 |
Angular error around Y (pitch) [µrad] | max. | ±200 | ±200 | ±200 | ±200 | ±200 | ±200 | ±200 | ±200 |
Angular error around Z (yaw) [µrad] | max. | ±200 | ±200 | ±200 | ±200 | ±200 | ±200 | ±200 | ±200 |
Positioning | Tolerance | L-836.551200D | L-836.551200FD | L-836.551200BD | L-836.551200BFD | L-836.551212D | L-836.551212FD | L-836.551212BD | L-836.551212BFD |
|---|---|---|---|---|---|---|---|---|---|
Minimum incremental motion in X [µm] | max. | 0.75 | 0.75 | 0.75 | 0.75 | 0.24 | 0.24 | 0.24 | 0.24 |
Positioning accuracy in X, uncalibrated [µm] | max. | ±50 | ±50 | ±50 | ±50 | ±50 | ±50 | ±50 | ±50 |
Bidirectional repeatability in X [µm] | max. | 4 | 6 | 4 | 6 | 0.8 | 0.8 | 0.8 | 0.8 |
Reference switch |
| Hall effect | Hall effect | Hall effect | Hall effect | Hall effect | Hall effect | Hall effect | Hall effect |
Limit switch |
| Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN | Hall effect, N/C contact, 5 V, NPN |
Integrated sensor |
| — | — | — | — | Incremental linear encoder | Incremental linear encoder | Incremental linear encoder | Incremental linear encoder |
Sensor signal |
| — | — | — | — | A/B quadrature, RS-422 | A/B quadrature, RS-422 | A/B quadrature, RS-422 | A/B quadrature, RS-422 |
Sensor signal period [µm] |
| — | — | — | — | 80 | 80 | 80 | 80 |
Sensor resolution [nm] 1) |
| — | — | — | — | 80 | 80 | 80 | 80 |
Drive properties | Tolerance | L-836.551200D | L-836.551200FD | L-836.551200BD | L-836.551200BFD | L-836.551212D | L-836.551212FD | L-836.551212BD | L-836.551212BFD |
|---|---|---|---|---|---|---|---|---|---|
Drive type |
| 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor |
Operating voltage [V] |
| 24 to 48 | 24 to 48 | 24 to 48 | 24 to 48 | 24 to 48 | 24 to 48 | 24 to 48 | 24 to 48 |
Nominal current, RMS [A] | typ. | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
Maximum power consumption [W] |
| 7 | 7 | 7 | 7 | 8 | 8 | 8 | 8 |
Motor resolution [full steps/U] |
| 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
Drive force in X [N] | typ. | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
Resistance phase-phase [Ω] 2) | typ. | 1.18 | 1.18 | 1.18 | 1.18 | 1.18 | 1.18 | 1.18 | 1.18 |
Inductance phase-phase [mH] |
| 0.96 | 0.96 | 0.96 | 0.96 | 0.96 | 0.96 | 0.96 | 0.96 |
Mechanical properties | Tolerance | L-836.551200D | L-836.551200FD | L-836.551200BD | L-836.551200BFD | L-836.551212D | L-836.551212FD | L-836.551212BD | L-836.551212BFD |
|---|---|---|---|---|---|---|---|---|---|
Permissible push force in Y [N] | max. | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
Permissible push force in Z [N] | max. | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
Permissible torque in θX [Nm] | max. | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Permissible torque in θY [Nm] | max. | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Permissible torque in θZ [Nm] | max. | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
Holding force in X, passive [N] |
| — | — | 300 | 300 | — | — | 300 | 300 |
Moved mass in X, unloaded [g] |
| 130 | 130 | 130 | 130 | 140 | 140 | 140 | 140 |
Drive screw type |
| Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw | Ball screw |
Drive screw pitch [mm] |
| 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
Guide |
| Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide | Recirculating ball bearing guide |
Overall mass [g] |
| 1150 | 1210 | 1210 | 1260 | 1160 | 1220 | 1220 | 1270 |
Material |
| Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel | Aluminum, black anodized; stainless steel |
Holding brake |
| — | — | Electromagnetic safety brake | Electromagnetic safety brake | — | — | Electromagnetic safety brake | Electromagnetic safety brake |
Miscellaneous | L-836.551200D | L-836.551200FD | L-836.551200BD | L-836.551200BFD | L-836.551212D | L-836.551212FD | L-836.551212BD | L-836.551212BFD |
|---|---|---|---|---|---|---|---|---|
Operating temperature range [°C] | 5 to 40 | 5 to 40 | 5 to 40 | 5 to 40 | 5 to 40 | 5 to 40 | 5 to 40 | 5 to 40 |
Connector | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) |
Recommended controllers/drivers | C-663 G-901 G-910 ACS modular controller | C-663 G-901 G-910 ACS modular controller | G-901 G-910 ACS modular controller | G-901 G-910 ACS modular controller | C-663 G-901 G-910 ACS modular controller | C-663 G-901 G-910 ACS modular controller | G-901 G-910 ACS modular controller | G-901 G-910 ACS modular controller |
1) 250x interpolated
2) Tolerance: +/- 10 %
At PI, technical data is specified at 22 ±3 °C. Unless otherwise stated, the values are for unloaded conditions. Some properties are interdependent. The designation "typ." indicates a statistical average for a property; it does not indicate a guaranteed value for every product supplied. During the final inspection of a product, only selected properties are analyzed, not all. Please note that some product characteristics may deteriorate with increasing operating time.
Downloads
Documentation
Documentation
User Manual L836UM0003
L-836 Linear Stage with Stepper Motor
버전 / 날짜
2025-10-06
pdf - 2 MB
버전 / 날짜
2025-10-06
pdf - 2 MB
3D Models
3D Models
L-836.5012xxXD 3D Model
zip - 11 MB
3D Models
L-836.5112xxXD 3D Model
zip - 11 MB
3D Models
L-836.5212xxXD 3D Model
zip - 11 MB
3D Models
L-836.5312xxXXD 3D Model
zip - 22 MB
3D Models
L-836.5412xxXXD 3D Model
zip - 22 MB
3D Models
L-836.5512xxXXD 3D Model
zip - 22 MB
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
L-836.501200FD
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 25 mm travel range; 150 N load capacity; 40 mm/s maximum velocity; ball screw; folded drivetrain
L-836.511200D
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 50 mm travel range; 150 N load capacity; 40 mm/s maximum velocity; ball screw
L-836.511200FD
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 50 mm travel range; 150 N load capacity; 40 mm/s maximum velocity; ball screw; folded drivetrain
L-836.521200D
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 75 mm travel range; 150 N load capacity; 40 mm/s maximum velocity; ball screw
L-836.521200FD
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 75 mm travel range; 150 N load capacity; 40 mm/s maximum velocity; ball screw; folded drivetrain
L-836.531200D
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 100 mm travel range; 150 N load capacity; 80 mm/s maximum velocity; ball screw
L-836.531200FD
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 100 mm travel range; 150 N load capacity; 80 mm/s maximum velocity; ball screw; folded drivetrain
L-836.531200BD
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 100 mm travel range; 150 N load capacity; 80 mm/s maximum velocity; ball screw; electromagnetic safety brake
L-836.531200BFD
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 100 mm travel range; 150 N load capacity; 80 mm/s maximum velocity; ball screw; electromagnetic safety brake; folded drivetrain
L-836.541200D
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 150 mm travel range; 150 N load capacity; 80 mm/s maximum velocity; ball screw
L-836.541200FD
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 150 mm travel range; 150 N load capacity; 80 mm/s maximum velocity; ball screw; folded drivetrain
L-836.541200BD
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 150 mm travel range; 150 N load capacity; 80 mm/s maximum velocity; ball screw; electromagnetic safety brake
L-836.541200BFD
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 150 mm travel range; 150 N load capacity; 80 mm/s maximum velocity; ball screw; electromagnetic safety brake; folded drivetrain
L-836.551200D
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 200 mm travel range; 150 N load capacity; 80 mm/s maximum velocity; ball screw
L-836.551200FD
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 200 mm travel range; 150 N load capacity; 80 mm/s maximum velocity; ball screw; folded drivetrain
L-836.551200BD
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 200 mm travel range; 150 N load capacity; 80 mm/s maximum velocity; ball screw; electromagnetic safety brake
L-836.551200BFD
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 200 mm travel range; 150 N load capacity; 80 mm/s maximum velocity; ball screw; electromagnetic safety brake; folded drivetrain
L-836.501212D
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 25 mm travel range; 150 N load capacity; 40 mm/s maximum velocity; ball screw; incremental linear encoder, 80 µm sensor signal period, A/B quadrature, RS-422
L-836.501212FD
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 25 mm travel range; 150 N load capacity; 40 mm/s maximum velocity; ball screw; incremental linear encoder, 80 µm sensor signal period, A/B quadrature, RS-422; folded drivetrain
L-836.511212D
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 50 mm travel range; 150 N load capacity; 40 mm/s maximum velocity; ball screw; incremental linear encoder, 80 µm sensor signal period, A/B quadrature, RS-422
L-836.511212FD
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 50 mm travel range; 150 N load capacity; 40 mm/s maximum velocity; ball screw; incremental linear encoder, 80 µm sensor signal period, A/B quadrature, RS-422; folded drivetrain
L-836.521212D
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 75 mm travel range; 150 N load capacity; 40 mm/s maximum velocity; ball screw; incremental linear encoder, 80 µm sensor signal period, A/B quadrature, RS-422
L-836.521212FD
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 75 mm travel range; 150 N load capacity; 40 mm/s maximum velocity; ball screw; incremental linear encoder, 80 µm sensor signal period, A/B quadrature, RS-422; folded drivetrain
L-836.531212D
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 100 mm travel range; 150 N load capacity; 80 mm/s maximum velocity; ball screw; incremental linear encoder, 80 µm sensor signal period, A/B quadrature, RS-422
L-836.531212FD
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 100 mm travel range; 150 N load capacity; 80 mm/s maximum velocity; ball screw; incremental linear encoder, 80 µm sensor signal period, A/B quadrature, RS-422; folded drivetrain
L-836.531212BD
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 100 mm travel range; 150 N load capacity; 80 mm/s maximum velocity; ball screw; incremental linear encoder, 80 µm sensor signal period, A/B quadrature, RS-422; electromagnetic safety brake
L-836.531212BFD
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 100 mm travel range; 150 N load capacity; 80 mm/s maximum velocity; ball screw; incremental linear encoder, 80 µm sensor signal period, A/B quadrature, RS-422; electromagnetic safety brake; folded drivetrain
L-836.541212D
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 150 mm travel range; 150 N load capacity; 80 mm/s maximum velocity; ball screw; incremental linear encoder, 80 µm sensor signal period, A/B quadrature, RS-422
L-836.541212FD
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 150 mm travel range; 150 N load capacity; 80 mm/s maximum velocity; ball screw; incremental linear encoder, 80 µm sensor signal period, A/B quadrature, RS-422; folded drivetrain
L-836.541212BD
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 150 mm travel range; 150 N load capacity; 80 mm/s maximum velocity; ball screw; incremental linear encoder, 80 µm sensor signal period, A/B quadrature, RS-422; electromagnetic safety brake
L-836.541212BFD
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 150 mm travel range; 150 N load capacity; 80 mm/s maximum velocity; ball screw; incremental linear encoder, 80 µm sensor signal period, A/B quadrature, RS-422; electromagnetic safety brake; folded drivetrain
L-836.551212D
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 200 mm travel range; 150 N load capacity; 80 mm/s maximum velocity; ball screw; incremental linear encoder, 80 µm sensor signal period, A/B quadrature, RS-422
L-836.551212FD
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 200 mm travel range; 150 N load capacity; 80 mm/s maximum velocity; ball screw; incremental linear encoder, 80 µm sensor signal period, A/B quadrature, RS-422; folded drivetrain
L-836.551212BD
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 200 mm travel range; 150 N load capacity; 80 mm/s maximum velocity; ball screw; incremental linear encoder, 80 µm sensor signal period, A/B quadrature, RS-422; electromagnetic safety brake
L-836.551212BFD
Stackable, highly compact, universal linear stage; 2-phase stepper motor; 200 mm travel range; 150 N load capacity; 80 mm/s maximum velocity; ball screw; incremental linear encoder, 80 µm sensor signal period, A/B quadrature, RS-422; electromagnetic safety brake; folded drivetrain
Accessories
L-836.AP2D
Mounting bracket for vertical mounting of L-836 stages with 25 mm travel range; anodized aluminum alloy; 135 mm long; mounting hardware included
L-836.AP3D
Mounting bracket for vertical mounting of L-836 stages with 50 mm, 75 mm, and 100 mm travel range; anodized aluminum alloy; 197.5 mm long; mounting hardware included
견적 요청 방법
견적/주문하기 클릭
견적 리스트에 원하는 제품 추가
견적 양식 작성
PI에 가격 요청 전송
빠르게 연락드리겠습니다
Ask an engineer!
Quickly receive an answer to your question by email or phone from a local PI sales engineer.
Compatible Electronics
Compatible Accessories
Related Products
적용 분야
Silicon Photonics
낮은 에너지 소비로 막대한 전송 용량을 제공하는 광학 통신은 통신 네트워크의 원동력입니다. 실리콘 및 기타 기판의 웨이퍼에 광학 부품을 배치하고 광학 연결을 만드는 것은 실리콘 포토닉스 부품 및 광 집적 회로(PIC)의 생산 및 품질 보증에서 반복되는 공정 단계입니다.
SiPh Testing, Assembly, and Packaging
When it comes to throughput and production costs in testing, assembling, and packaging of photonic devices, alignment is one of the most significant cost factors. For maximum performance, the optimal combination of accuracy, speed, and intelligent automation is needed.
