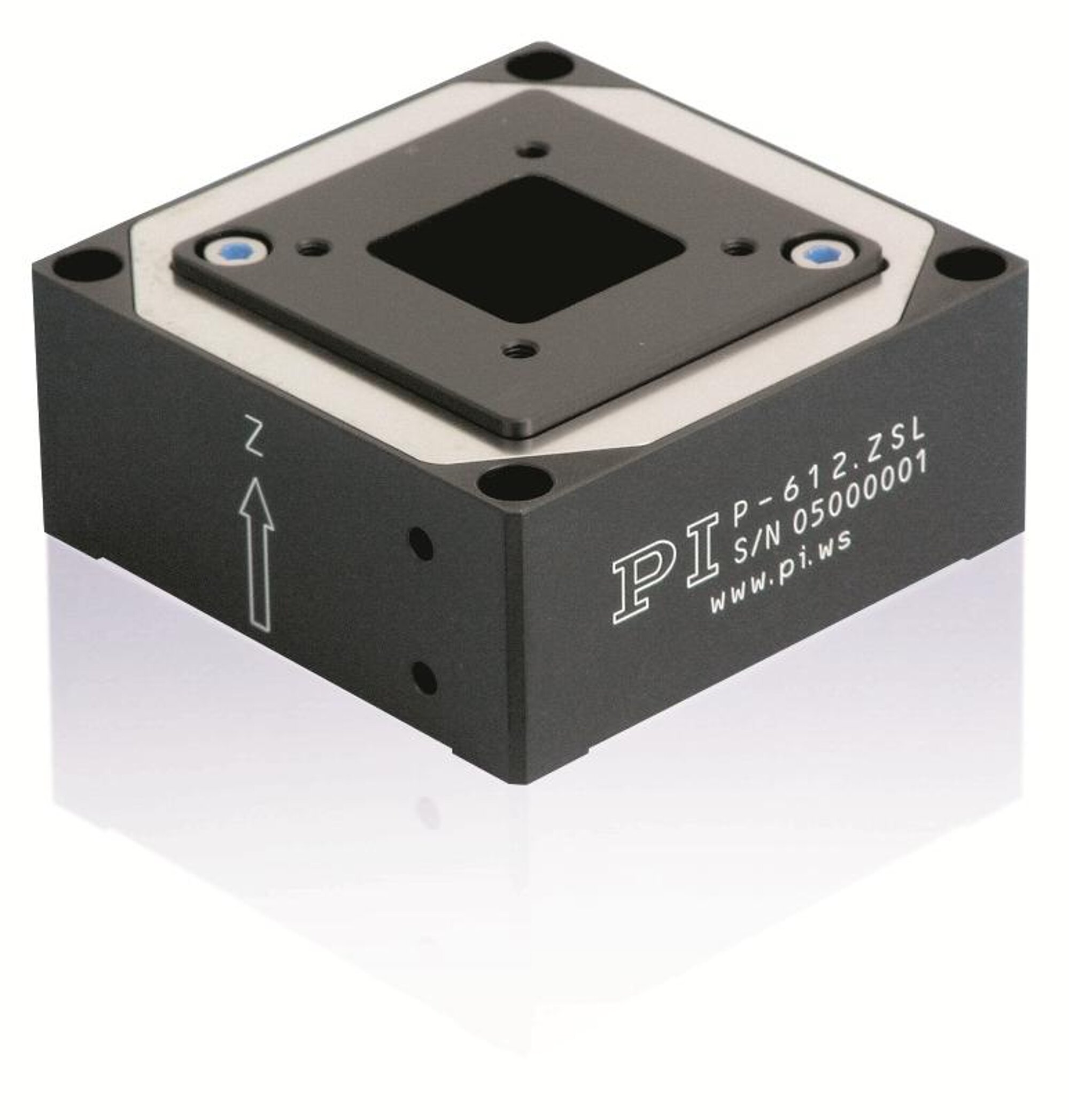

P-612.Z Piezo Z Stage

P-612.Z Piezo Z Stage

Compact Nanopositioner with Aperture

  • Travel range 100 µm
  • Resolution to 0.2 nm
  • Linearity error 0.2 %
  • Compact: Surface 60 mm × 60 mm
  • Particularly inexpensive systems (mechanics and controller)
  • Zero-play, high-precision flexure guide system
  • Outstanding lifetime due to PICMA® piezo actuators
to content

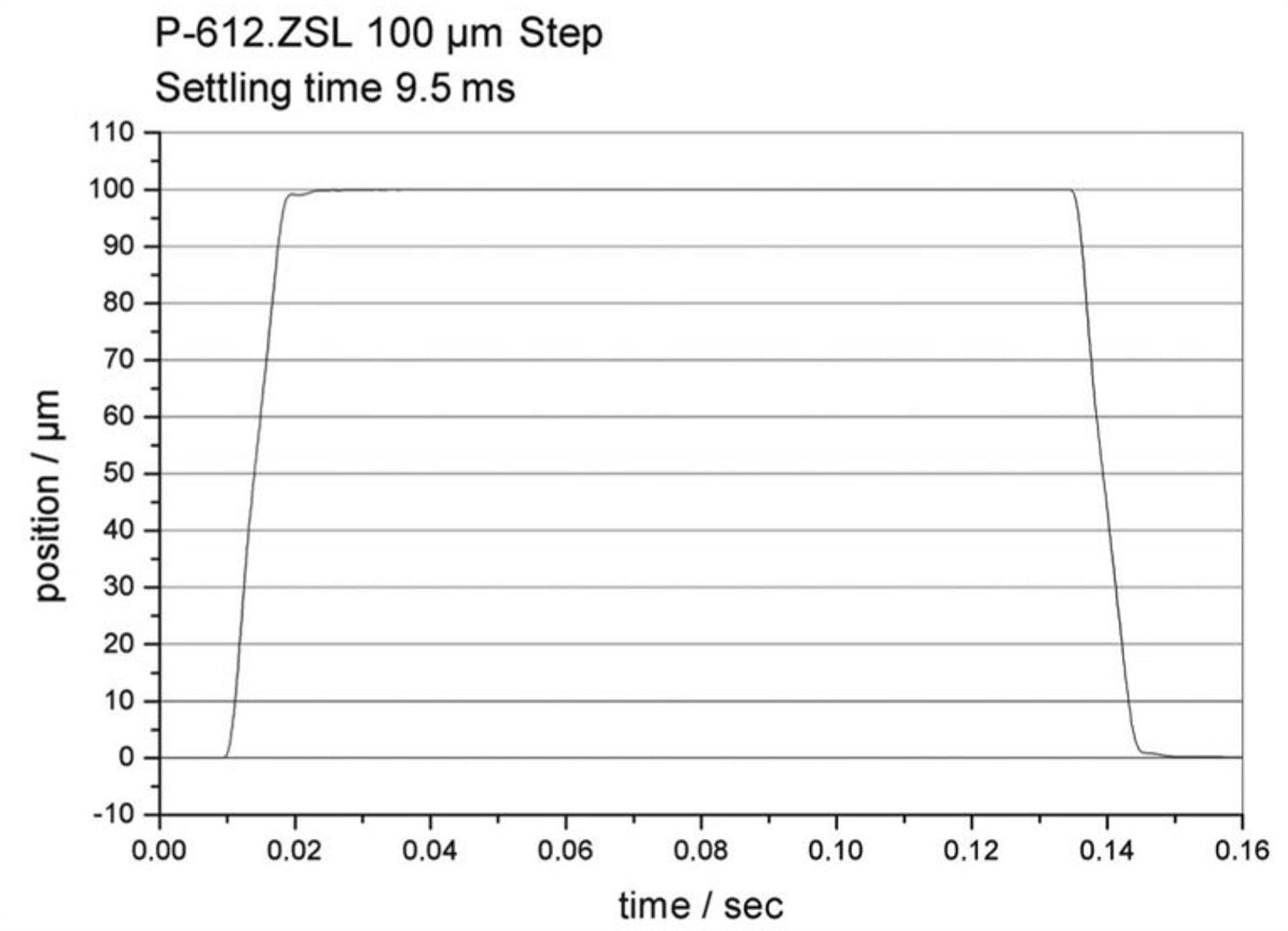

With active control, the settling time is less than 10 ms over the entire travel range.

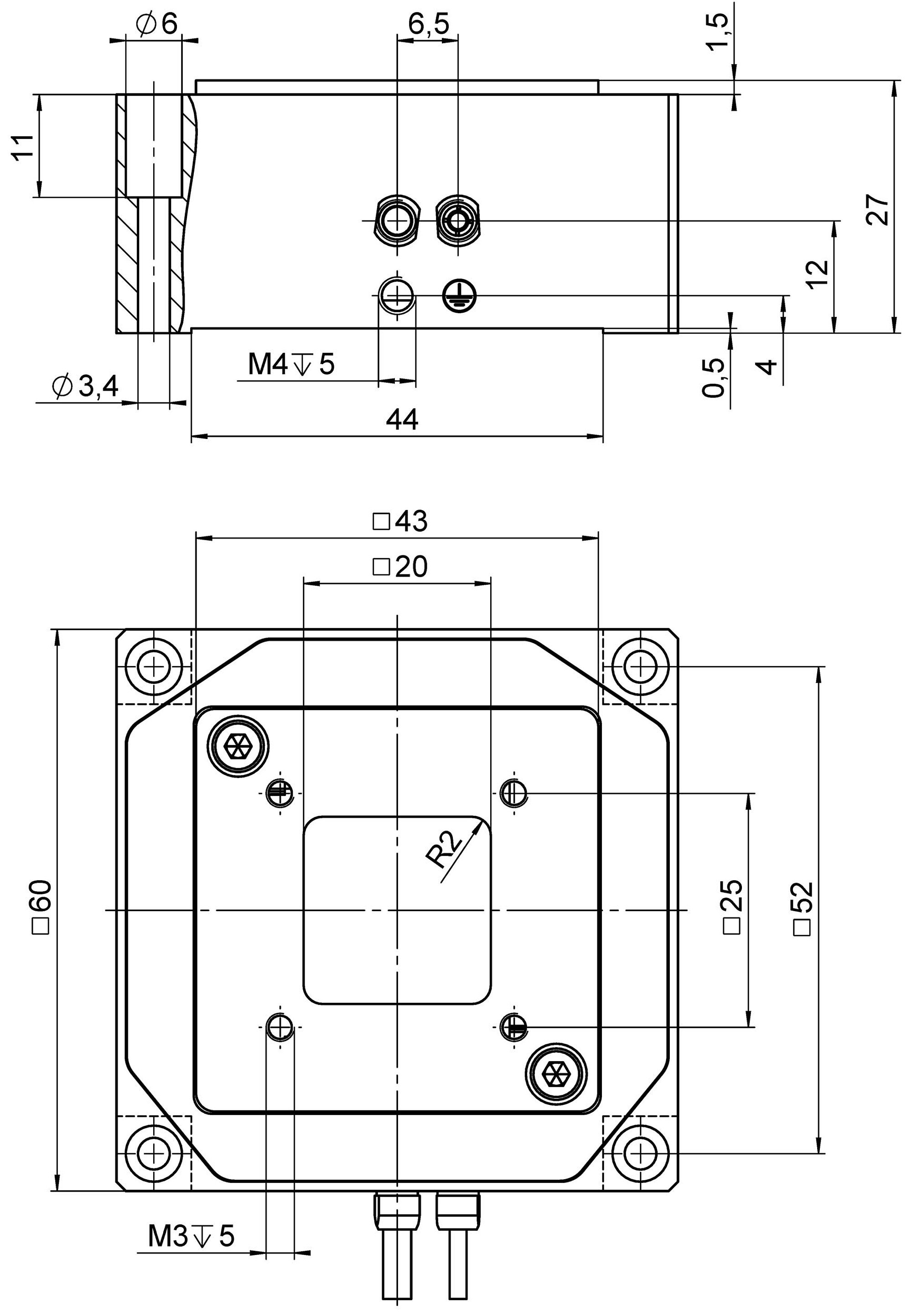

P-612.ZSL, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.
P-612.Z Piezo Z Stage
제품 설명 사양 다운로드 견적 / 주문

Application fields

  • Interferometry
  • Microscopy
  • Nanopositioning
  • Biotechnology
  • Test procedures and quality assurance
  • Semiconductor technology

Outstanding lifetime thanks to PICMA® piezo actuators

The PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

High guiding accuracy due to zero-play flexure guides

Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They work in a wide temperature range.
