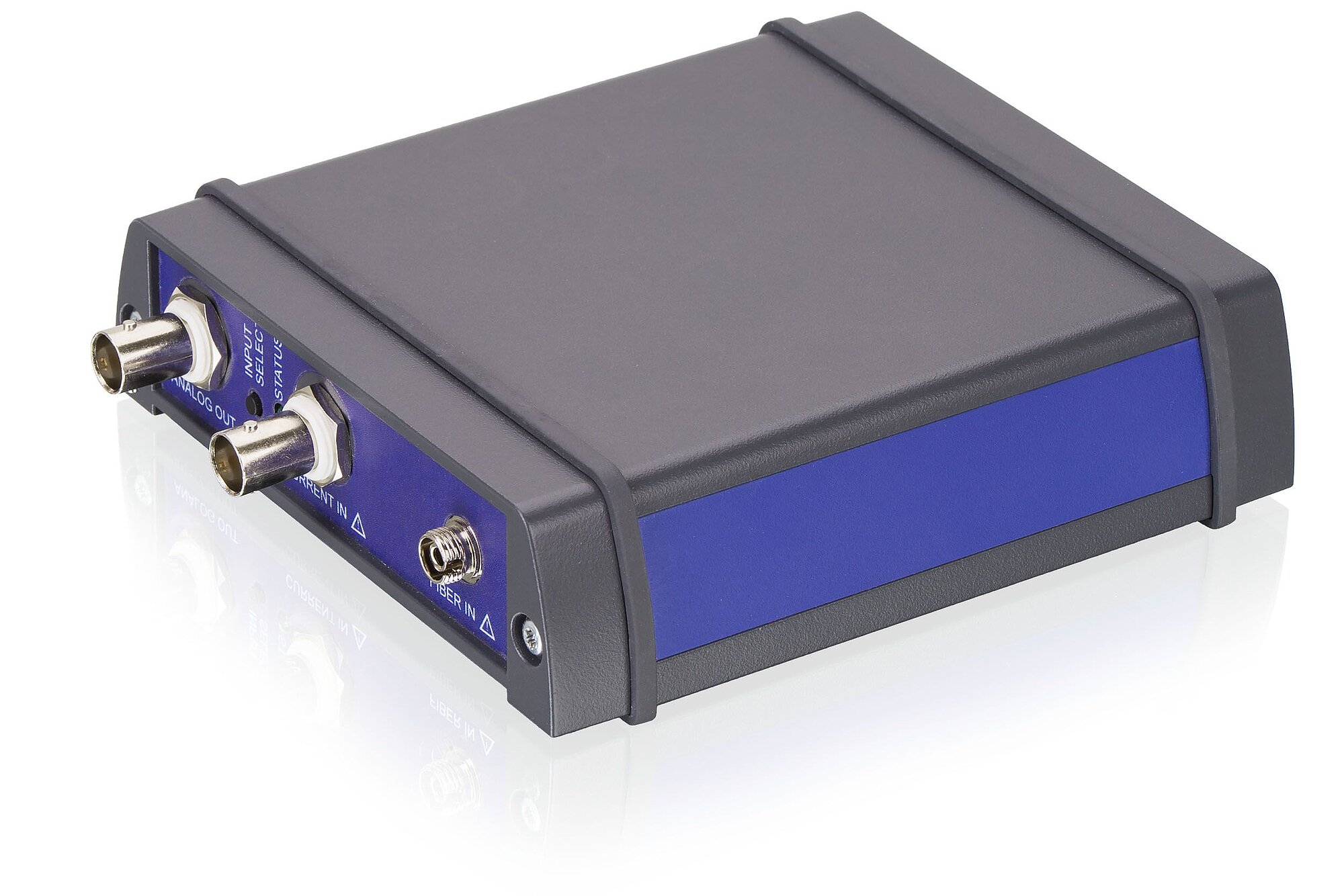

F-712.PM1 Optical Power Meter

Ideal for Applications in Silicon Photonics

Large signal bandwidth of 20 kHz
High dynamic range
Wavelength range 400 to 1550 nm
Current input range to 1 mA
Logarithmic output

견적 / 주문하기

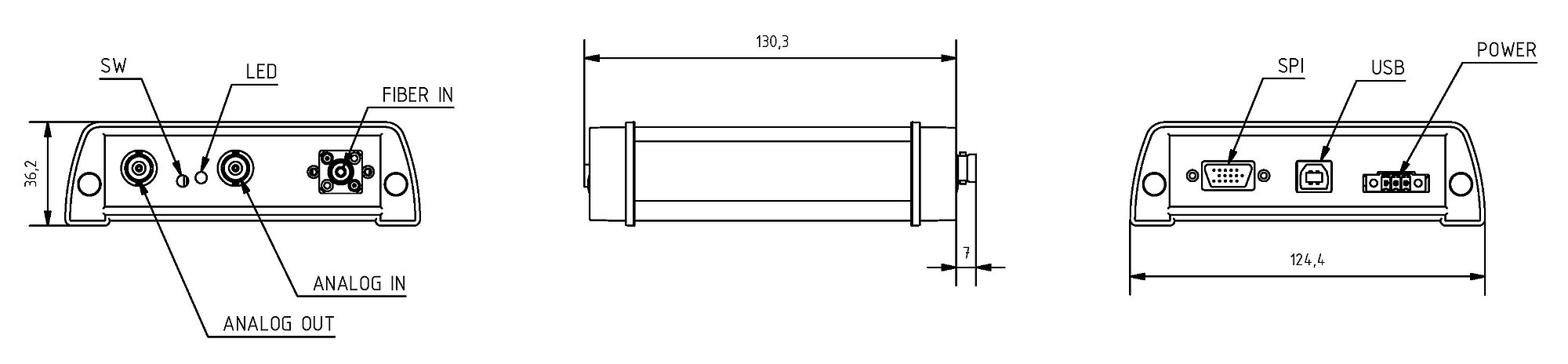

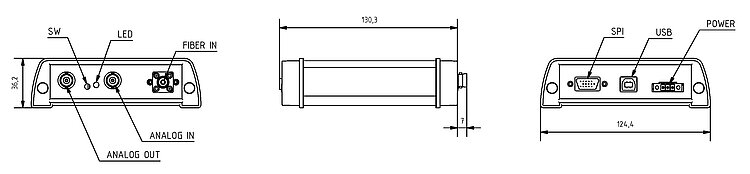

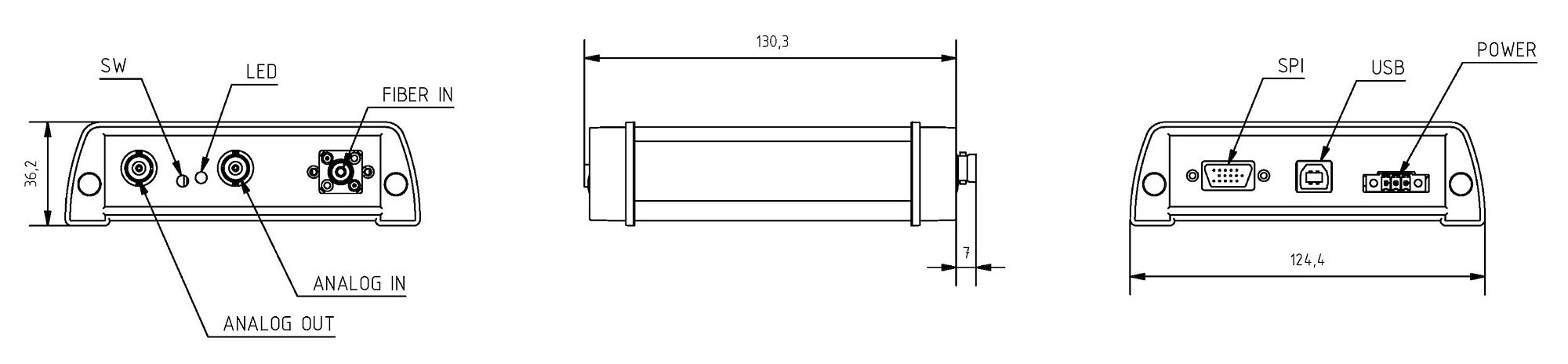

F-712.PM1, dimensions in mm

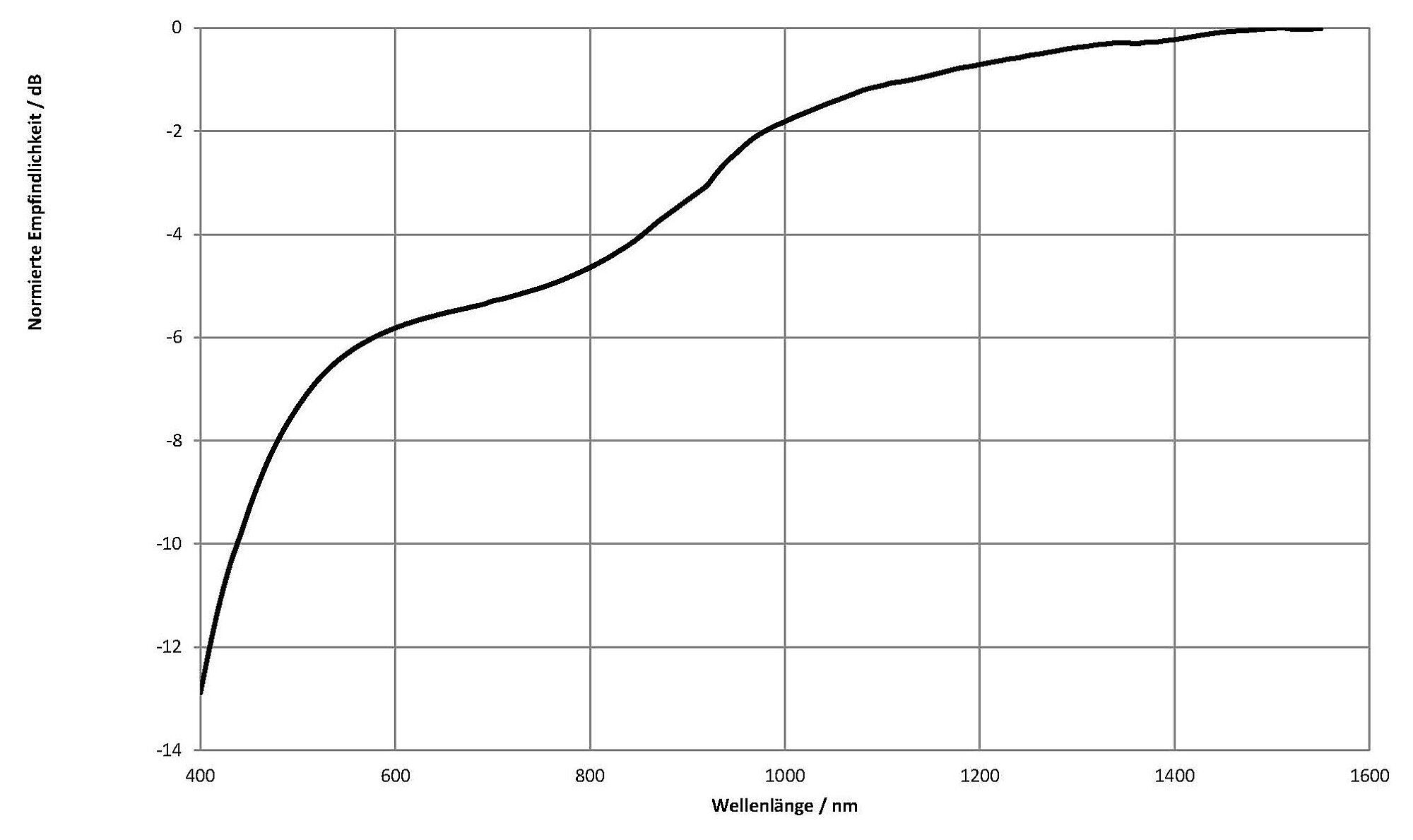

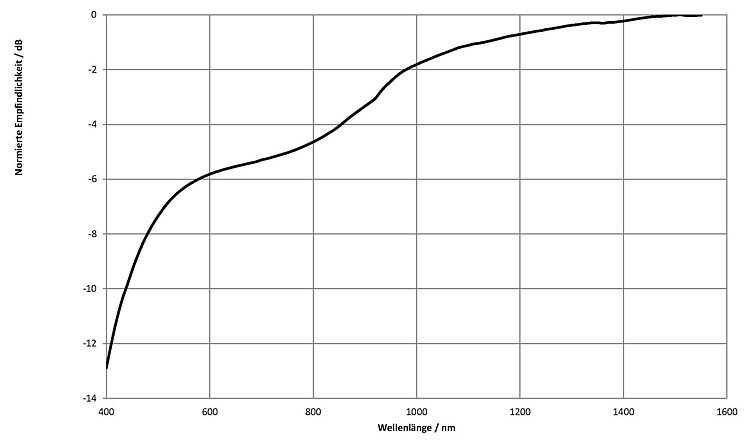

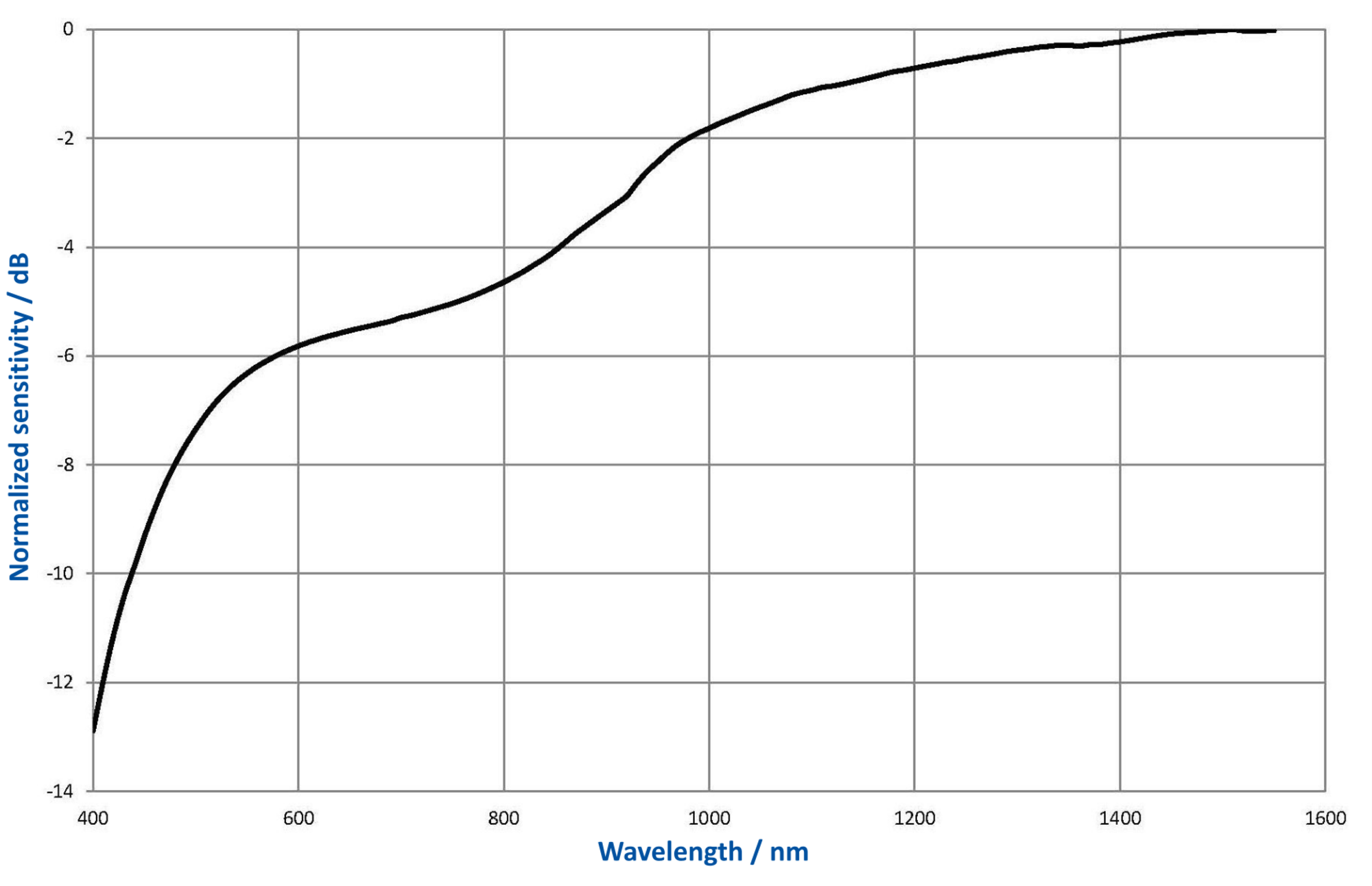

Typical responsivity curve depending on the wavelength

This optical power meter can convert an optical signal into a voltage signal in high resolution and with an extremely high bandwidth. The design of the optical input enables measuring of the optical signal irrespective of the position of the optical fiber in the connector.

The device also has a current input. For example, a photodiode can be connected to this input, and the diode current can be converted into a logarithmic voltage signal. Switching between the inputs is done via a button, and an LED lights up when the current input is activated.

Applications and use cases

The large wavelength range of the optical power meter enables working in both the visible and infrared range without switching. The precise, logarithmic output signal is ideal for optical alignment systems. The optical power meter is therefore suitable for the fastest fully automatic alignment systems available on the market.

Download datasheet 사양 보기 견적 / 주문하기

Datasheet

버전 / 날짜

2026-10-12

pdf - 639 KB

버전 / 날짜

2026-10-12

pdf - 638 KB

버전 / 날짜

2026-10-12

pdf - 675 KB

버전 / 날짜

2026-10-12

pdf - 729 KB

다운로드

Optical input	Unit	F-712.PM1
Wavelength range	nm	400 to 1550¹⁾
Connector		FC/PC, FC/APC
Polarization dependence		None
Minimum input power at 1550 nm	nW	85
Maximum input power at 1550 nm	mW	85
Average noise at 1550 nm	nW	< 10

Current input	Unit	F-712.PM1
Connector		BNC
Minimum input current		0
Maximum input current	mA	1
Average noise	pA	< 120

Outlet	Unit	Tolerance	F-712.PM1
Connector			BNC
Output signal			Analog, logarithmic
Voltage range	V	typ.	-5 to 5
Bandwidth (3 dB)	kHz		20
Logarithmic increase	V/10 dB		1
Output voltage at 85 mW, 1550 nm	V		≈ +5²⁾
Output voltage at 85 nW, 1550 nm	V		≈ -1.2²⁾
Output voltage at 1 mA input current	V		+5

Environment	Unit	F-712.PM1
Operating voltage	V	12 to 24
Power consumption	W	2.4
Overall mass	g	600
Relative humidity³⁾	%	20 to 70
Operating temperature range	°C	5 to 40
Storage temperature range	°C	-10 to 50

Refer to "Drawings and Images" for a typical course of sensitivity. Individual measurement report on the exact distribution of sensitivity included in the scope of delivery.

Measurement report included in the scope of delivery.

Not condensing

Download datasheet 다운로드 가기 견적 / 주문하기

Datasheet

버전 / 날짜

2026-10-12

pdf - 639 KB

버전 / 날짜

2026-10-12

pdf - 638 KB

버전 / 날짜

2026-10-12

pdf - 675 KB

버전 / 날짜

2026-10-12

pdf - 729 KB

다운로드

Documentation

F-712.PM1 Optical Power Meter, 400-1550 nm Wavelength Range, Logarithmic Output ±5 V

버전 / 날짜

2024-07-15

pdf - 969 KB

버전 / 날짜

2024-07-15

pdf - 940 KB

Documentation

Calculation of Optical Power - Using the F-712.PM1 Power Meter with F-712 High-Precision Fiber Alignment Systems

버전 / 날짜

2020-02-24

pdf - 475 KB

영어

3D Models

zip - 674 KB

견적 / 주문하기

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

F-712.PM1

Optical power meter, 400-1550 nm wavelength range, to 1 mA input current, 20 kHz signal bandwidth, logarithmic output ±5 V, benchtop device, including power adapter
