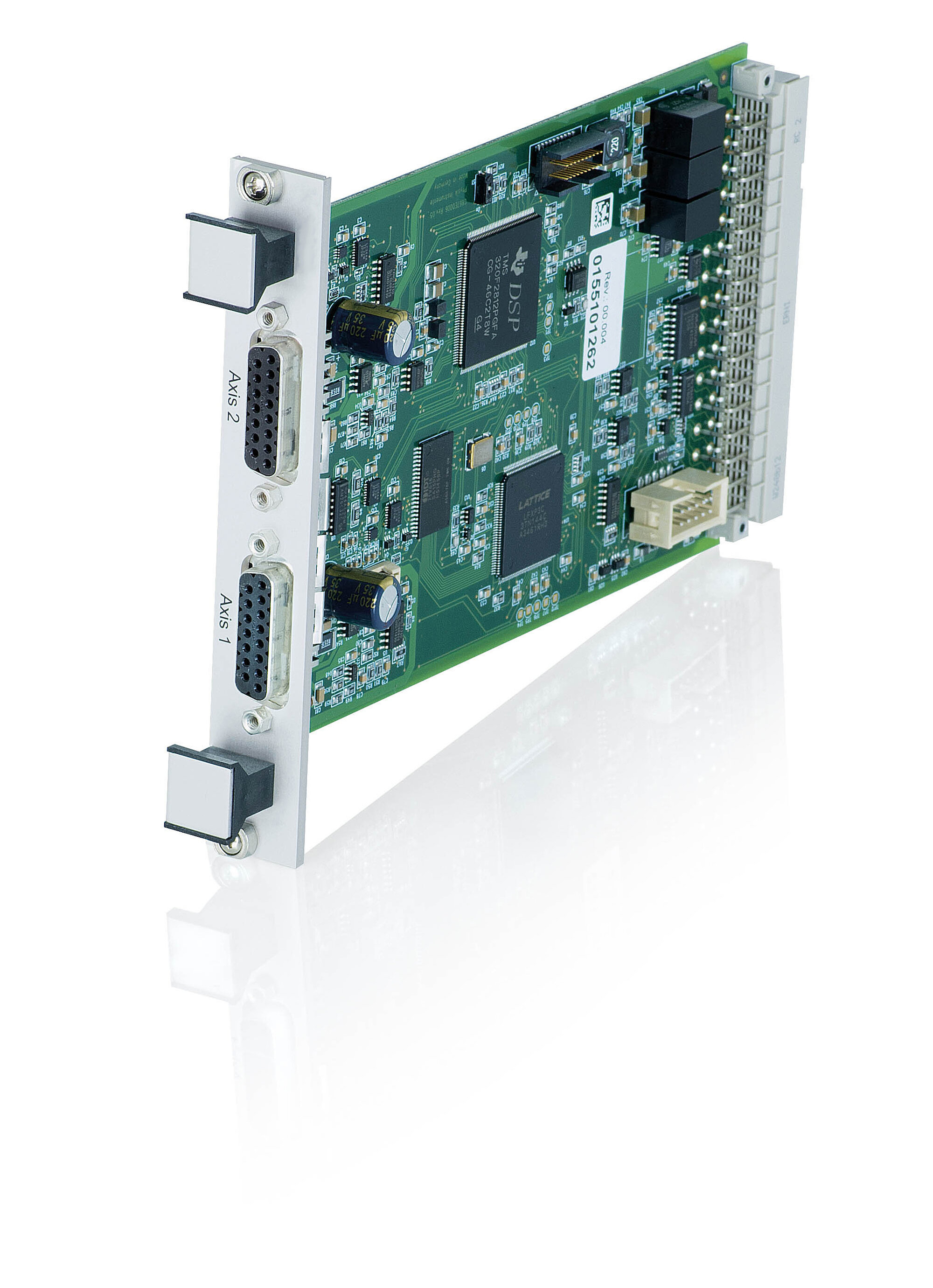

C-863.20C885 DC Motor Controller Module for C-885 PIMotionMaster

For DC Motors and Brushless DC Motors, 2 Axes

  • High-speed encoder input to 60 MHz
  • PID controller, parameter changing during operation
  • Powerful macro programming language, e.g., for stand-alone operation
  • Data recorder
  • Nonvolatile EEPROM for macros and parameters
  • Extensive software support
C-863.20C885 DC Motor Controller Module for C-885 PIMotionMaster
제품 설명 사양 다운로드 견적 / 주문

Digital motion controller for DC servo motors

2 axes. Motion control of PI positioning systems with DC motors: Direct motor control; PWM control for fast PI stages with integrated ActiveDrive amplifiers or with brushless motors and integrated block commutation. PID controller. Supports motor brake.

Extensive functions, software support

Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. PID controller, parameter changing during operation. Extensive software support, e.g., for LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.

Plug-and-play installation in the C-885 PIMotionMaster

Can be inserted in any free slot. Automatic detection and external communication (USB, Ethernet) by the processor and interface module of the C-885. Can be expanded with optional digital inputs and outputs. Power via the power supply of the C-885.

Specifications

Datasheet

Datasheet C-863.20C885

버전 / 날짜
2018-03-16
pdf - 433 KB
버전 / 날짜
2018-03-16
pdf - 439 KB
버전 / 날짜
2018-03-16
pdf - 533 KB

Downloads

Datasheet

Datasheet

Datasheet C-863.20C885

버전 / 날짜
2018-03-16
pdf - 433 KB
버전 / 날짜
2018-03-16
pdf - 439 KB
버전 / 날짜
2018-03-16
pdf - 533 KB

Documentation

Documentation

User Manual MS205

C-863.11 Mercury DC Motor Controller

버전 / 날짜
2013-03-21
pdf - 3 MB
버전 / 날짜
2013-03-21
pdf - 3 MB
Documentation

User Manual C863T0005

C-863.20C885 Motion Controller Module for DC Motors, for C-885 PIMotionMaster

버전 / 날짜
2021-01-13
pdf - 474 KB
버전 / 날짜
2021-01-13
pdf - 463 KB

General Software Documentation

General Software Documentation

User Manual SM164E

Updating controller firmware with PIFirmwareManager

버전 / 날짜
12.12.2023 1.0.0
pdf - 819 KB
영어
