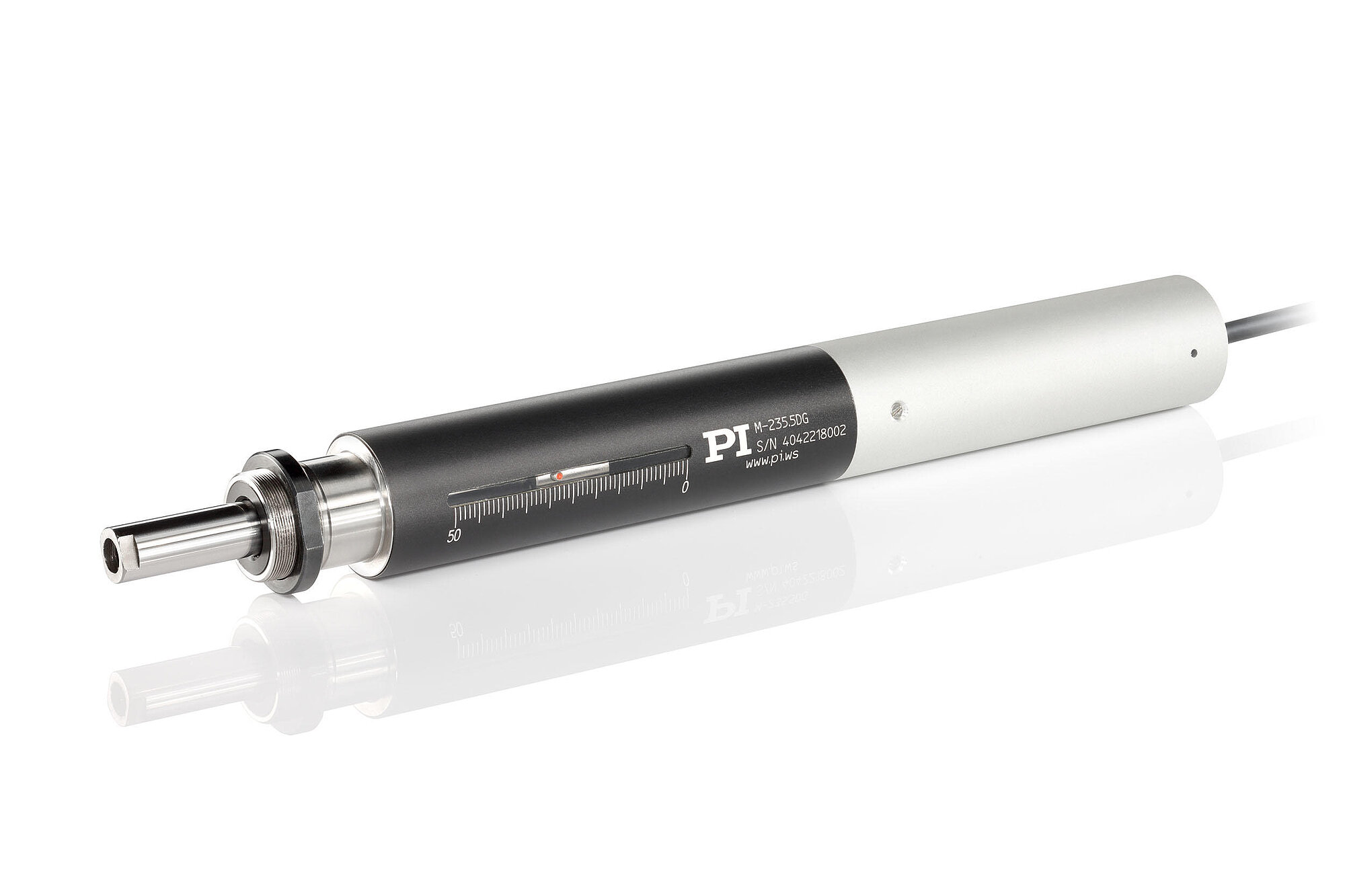

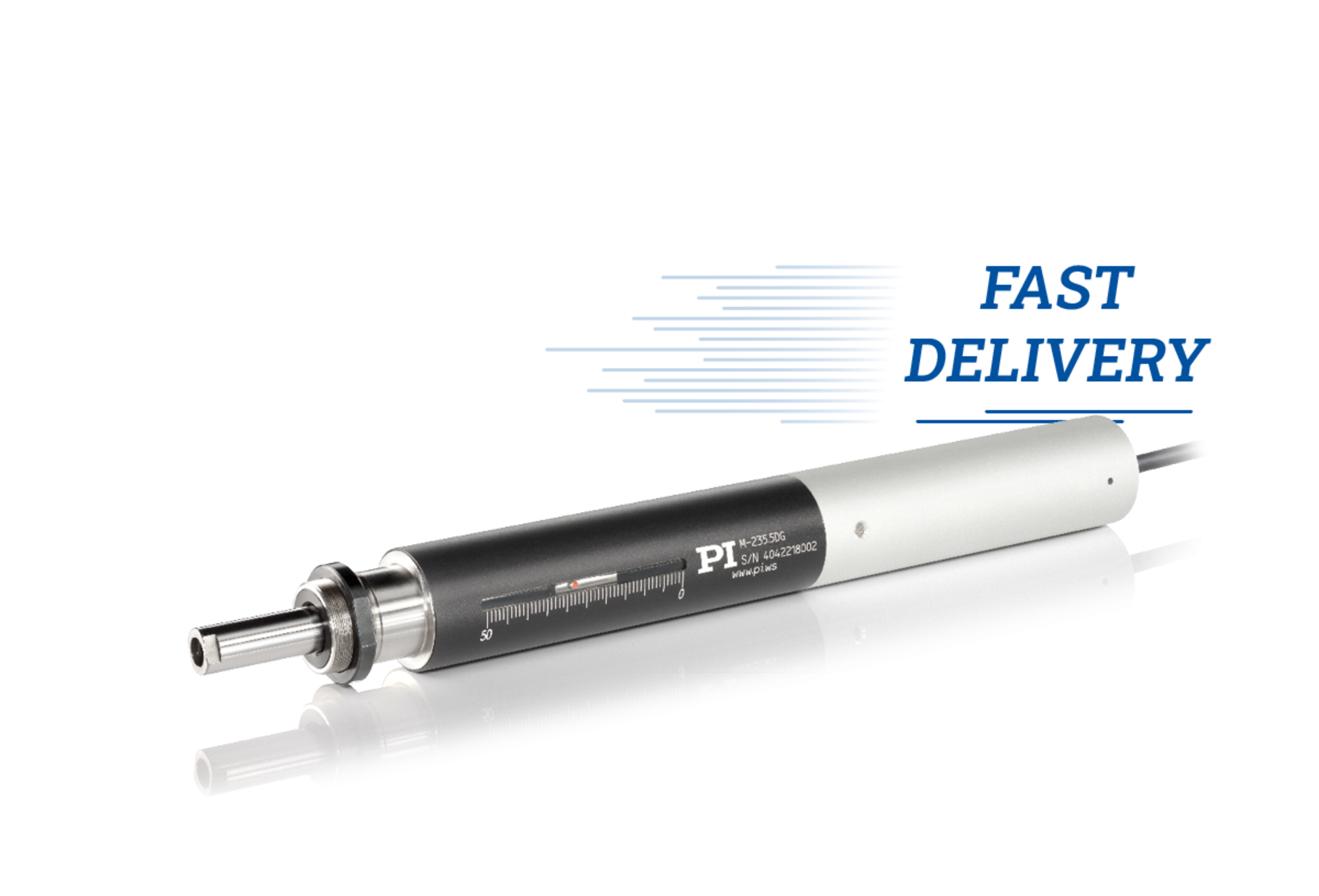

M-235 High-Resolution Linear Actuator with DC Motor

Highly dynamic, high forces up to 120 N

  • Travel ranges 20 and 50 mm
  • Minimum incremental motion to 0.1 µm
  • DC motor allows high velocities
  • Push / pull force capacity up to 120 N
  • MTBF >10,000 h
M-235 High-Resolution Linear Actuator with DC Motor
제품 설명 사양 다운로드 견적 / 주문

Reference-class linear drive

Combines high precision, high forces, and high dynamics.

High-quality components

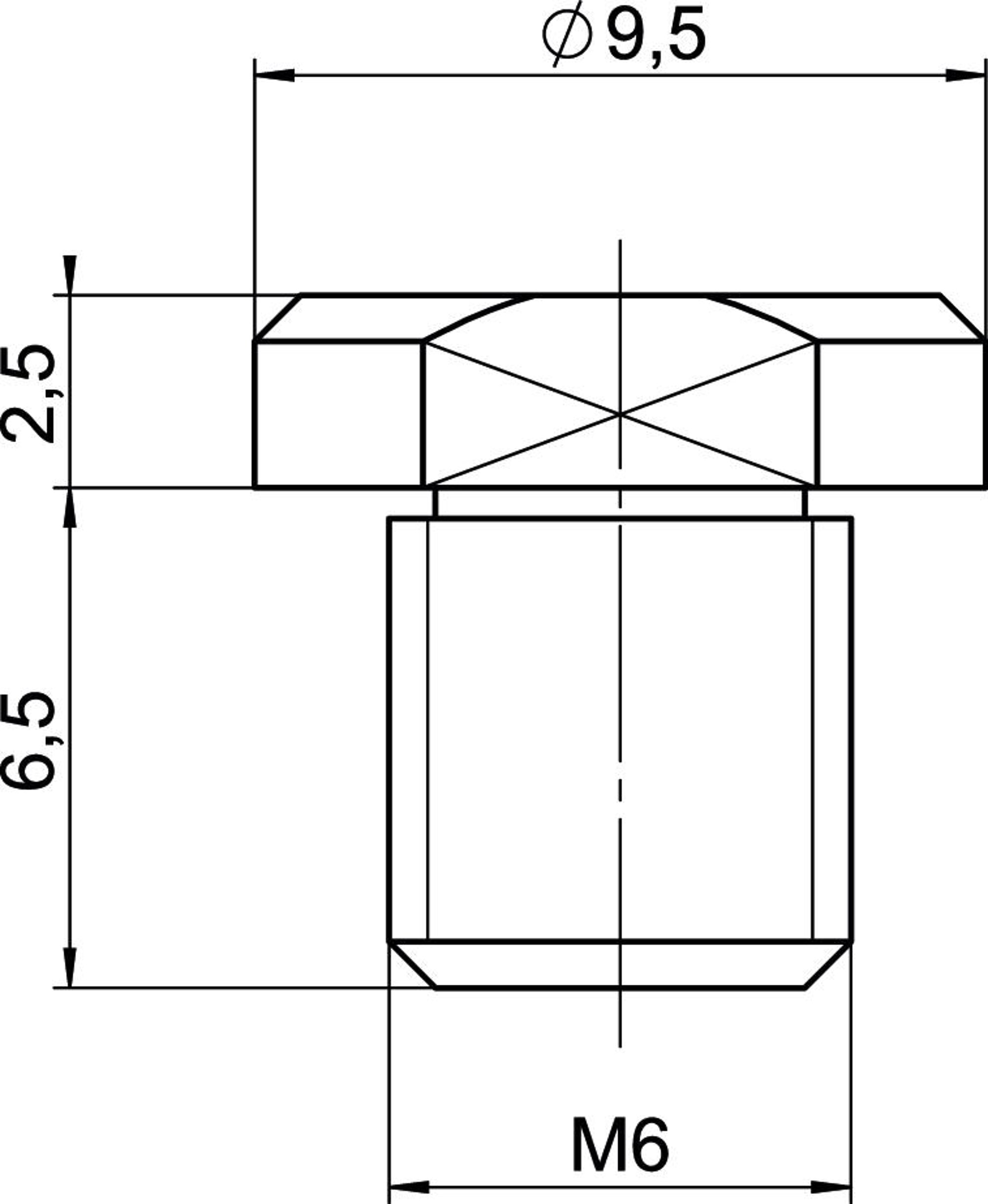

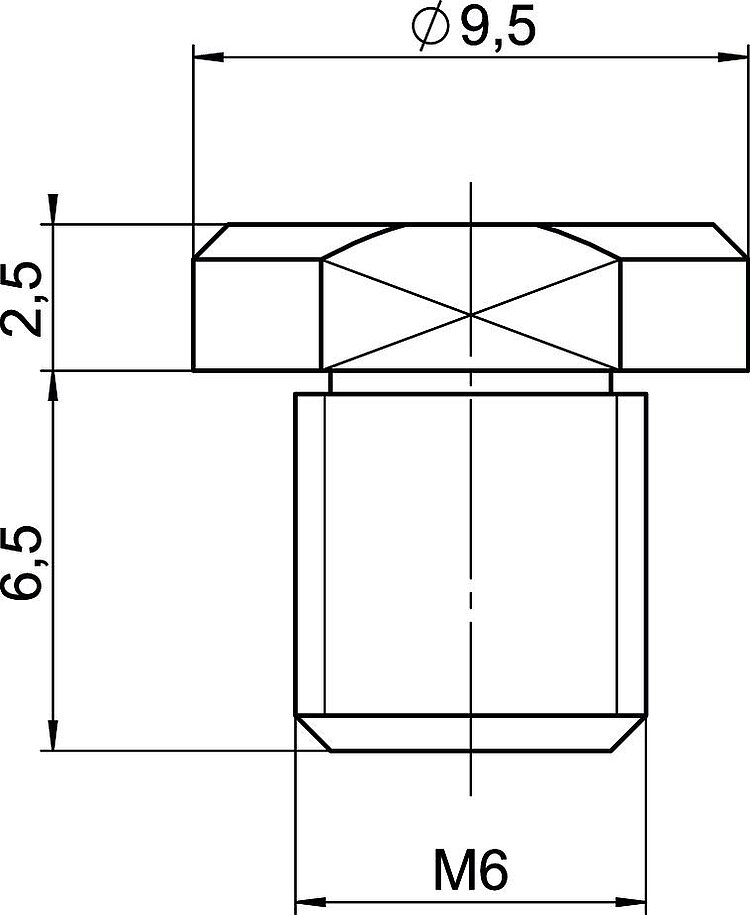

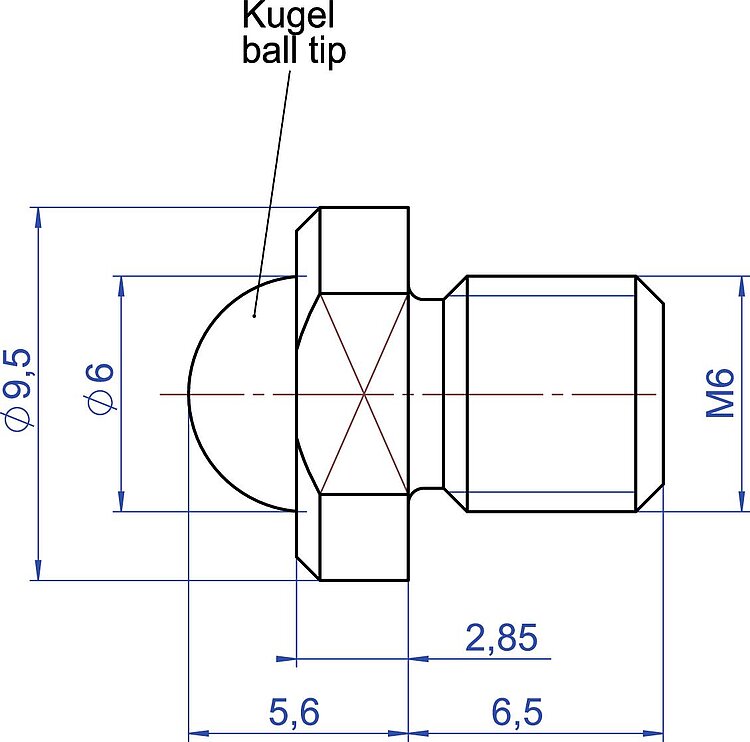

Ball screw for high velocities and a high number of cycles. Nonrotating tip for uniform motion prevents wobble, torque, and wear at the point of contact. Incl. flat and spherical tip for decoupling forces. Noncontact limit switches protect the mechanics. A direction-sensing reference switch supports automation applications. Position-controlled variants with differential encoder driver in the connector for safe signal transfer over distances up to 10 m.

Motor variants

  • Highly dynamic, closed-loop DC motors reach high velocities
  • Position-controlled DC motors with a gearhead and high-resolution rotary encoders allow for incremental motion of just 100 nm

Application fields

Precision adjustment. External drive element for guided systems.

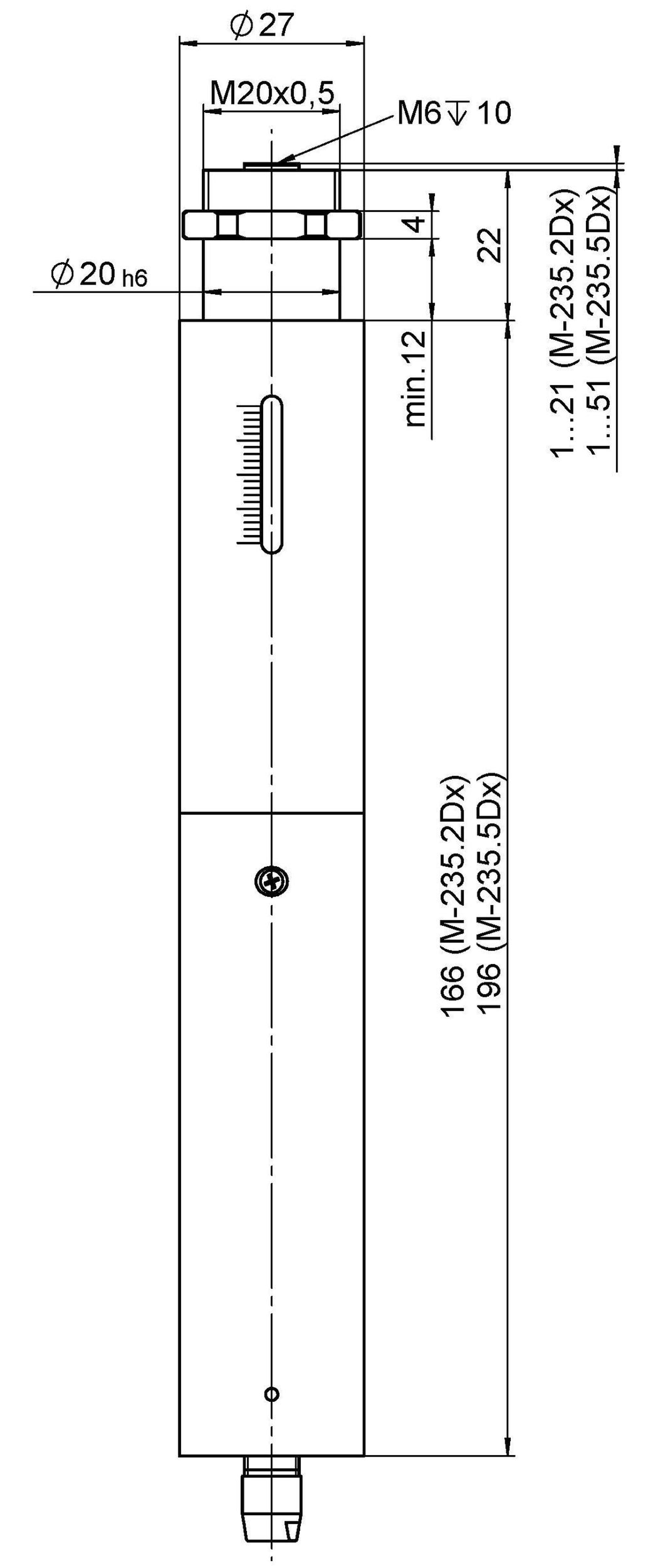

Specifications

Datasheet

Datasheet M-235

버전 / 날짜
2023-07-12
pdf - 598 KB
버전 / 날짜
2023-07-12
pdf - 603 KB

Downloads

Datasheet

Datasheet

Datasheet M-235

버전 / 날짜
2023-07-12
pdf - 598 KB
버전 / 날짜
2023-07-12
pdf - 603 KB

Documentation

Documentation

Short Instructions MP122EK

Linear Actuators: M-168 / M-22x / M-23x

버전 / 날짜
6.0.0 2023-10-10
pdf - 372 KB
버전 / 날짜
6.0.0 2023-10-10
pdf - 384 KB
Documentation

User Manual MP106

M-235 Linear Actuators

버전 / 날짜
1.2 2020-08-31
pdf - 691 KB
버전 / 날짜
1.2 2020-08-31
pdf - 860 KB

3-D Models

3-D Models

M-235 3-D model

zip - 1 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

M-235.2DD

High-resolution linear actuator with DC motor; DC motor; 20 mm travel range; 50 N feed force; 30 mm/s maximum velocity; ball screw; incremental rotary encoder, 2048 counts/rev. sensor resolution; limit switches: Hall effect; 0.5 m cable length

M-235.5DD

High-resolution linear actuator with DC motor; DC motor; 50 mm travel range; 50 N feed force; 30 mm/s maximum velocity; ball screw; incremental rotary encoder, 2048 counts/rev. sensor resolution; limit switches: Hall effect; 0.5 m cable length

M-235.2DG

High-resolution linear actuator with DC motor; DC gear motor; 20 mm travel range; 120 N feed force; 2 mm/s maximum velocity; ball screw; incremental rotary encoder, 2048 counts/rev. sensor resolution; limit switches: Hall effect; 0.5 m cable length

M-235.5DG

High-resolution linear actuator with DC motor; DC gear motor; 50 mm travel range; 120 N feed force; 2 mm/s maximum velocity; ball screw; incremental rotary encoder, 2048 counts/rev. sensor resolution; limit switches: Hall effect; 0.5 m cable length
