C-863 Mercury Servo Controller

1 Axis, for DC Motors and PWM Motor Drivers

C-863 Mercury Servo Controller
제품 설명 사양 다운로드 견적 / 주문

Digital motion controller for DC servo motors

1 axis. Motion control of PI positioning systems with DC motor: Direct motor control; PWM control for fast PI stages with integrated ActiveDrive amplifiers or with brushless motors and integrated block commutation. PID controller. Supports motor brake.

Interfaces and communication

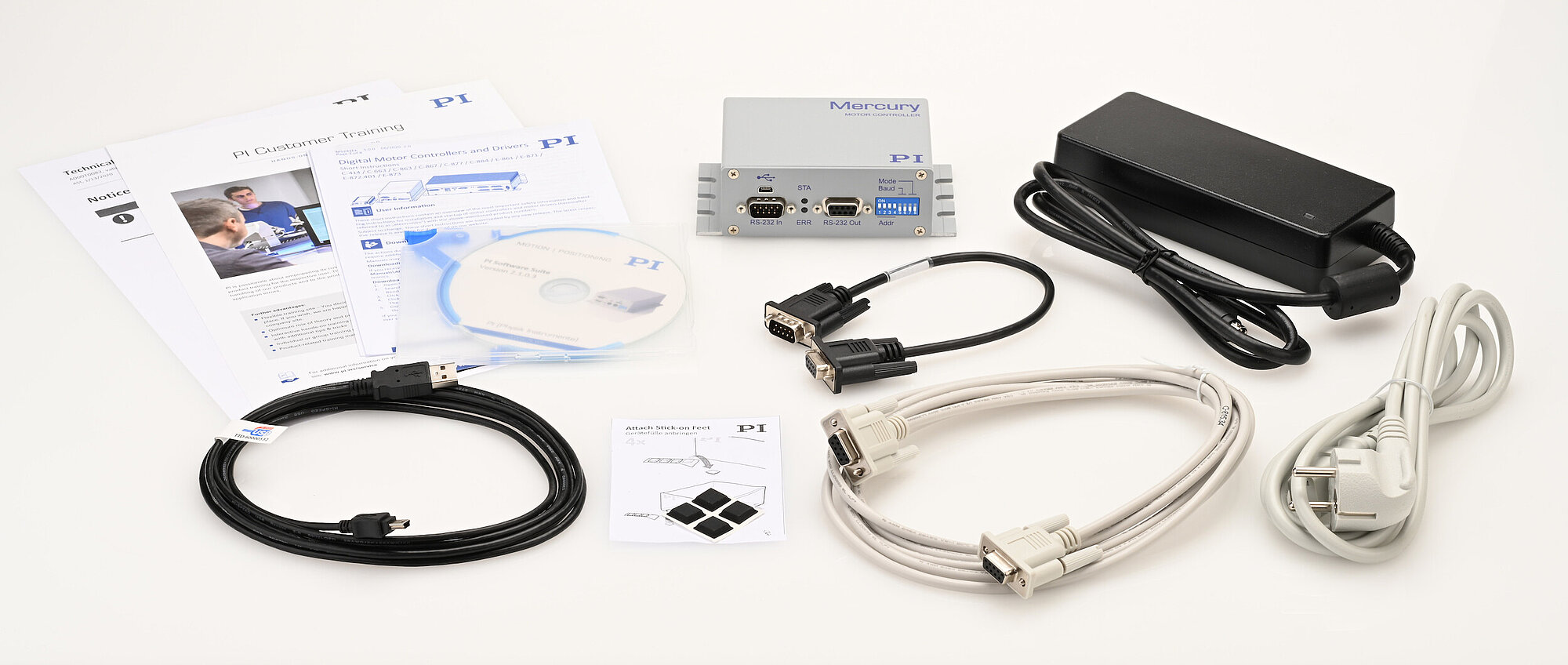

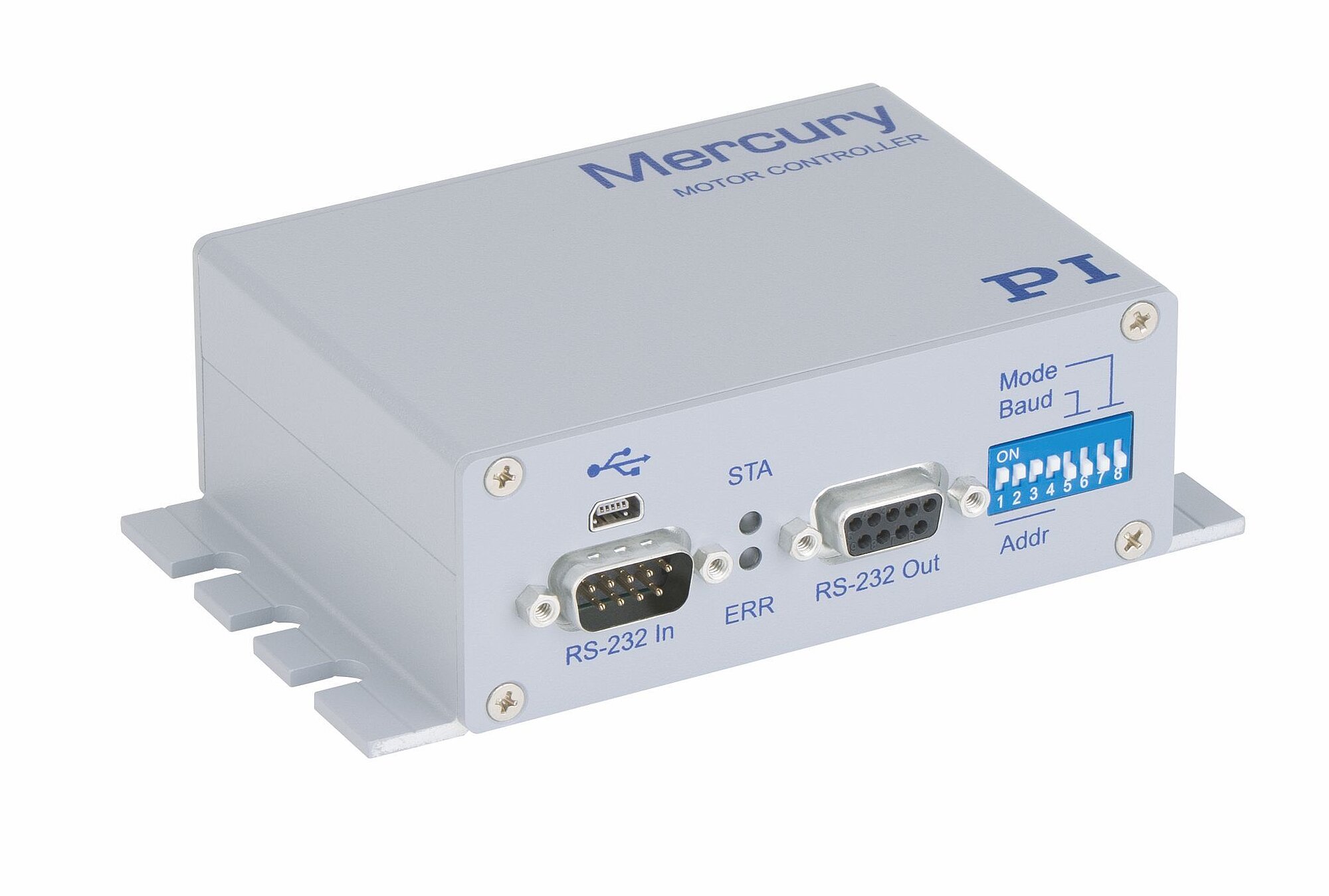

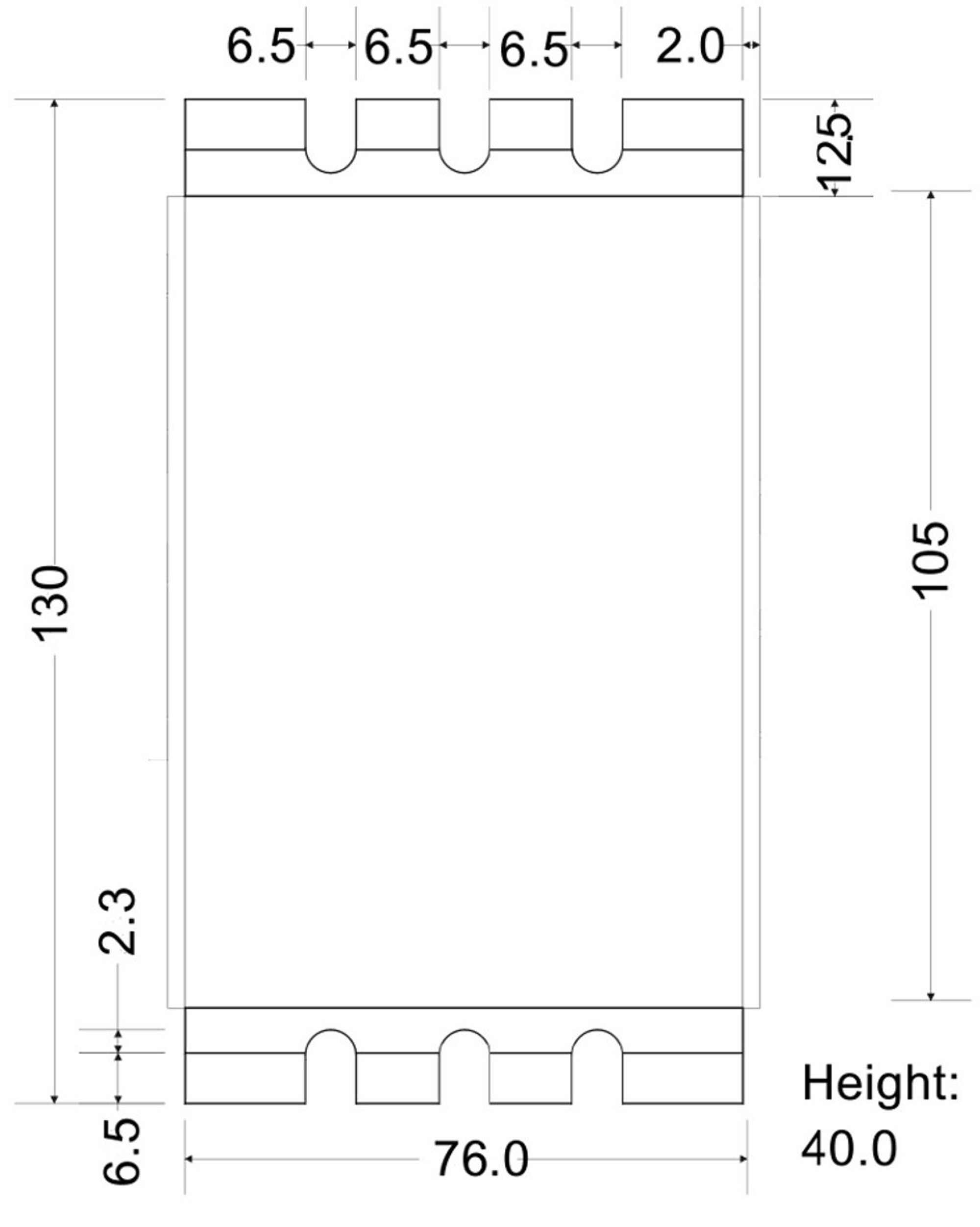

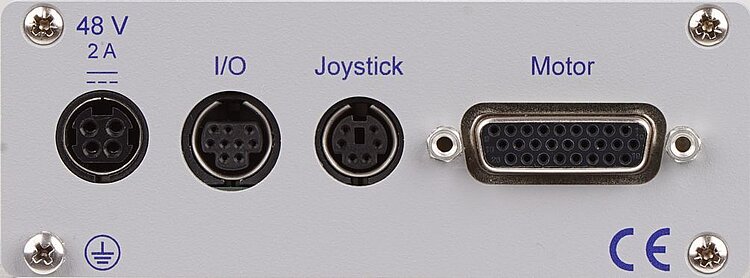

USB and RS-232 interface for commanding. A/B quadrature encoder input. TTL inputs for limit and reference switches. I/O lines (analog/digital) for automation. Connector for analog joystick. Daisy chain networking for up to 16 axes operated via a common computer interface.

Extensive functions, software support

Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. PID controller, parameter changing during operation. Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.

Specifications

Datasheet

Datasheet C-863

버전 / 날짜
2020-01-17
버전 / 날짜
2020-01-17
버전 / 날짜
2019-09-26
문서 언어
pdf - 529 KB
pdf - 534 KB
pdf - 841 KB

Downloads

Datasheet

Datasheet

Datasheet C-863

버전 / 날짜
2020-01-17
버전 / 날짜
2020-01-17
버전 / 날짜
2019-09-26
문서 언어
pdf - 529 KB
pdf - 534 KB
pdf - 841 KB

Documentation

Documentation

User Manual MS249

C-863.12 Mercury DC Motor Controller, HD D-Sub 26
버전 / 날짜
1.1.0 2019-09-25
버전 / 날짜
1.1.0 2019-09-25
문서 언어
Documentation

Short Instructions MS242EK

Digital Motor Controllers and Drivers: C-663 / C-863 / C-867 / C-877 / C-884 / E-861 / E-871 / E-872.401 / E-873
버전 / 날짜
2.1.0 10/2019
버전 / 날짜
2.1.0 10/2019
문서 언어
pdf - 2 MB
pdf - 2 MB
Documentation

Software Manual MS206

GCS LabVIEW Driver Set for C-663 and C-863 Mercury Controller
버전 / 날짜
6.14.0 2016-12-09
문서 언어 영어

3-D Models

3-D Models

C-863 3-D model

General Software Documentation

General Software Documentation

Software Manual SM155

PI MATLAB Driver GCS 2.0
버전 / 날짜
1.1.0 2016-02-29
버전 / 날짜
1.1.0 2016-02-29
문서 언어
General Software Documentation

Technical Note A000T0028

PI Update Finder: Description and general instruction
문서 언어 영어
General Software Documentation

Technical Note A000T0032

PI Update Finder: Updating software without internet connection
문서 언어 영어
General Software Documentation

Software Manual SM146

GCS Array Data Format
버전 / 날짜
1.2.1
문서 언어 영어
General Software Documentation

Software Manual SM148

PIMikroMove
버전 / 날짜
2.14.0 2020-01-30
문서 언어 영어
General Software Documentation

Software Manual SM151E

PI GCS2 DLL
버전 / 날짜
2.10.0 2019-08-26
문서 언어 영어
General Software Documentation

Software Manual SM154

Merge Tool for use with Driver Sets for NI LabVIEW Software
버전 / 날짜
6.18.0 2018-10-16
문서 언어 영어
General Software Documentation

Software Manual SM156

PIStages3Editor for editing the PIStages3 database
버전 / 날짜
2.0.0 2019-03-01
버전 / 날짜
2.0.0 2019-03-01
문서 언어
General Software Documentation

User Manual A000T0067

Information on the PIStages3 database. What must be considered when changing from PIStages2 to PIStages3.
버전 / 날짜
2020-01-13
문서 언어 영어
