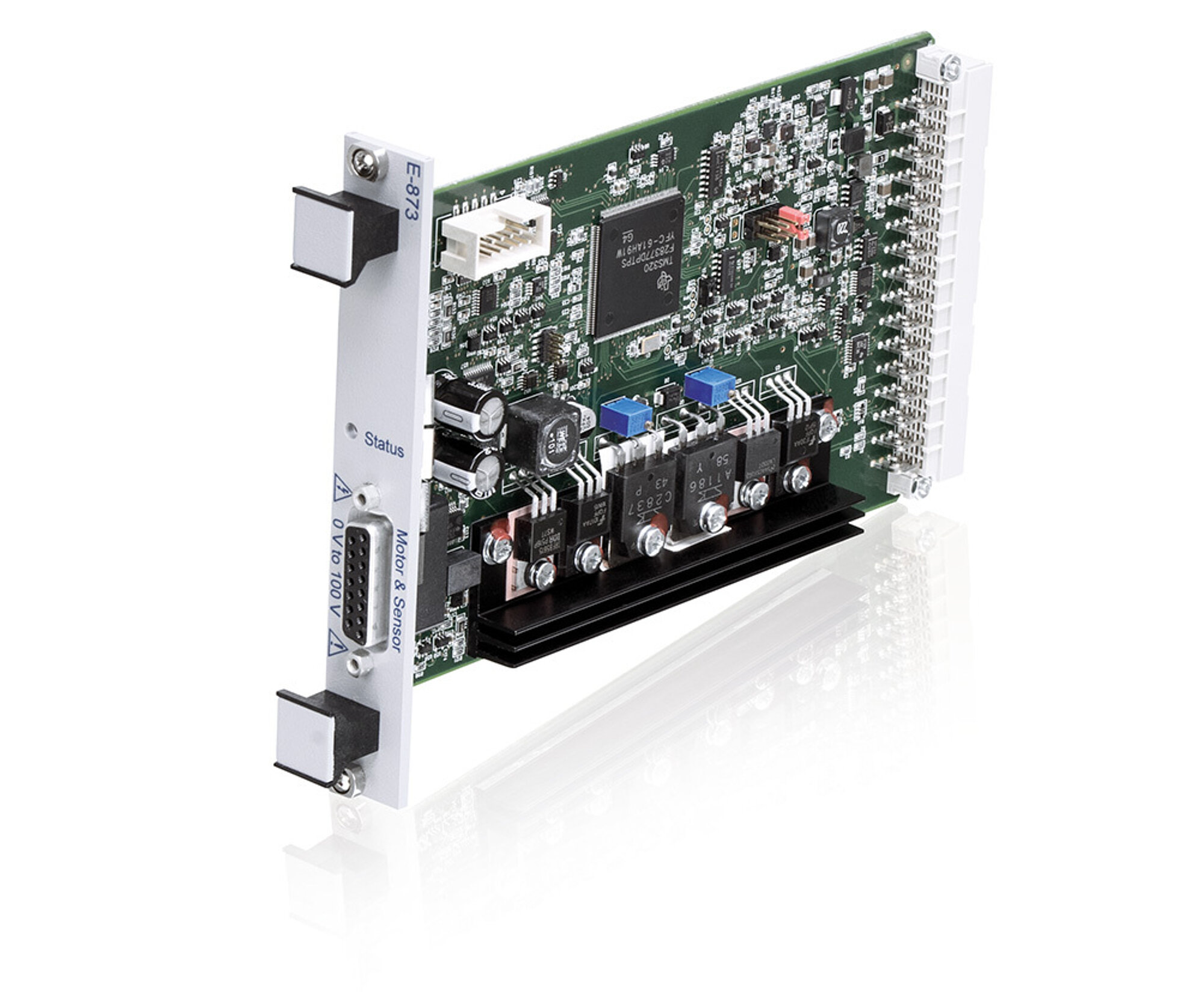

E-873.10C885 Q-Motion® Controller Module for C-885 PIMotionMaster

For Piezoelectric Inertia Drives, 1 Axis

  • Broadband encoder input
  • Macro programmable for stand-alone functionality
  • Fast startup due to ID chip detection
  • Data recorder
  • PID controller, parameters modifiable during operation
E-873.10C885 Q-Motion® Controller Module for C-885 PIMotionMaster
제품 설명 사양 다운로드 견적 / 주문

Servo controller for piezoelectric inertia drives, 1 axis

Technology

Integrated power amplifier and voltage generator for piezoelectric inertia drives. Point-to-point motion, trapezoidal velocity profile, actuator mode for nanometer-precise positioning at the target position.

Differential signal transmission for analog (sin/cos) encoder signals, BiSS interface for absolute encoders.

Functionality and software

Powerful macro programming language. Nonvolatile macro memory, e.g., for stand-alone operation with autostart macro. Data recorder. ID chip detection for fast startup. PID controller, parameters modifiable during operation.

Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.

Installation and operation

Plug-and-play installation in the C-885 PIMotionMaster: Can be inserted in any free slot. Automatic detection and external communication by the processor and interface module of the C-885. Expandable by optional digital inputs and outputs. Power supply via the power adapter of the C-885.
