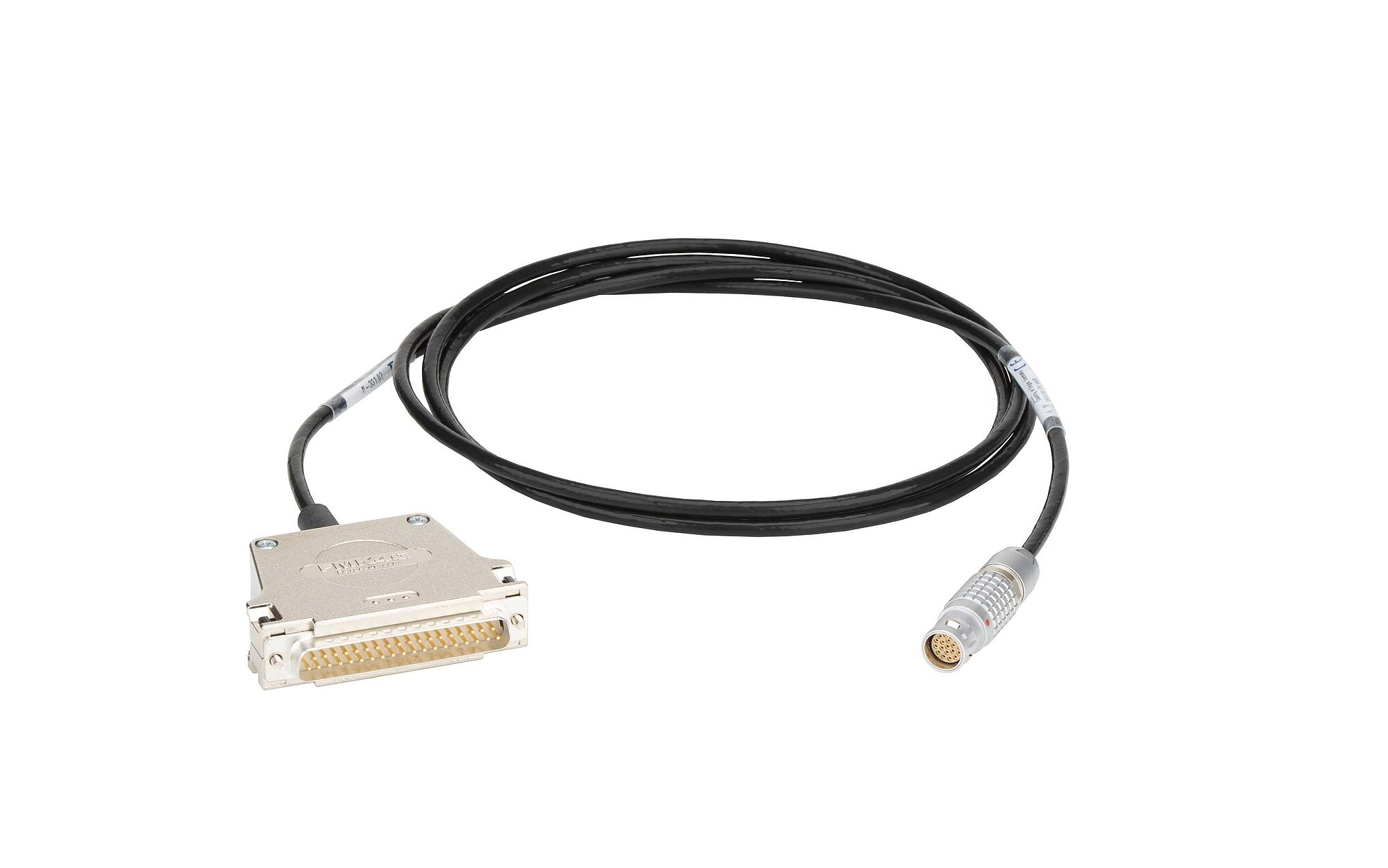

N-331.0x Adapter Cable for N-331.xxU Linear Actuator

N-331.0x Adapter Cable for N-331.xxU Linear Actuator

NEW

Cable for Motor, Sensor, and Reference Switch Signals

Low weight
Cable lengths 2 m and 5 m available

Air-side adapter cable for connecting a vacuum feedthrough to an E-712.xAN PICMAWalk controller.

Download datasheet 사양 보기

Datasheet

버전 / 날짜

2023-03-30

pdf - 476 KB

버전 / 날짜

2023-03-30

pdf - 477 KB

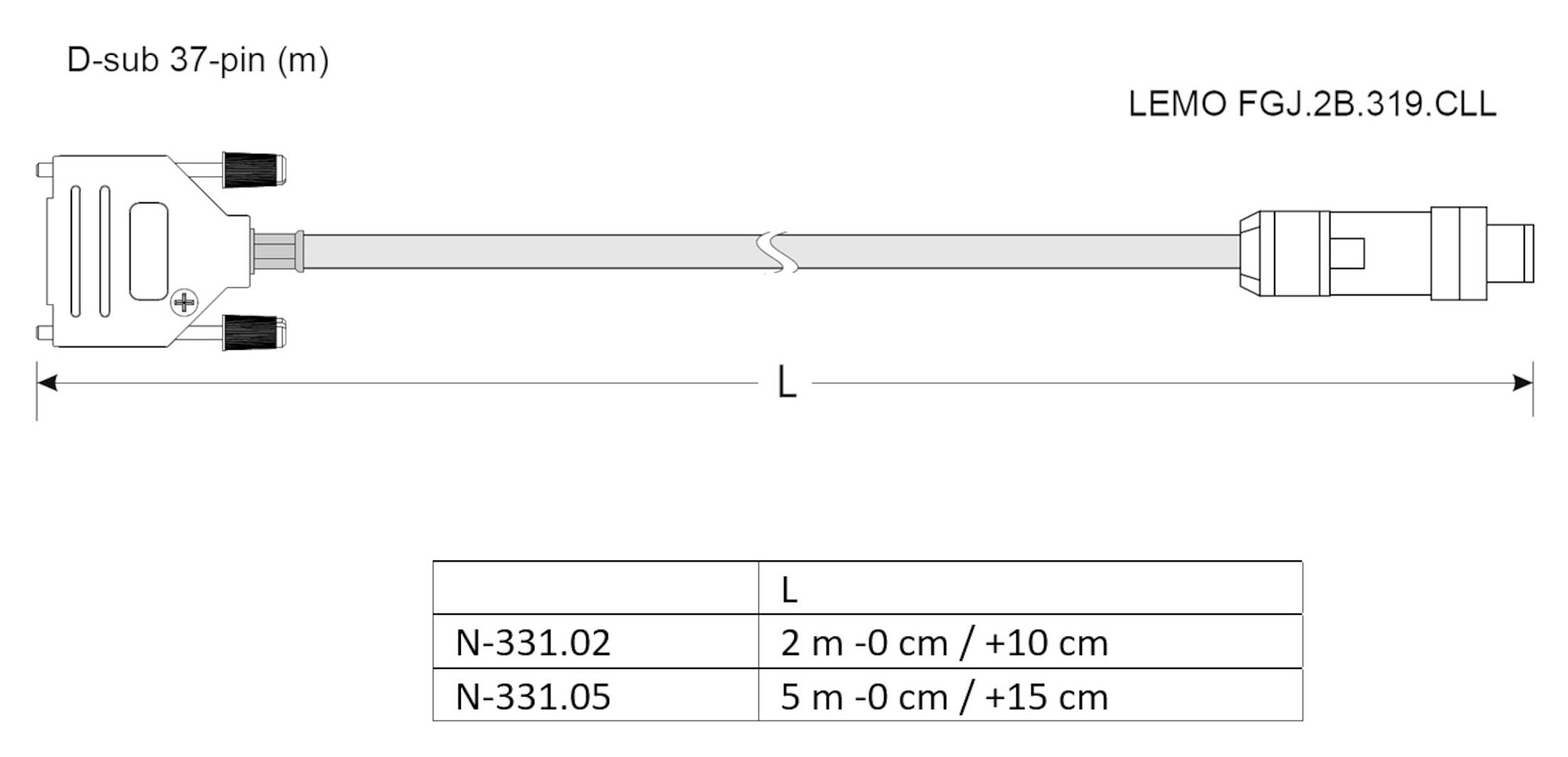

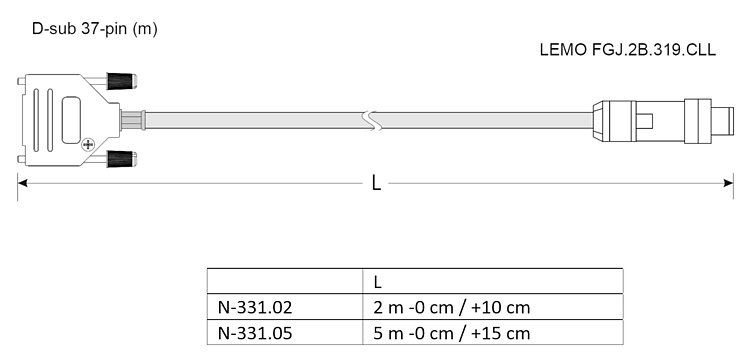

	N-331.02	N-331.05
Controller side connector	D-sub 37-pin (m)	D-sub 37-pin (m)
Mechanics side connector	LEMO FGJ.2B.319.CLL 19-pole (f)	LEMO FGJ.2B.319.CLL 19-pole (f)
Cable length	2 m	5 m
Overall mass	260 g	450 g
Cable outer diameter	4.8 mm	4.8 mm
Minimum bending radius for fixed installation	25 mm	25 mm
Minimum bending radius in a drag chain	60 mm	60 mm
Maximum number of bending cycles	300000	300000
Drag chain compatibility	drag chain compatible	drag chain compatible

Download datasheet 다운로드 가기

Datasheet

버전 / 날짜

2023-03-30

pdf - 476 KB

버전 / 날짜

2023-03-30

pdf - 477 KB

견적 / 주문하기

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

N-331.02 NEW!

Adapter cable, LEMO 19-pole (f) to D-sub 37 (m), 2 m

Add to quote list Remove from quote list

N-331.05 NEW!

Adapter cable, LEMO 19-pole (f) to D-sub 37 (m), 5 m

Add to quote list Remove from quote list
