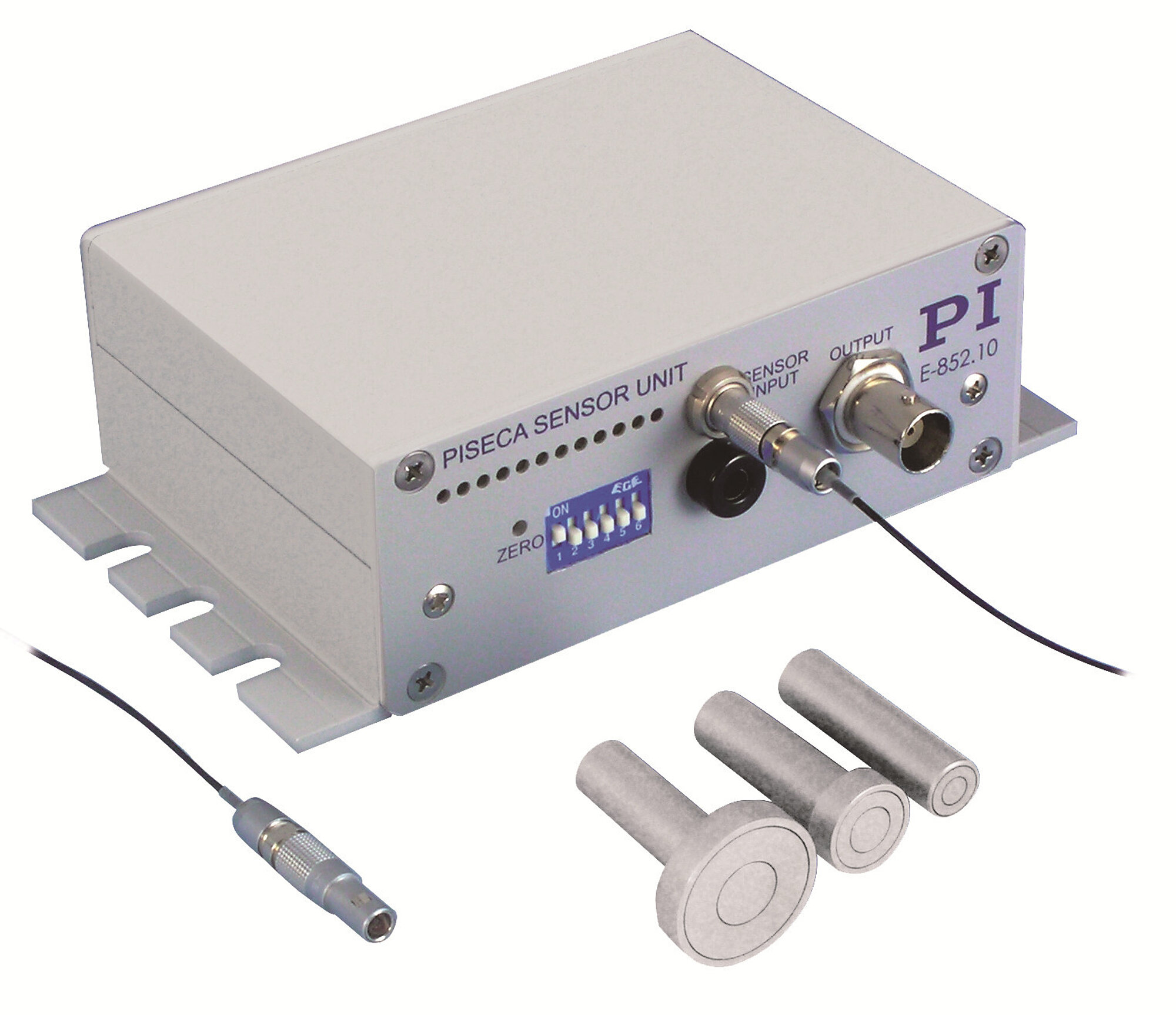

E-852 PISeca Signal Evaluation

For Capacitive Single-Electrode Sensors

  • Inexpensive system solution for PISeca capacitive sensors
  • Excellent linearity thanks to integrated linearization function (ILS)
  • Selectable bandwidth from 10 Hz up to 10 kHz
  • Variable measuring range
  • LED-bar measuring-range display for easy integration
  • External synchronization for multi-axis applications
E-852 PISeca Signal Evaluation
제품 설명 사양 다운로드 견적 / 주문

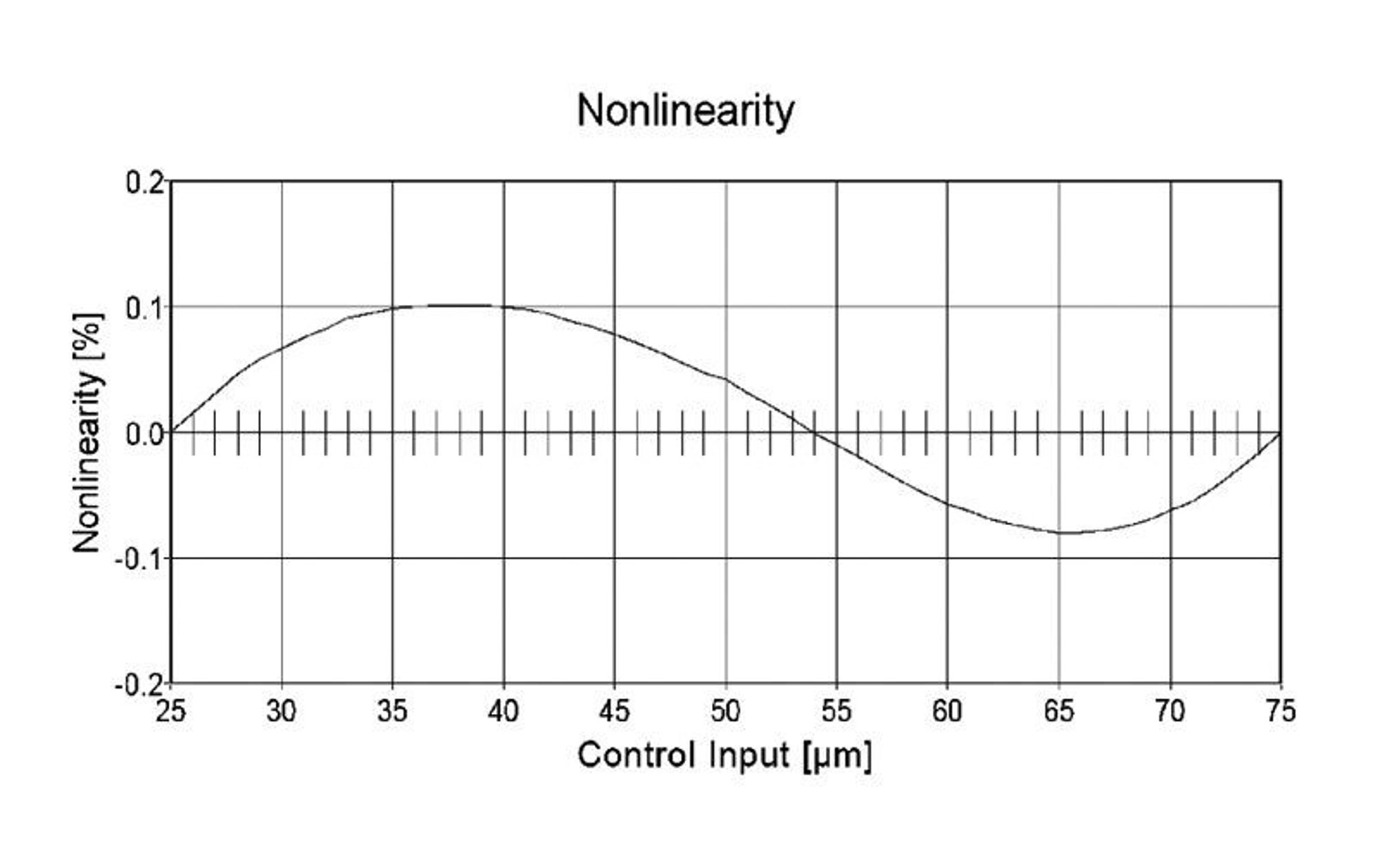

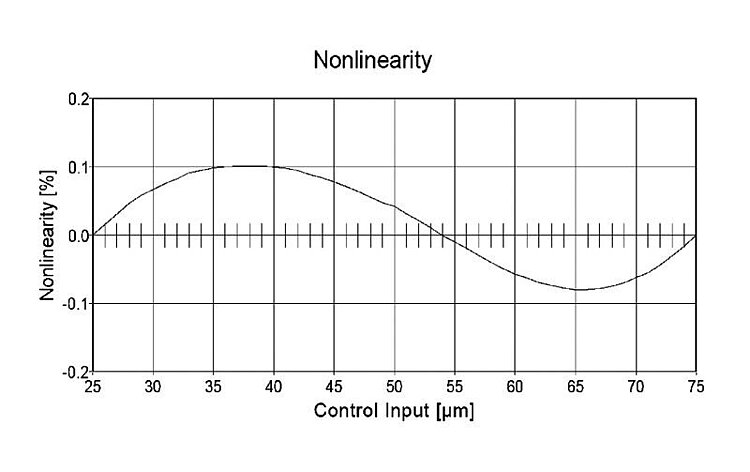

Integrated linearization system (ILS) for highest accuracy

In the electronics, an integrated linearization system assures highest accuracy. Compensates the influence of parallelism errors between the sensor and measurement surface and therefore guarantees excellent linearity (linearity error under 0.1 %).

External synchronization for multi-axis applications

When several sensor systems are used together, synchronization is simply done via the I/O lines of the PISeca electronics.

Specifications

Datasheet

Datasheet E-852

버전 / 날짜
2021-11-10
pdf - 269 KB
버전 / 날짜
2021-11-10
pdf - 267 KB
버전 / 날짜
2019-11-21
pdf - 558 KB

Downloads

Datasheet

Datasheet

Datasheet E-852

버전 / 날짜
2021-11-10
pdf - 269 KB
버전 / 날짜
2021-11-10
pdf - 267 KB
버전 / 날짜
2019-11-21
pdf - 558 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
