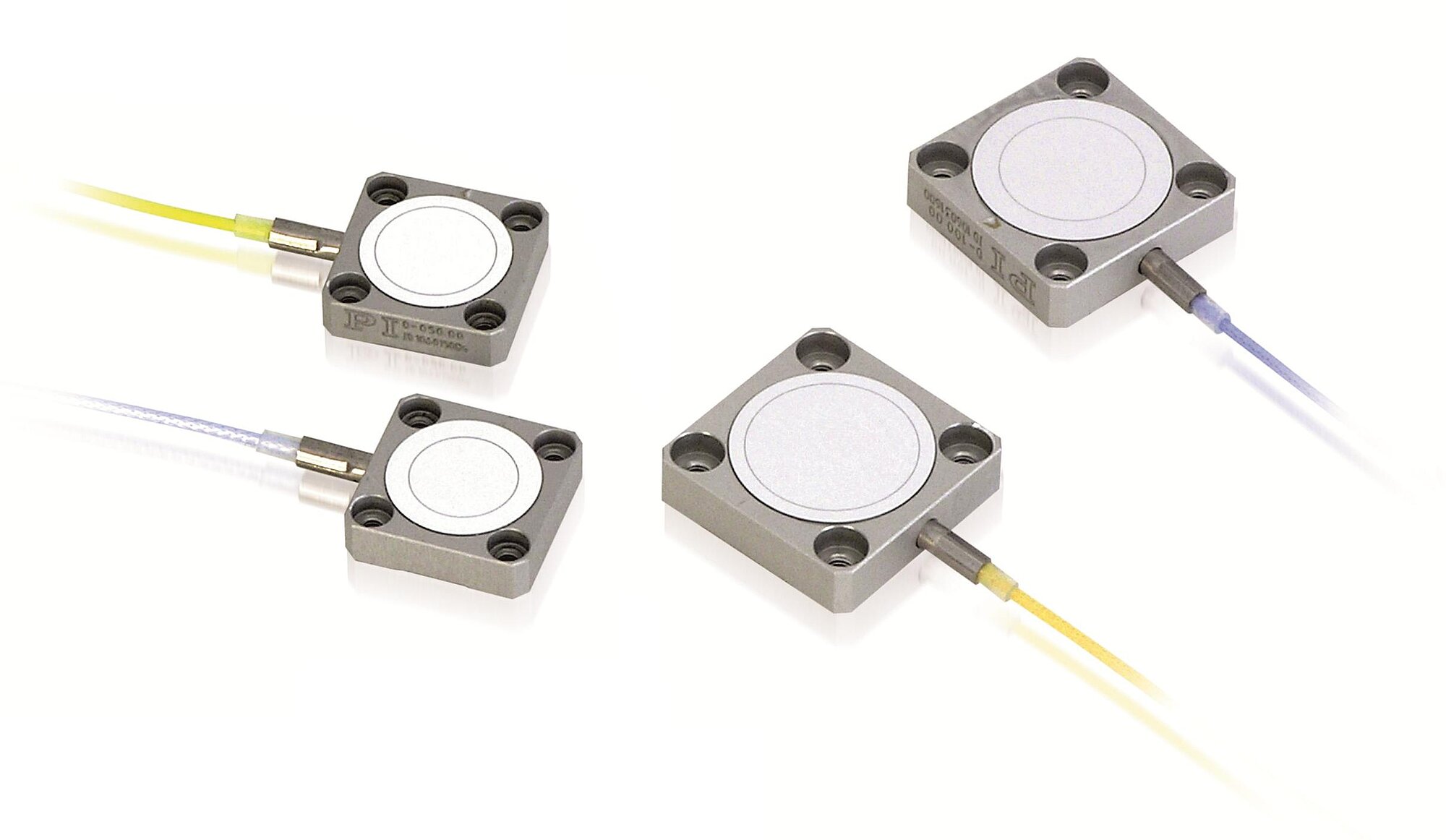

D-050 • D-100 Capacitive Sensors

Subnanometer-Resolution Position Sensors

  • For applications with the highest precision requirements
  • Measuring range to 300 µm
  • Resolution to 0.01 nm
  • Linearity error to 0.01% with digital controller
  • E-509.CxA control electronics, compatible with E-500 piezo controller system
D-050 • D-100 Capacitive Sensors
제품 설명 사양 다운로드 견적 / 주문

Resolution

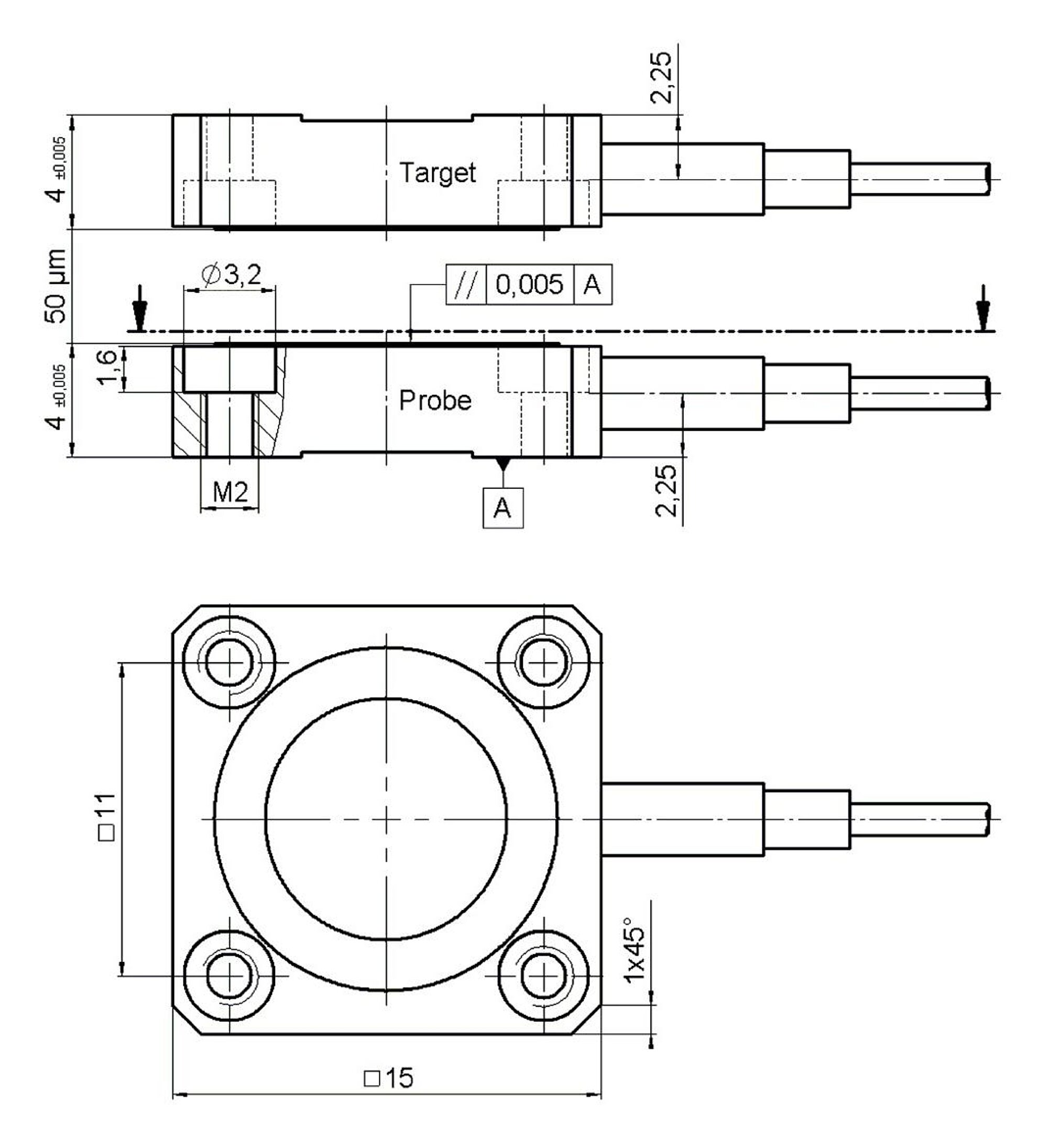

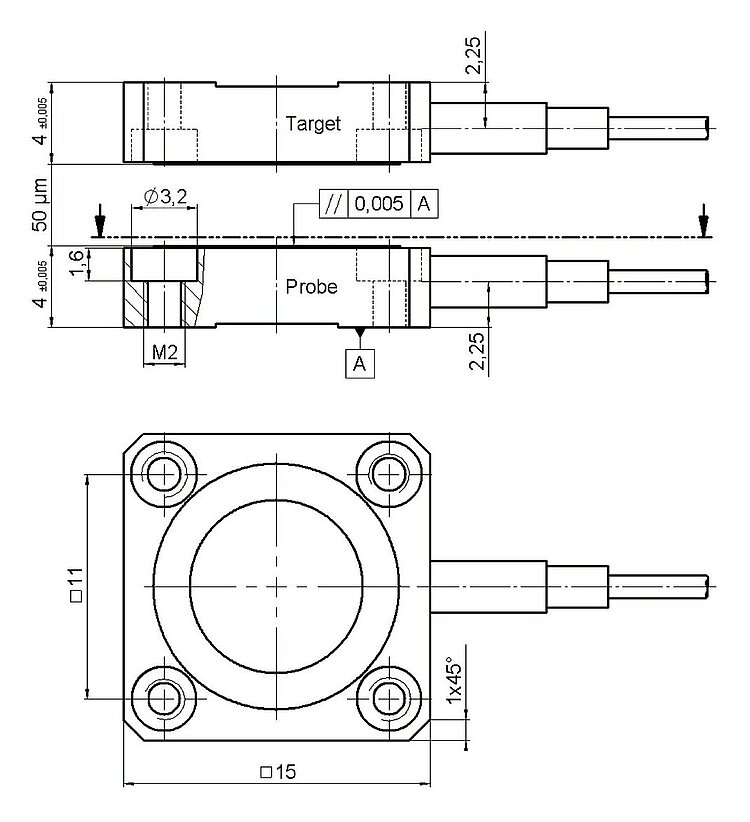

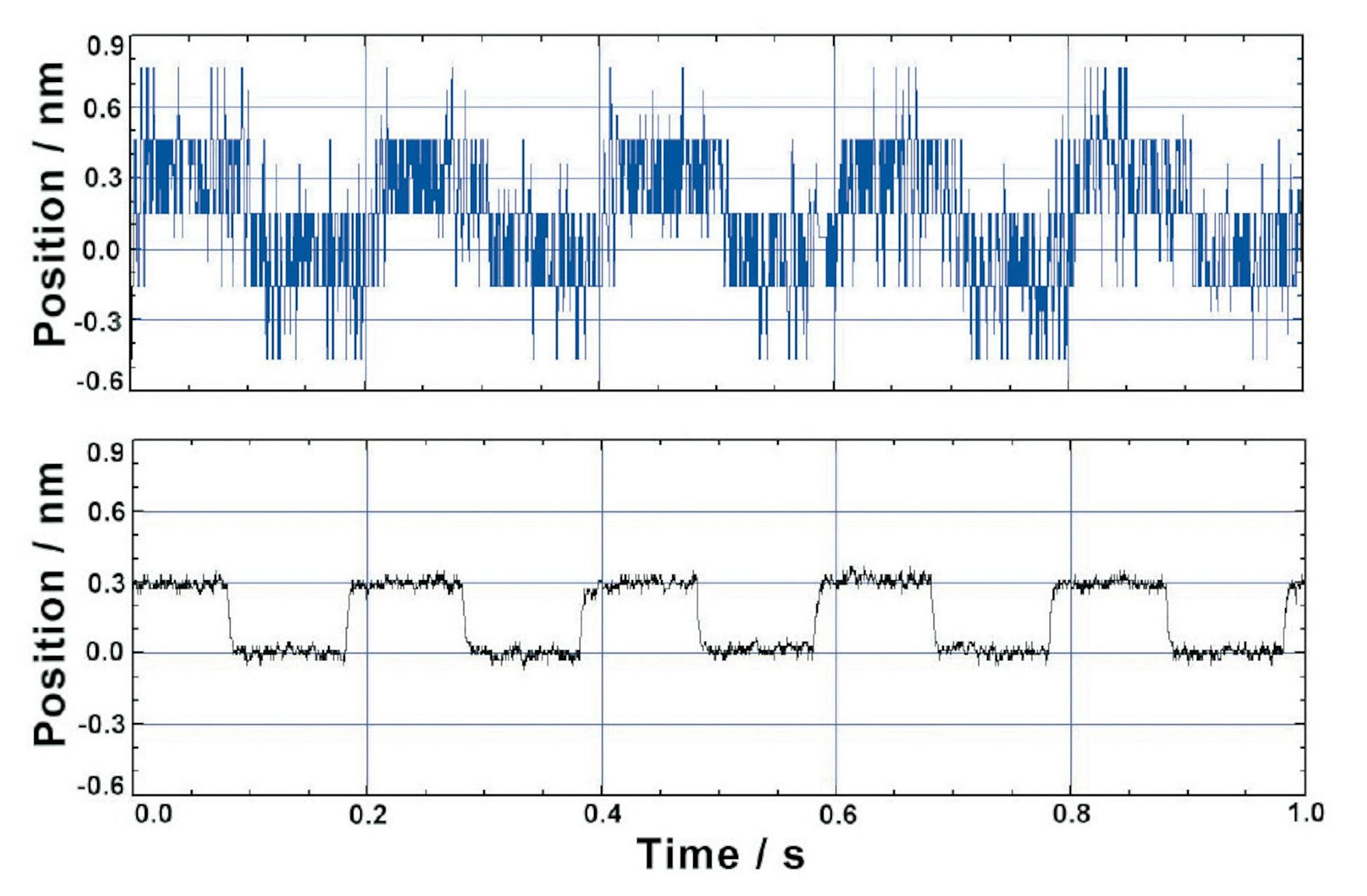

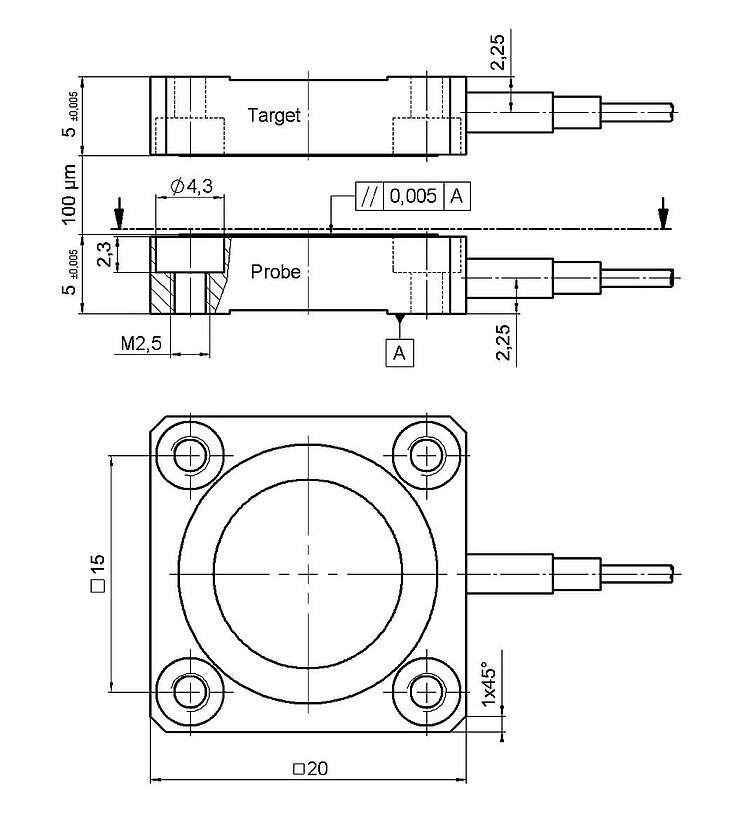

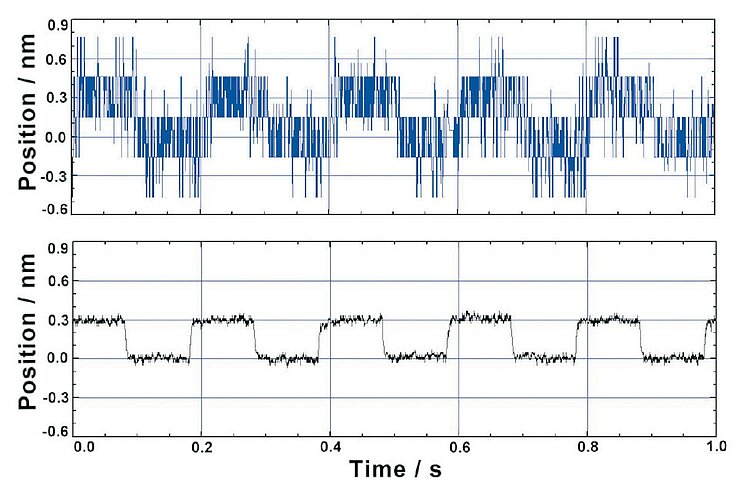

Capacitive sensors achieve resolutions into the picometer range over shorter distances. The theoretical measuring resolution is unlimited. In practice, scatter radiation, geometrical effects, and the measuring electronics noise influence the achievable accuracy. In conjunction with the E-509.C1A electronics, the effective noise factor of the D-100.00 sensors (100 µm) is 0.02 nm/√Hz. Corresponds for example, to a resolution of 0.2 nm with 100 Hz bandwidth. The jumper-adjustable bandwidth of the electronics is up to 3 kHz.
