C-815.86DP Hexapod Cables

NEW

Combined Power Supply and Data Transmission Cables

Easy handling thanks to pluggable cables
Industrial application thanks to drag chain-compatible design
Cable lengths from 3 m to 10 m available
Easy cable management through transmission of data signals and operating voltage via one cable

견적 / 주문하기

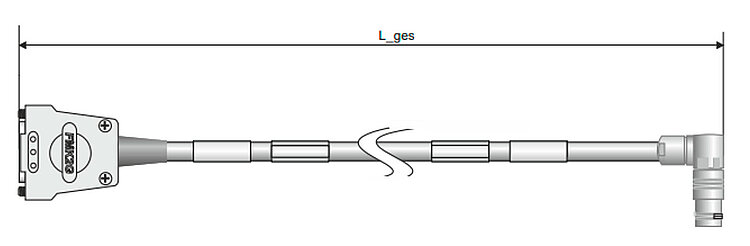

Length of the C-815.86DP cables

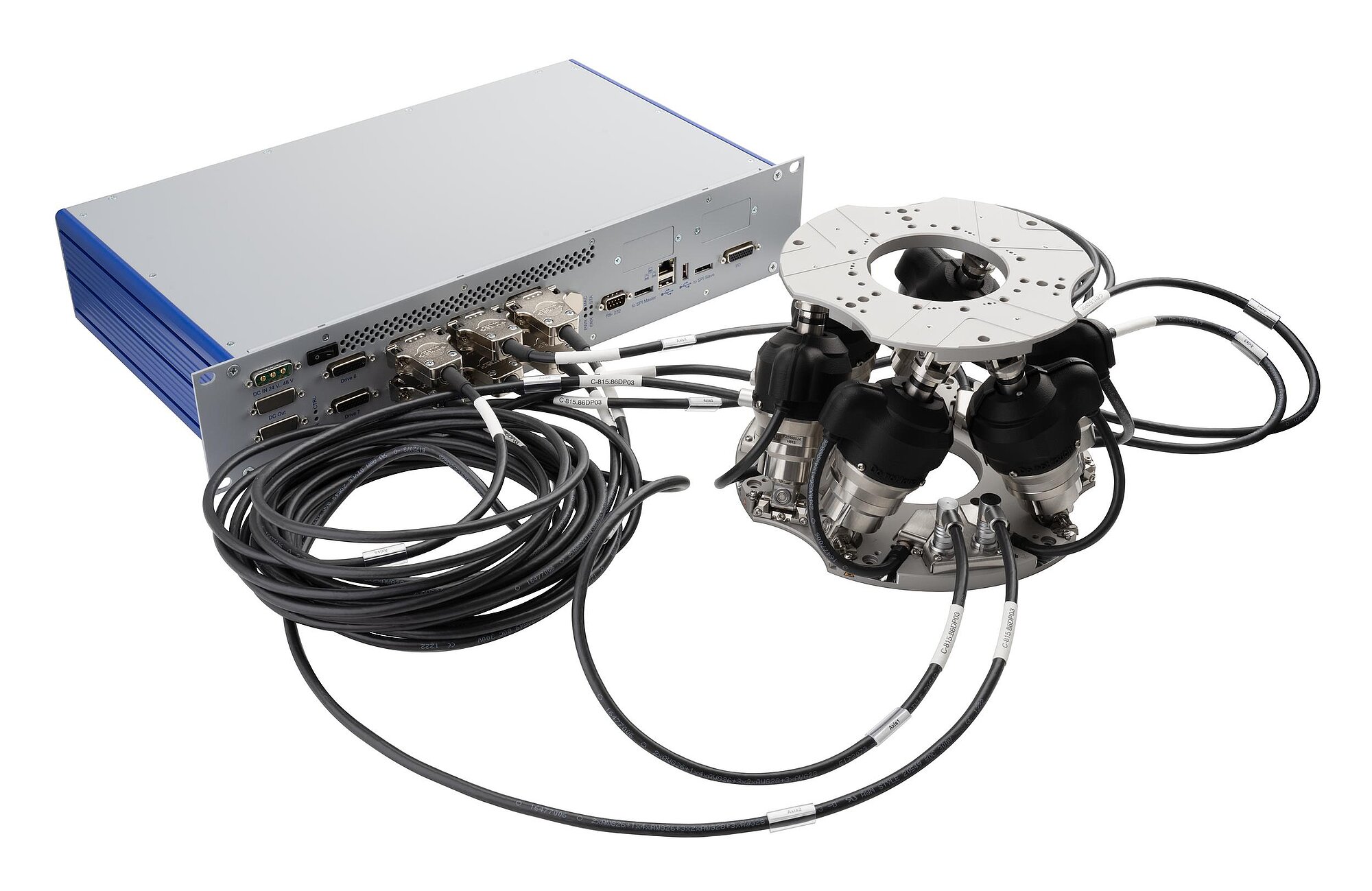

Cabling between H-815 hexapod and C-887 controller (with integrated power drivers) with C-815.86DP030A cables

Combined Power Supply and Data Transmission Cables

The C-815.86DP cables transmit both data signals and the required operating voltage.

They are used as connecting cables for hexapods without integrated power drivers.

For connection to a controller with integrated power drivers, 6 cables are required per hexapod.

The cables ensure seamless communication and efficient voltage transmission, thereby optimizing the performance of hexapods in industrial applications. The cable design guarantees durability and reliable operation in demanding environments.

Download datasheet 사양 보기 견적 / 주문하기

Datasheet

버전 / 날짜

2025-08-12

pdf - 894 KB

버전 / 날짜

2025-08-12

pdf - 898 KB

다운로드

	C-815.86DP03A	C-815.86DP05A	C-815.86DP07A	C-815.86DP10A
Controller side connector	HD D-sub 26 (m)	HD D-sub 26 (m)	HD D-sub 26 (m)	HD D-sub 26 (m)
Mechanics side connector	Circular push-pull connector 16-pole (m) 90°	Circular push-pull connector 16-pole (m) 90°	Circular push-pull connector 16-pole (m) 90°	Circular push-pull connector 16-pole (m) 90°
Cable length	3 m	5 m	7.5 m	10 m
Operating temperature range	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C
Cable outer diameter	6.8 mm	6.8 mm	6.8 mm	6.8 mm
Bending radius for fixed installation	50 mm	50 mm	50 mm	50 mm
Bending radius in drag chain	99 mm	99 mm	99 mm	99 mm
Maximum number of bending cycles	1500000	1500000	1500000	1500000
Drag chain compatibility	suitable for drag chains	suitable for drag chains	suitable for drag chains	suitable for drag chains

Download datasheet 다운로드 가기 견적 / 주문하기

Datasheet

버전 / 날짜

2025-08-12

pdf - 894 KB

버전 / 날짜

2025-08-12

pdf - 898 KB

다운로드

견적 / 주문하기

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

C-815.86DP03A NEW!

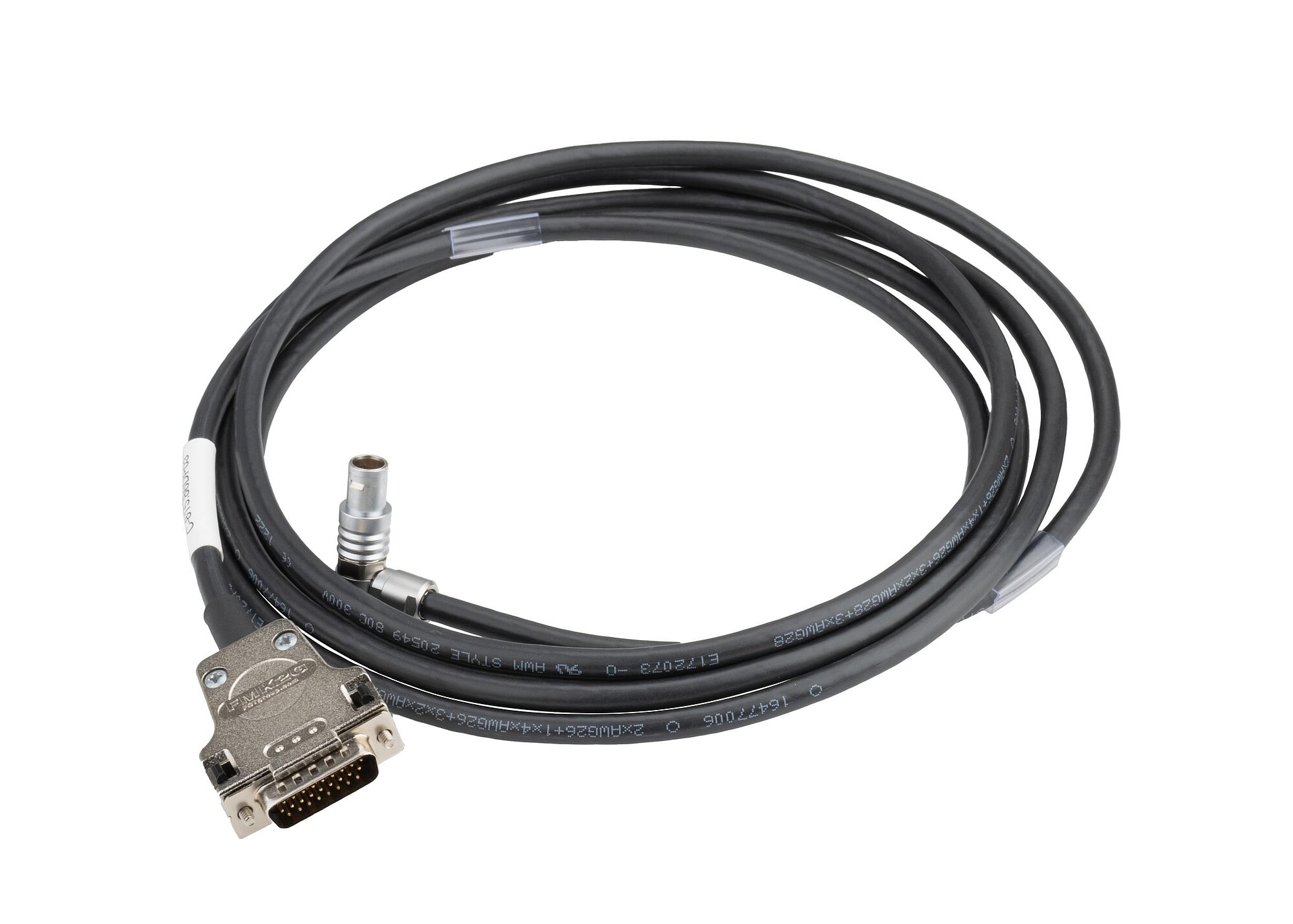

Connecting cable for hexapods without integrated power driver; D-sub HD 26 (m) to circular push-pull connector 16-pin (m) 90°; suitable for drag-chains; 3 m

Add to quote list Remove from quote list

C-815.86DP05A NEW!

Connecting cable for hexapods without integrated power driver; D-sub HD 26 (m) to circular push-pull connector 16-pin (m) 90°; suitable for drag-chains; 5 m

Add to quote list Remove from quote list

C-815.86DP07A NEW!

Connection cable for hexapods without integrated power drivers; D-sub HD 26 (m) to circular push-pull connector 16-pole (m) 90°; suitable for drag chains; 7.5 m

Add to quote list Remove from quote list

C-815.86DP10A NEW!

Connecting cable for hexapods without integrated power driver; D-sub HD 26 (m) to circular push-pull connector 16-pin (m) 90°; suitable for drag-chains; 10 m

Add to quote list Remove from quote list
