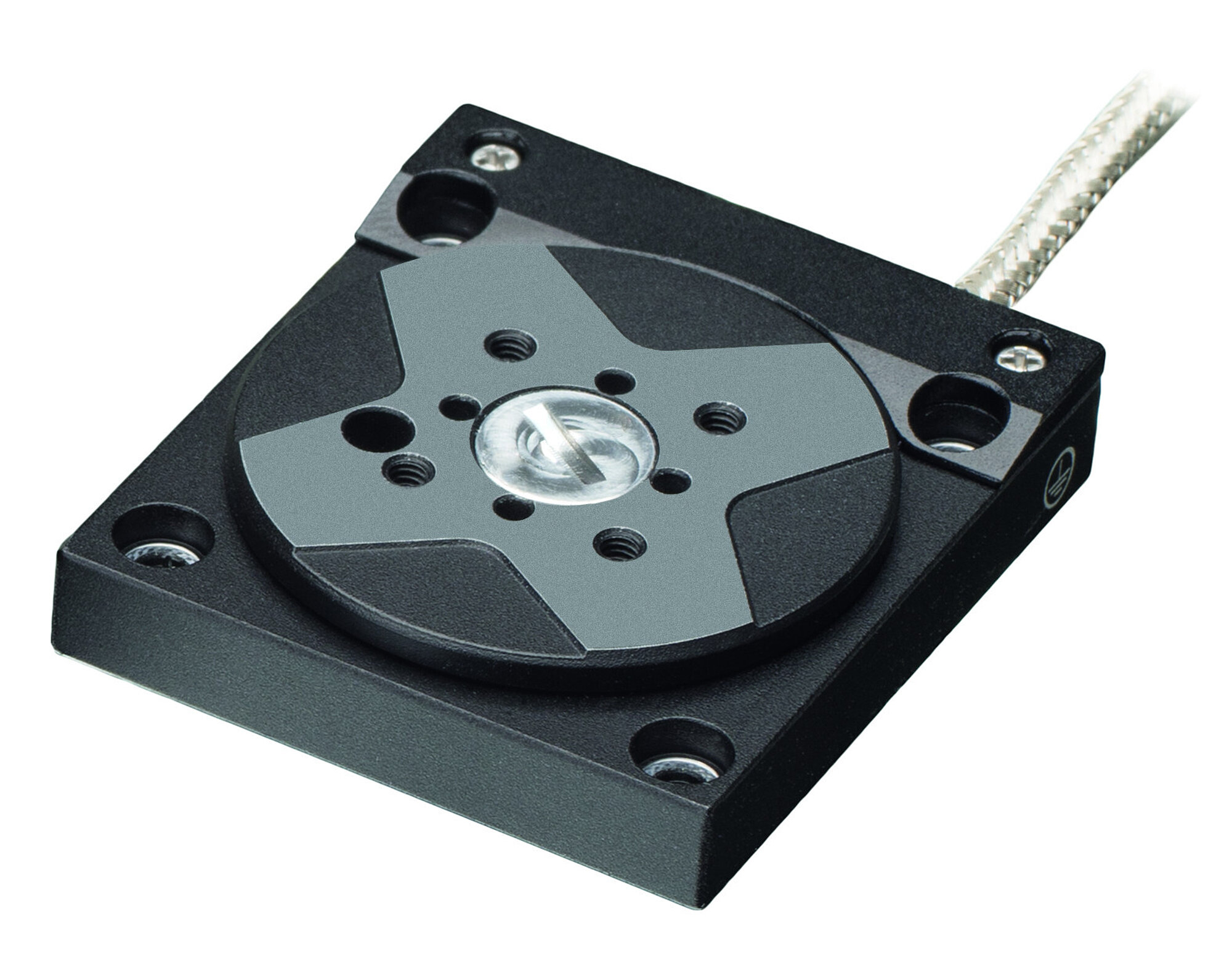

Q-632 Q‑Motion® Rotation Stage

Compact Through Piezo Motor: 30 mm Turntable Diameter

  • Only 32 mm in width and 8 mm in height
  • Direct position measurement with incremental encoder with 0.75 µrad resolution
  • Up to 3 µrad minimum incremental motion
  • Rotation range >360°
  • Velocity 45 °/s
Q-632 Q‑Motion® Rotation Stage
제품 설명 사양 다운로드 견적 / 주문

Piezoelectric inertia drive

Piezo inertia drives are space-saving and affordable piezo-based drives with relatively high holding forces and a virtually unlimited travel range. The inertia drive principle is based on a single piezoelectric actuator that is controlled with a modified sawtooth voltage provided by special driver electronics. The actuator expands slowly and moves the runner. Due to its inertia, the runner is unable to follow the subsequent fast contraction of the actuator and remains at its position. The drives acting directly on the runner achieve velocities of max. 45 °/s with an operating frequency up to 20 kHz.

Application fields

Microassembly. Photonics. Optical alignment. Microscopy. Beamline instrumentation. Semiconductor technology. Testing.

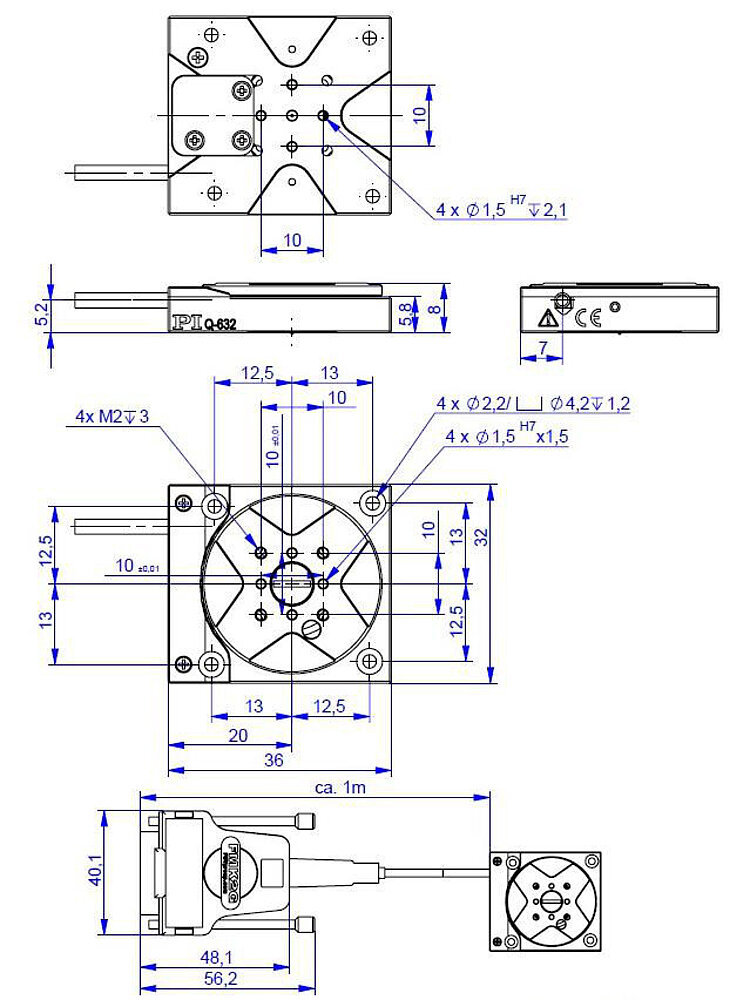

Specifications

Datasheet

Datasheet Q-632

버전 / 날짜
2020-06-24
pdf - 362 KB
버전 / 날짜
2020-06-24
pdf - 364 KB
버전 / 날짜
2021-01-14
pdf - 344 KB

Downloads

Product Note

Product Note

Product Change Notification Q-xxx; N-765

버전 / 날짜
2019-03-26
pdf - 435 KB
영어

Datasheet

Datasheet

Datasheet Q-632

버전 / 날짜
2020-06-24
pdf - 362 KB
버전 / 날짜
2020-06-24
pdf - 364 KB
버전 / 날짜
2021-01-14
pdf - 344 KB

Documentation

Documentation

Short Instructions MP139EK

Q-Motion® Positioners: Q-5xx, Q-6xx

버전 / 날짜
4.2.0 12/2019
pdf - 1 MB
버전 / 날짜
4.2.0 12/2019
pdf - 1 MB
Documentation

User Manual MP129

Q-632 Q-Motion Miniature Rotation Stage with 30 mm Turntable Diameter, Piezoelectric Inertia Drive

버전 / 날짜
1.1.3 2020-08-13
pdf - 708 KB
버전 / 날짜
1.1.3 2020-08-13
pdf - 715 KB

3-D Models

3-D Models

Q-632 3-D model

zip - 497 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.

Compatible Electronics Compatible Accessories Related Products
