M-110 • M-111 • M-112 Compact Linear Stage

XY(Z) Combinations with a Variety of Drives and Travel Ranges

M-110 • M-111 • M-112 Compact Linear Stage
제품 설명 사양 다운로드 견적 / 주문
  • Very compact due to folded drive
  • Stepper motors and closed-loop DC motors
  • Noncontact reference and limit switches

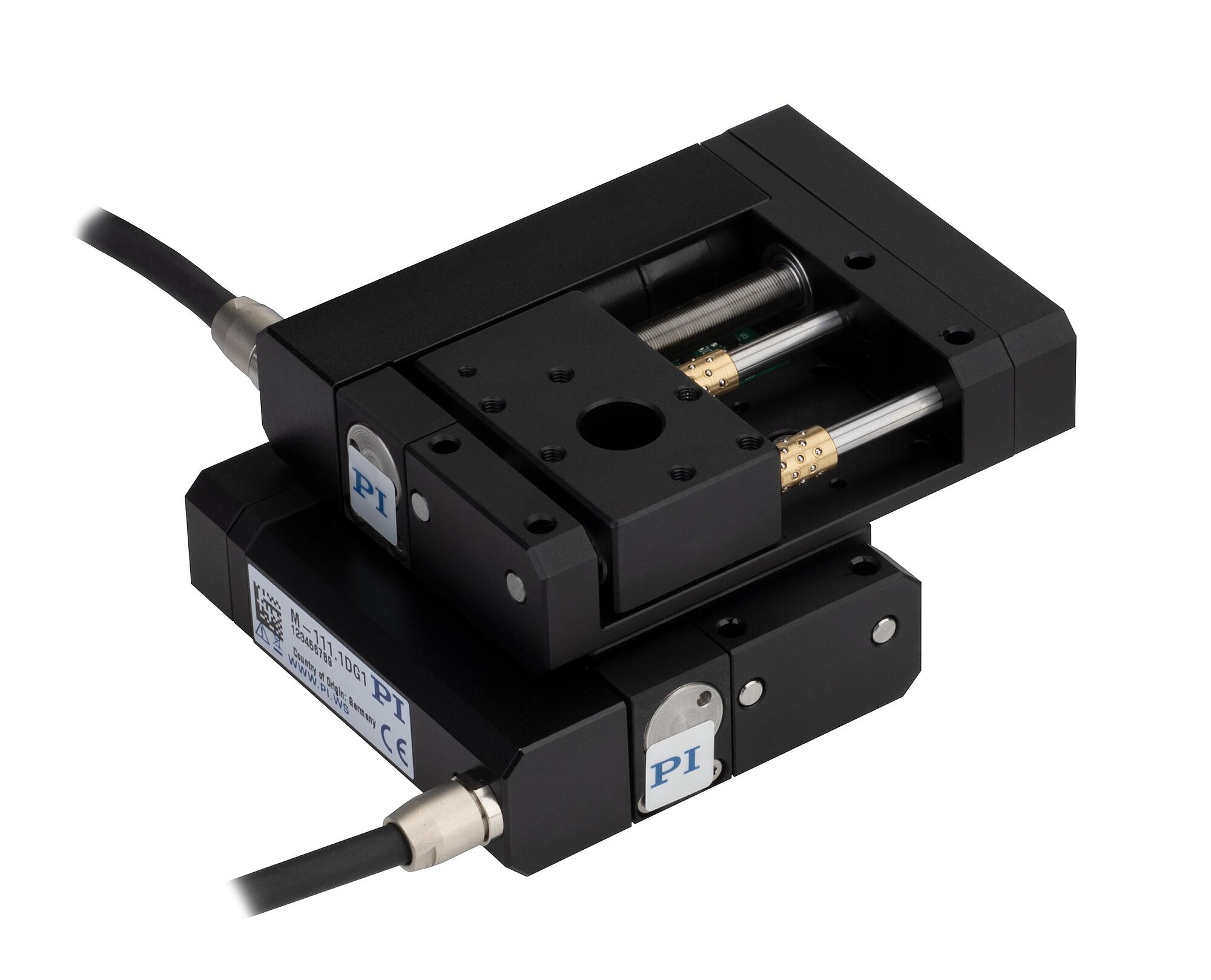

  • XY setups can be mounted directly
  • Larger quantities available quickly
  • Vacuum-compatible items available

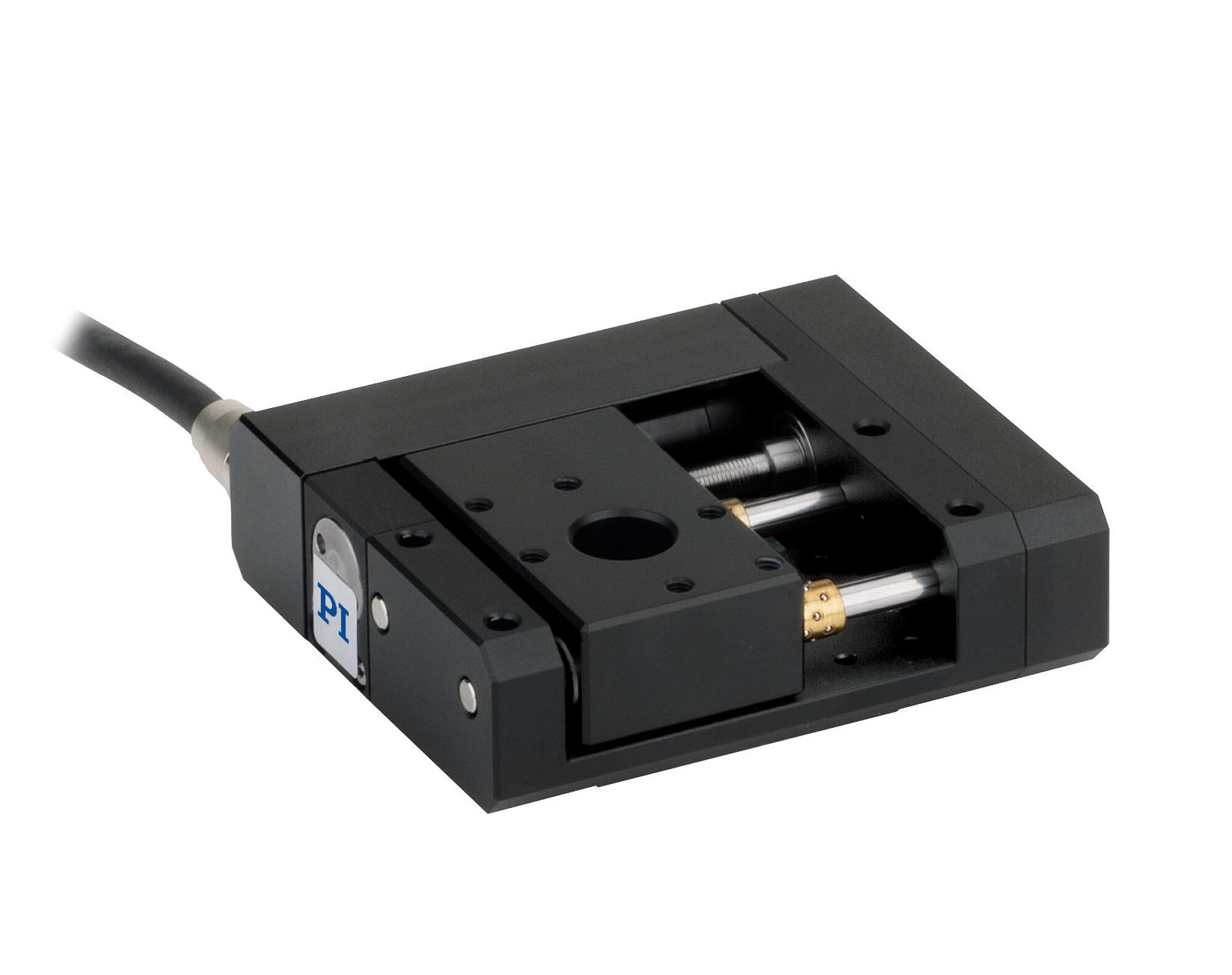

Compact linear stage, versatile in use

Linear stage with compact size due to folded drive with belt drive. Clear aperture with 10 mm Ø. XY setups can be mounted directly without adapter plate.

Drive

  • 2-phase stepper motor or closed-loop DC gear motor
  • Backlash-compensated leadscrew or ball screw

Position measuring

  • Variants with DC gear motor: Rotary encoder on the motor shaft
  • Noncontact Hall effect reference and limit switches

Application fields

Precision microassembly. Research. Laser marking. Automation. Optical alignment.

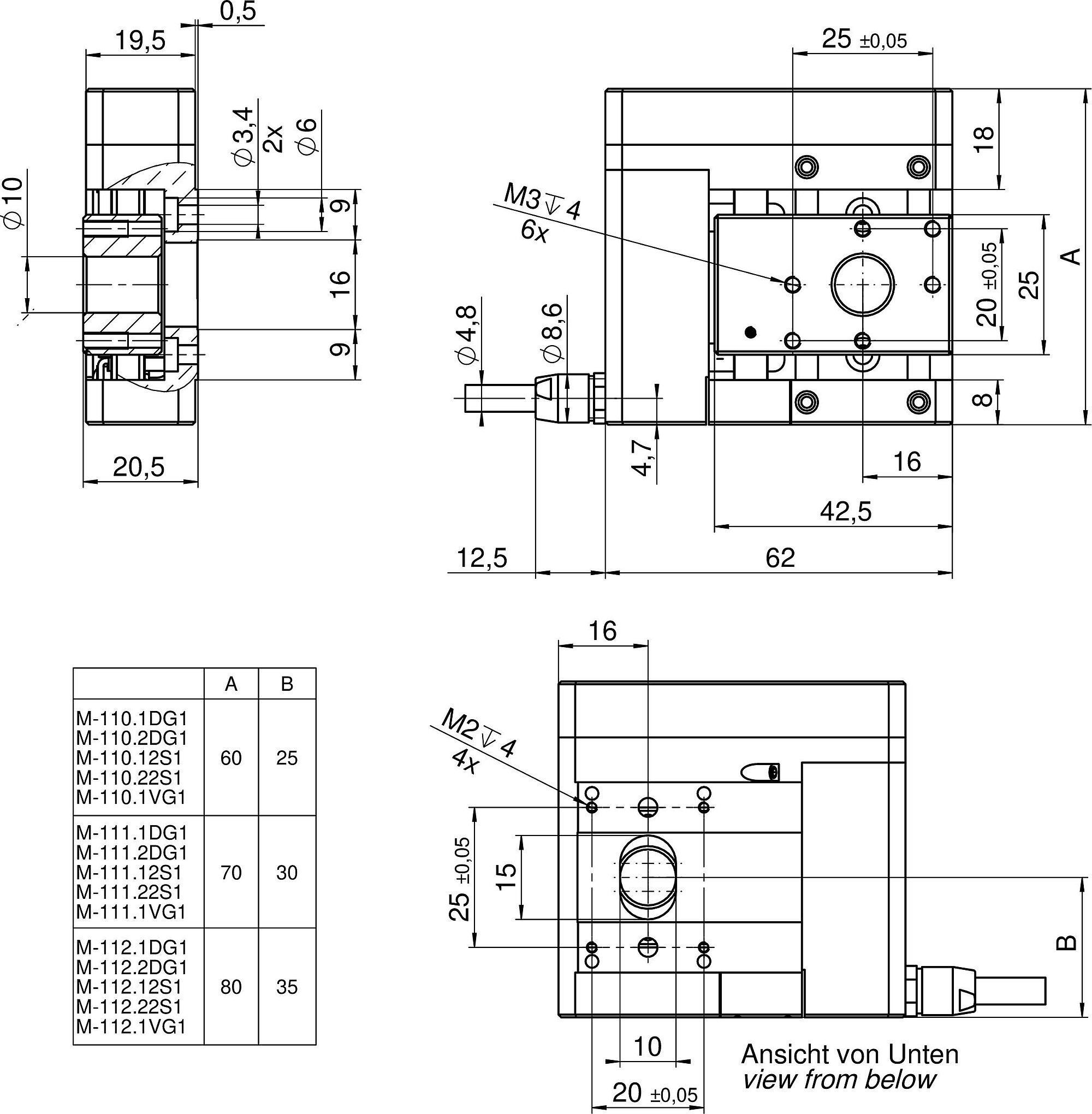

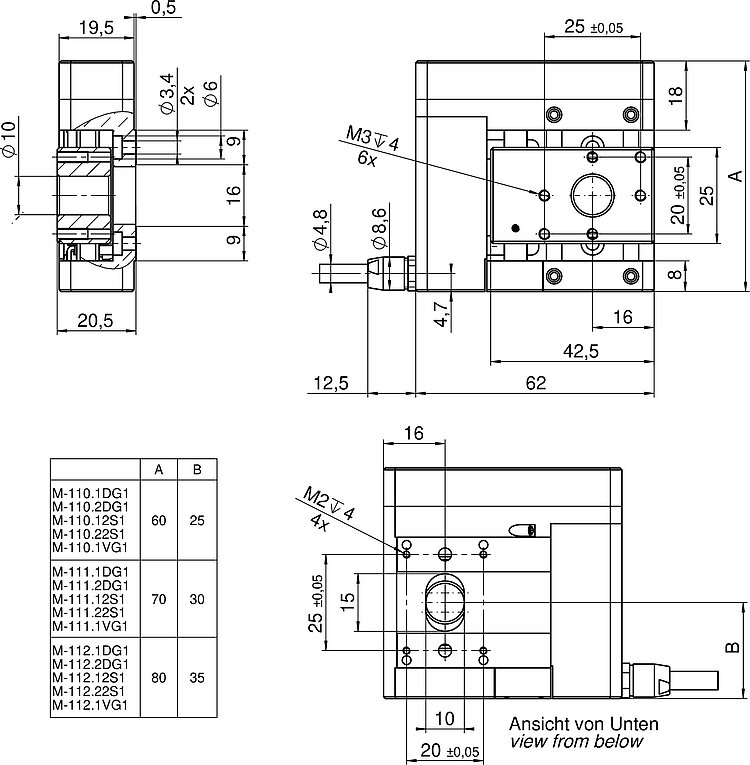

Specifications

Datasheet

Datasheet M-11x.xxx1

버전 / 날짜
2019-12-10
버전 / 날짜
2019-12-10
버전 / 날짜
2018-06-06
버전 / 날짜
2018-12-13
문서 언어
pdf - 886 KB
pdf - 889 KB
pdf - 811 KB
pdf - 717 KB

Downloads

Datasheet

Datasheet

Datasheet M-11x.xxx1

버전 / 날짜
2019-12-10
버전 / 날짜
2019-12-10
버전 / 날짜
2018-06-06
버전 / 날짜
2018-12-13
문서 언어
pdf - 886 KB
pdf - 889 KB
pdf - 811 KB
pdf - 717 KB

Documentation

Documentation

Short Instructions MP119EK

Positioners with Electric Motors: M-06x, M-11x, M-12x, M-4xx, M-5xx
버전 / 날짜
3.0.0 11/2018
문서 언어 영어
pdf - 2 MB
Documentation

User Manual M110T0032

M-110.xxx1 / M-111.xxx1 / M-112.xxx1 Microtranslation Stage
버전 / 날짜
2019-09-24
버전 / 날짜
2019-09-24
문서 언어
Documentation

PI Mounting Adapters for Micropositioning

Overview of all possible combinations of PI linear, rotary and tilt stages
버전 / 날짜
---
버전 / 날짜
---
문서 언어
pdf - 760 KB
pdf - 763 KB

3-D Models

3-D Models

M-11x.xxx1 3-D model

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly

M-110.1DG1
Compact Linear stage, 62 mm width, folded drivetrain, 5 mm travel range, 30 N load capacity, DC gear motor, rotary encoder, leadscrew, 0.5 m cable length
M-110.2DG1
Compact Linear stage, 62 mm width, folded drivetrain, 5 mm travel range, 30 N load capacity, DC gear motor, rotary encoder, ball screw, 0.5 m cable length
M-111.1DG1
Compact Linear stage, 62 mm width, folded drivetrain, 15 mm travel range, 30 N load capacity, DC gear motor, rotary encoder, leadscrew, 0.5 m cable length
M-111.2DG1
Compact Linear stage, 62 mm width, folded drivetrain, 15 mm travel range, 30 N load capacity, DC gear motor, rotary encoder, ball screw, 0.5 m cable length
M-112.1DG1
Compact Linear stage, 62 mm width, folded drivetrain, 25 mm travel range, 20 N load capacity, DC gear motor, rotary encoder, leadscrew, 0.5 m cable length
M-112.2DG1
Compact Linear stage, 62 mm width, folded drivetrain, 25 mm travel range, 20 N load capacity, DC gear motor, rotary encoder, ball screw, 0.5 m cable length
