E-517 Digital Piezo Controller Operation Module

This product has been replaced by the following new product: E-518 Digital Interface and Function Unit

Wave Generator, Data Recorder, Display, Multiple Interfaces, for E-500 System

Low-noise 24-bit D/A converter
Sampling rate 25 kHz
TCP/IP, USB, IEEE 488 and RS-232 interfaces
6-digit display for voltage and position
1- & 3-channel versions
Wave generator with programmable trigger-I/O
Module for E-500 piezo controller rack

견적 / 주문하기

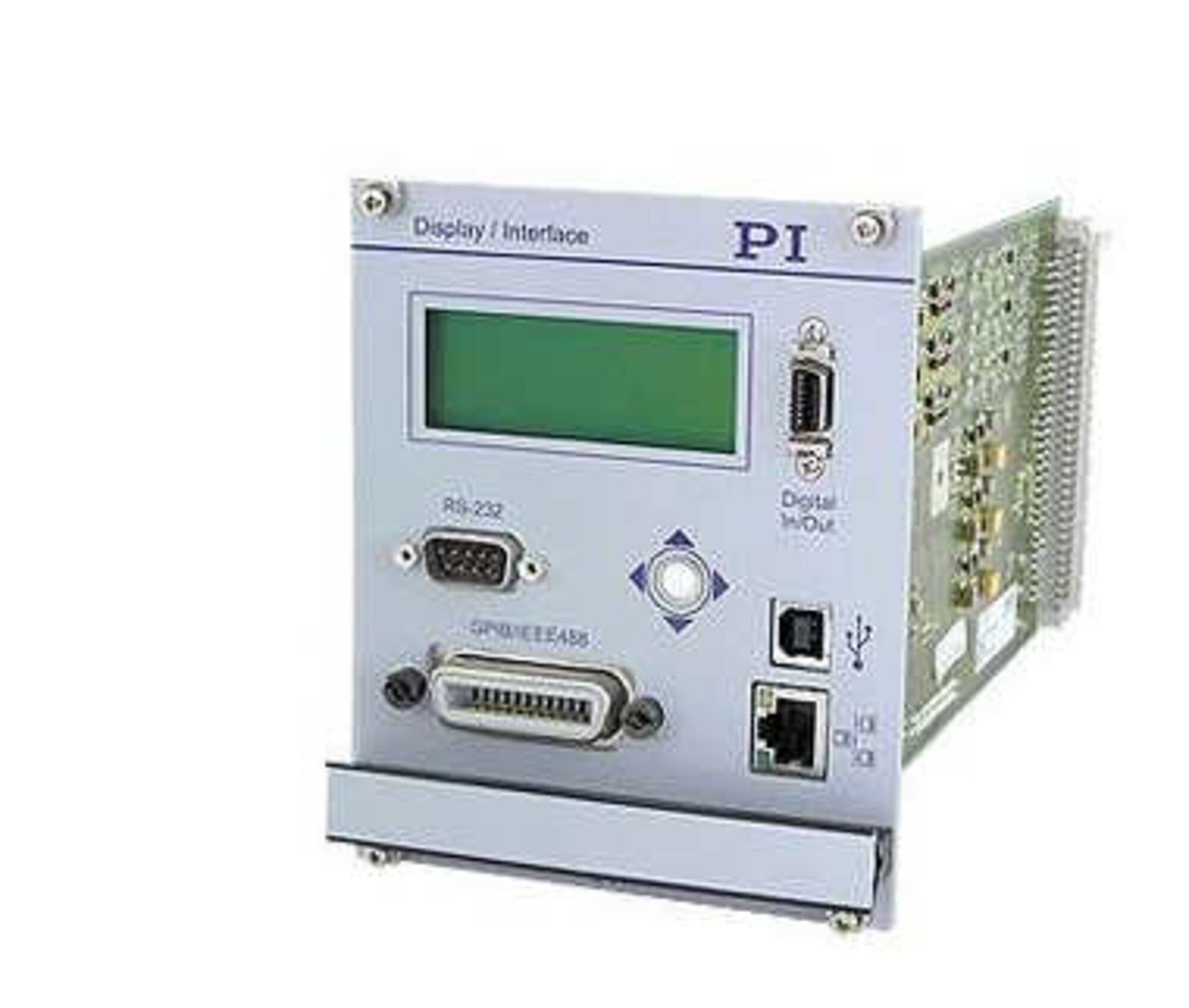

The E-517 piezo display and D/A converter module, provides USB and TCP/IP connectivity

사양 보기 견적 / 주문하기

This content is only available on tablets or desktop devices.

	E-517.i1, E-517.i10	E-517.i3, E-517.i30
Function	Digital operation module	Digital operation module
Channels	1	3
Processor	DSP 60 MHz	DSP 60 MHz
Sampling rate, sensor	25 kHz, 8-times oversampling	25 kHz, 8-times oversampling
Thermal drift	Stability: 0.2mV	Stability: 0.2mV
Linearity @ nominal range	0.01 %	0.01 %
Resolution	DAC: 24 bit, ±12 VADC: 18 bit, Sampling	DAC: 24 bit, ±12 VADC: 18 bit, Sampling
Interface and operation
Interface / Communication	Ethernet (TCP/IP), USB, RS-232, IEEE488 (only E-517.i1)	Ethernet (TCP/IP), USB, RS-232, IEEE488 (only E-517.i3)
I/O ports	1 trigger input1 trigger output5 VMDR14 connector	3 trigger inputs3 trigger outputs5 VMDR14 connector
Command set	PI General Command Set (GCS)	PI General Command Set (GCS)
User software	PIMikroMove	PIMikroMove
Software drivers	LabVIEW drivers, Windows and Linux Libraries (DLL)	LabVIEW drivers, Windows and Linux Libraries (DLL)
Supported functionality	Wave generator, data recorder, macro programming	Wave generator, data recorder, macro programming
Display	LCD display for monitor signals (position and voltage), states and trackball menus	LCD display for monitor signals (position and voltage), states and trackball menus
Manual control	Operation via trackball	Operation via trackball
Miscellaneous
Operating temperature range	5 to 50 °C	5 to 50 °C
Dimensions	21HP / 3RU	21HP / 3RU
Mass	0.37 kg	0.37 kg
Operating voltage	E-500 system	E-500 system

다운로드 가기 견적 / 주문하기
