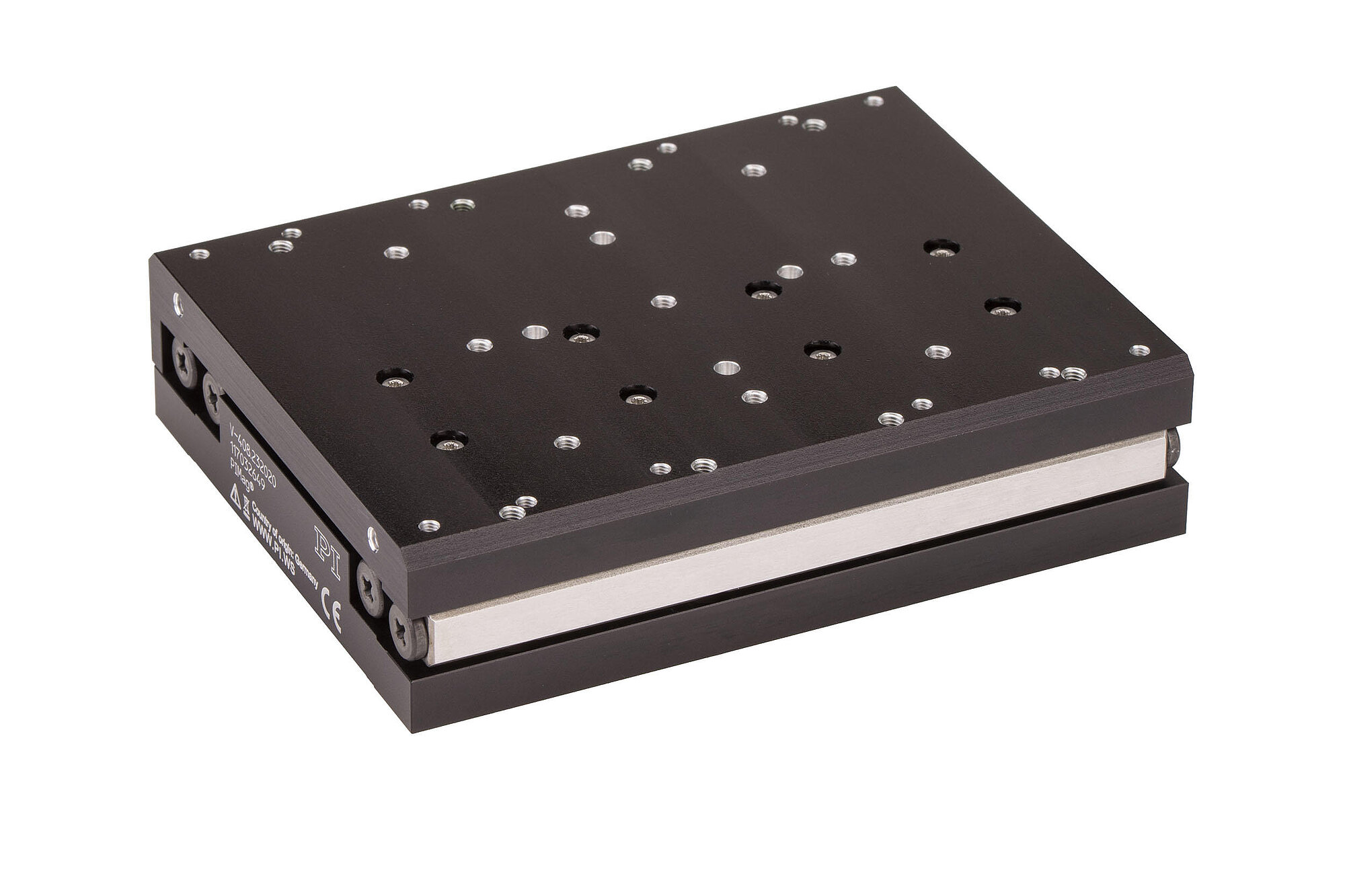

V-408 PIMag® Linear Stage

Inexpensive, with Linear Motor

V-408 PIMag® Linear Stage
제품 설명 사양 다운로드 견적 / 주문
  • Iron core 3-phase linear motor
  • Crossed roller guides for high load capacity
  • Minimum incremental motion 20 nm
  • Bidirectional repeatability ±0.1 µm
  • Compact design
  • Low price

PIMag® magnetic direct drive

3-phase magnetic direct drives do not use mechanical components in the drivetrain, they transmit the drive force to the motion platform directly and without friction. The drives reach high velocities and accelerations. Iron core motors are used when forces and accelerations need to be achieved in a limited installation space. The design with iron cores maximizes the magnetic forces and ensures high thermal stability of the drive.

Crossed roller guide

With crossed roller guides, the point contact of the balls in ball guides is replaced by line contact of the hardened rollers. Consequently, they are considerably stiffer and need less preload, which reduces friction and allows smoother running. Crossed roller guides are also distinguished by high guiding accuracy and load capacity. Force-guided rolling element cages prevent cage creep.

Direct position measurement

Position measuring takes place directly at the motion platform with the highest accuracy so that nonlinearity, mechanical play or elastic deformation have no influence on position measuring.

Application fields

Industry and research. Automation technology with high demands on dynamics and precision.

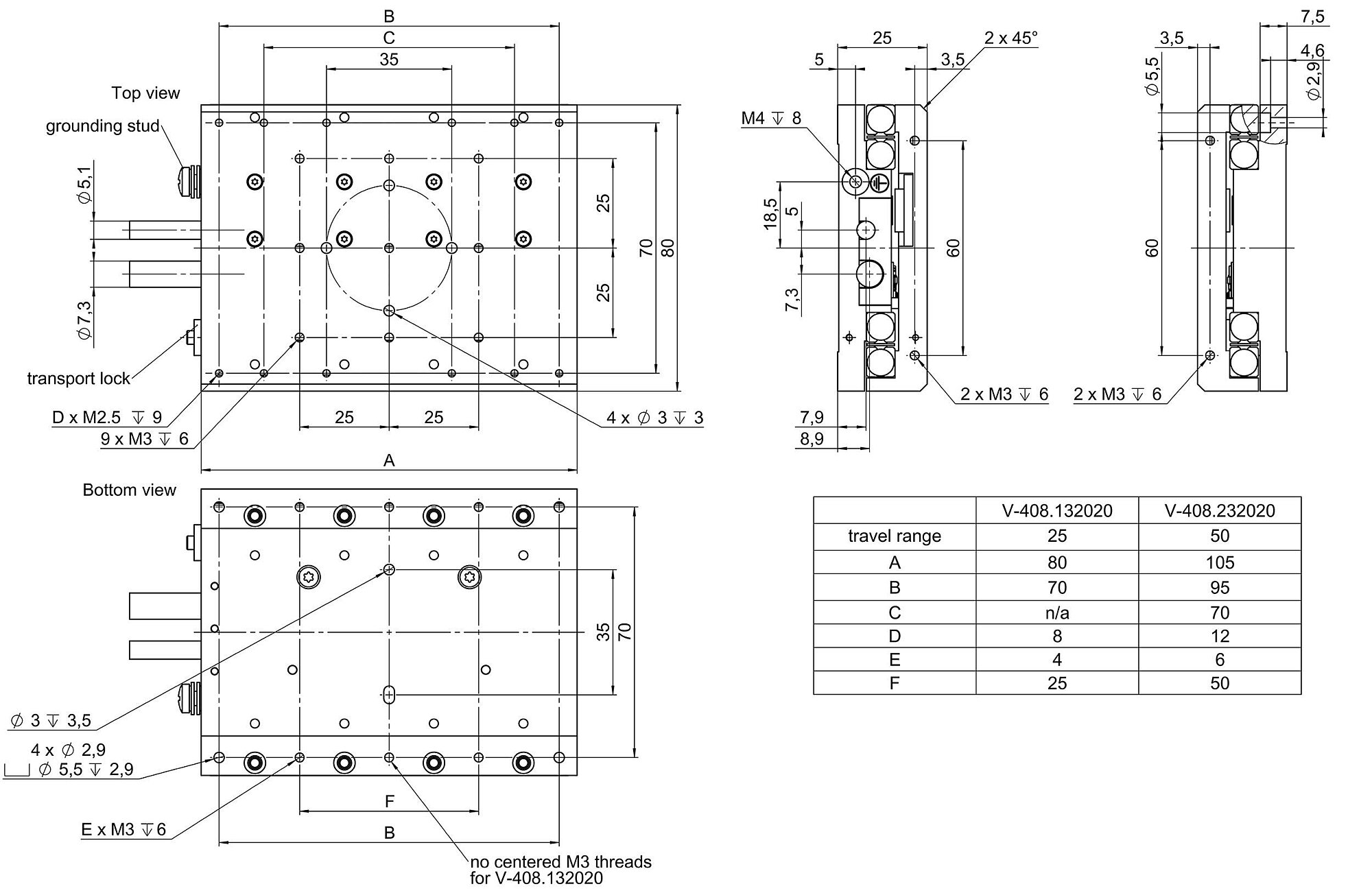

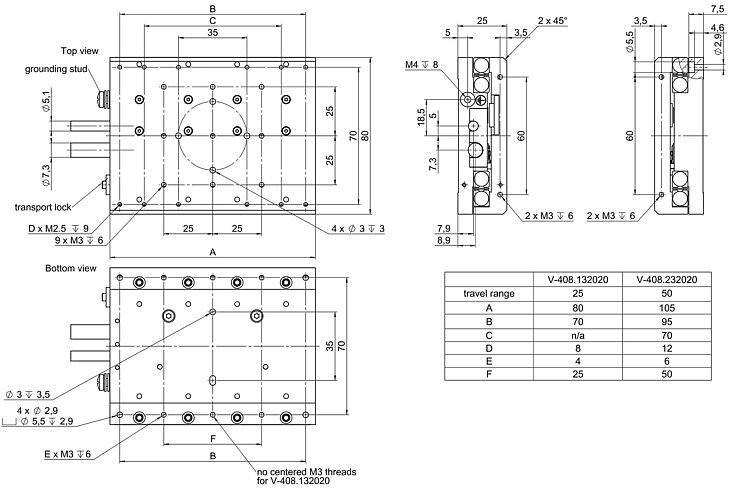

Specifications

Datasheet

Datasheet V-408

버전 / 날짜
2019-08-19
버전 / 날짜
2019-08-19
버전 / 날짜
2018-09-06
버전 / 날짜
2019-04-01
문서 언어
pdf - 217 KB
pdf - 219 KB
pdf - 750 KB
pdf - 733 KB

Downloads

Datasheet

Datasheet

Datasheet V-408

버전 / 날짜
2019-08-19
버전 / 날짜
2019-08-19
버전 / 날짜
2018-09-06
버전 / 날짜
2019-04-01
문서 언어
pdf - 217 KB
pdf - 219 KB
pdf - 750 KB
pdf - 733 KB

Documentation

Documentation

Short Instructions MP163EK

Positioners with PIMag® Drive: V-408 / V-508 / V-52x / V-551
버전 / 날짜
3.0.0 03/2019
문서 언어 영어
pdf - 1 MB
Documentation

User Manual V408M0001

V-408.132020 PIMAG® POSITIONERS
버전 / 날짜
2019-08-26
버전 / 날짜
2019-08-26
문서 언어
pdf - 2 MB
pdf - 2 MB
Documentation

User Manual V408M0002

V-408.232020 PIMAG® POSITIONERS
버전 / 날짜
2019-08-26
버전 / 날짜
2019-08-26
문서 언어
pdf - 2 MB
pdf - 2 MB

3-D Models

3-D Models

V-408 3-D model

V-408 3-D model

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly

V-408.132020
PIMag® linear stage, 80 mm width, 25 mm travel range, 80 N load capacity, incremental linear encoder with sin/cos signal transmission, 80 µm sensor signal period, iron core 3-phase linear motor, 48 V
V-408.232020
PIMag® linear stage, 80 mm width, 50 mm travel range, 80 N load capacity, incremental linear encoder with sin/cos signal transmission, 80 µm sensor signal period, iron core 3-phase linear motor, 48 V
