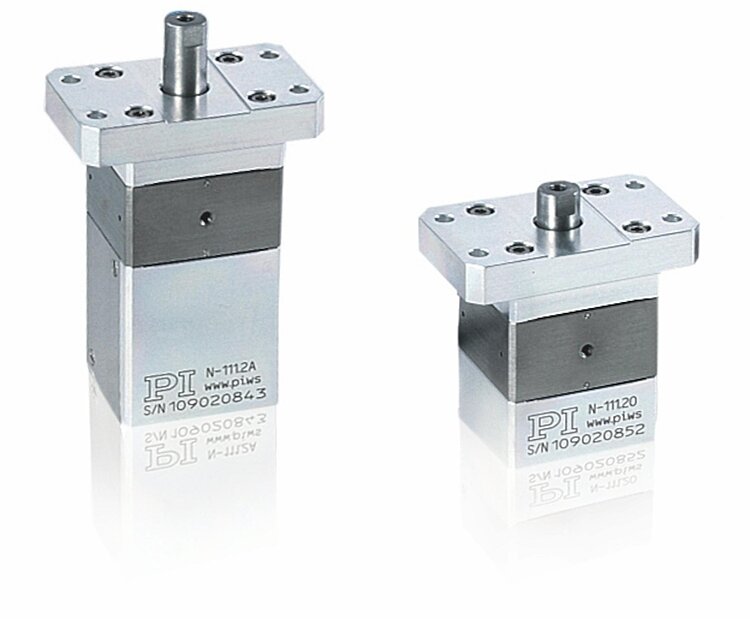

N-111 NEXLINE® OEM Linear Actuator

Nanopositioning Over Long Travel Ranges, PiezoWalk® Principle

  • Travel range 10 mm
  • Integrated direct-measuring linear encoder with resolution 5 nm
  • Force generation to 50 N
  • Holding force to 70 N
N-111 NEXLINE® OEM Linear Actuator
제품 설명 사양 다운로드 견적 / 주문

Application fields

  • Industrial precision positioning
  • Semiconductor technology
  • Semiconductor tests
  • Wafer inspection
  • Lithography
  • Nanoimprinting
  • Nanometrology
  • Motion in strong magnetic fields and in a vacuum

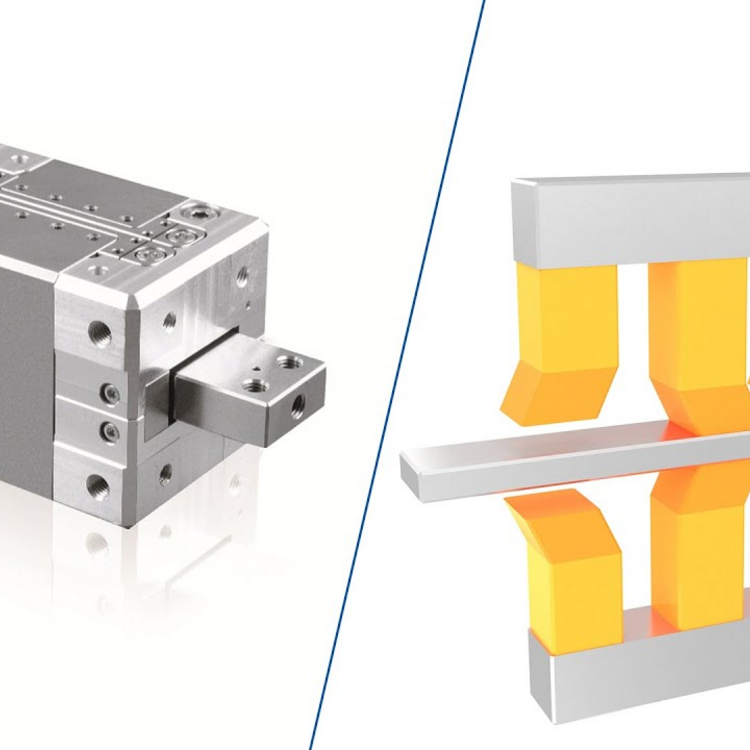

Nanometer precision and high feed force with PiezoWalk® walking drives

Several piezo actuators perform a walking motion in the PiezoWalk® walking drive that leads to forward feed of a runner. Control of the actuators allows the smallest step and forward feed motion at a resolution of well under one nanometer.

Highly accurate position measuring with incremental linear encoder

Noncontact optical encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.

Suitable for sophisticated vacuum applications

Piezo motors from PI can be designed for use in a vacuum and are suitable for operating in strong magnetic fields. Special versions of the drives are available for this purpose. Piezo walking drives can also be used in cleanrooms or in environments with strong ultraviolet radiation.

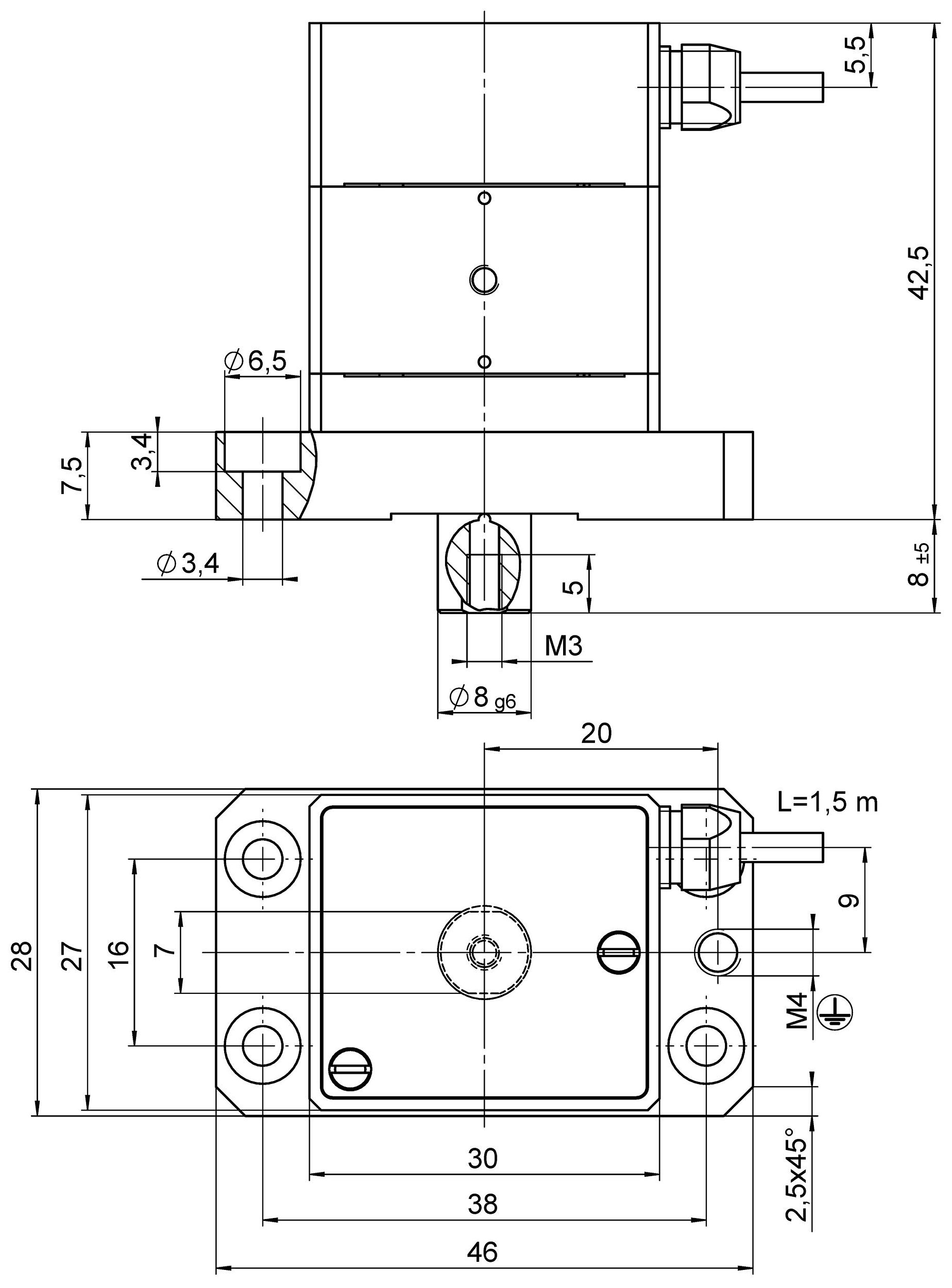

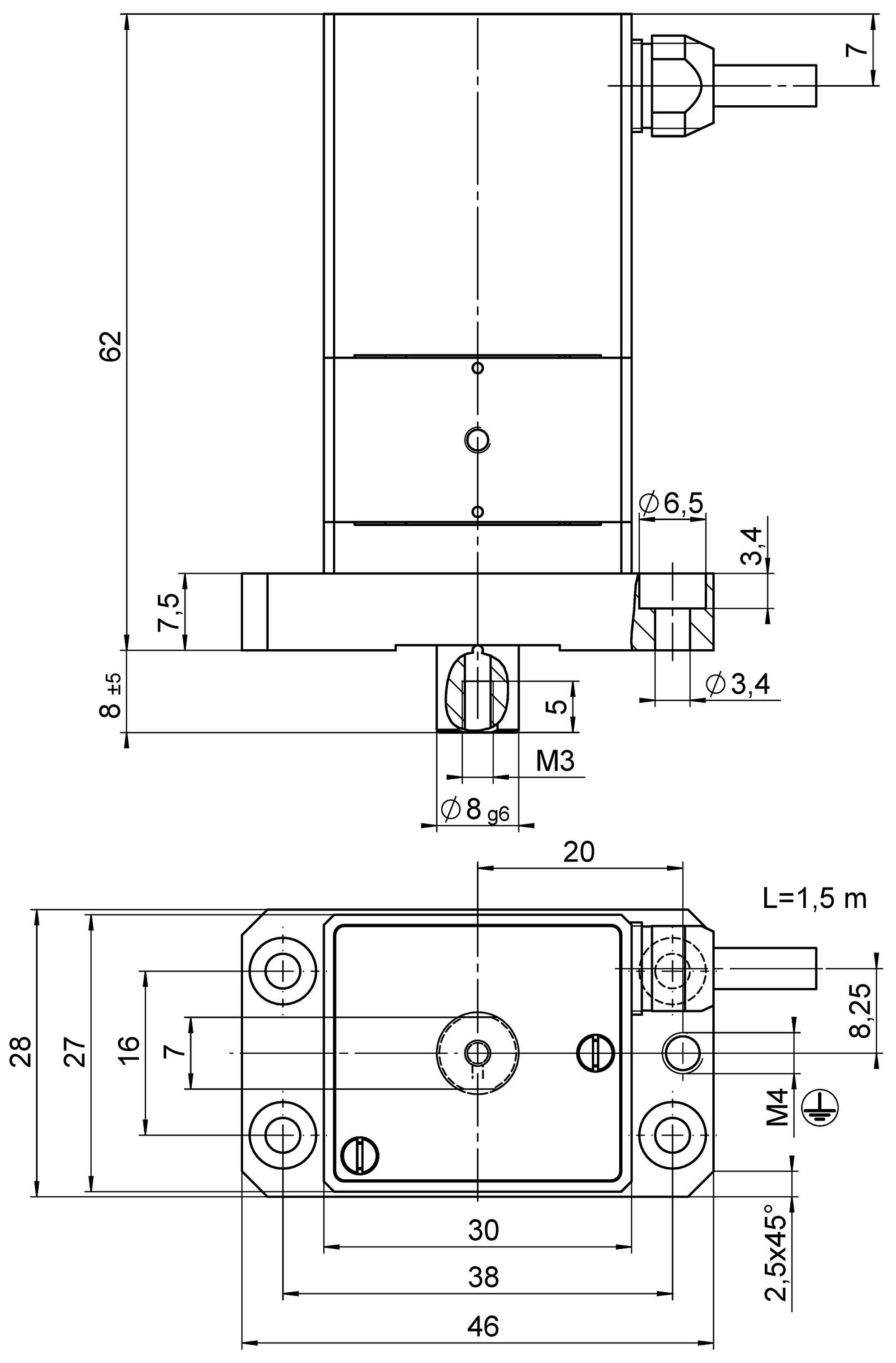

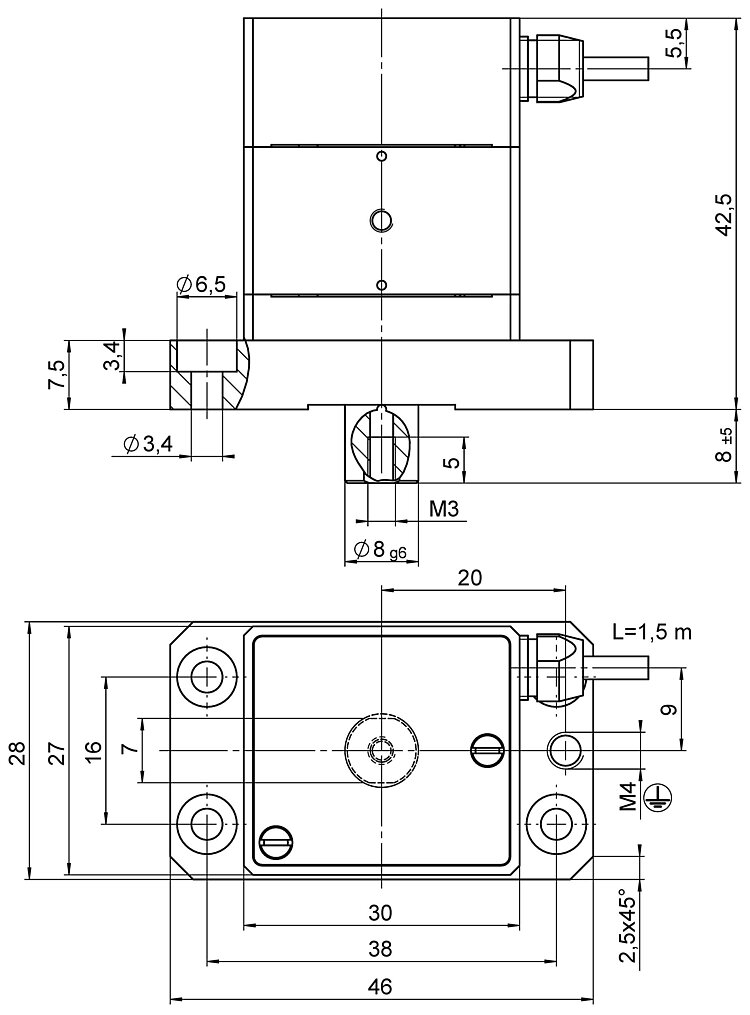

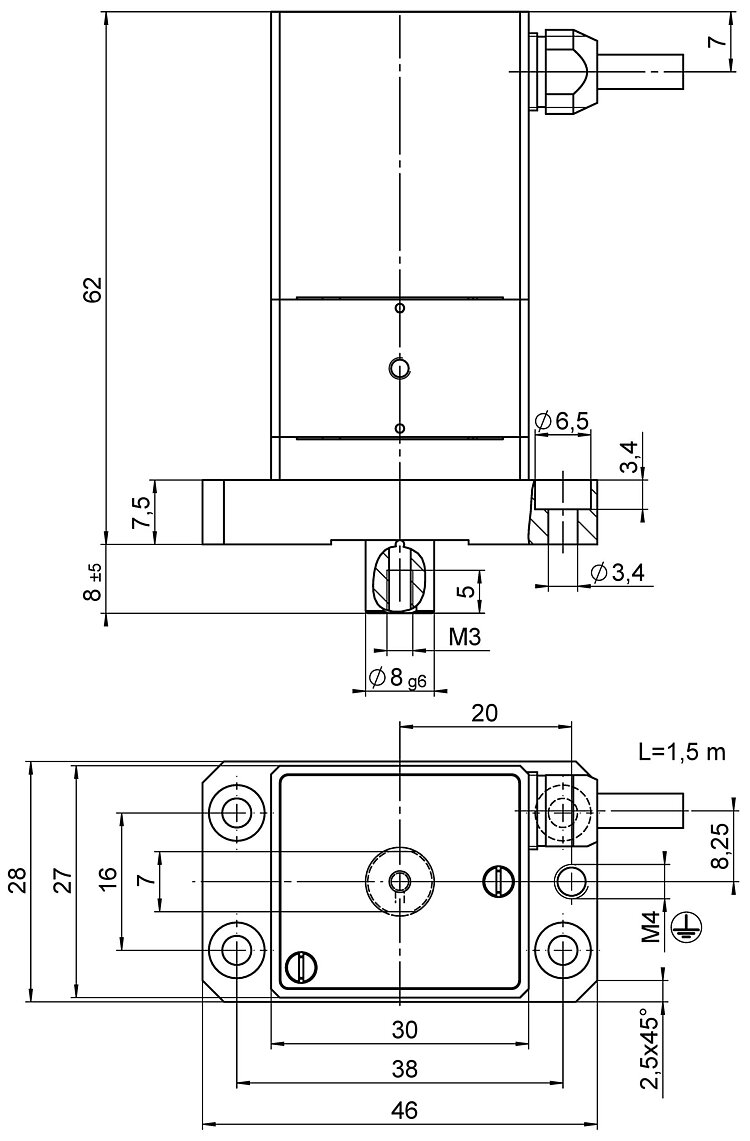

Specifications

Datasheet

Datasheet N-111

버전 / 날짜
2023-01-23
pdf - 697 KB
버전 / 날짜
2023-01-23
pdf - 696 KB
버전 / 날짜
2019-01-22
pdf - 670 KB

Downloads

Datasheet

Datasheet

Datasheet N-111

버전 / 날짜
2023-01-23
pdf - 697 KB
버전 / 날짜
2023-01-23
pdf - 696 KB
버전 / 날짜
2019-01-22
pdf - 670 KB

Documentation

Documentation

User Manual MP142

N-111.201 and N-111.2A1 NEXLINE® OEM Piezo Stepping Actuators

버전 / 날짜
1.0.4 2022-11-08
pdf - 1 MB
버전 / 날짜
1.0.4 2022-11-04
pdf - 1 MB

3-D Models

3-D Models

N-111 3-D model

zip - 431 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
