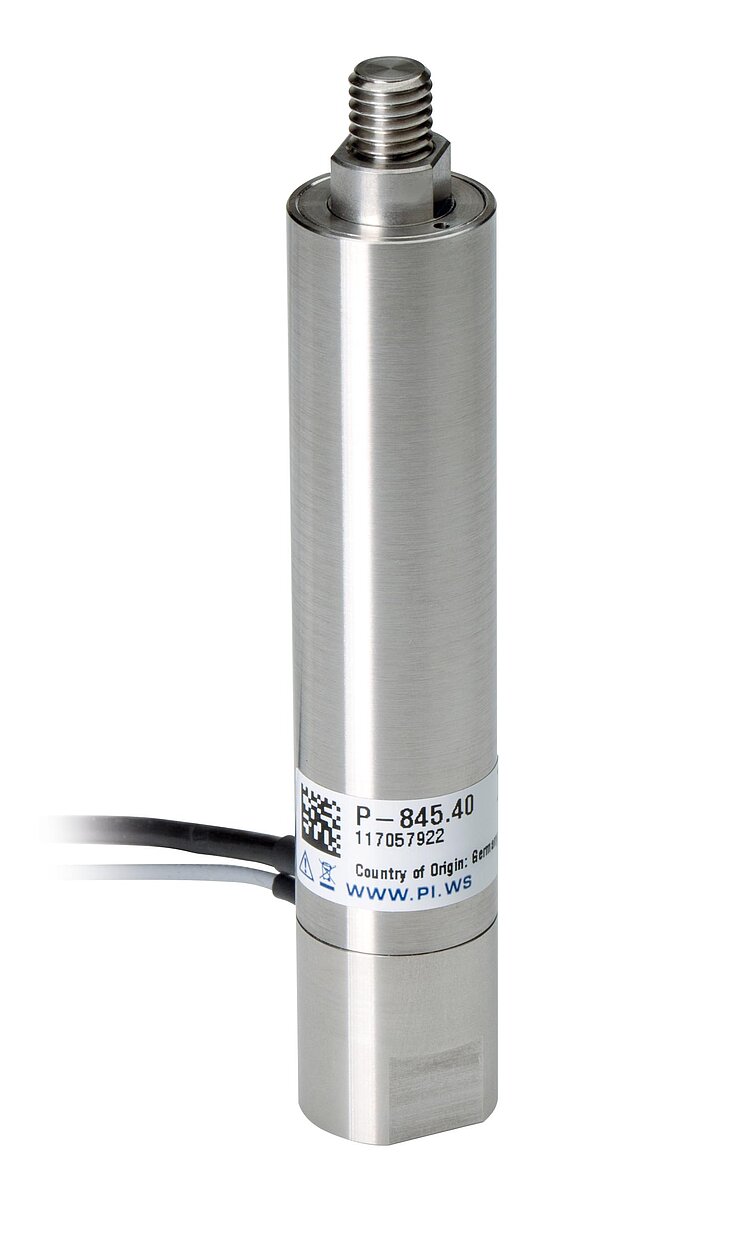

P-845 Preloaded Piezo Actuators

For High Loads and Forces, with Position Sensor

  • Outstanding lifetime due to PICMA® piezo actuators
  • Travel range to 90 µm
  • Push force capacity to 3000 N
  • Pull force capacity to 700 N
  • µs response time
  • Subnanometer resolution
  • Vacuum versions, optional water-resistant housing
P-845 Preloaded Piezo Actuators
제품 설명 사양 다운로드 견적 / 주문

Application fields

  • Static and dynamic precision positioning
  • Fiber positioning
  • Laser tuning
  • Nanotechnology

Outstanding lifetime thanks to PICMA® piezo actuators

The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Suitable for sophisticated vacuum applications

Piezo actuators do not require lubrication and do not cause abrasion. The all-ceramic isolated PICMA® actuators also do not require polymer isolation and are therefore ideal for vacuum applications.

Specifications

Datasheet

Datasheet P-845

버전 / 날짜
2020-04-22
pdf - 312 KB
버전 / 날짜
2020-04-22
pdf - 314 KB
버전 / 날짜
2018-10-15
pdf - 686 KB

Downloads

Product Note

Product Note

Product Change Notification Piezo Actuator Driven Products

버전 / 날짜
2021-04-19
pdf - 377 KB
영어

Datasheet

Datasheet

Datasheet P-845

버전 / 날짜
2020-04-22
pdf - 312 KB
버전 / 날짜
2020-04-22
pdf - 314 KB
버전 / 날짜
2018-10-15
pdf - 686 KB

Documentation

Documentation

Short Instructions PZ303

Housed PICMA® Actuators to 100 V

버전 / 날짜
1.2.0 11/2020
pdf - 958 KB
버전 / 날짜
1.2.0 11/2020
pdf - 961 KB
Documentation

User Manual P845M0001

P-845 Preloaded piezo actuators

버전 / 날짜
2021-01-29
pdf - 2 MB
버전 / 날짜
2021-01-29
pdf - 2 MB
Documentation

User Manual P845M0002

P-845.xxV Preloaded piezo actuators (vacuum versions)

버전 / 날짜
2021-02-23
pdf - 3 MB
버전 / 날짜
2021-02-23
pdf - 3 MB

3-D Models

3-D Models

P-844 / P-845 3-D model

zip - 156 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly

Actuators with sensor

Actuators with sensor, vacuum compatible

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
