P-725.xxM • P-725.xxL • P-725.xxS Thread Adapters for PIFOC Focus Scanners

NEW

Easy Integration of the PIFOC Positioner to a Microscope (suitable for P-725.xCDE2)

Thread adapters to easily adapt PIFOC positioners to a microscope
Twist-free cable routing
Objective spacers for correcting the parfocal length

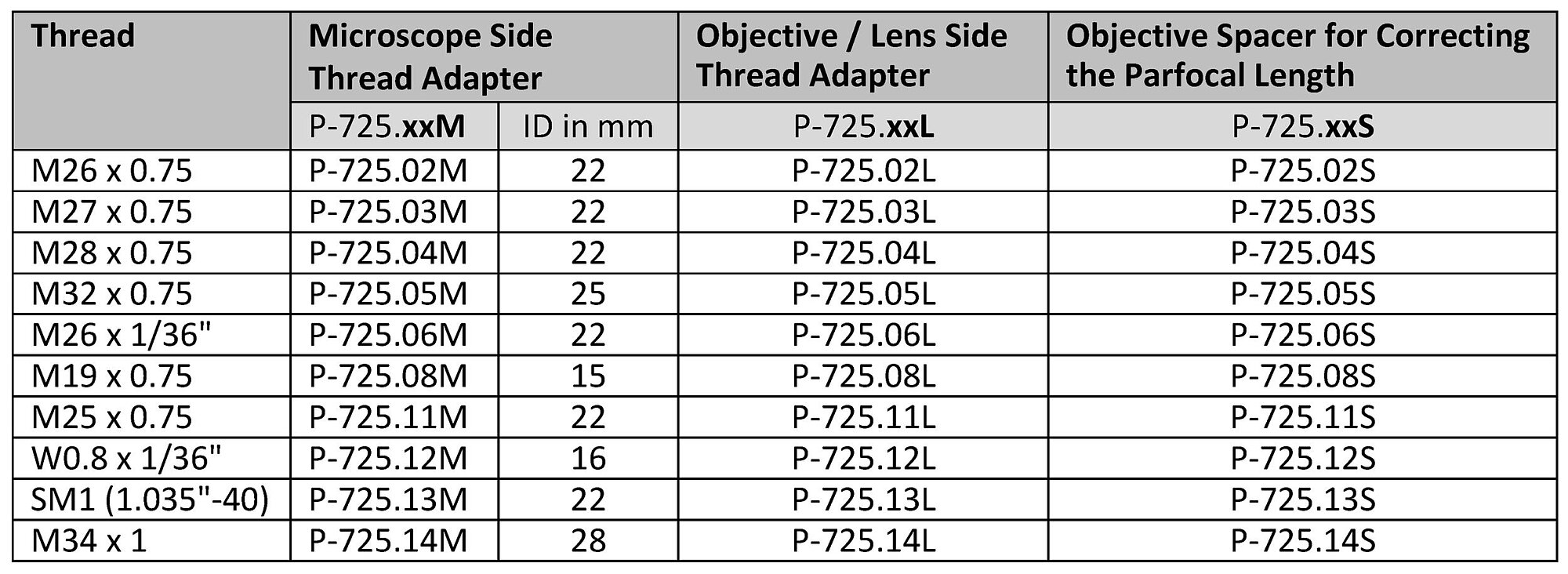

Threaded adapter and spacers for P-725.xCDE2

P-725.xxL, P-725.xxM, dimensions in mm

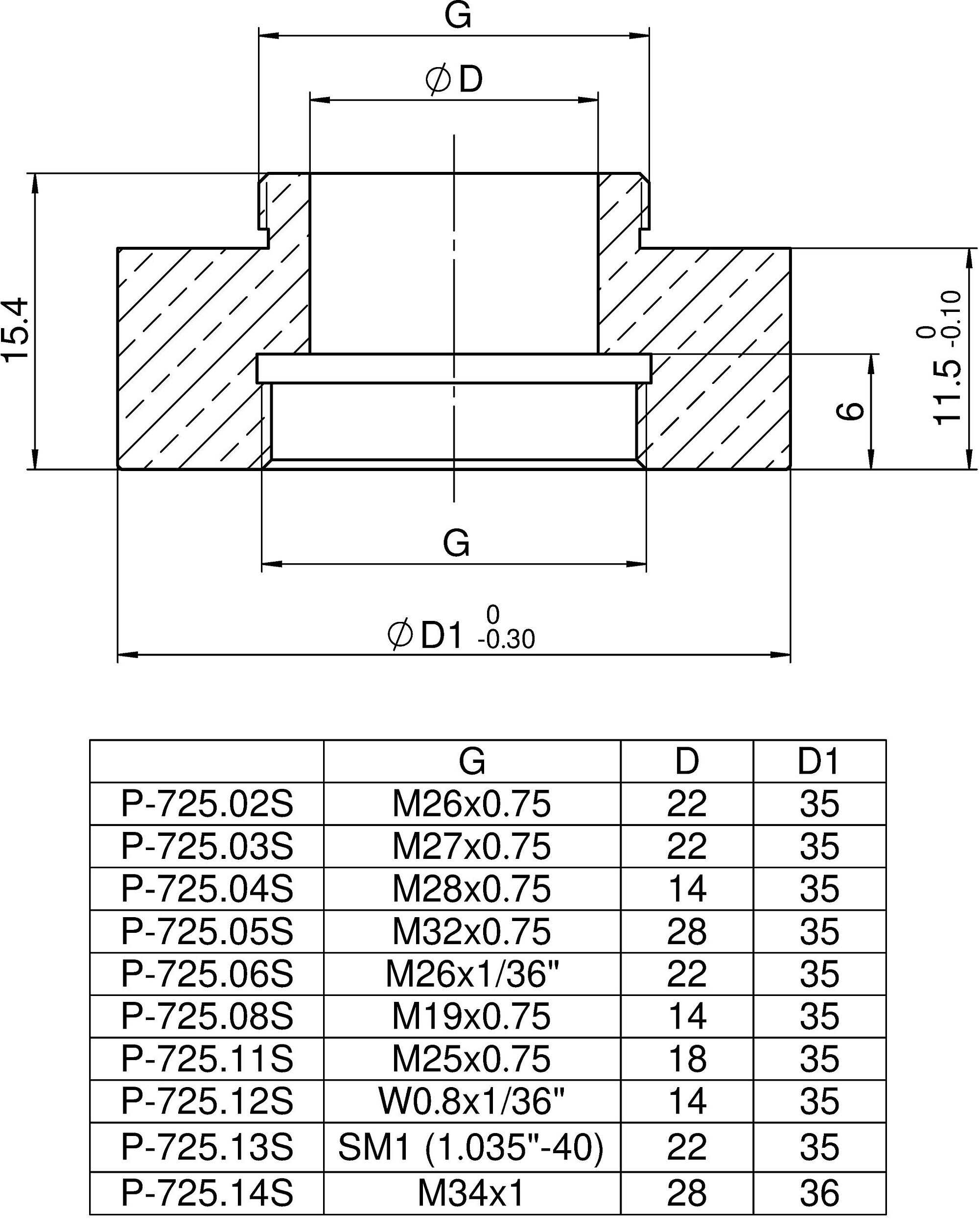

P-725.xxS, dimensions in mm

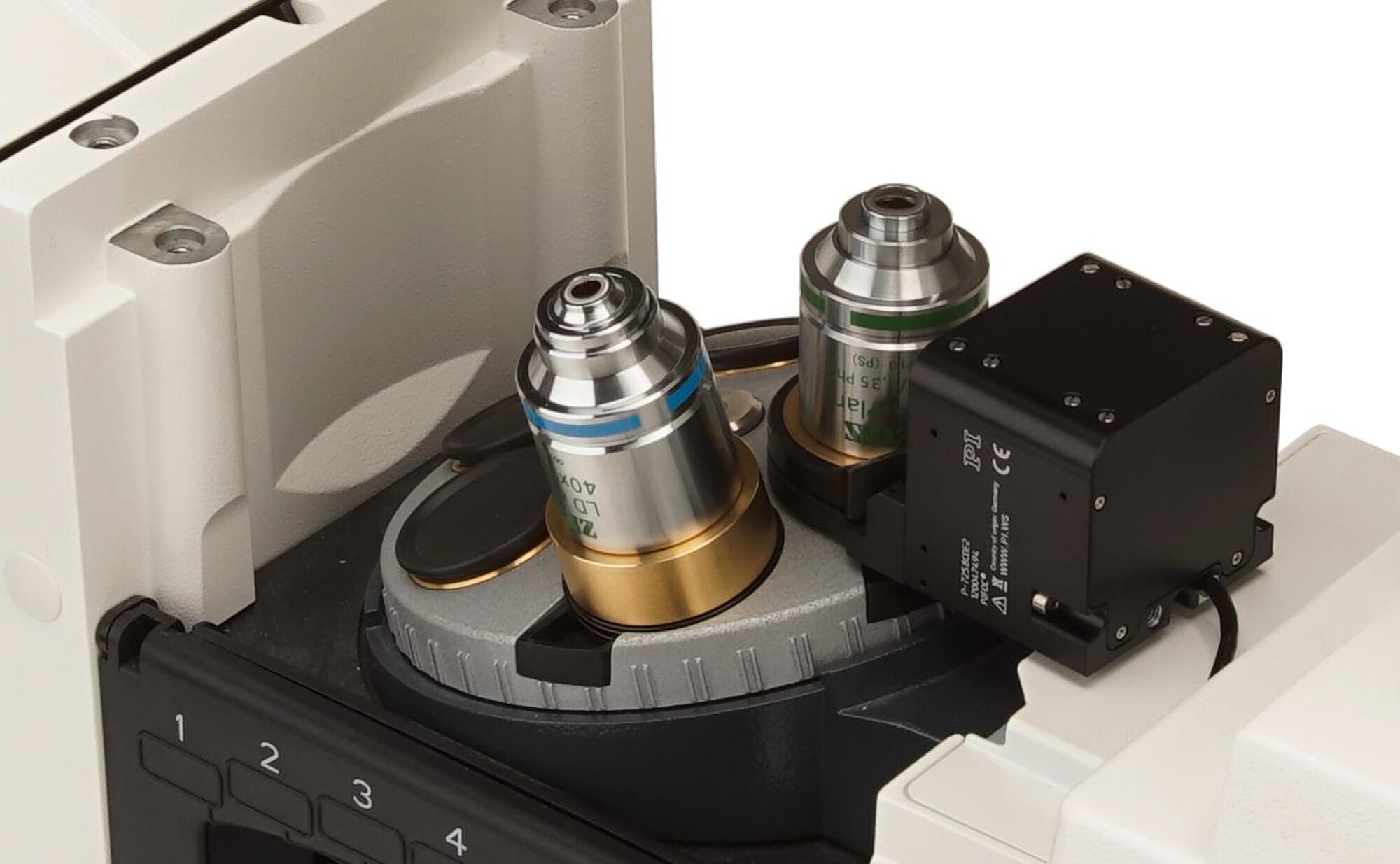

P-725.8CDE2 with P-725.03x thread adapters and P-725.03S spacer inserted between the revolving nosepiece of the microscope and the objective

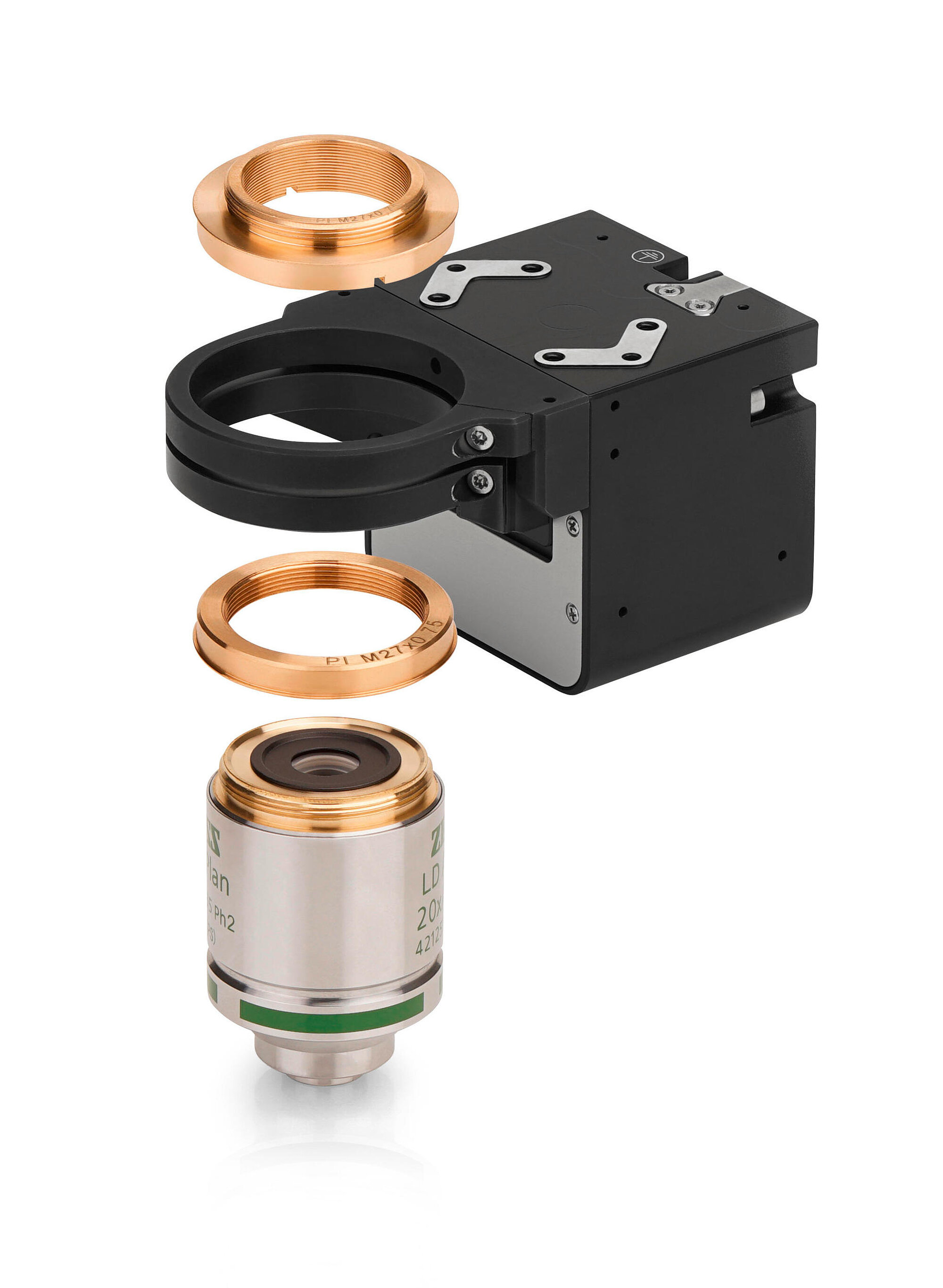

The PIFOC objective positioners are inserted with the thread adapters between the microscope's revolving nosepiece and objective. After the adapter has been screwed into the revolving nosepiece, the PIFOC positioner is orientated as desired and fixed to the adapter. It is not necessary to turn the PIFOC positioner while doing this and it simplifies routing the cable.

Download datasheet 사양 보기

Datasheet

버전 / 날짜

2022-05-13

pdf - 1 MB

버전 / 날짜

2022-05-13

pdf - 1 MB

다운로드

	P-725.02M	P-725.03M	P-725.04M	P-725.05M	P-725.06M	P-725.08M	P-725.11M	P-725.12M	P-725.13M	P-725.14M	P-725.02L	P-725.03L	P-725.04L	P-725.05L	P-725.06L	P-725.08L	P-725.11L	P-725.12L	P-725.13L	P-725.14L	P-725.02S	P-725.03S	P-725.04S	P-725.05S	P-725.06S	P-725.08S	P-725.11S	P-725.12S	P-725.13S	P-725.14S
Aperture diameter	22 mm	22 mm	22 mm	25 mm	22 mm	15 mm	22 mm	16 mm	22 mm	28 mm	22 mm	22 mm	22 mm	25 mm	22 mm	15 mm	22 mm	16 mm	22 mm	28 mm	22 mm	22 mm	14 mm	28 mm	22 mm	14 mm	18 mm	14 mm	22 mm	28 mm
Material	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass
Thread on the microscope side	M26 × 0.75 mm	M27 × 0.75 mm	M28 × 0.75 mm	M32 × 0.75 mm	M26 × 1/36"	M19 × 0.75 mm	M25 × 0.75 mm	W0.8 × 1/36"	1,035"-40 (SM1)	M34 × 1 mm											M26 × 0.75 mm	M27 × 0.75 mm	M28 × 0.75 mm	M32 × 0.75 mm	M26 × 1/36"	M19 × 0.75 mm	M25 × 0.75 mm	W0.8 × 1/36"	1,035"-40 (SM1)	M34 × 1 mm
Overall mass	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	50 g	70 g	30 g	50 g	80 g	60 g	80 g	50 g	30 g
Operating temperature range	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C
Thread on the objective side											M26 × 0.75 mm	M27 × 0.75 mm	M28 × 0.75 mm	M32 × 0.75 mm	M26 × 1/36"	M19 × 0.75 mm	M25× 0.75 mm	W0.8 × 1/36"	1,035"-40 (SM1)	M34 × 1 mm	M26 × 0.75 mm	M27 × 0.75 mm	M28 × 0.75 mm	M32 × 0.75 mm	M26 × 1/36"	M19 × 0.75 mm	M25× 0.75 mm	W0.8 × 1/36"	1,035"-40 (SM1)	M34 × 1 mm
