PRS-200 Precision Rotation Stage

Large Aperture, High Travel Accuracy

PRS-200 Precision Rotation Stage
제품 설명 사양 다운로드 견적 / 주문

Reference-class rotation stage

Worm drive with high gear ratio for precision positioning. Excellent flatness and concentricity due to preloaded crossed roller bearings. Large aperture with 120 mm Ø. Two adjustable limit switches.

Versions

  • DC servo motor with rotary encoder on the motor shaft
  • Stepper motor
  • Option: High-resolution optical angle measuring system for direct position measuring

Option: Measurement of the travel accuracy and positioning accuracy

Individual measurement logs available on request for wobble, axial, and radial creep. Please specify when ordering.

Application fields

Medical industry. Sample inspection. Precision microassembly. Metrology. Photonics.

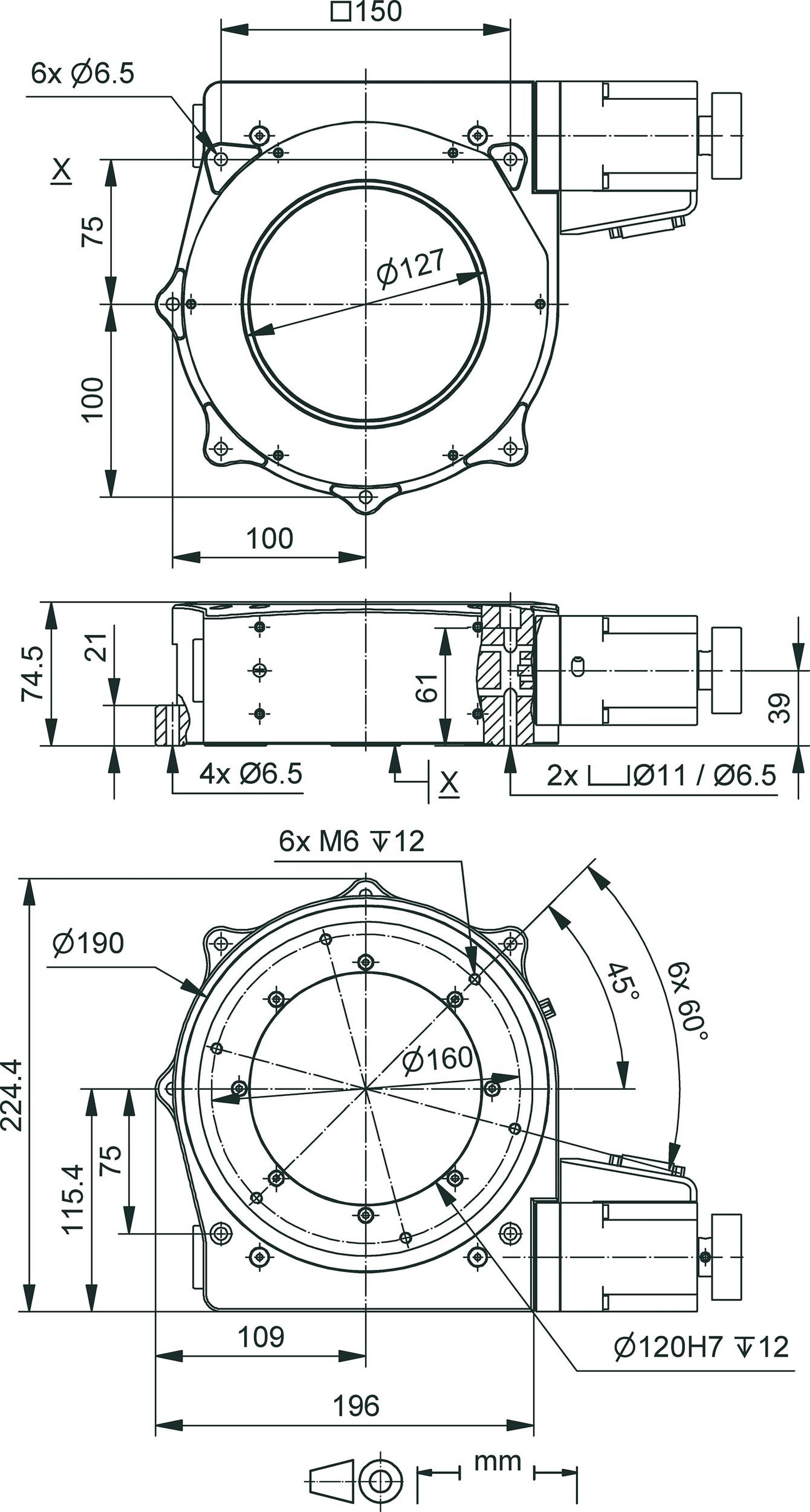

Specifications

Datasheet

Datasheet PRS-200

버전 / 날짜
2020-09-22
버전 / 날짜
2020-09-22
버전 / 날짜
2017-05-09
문서 언어
pdf - 3 MB
pdf - 3 MB
pdf - 2 MB

Separate connection cable required for motor and sensor connection respectively.

Downloads

Datasheet

Datasheet

Datasheet PRS-200

버전 / 날짜
2020-09-22
버전 / 날짜
2020-09-22
버전 / 날짜
2017-05-09
문서 언어
pdf - 3 MB
pdf - 3 MB
pdf - 2 MB

Documentation

Documentation

User Manual PRS-200

Precision Rotation Stage
버전 / 날짜
2020-04-23
버전 / 날짜
2020-04-23
문서 언어
Request download link
Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / MTS-65 / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx
버전 / 날짜
1.5.0 October 2017
pdf - 395 KB

3-D Models

3-D Models

PRS-200 3-D model

Request download link

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly

6449921111

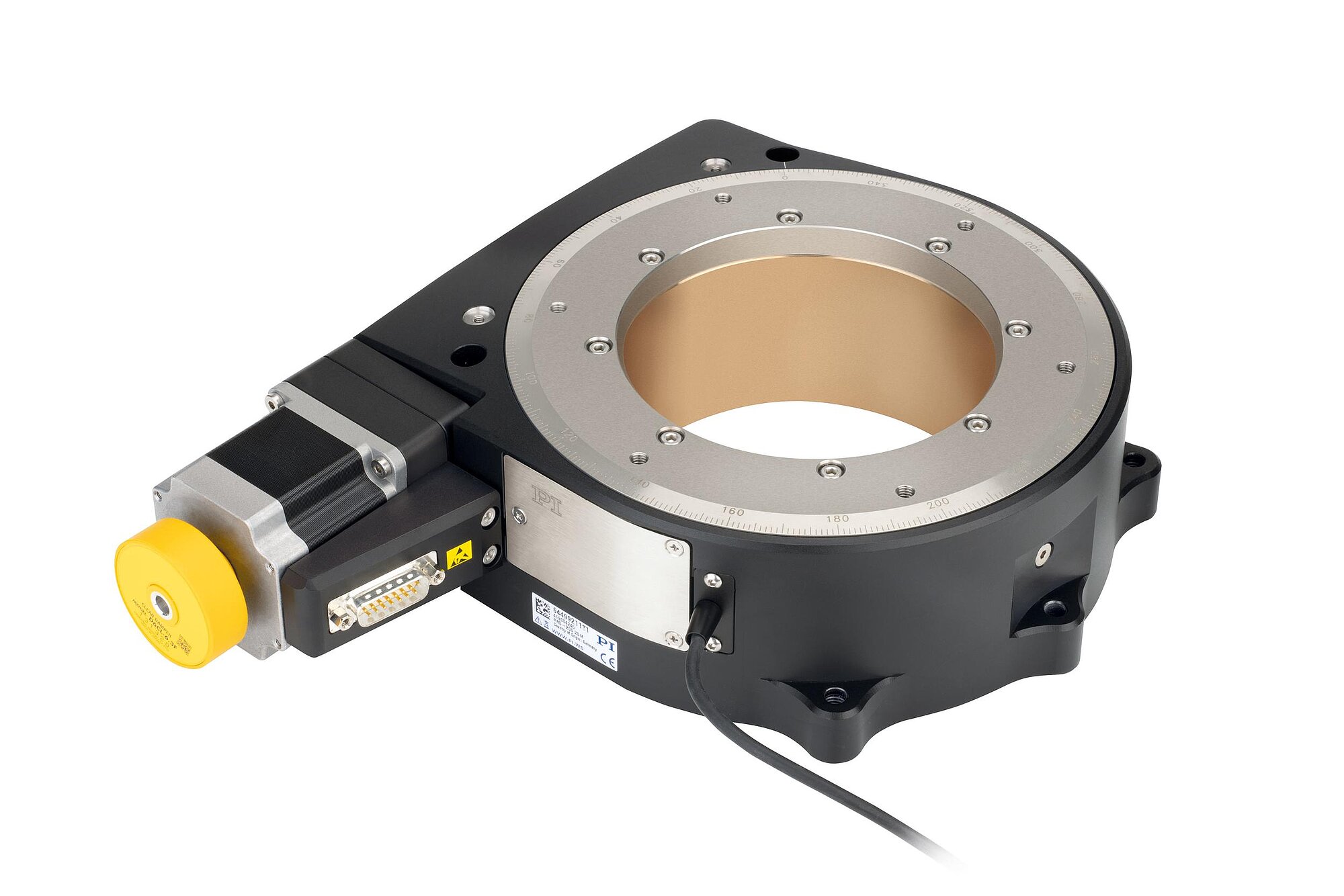

PRS-200 Precision rotation stage, Ø 120 mm aperture, stepper motor, >360° rotation range, angle measuring system with sin/cos signal transmission, adjustable magnetic limit switches
