PICA Piezoelectric Stack Actuators

Stack, Power and Thru

PICA piezoelectric linear actuators in stacked design are very reliable and feature a large specific displacement. The operating voltage is 1000 V.


  • PICA Stack actuators provide high forces.

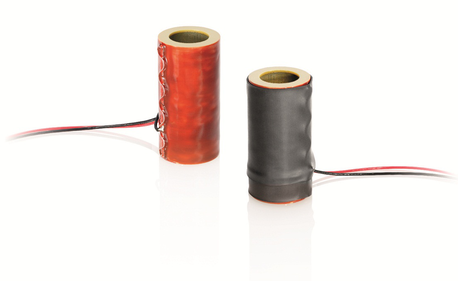

  • PICA Thru feature an inner hole, for applying a pretension or as clear aperture in optical applications.
  • PICA Power piezo actuators are made of a piezo material that allows for a higher operating temperature and thus higher dynamics.

PICA Stack Actuators

PICA Power Piezo Actuators

P-010.xxP – P-056.xxP PICA Power Piezo Actuators

For High-Dynamics Applications
  • Force generation up to 70kN
  • High operating frequencies
  • High operating temperature
  • High load capacity

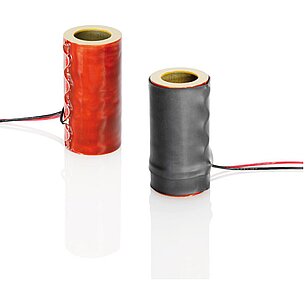

PICA Thru Ring Actuators

P-010.xxH – P-025.xxH PICA Thru Ring Actuators

High-Load Piezo Actuators with Inner Hole
  • High-Load Piezo Actuators
  • High load capacity
  • 80µm axial motion
  • Large cross-sections
  • Sub-nm resolution
PICA Stack Piezo Actuators

P-007 – P-056 PICA Stack Piezo Actuators

High Forces, High Displacement, Flexible Production
  • High Forces
  • High Displacement
  • Flexible Production
  • High load capacity
  • Travel ranges to 300µm

Preloaded PICA Actuators

P-216 PICA Power Piezo Actuators

Preloaded Piezo Actuators (HVPZT) with Sensor Option
  • Travel range to 180µm
  • Push force to 4500N
  • Pull force to 500N
  • Subnanometer resolution
  • For vacuum/ high temperature

P-235 PICA Power Piezo Actuators

Preloaded High-Load Piezo Actuators (HVPZT) with Sensor Option
  • High Force
  • Travel range 180µm
  • Extremely high stiffness
  • Push force to 30000N
  • Pull force to 3500N

For PICA Stack/Power/Thru Actuators

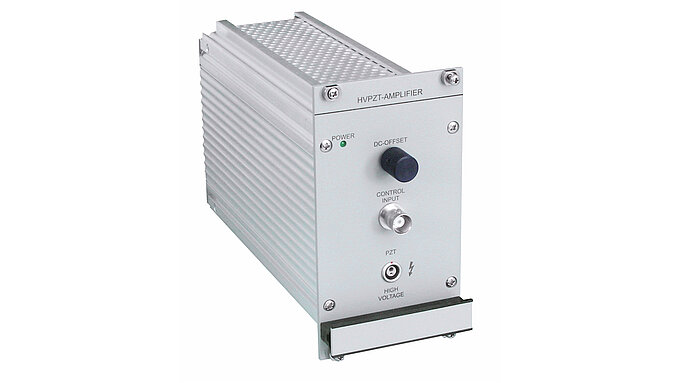

Piezo amplifiers for PICA Actuators offer a voltage range of up to 1100 V, which is available as unipolar or bipolar voltage. Amplifiers with high output current allow dynamic operation of the actuators and precise positioning while requiring low power.

Learn more

Customization

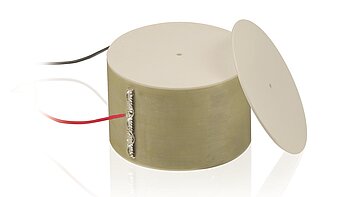

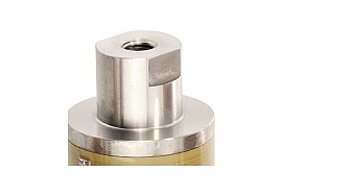

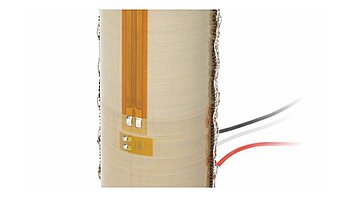

PICA piezoelectric linear actuators are produced in a wide range of shapes. Depending on the application, they can also be assembled with adapted ceramic or metal end pieces, additional coating, temperature sensors, etc. On request, we gladly offer you customized products.

Applications and Markets

  • Laser technology and laser beam control
  • High-load precision positioning
  • Precision mechanics and precision machining
  • Switching applications
  • Active vibration damping
  • Adaptive systems technology

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI Ceramic sales engineer.

Downloads

White Paper

PICA Stack Reliability Investigation

Some typical test results that demonstrate the reliability of PICA Stack actuators under AC- and DC-operation conditions.
