P-15x.xxH PICA Shear Actuators

Compact Multi-Axis Actuators with Inner Hole

P-15x.xxH PICA Shear Actuators
다운로드 가기 사양 다운로드 견적 / 주문

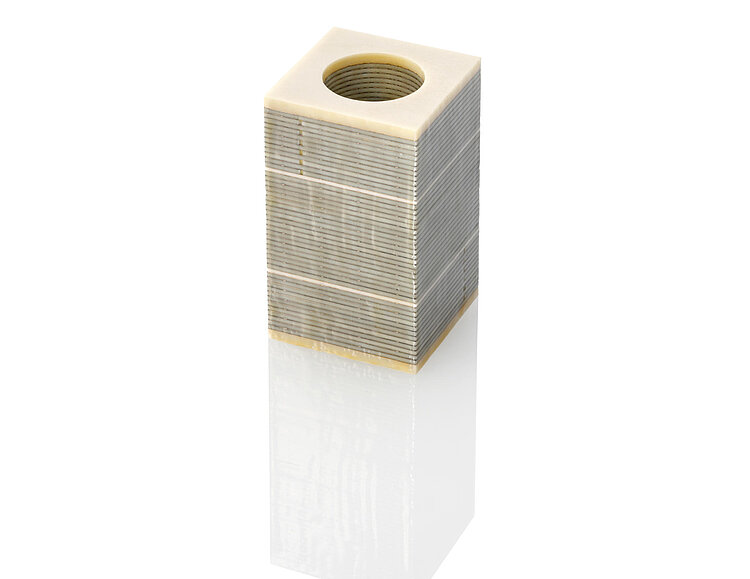

Piezo shear actuators with inner hole

Operating voltage -250 to 250 V. Lateral displacement is based on the piezoelectric shear effect. Excellent dynamics with minimum electric power requirement.

Variants without inner hole or for use in cryogenic and UHV environments to 10-9 hPa.

Possible modifications

  • Piezo ceramic material
  • Nonmagnetic versions
  • Operating voltage range, displacement, layer thickness, cross-sectional dimension
  • Load capacity, force generation
  • Mechanical interfaces: flat, spherical, metal, ceramic, glass, sapphire, etc.
  • Extra-tight length tolerances

Fields of application

  • Industry and research
  • Low temperature / vacuum versions to 10-9 hPa
  • Scanning applications
  • Microscopy
  • Precision mechanics
  • Switching applications



Specifications

Datasheet P-15x.xxH

버전 / 날짜
2018-04-25
버전 / 날짜
2018-04-25
버전 / 날짜
2018-05-14
문서 언어
pdf - 917 KB
pdf - 920 KB
pdf - 721 KB

Downloads

Datasheet

Datasheet P-15x.xxH

버전 / 날짜
2018-04-25
버전 / 날짜
2018-04-25
버전 / 날짜
2018-05-14
문서 언어
pdf - 917 KB
pdf - 920 KB
pdf - 721 KB

Documentation

Short Instructions PZ257EK

PICA Piezo Actuators up to 1000 V P-0xx, P-1xx, P-405 PICA Stack, PICA Power, PICA Thru, PICA Shear, Picoactuator®
버전 / 날짜
2015-10-09
pdf - 861 KB

User Manual PZ252

PICA Shear Piezo Actuators: P-111, P-112, P-121, P-122, P-123, P-141, P-142, P-143, P-151, P-152, P-153, PICA Shear Customized Products
버전 / 날짜
1.2.0 2018-04-25
버전 / 날짜
1.2.0 2018-04-25
문서 언어
pdf - 2 MB
pdf - 2 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly
