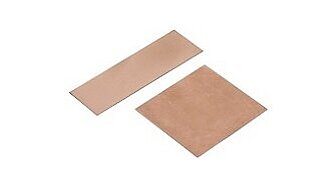

Plates

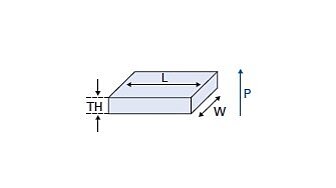

L       Length
W      Width
TH     Thickness
P       Polarization direction

Length L
1 to 80 mm
Width W
1 to 60 mm
Thickness TH
0.1 to 30 mm
Electrodes
Silver (thick film) or thin film (CuNi or Au)

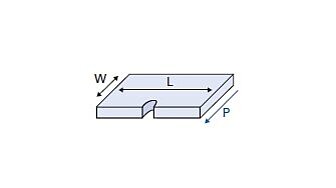

Shear Plates

L       Length
W      Width
P       Polarization direction

Length L
max. 75 mm
Width W
max. 25 mm
Thickness TH
0.2 to 10 mm

Downloads

Documentation

User Manual A000T0047

Handling and Electrical Contacting of Piezo Components
