P-911KNMV UHV-Compatible Miniature Piezo Hexapod

High-Precision Positioning Even in Strong Magnetic Fields

P-911KNMV UHV-Compatible Miniature Piezo Hexapod
다운로드 가기 사양 다운로드 견적 / 주문
  • Ultra-compact
  • UHV-compatible to 10-9 hPa
  • Nonmagnetic
  • Ultra-high precision flexure joints
  • Load capacity to 1.5 kg
  • Travel ranges to 1.5 mm, to 2°
  • With NEXLINE® piezo stepping drives

The space-saving parallel-kinematic design allows for the low overall height of less than 90 mm and a diameter of only 100 mm. NEXLINE® piezo stepping motor drives and integrated incremental sensors ensure a position resolution down to 0.1 µm in the linear axes

Specifications

Datasheet P-911KNMV

문서 언어
pdf - 666 KB
pdf - 665 KB

Downloads

Datasheet

Datasheet P-911KNMV

문서 언어
pdf - 666 KB
pdf - 665 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly

P-911KNMV

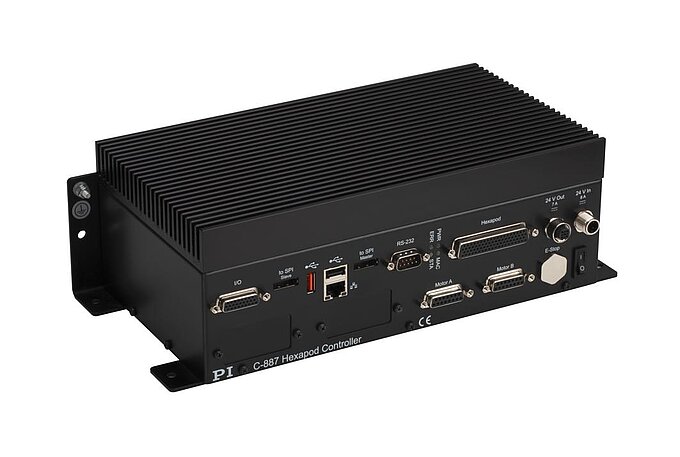

Non-Magnetic, UHV-Compatible Hexapod with NEXLINE® Piezo Stepping Drives, incl. Controller
