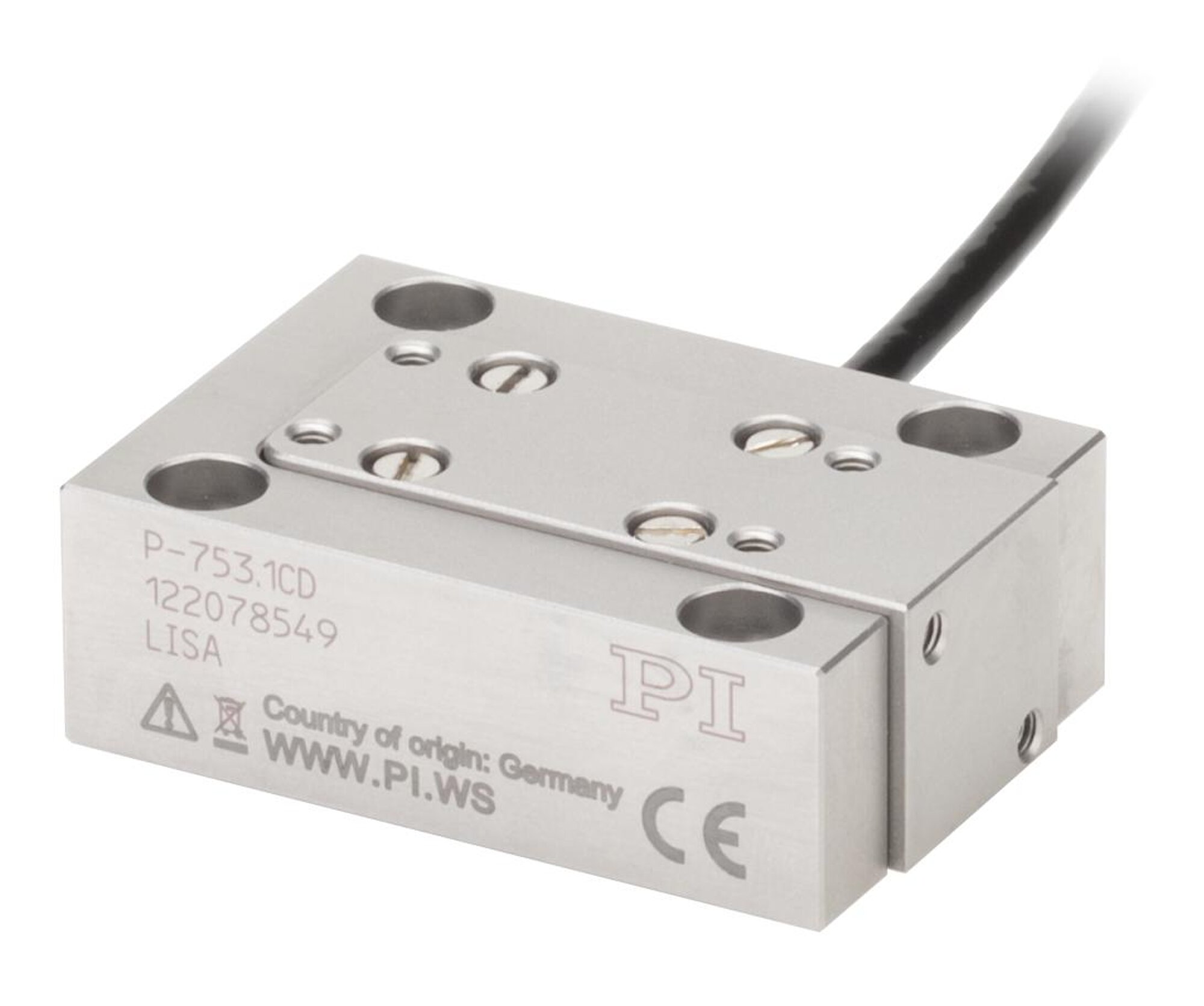

P-753 LISA Linear Actuator and Positioning Stage

Dynamic and Stable in Position

  • Guided stage and actuator at the same time
  • Travel range up to 38 µm
  • Resolution 0.1 nm
  • Particularly fast response behavior due to direct drive
  • Highest linearity due to capacitive sensors
P-753 LISA Linear Actuator and Positioning Stage
제품 설명 사양 다운로드 견적 / 주문

Application fields

  • Scanning microscopy
  • Measuring technology
  • Test procedures and quality assurance
  • Photonics
  • Fiber positioning

Outstanding lifetime due to PICMA® piezo actuators

The PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Subnanometer resolution with capacitive sensors

Capacitive sensors measure with subnanometer resolution without contacting. They guarantee excellent linearity of motion, long-term stability, and a bandwidth in the kHz range.

High guiding accuracy due to zero-play flexure guides

Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They work in a wide temperature range.

Maximum accuracy due to direct position measuring

Motion is measured directly at the motion platform without any influence from the drive or guide elements. This allows optimal repeatability, outstanding stability, and stiff, fast-responding control.

Higher stiffness and dynamics due to PICMA® direct drive

Piezo nanopositioners with PICMA® direct drive have no mechanical translation. This allows fast response speeds as well as the highest possible stiffness and dynamics in the piezo drive range.

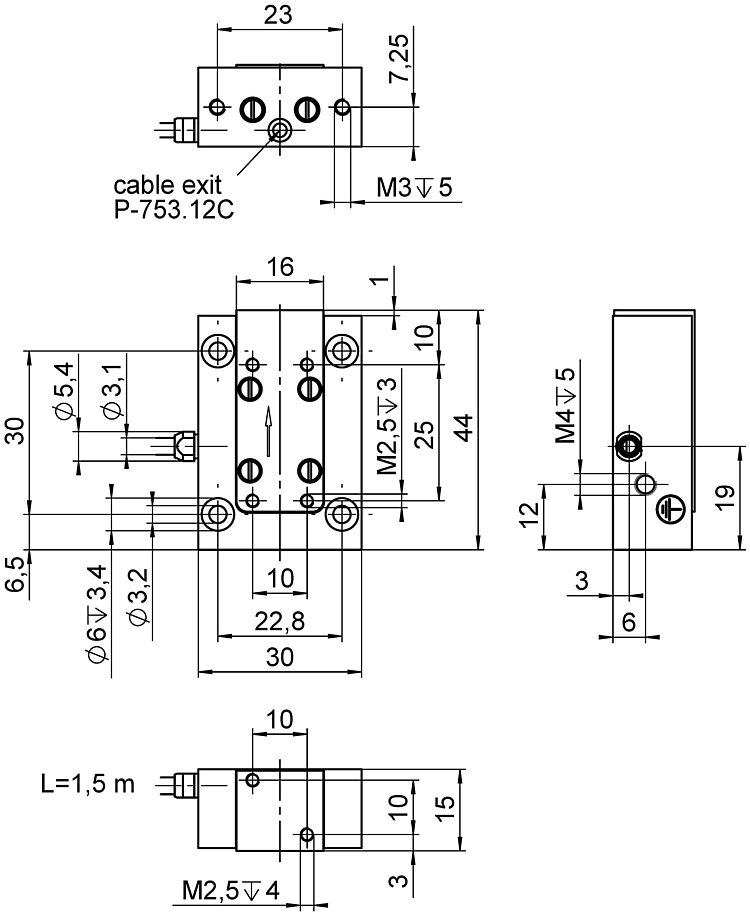

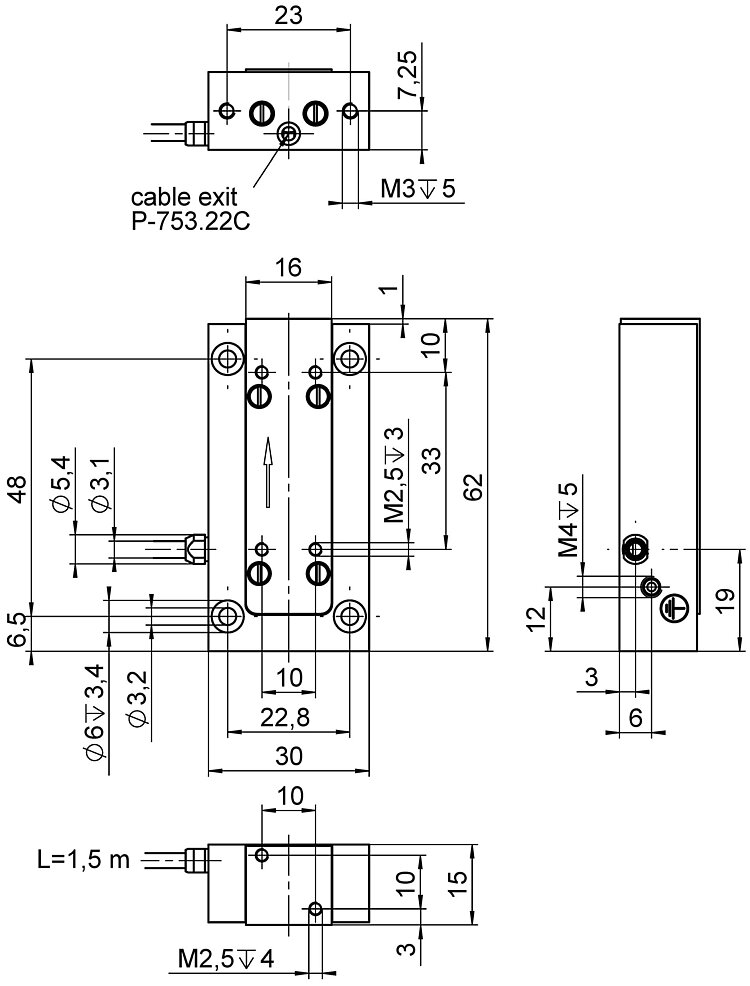

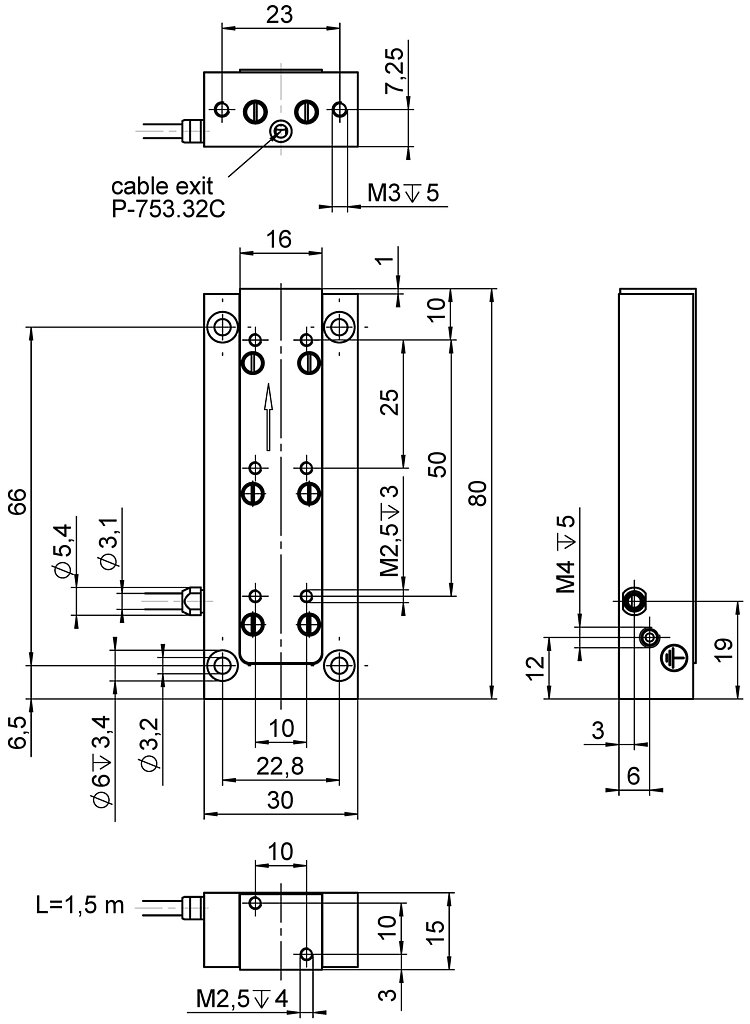

Specifications

Datasheet

Datasheet P-753

버전 / 날짜
2023-12-11
pdf - 741 KB
버전 / 날짜
2023-12-11
pdf - 745 KB
버전 / 날짜
2019-01-14
pdf - 928 KB
버전 / 날짜
2019-04-01
pdf - 1,007 KB

Downloads

Product Note

Product Note

Product Change Notification Piezo Actuator Driven Products

버전 / 날짜
2021-04-19
pdf - 377 KB
영어

Datasheet

Datasheet

Datasheet P-753

버전 / 날짜
2023-12-11
pdf - 741 KB
버전 / 날짜
2023-12-11
pdf - 745 KB
버전 / 날짜
2019-01-14
pdf - 928 KB
버전 / 날짜
2019-04-01
pdf - 1,007 KB

Documentation

Documentation

User Manual PZ254

P-753 LISA High-Dynamics Piezo Nanopositioning Systems

버전 / 날짜
1.1.0 2022-05-11
pdf - 1 MB
버전 / 날짜
1.1.0 2022-05-11
pdf - 1 MB
Documentation

Short Instructions PZ240

Piezo Positioning Systems: P-5xx / P-6xx / P-7xx

버전 / 날짜
6.2.0 03/2024
pdf - 561 KB
버전 / 날짜
6.2.0 03/2024
pdf - 595 KB

3-D Models

3-D Models

P-753 3-D model

zip - 415 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.

Compatible Electronics Compatible Accessories Related Products
