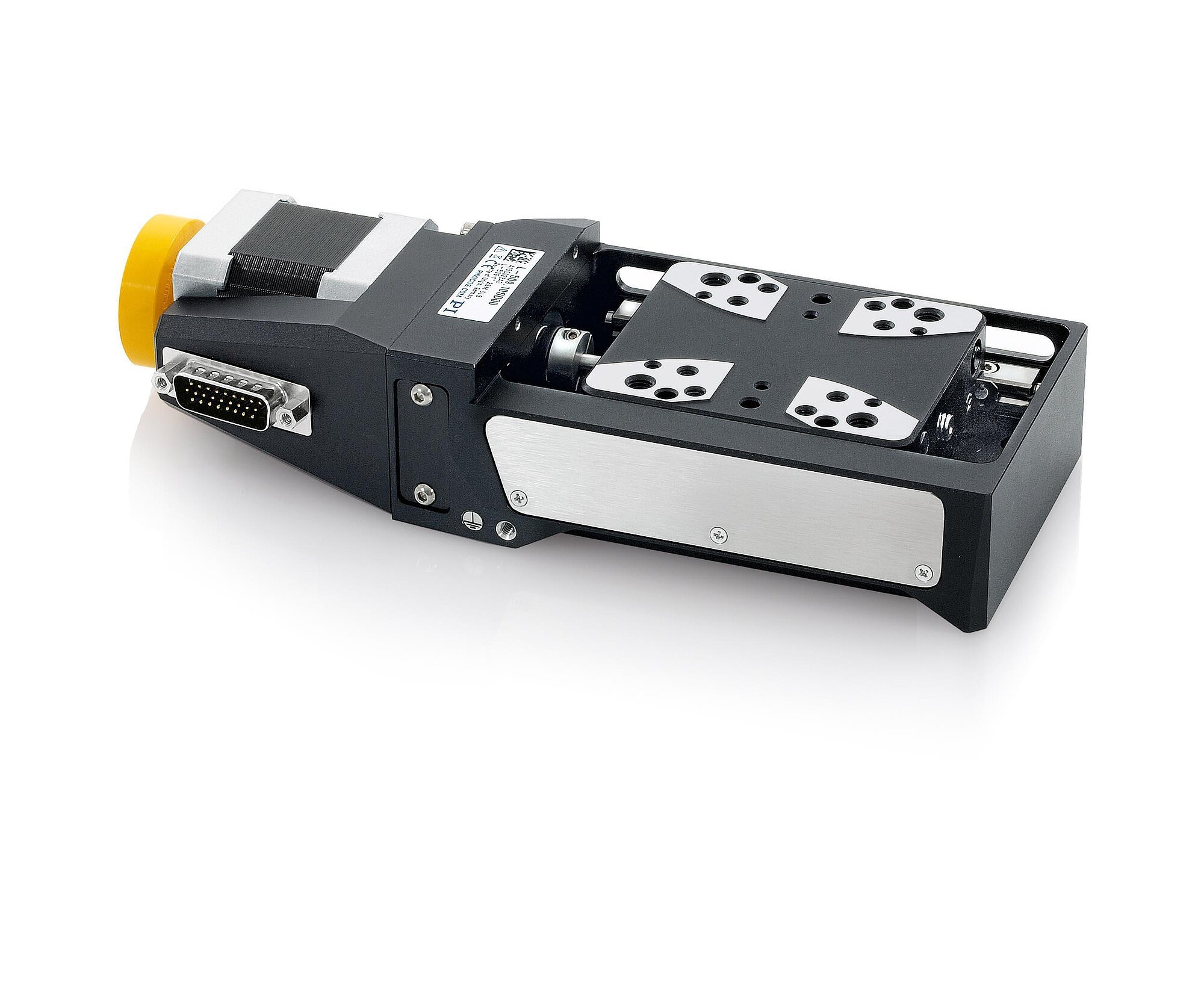

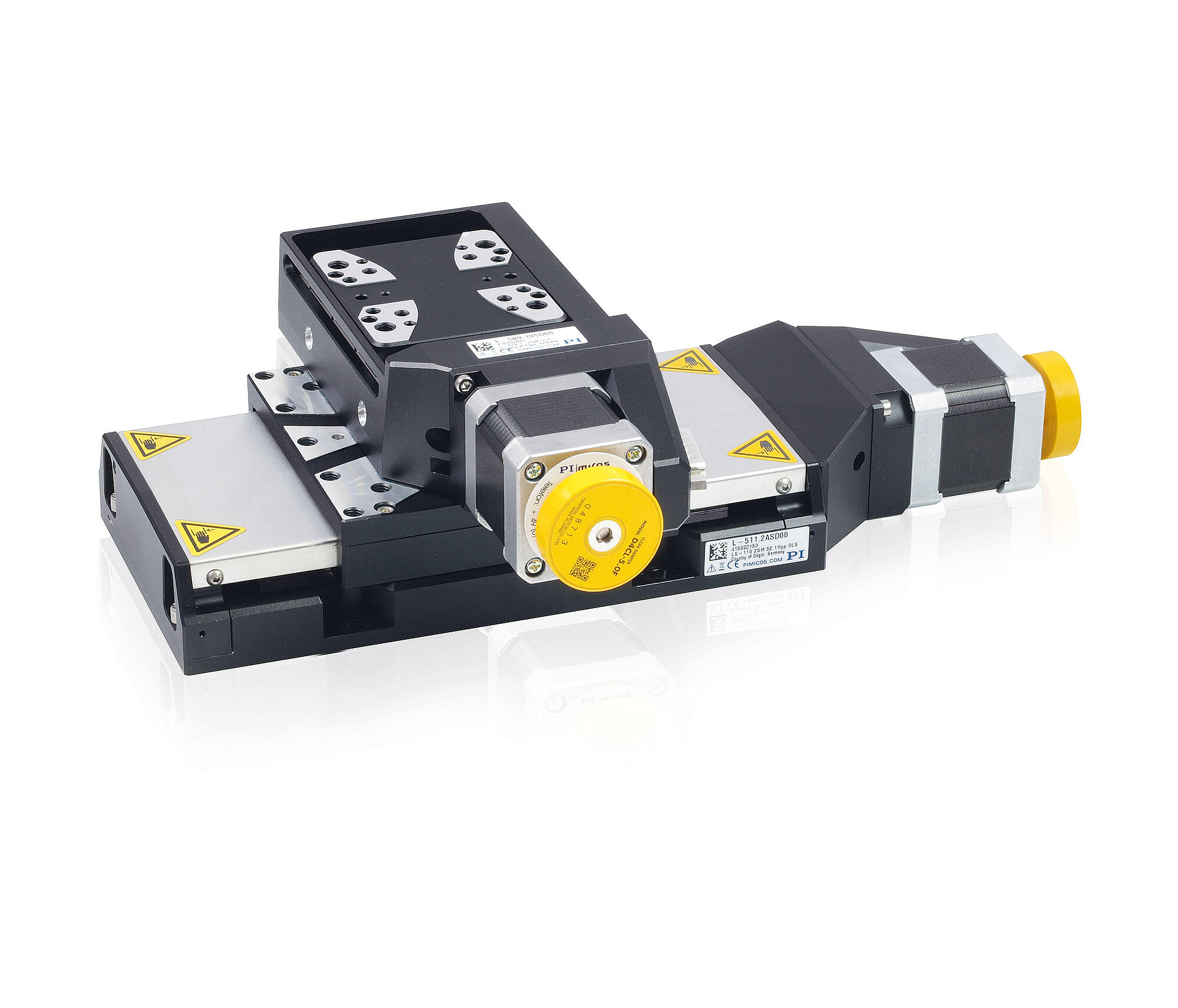

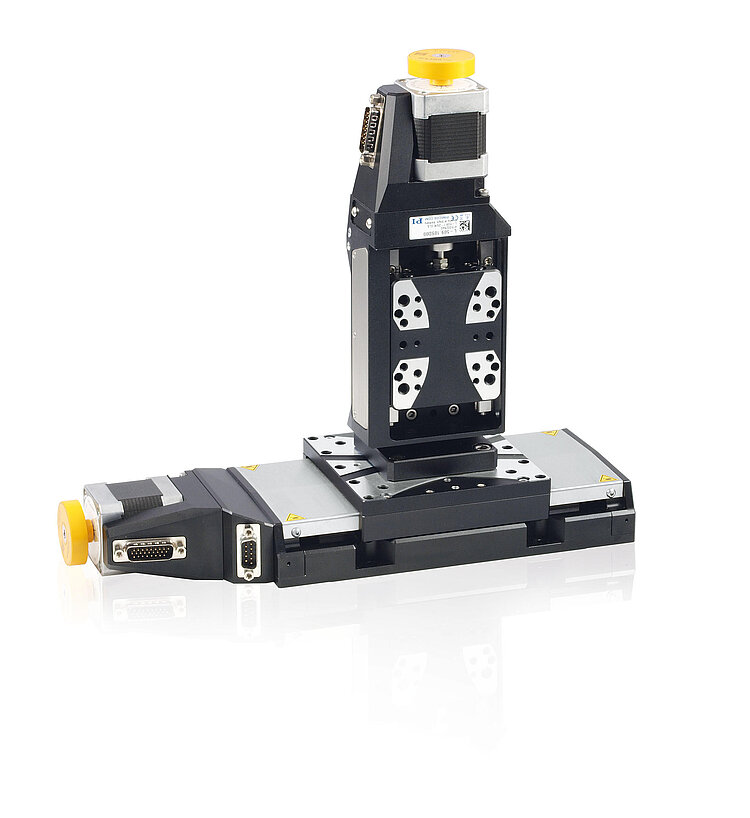

L-509 Precision Linear Stage

Compact Design, for Loads to 10 kg

L-509 Precision Linear Stage
제품 설명 사양 다운로드 견적 / 주문

Product overview

High travel accuracy and load capacity due to crossed roller guides with anti-creep system. Precision ball screw with 1 mm pitch. Compact design. Stress-relieved aluminum base for highest stability. Noncontact optical limit switches. Noncontact optical reference switch with direction sensing in the middle of the travel range.

Motor types available

  • ActiveDrive DC motor for high velocity: Control via pulse-width-modulated (PWM) signals, the operating voltage is achieved via an amplifier integrated in the motor housing
  • DC servo motor with gearhead for high torques and resolution at low motor power
  • 2-phase stepper motor for low velocity and high resolution
  • Brushless DC motor: For applications with a high duty cycle. Use a controller with sine commutation for an exceptionally smooth synchronous motion and low vibrations even at a very low velocity.

Types of position measuring

  • Without encoder (open loop)
  • Rotary encoder integrated on the motor shaft
  • Incremental linear encoder

Highly accurate position measuring with incremental linear encoder

Noncontact optical encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.

Application fields

Autofocus. Laser cutting. Research. Biotechnology. Automation. Vacuum. Optical alignment.

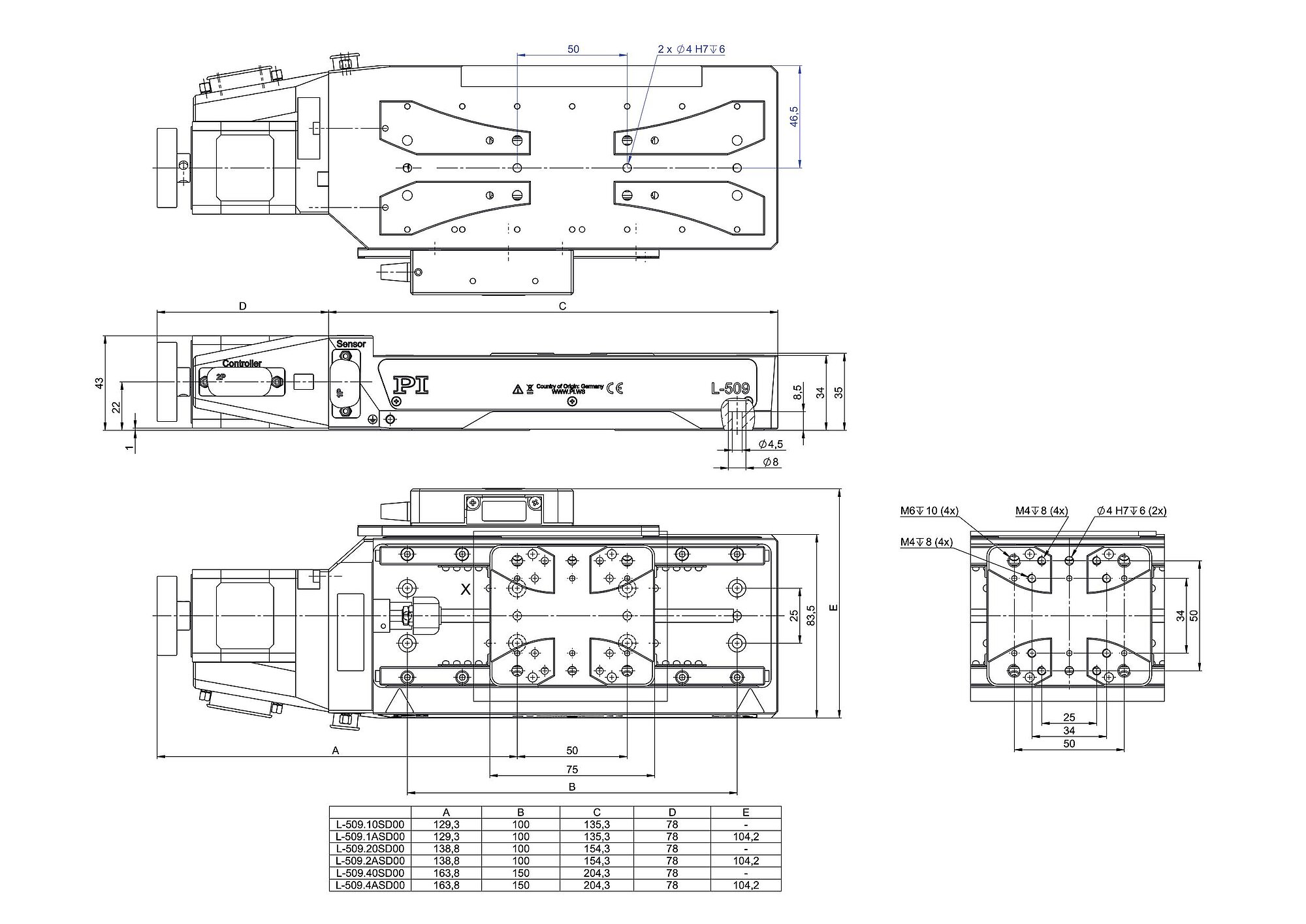

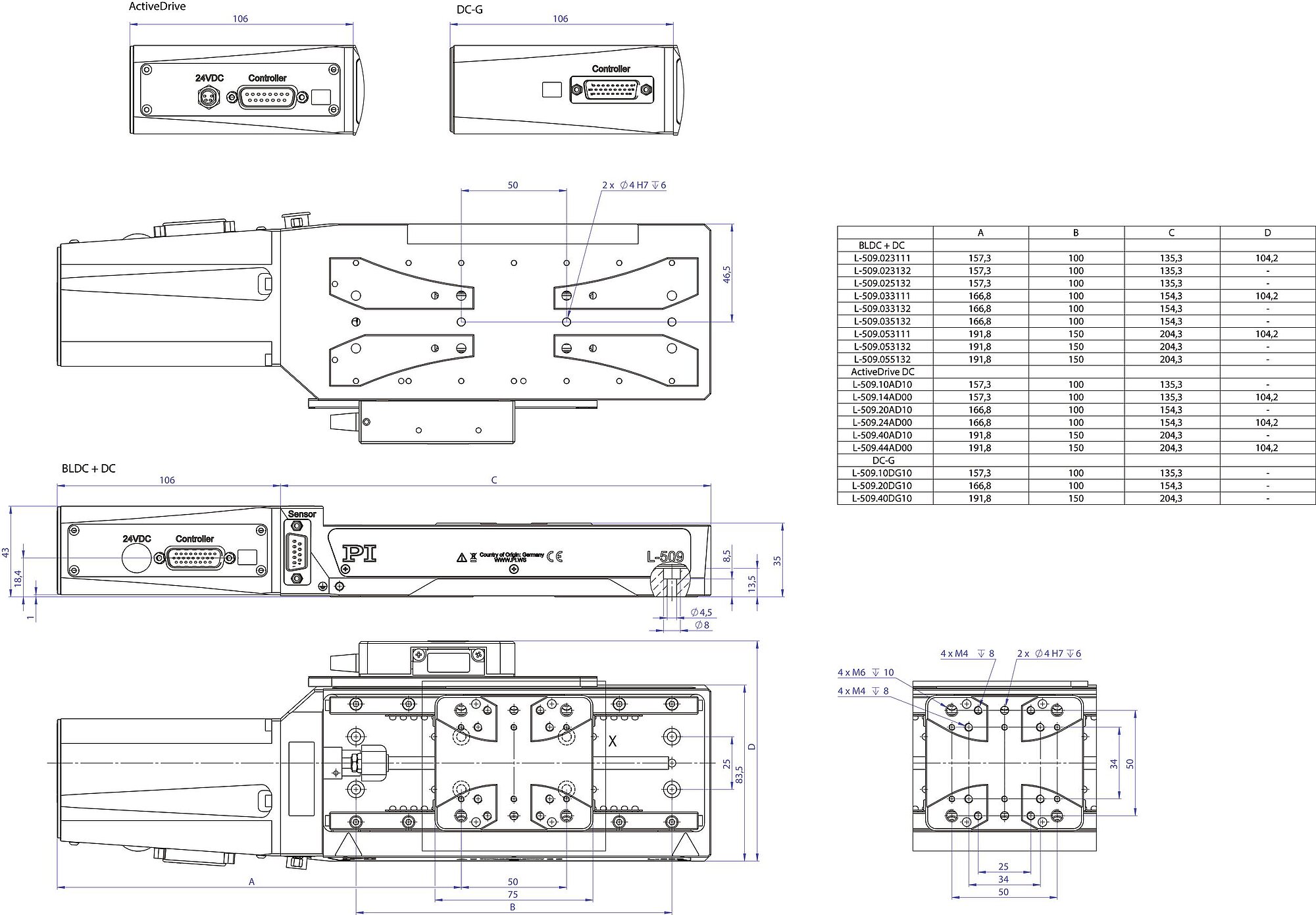

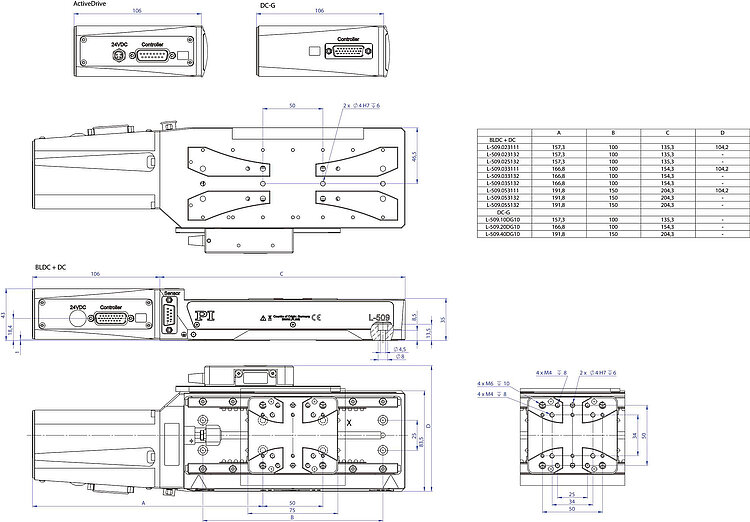

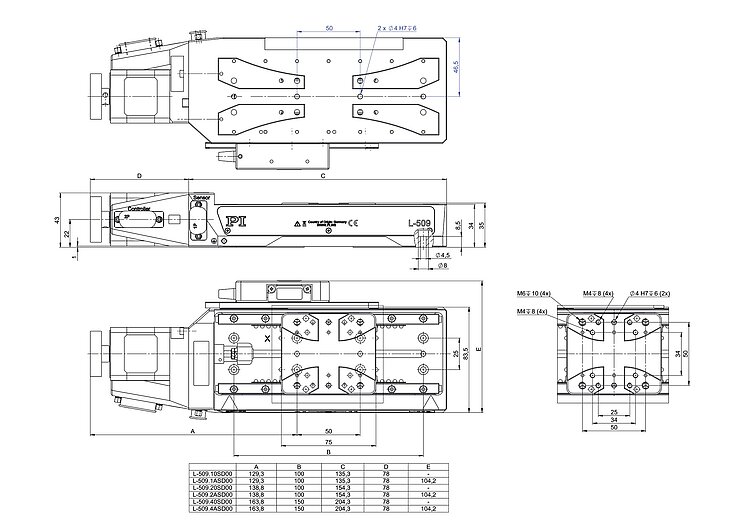

Specifications

Datasheet

Datasheet L-509

버전 / 날짜
2019-10-24
버전 / 날짜
2019-10-24
버전 / 날짜
2018-11-26
버전 / 날짜
2018-12-12
문서 언어
pdf - 2 MB
pdf - 2 MB
pdf - 1 MB
pdf - 1 MB

Downloads

Datasheet

Datasheet

Datasheet L-509

버전 / 날짜
2019-10-24
버전 / 날짜
2019-10-24
버전 / 날짜
2018-11-26
버전 / 날짜
2018-12-12
문서 언어
pdf - 2 MB
pdf - 2 MB
pdf - 1 MB
pdf - 1 MB

Documentation

Documentation

User Manual L509T0018

L-509 Vacuum-Compatible Precision Linear Positioner (1E-9 hPa)
버전 / 날짜
2019-09-13
문서 언어 영어
Documentation

User Manual MP141

L-509 Precision Linear Stage, 85 mm Width
버전 / 날짜
1.4.0 2019-08-23
버전 / 날짜
1.4.0 2019-08-23
문서 언어
Documentation

User Manual MP174

L-509 Vacuum-Compatible Precision Linear Stage (1 E-6 hPa)
버전 / 날짜
2017-11-30
버전 / 날짜
2017-11-30
문서 언어
Documentation

User Manual MP186

This document describes the following precision linear positioner, vacuum-compatible 1 E-7 hPa: L-509.0x1300V7; L-509.0x1311V7
버전 / 날짜
1.0.0 2019-03-18
문서 언어 영어
Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / MTS-65 / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx
버전 / 날짜
1.5.0 October 2017
pdf - 395 KB

3-D Models

3-D Models

L-509 3-D model

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly

L-509.025132
Precision Linear stage, 85 mm width, 26 mm travel range, brushless DC motor, incremental rotary encoder with A/B quadrature signal transmission , including 3 m cable set
L-509.035132
Precision Linear stage, 85 mm width, 52 mm travel range, brushless DC motor, incremental rotary encoder with A/B quadrature signal transmission , including 3 m cable set
L-509.055132
Precision Linear stage, 85 mm width, 102 mm travel range, brushless DC motor, incremental rotary encoder with A/B quadrature signal transmission , including 3 m cable set
L-509.10AD10
Precision Linear stage, 85 mm width, 26 mm travel range, ActiveDrive DC motor, incremental rotary encoder with A/B quadrature signal transmission , including 3 m cable set
L-509.10DG10
Precision Linear stage, 85 mm width, 26 mm travel range, DC gear motor, incremental rotary encoder with A/B quadrature signal transmission , including 3 m cable set
L-509.14AD00
Precision Linear stage, 85 mm width, 26 mm travel range, ActiveDrive DC motor, linear encoder with A/B quadrature signal transmission , including 3 m cable set
L-509.20AD10
Precision Linear stage, 85 mm width, 52 mm travel range, ActiveDrive DC motor, incremental rotary encoder with A/B quadrature signal transmission , including 3 m cable set
L-509.20DG10
Precision Linear stage, 85 mm width, 52 mm travel range, DC gear motor, incremental rotary encoder with A/B quadrature signal transmission , including 3 m cable set
L-509.24AD00
Precision Linear stage, 85 mm width, 52 mm travel range, ActiveDrive DC motor, linear encoder with A/B quadrature signal transmission , including 3 m cable set
L-509.40AD10
Precision Linear stage, 85 mm width, 102 mm travel range, ActiveDrive DC motor, incremental rotary encoder with A/B quadrature signal transmission , including 3 m cable set
L-509.40DG10
Precision Linear stage, 85 mm width, 102 mm travel range, DC gear motor, incremental rotary encoder with A/B quadrature signal transmission , including 3 m cable set
L-509.44AD00
Precision Linear stage, 85 mm width, 102 mm travel range, ActiveDrive DC motor, linear encoder with A/B quadrature signal transmission , including 3 m cable set
