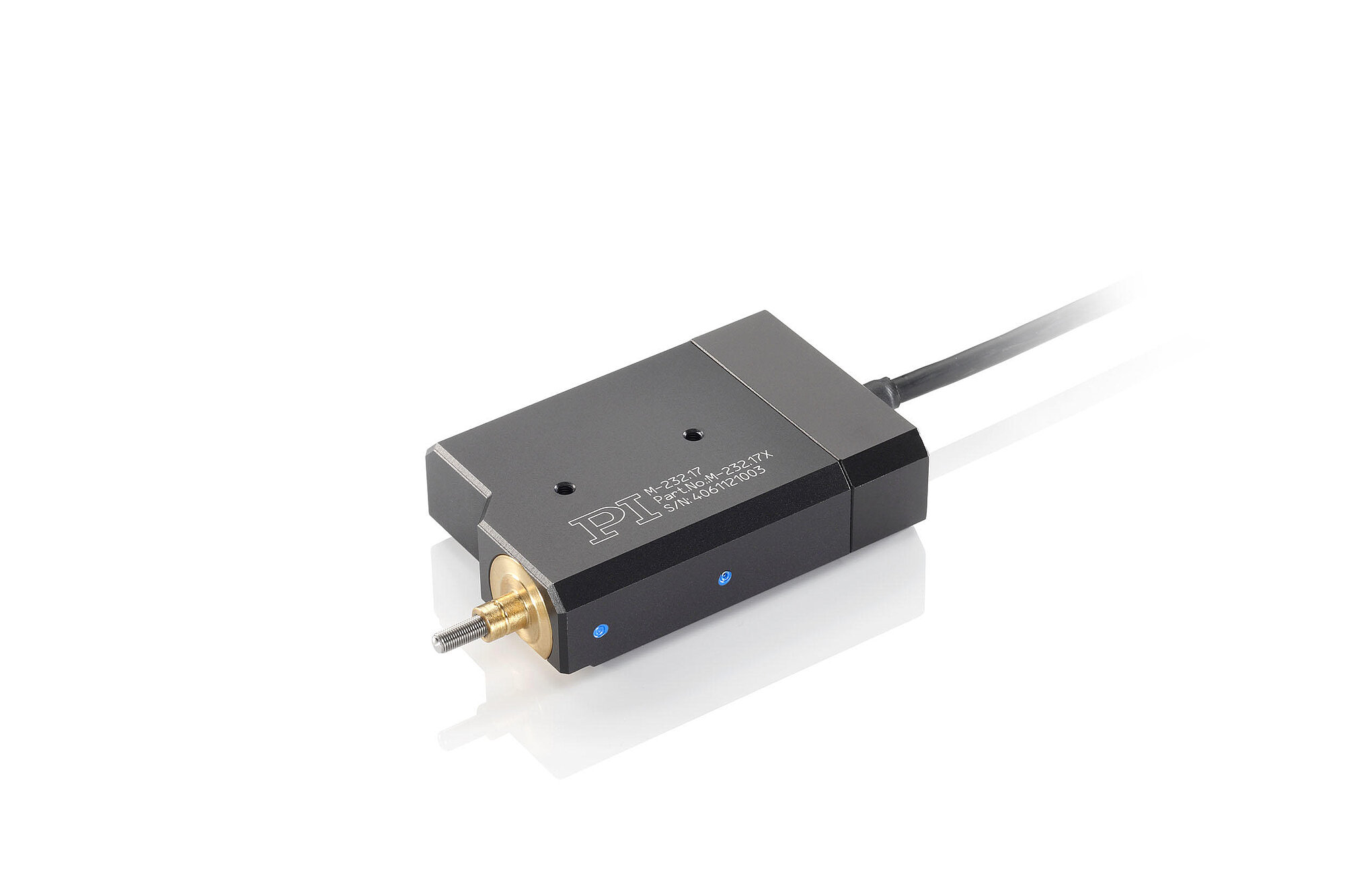

M-232 High-Resolution Linear Actuator with DC Motor

Compact due to Folded Drive

M-232 High-Resolution Linear Actuator with DC Motor
제품 설명 사양 다운로드 견적 / 주문
  • Travel range 17 mm
  • Min. incremental motion 0.1 µm
  • Velocity to 1.5 mm/s
  • Closed-loop DC motors
  • MTBF >5000 h

Compact precision-class linear drive

High-resolution linear actuator, DC motor. Compact design due to folded drive. Rotating end piece, rotating pusher. Position-controlled DC motors with a gearhead and high-resolution rotary encoders allow for incremental motion and repeatability of just 100 nm

Fits on the M-105 microtranslation stage.

High-quality components

Extremely low-friction and backlash-free construction. Noncontact limit switches protect the mechanical system. Closed-loop variants with differential encoder driver for a safe position signal transmission at distances up to 10 m

Application fields

Precision alignment, motorized replacement for micrometer screws.

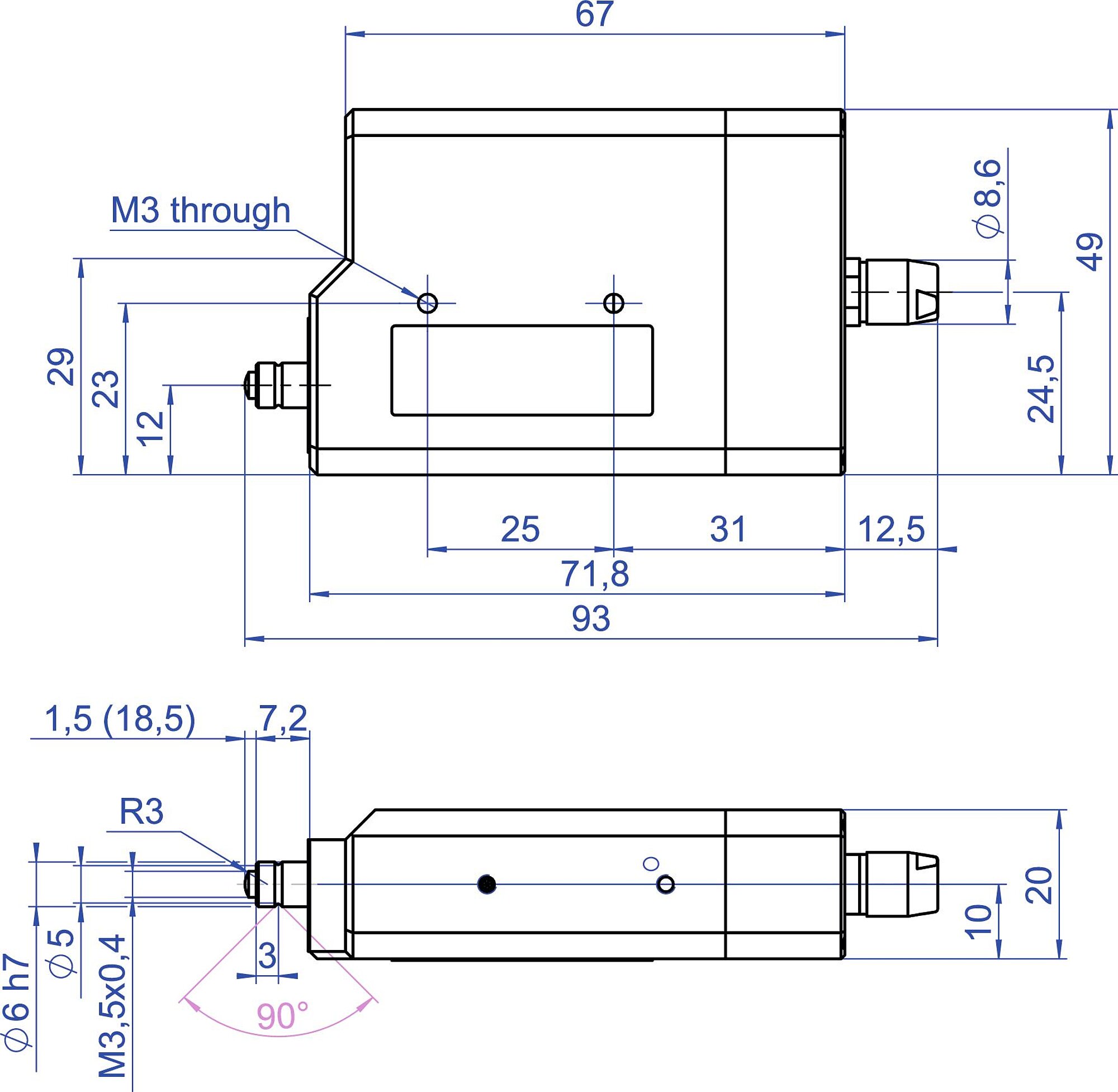

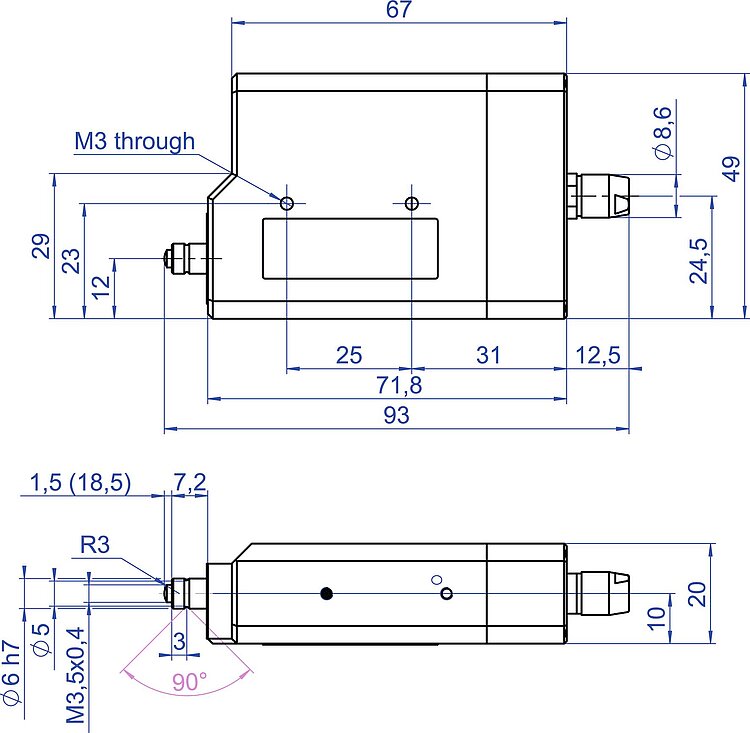

Specifications

Datasheet

Datasheet M-232

버전 / 날짜
2020-06-29
버전 / 날짜
2020-06-29
문서 언어
pdf - 200 KB
pdf - 203 KB

Separate connection cable required for motor and sensor connection respectively.

Downloads

Product Note

Product Note

Product Change Notification Lable Change M-products

버전 / 날짜
2019-10-01
문서 언어 영어
pdf - 230 KB
Product Note

Product Change Notification M-Portfolio Streamlining 2

M-227.10S, M-230.10V, M-230.25V, M-232.17S, M-235.22S, M-235.2VD, M-235.2VG, M-235.52S, M-235.5VD, M-235.5VG
버전 / 날짜
2019-04-05
문서 언어 영어
pdf - 71 KB

Datasheet

Datasheet

Datasheet M-232

버전 / 날짜
2020-06-29
버전 / 날짜
2020-06-29
문서 언어
pdf - 200 KB
pdf - 203 KB

Documentation

Documentation

Short Instructions MP122EK

Linear Actuators: M-168 / M-22x / M-23x
버전 / 날짜
2.2.0 02/2018
문서 언어 영어
pdf - 375 KB
Documentation

User Manual MP105

M-232 Compact High-Resolution Linear Actuator
버전 / 날짜
1.2 2020-08-31
버전 / 날짜
1.2 2020-08-31
문서 언어
Request download link

3-D Models

3-D Models

M-232 3-D model

Request download link

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
