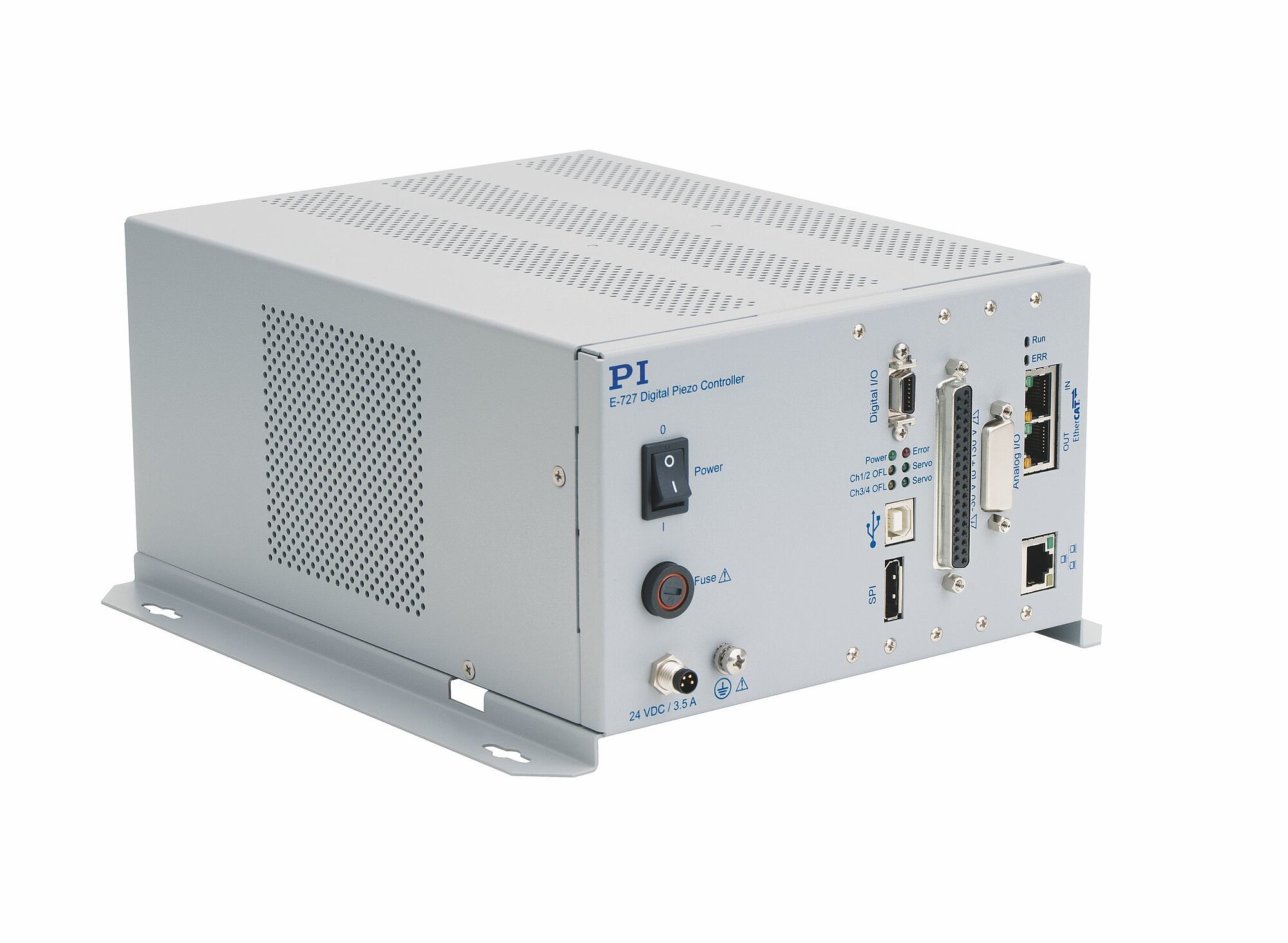

E-727.xF Digital Multi-Channel Piezo Controller with EtherCAT

Control Piezo Nanopositioning Systems via Fieldbus Interface

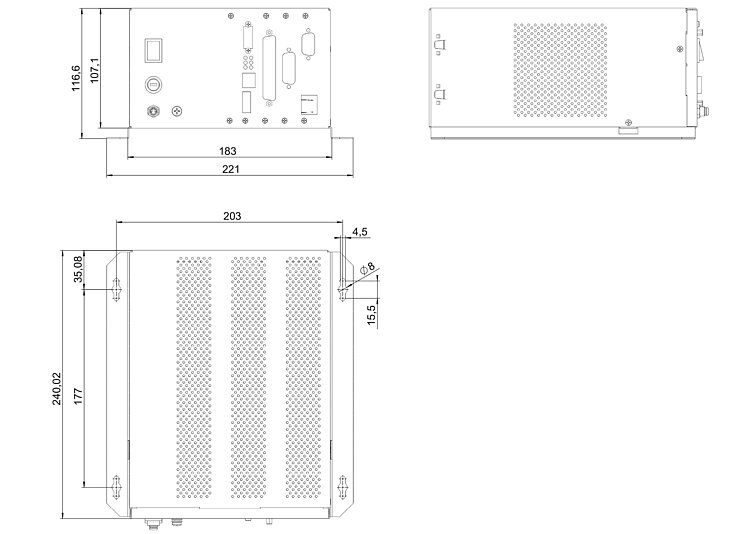

E-727.xF Digital Multi-Channel Piezo Controller with EtherCAT
제품 설명 사양 다운로드 견적 / 주문
  • Integration into an automation system thanks to EtherCAT
  • Operating modes: CSP, PP, homing
  • Cycle time 2 ms
  • 20 kHz sampling rate control
  • Autoloading of calibration data from stage ID chip for interchangeability of controller and mechanics
  • 4th order polynomial linearization for mechanics and electronics

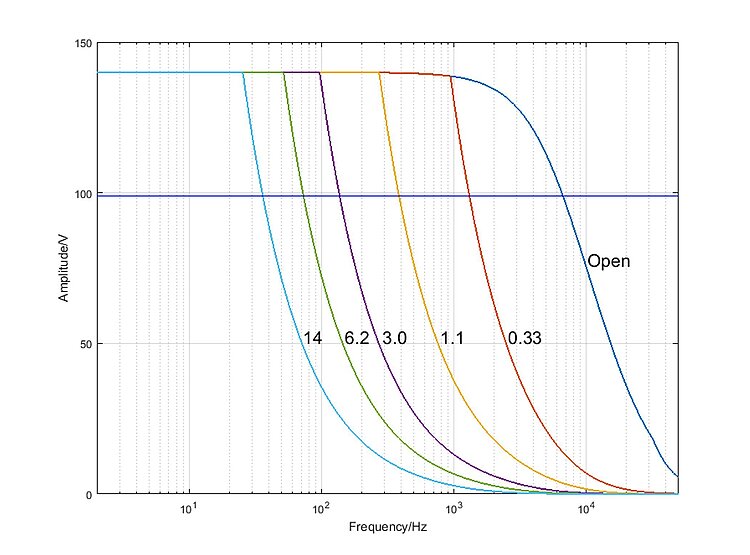

Digital controller for piezo-based nanopositioning systems

Integrated low-noise power amplifiers for PICMA® piezo actuators. Output voltage -30 to +130 V. Supports strain gauge sensors, capacitive sensors or piezoresistive sensors. Delivery includes wide input range power supply and USB cable.

EtherCAT fieldbus interface

Controller and nanopositioning system behave like an intelligent multi-axis drive according to CiA402 drive profile. Can be integrated seamlessly into automation systems in industry and research. Operating modes according to IEC 61800-7-201: Cyclic Synchronous Position (CSP), Profile Position (PP) and Homing (manufacturer-specific method: Autozero). Cycle time 2 ms.

Operation via TCP/IP or USB

Operation via TCP/IP or USB is possible without EtherCAT master. The controller then has the same functionality as an E-727 without fieldbus interface and is commanded via PI GCS. Extensive software support, e.g., for NI LabVIEW, dynamic libraries for Windows and Linux.

Extensive functionality

P-I controller with 2 notch filters. Linearization based on 4th-order polynomials. Optional Dynamic Digital Linearization (DDL). ID chip for fast startup and quick exchange of system components.

Further interfaces

SPI for fast serial transmission of position values to / from an SPI master. 4 analog inputs and outputs each (optional) for external sensors, target values or external amplifiers. 4 digital inputs and outputs respectively.
