Precision Linear Stage for Automation Tasks

Positioning systems that meet the high demands on precision and dynamics are required for a large number of applications in automation technology; at the same time, purchase costs often play a decisive role. PI (Physik Instrumente) has added the V-408 PIMag® linear stage to its portfolio, the best solution for simple and price-sensitive automation tasks.

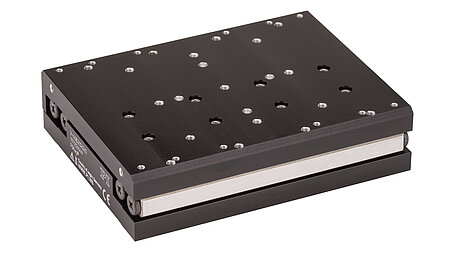

The compactly designed V-408 has a width of 80 mm and height of 25 mm, and is suitable for travel ranges to 25 or 50 mm, and velocities to 1.5 m/s and this allows high throughput rates. The minimum incremental motion is 20 nm with a bidirectional repeatability of +/- 0.1 µm. If required, it is also possible to combine the linear stages to multi-axis systems.

Three-phase linear motors are the driving force of the linear stages. The iron core maximizes the magnetic forces in a small installation space und ensures high acceleration as well as the thermal stability of the drive. Crossed roller bearings with anticreep system guarantee high guiding accuracy and load capacity. Position detection directly at the motion platform makes sure that positioning is not influenced by nonlinearity, mechanical play or elastic deformation. The linear axes are controlled by the PI C-891 controller or – in the case of multi-axis applications – by an industrial controller from ASC, a worldwide leading manufacturer of modular motion controllers, who PI took over in 2017.

Find out more about the V-408 here:

V-408 PIMag® Linear Stage

About PI

Well known for the high quality of its products, PI (Physik Instrumente) has been one of the leading players in the global market for precision positioning technology for many years. PI has been developing and manufacturing standard and OEM products with piezo or motor drives for 40 years. By acquiring the majority shares in ACS Motion Control, a worldwide leading developer and manufacturer of modular motion controllers for multi-axis and high-precision drive systems, PI has made a major step forward in providing complete systems for industrial applications with the highest demand on precision and dynamics. In addition to four locations in Germany, the PI Group is represented internationally by fifteen sales and service subsidiaries. www.pi.ws
