M-545 Microscope XY Stage

Compact, Stable, Long Travel Range

M-545 Microscope XY Stage
제품 설명 사양 다운로드 견적 / 주문

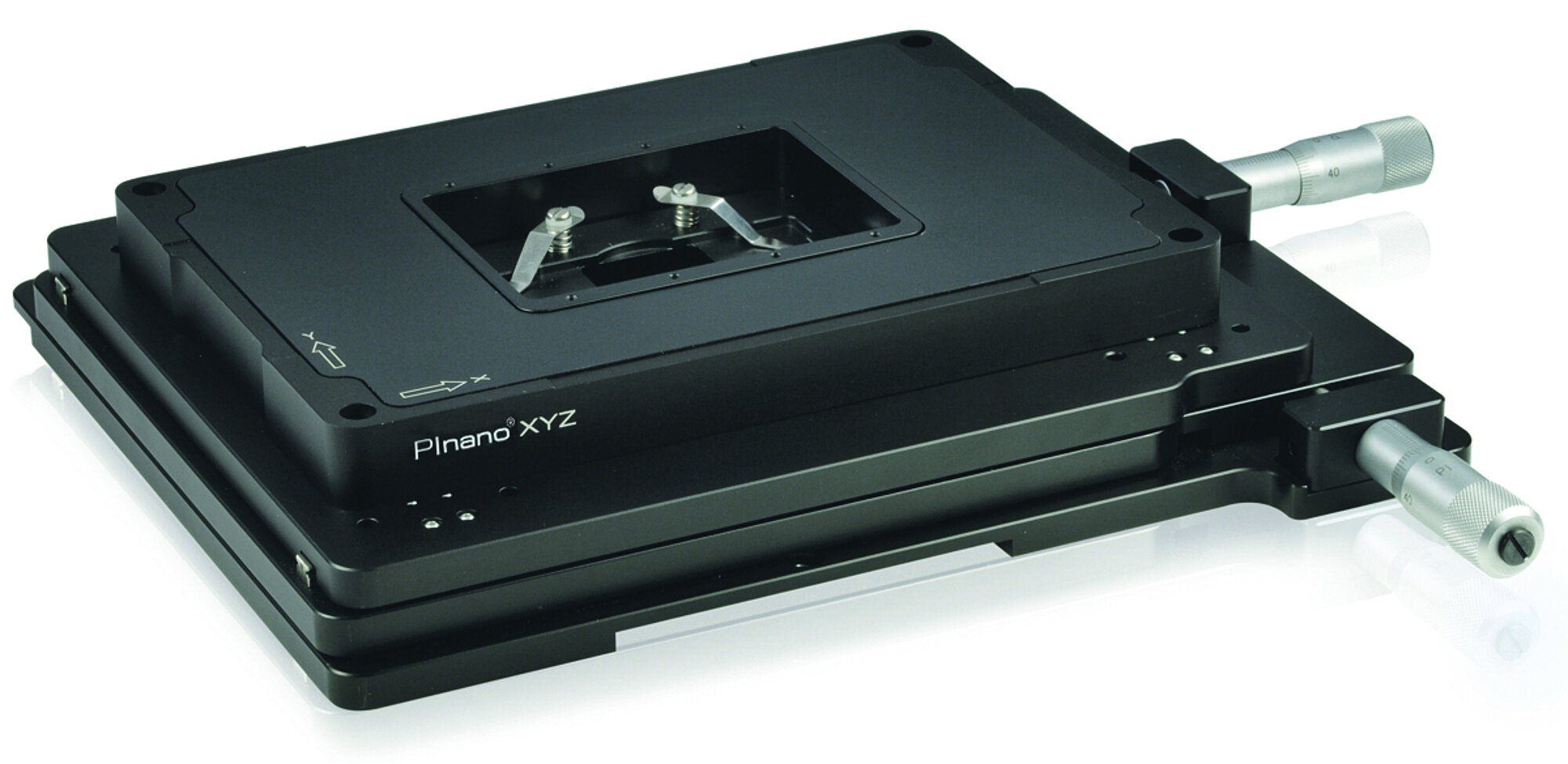

  • Stable platform for P-545 PInano® piezo nanopositioning systems
  • Low profile for easy integration: 30 mm
  • Travel range 25 mm × 25 mm
  • Manual operation with micrometer screws, optional motorization
  • For inverted microscopes from Nikon, Zeiss, Leica, and Olympus

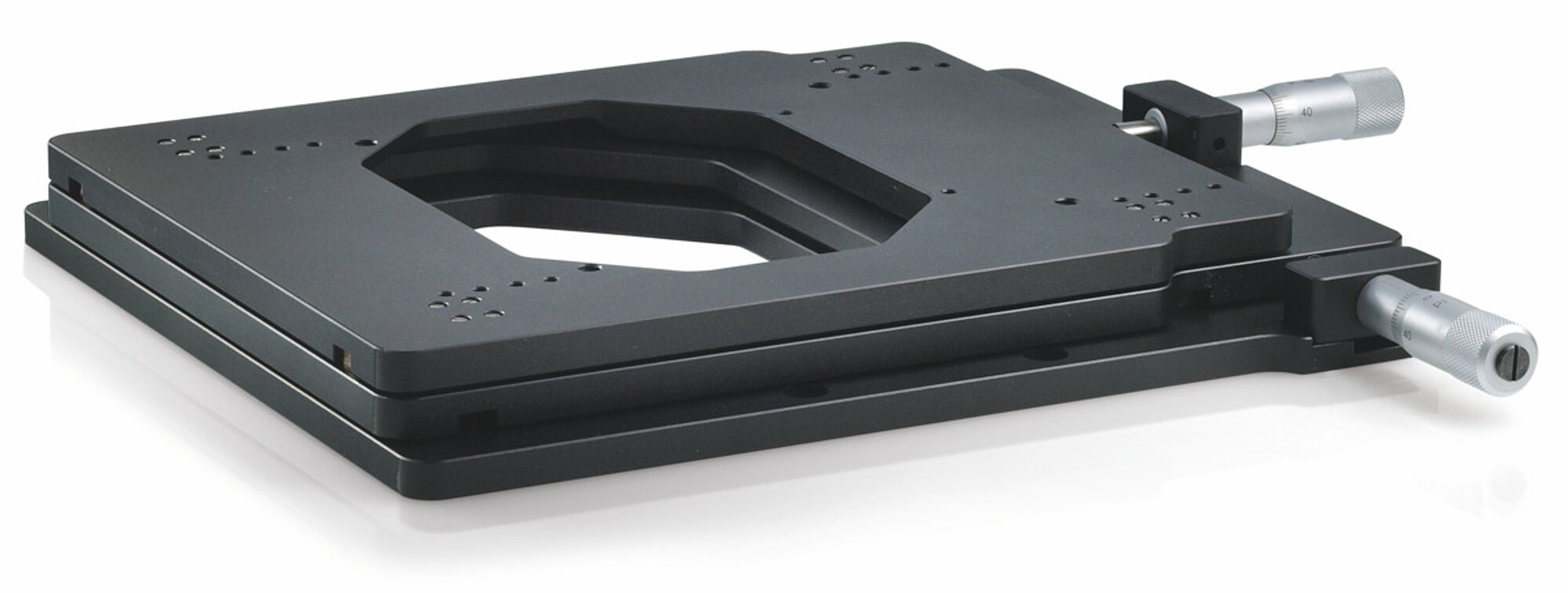

Standard-class, manual microscope XY stage

Rough adjusting for piezo nanopositioners from PI as well as manual positioning of specimen holders. Supports optimum scanning and settling behavior.

Micrometer screw or stepper motor drive

The M-545 XY stage can also be equipped with drives from the M-229 series (all models except M-545.2MZ). Complete packages with two stepper motor drives, matching controller, and joystick, are available under the product numbers M-545.USG respectively M-545.USC.

Suitable for microscopes from a large number of manufacturers

For inverted microscopes from Nikon (TI), Zeiss (Axio Observer), Leica (DMI), and Olympus (IX2, IX3). Versions for other microscopes on request.

Can be combined with numerous PI nanopositioners

It is possible to mount piezo nanopositioners from the P-545 PInano® and P-541 / P-542 series onto the platform of the M-545. Adapter plates from PI are available for combining with other piezo nanopositioners.

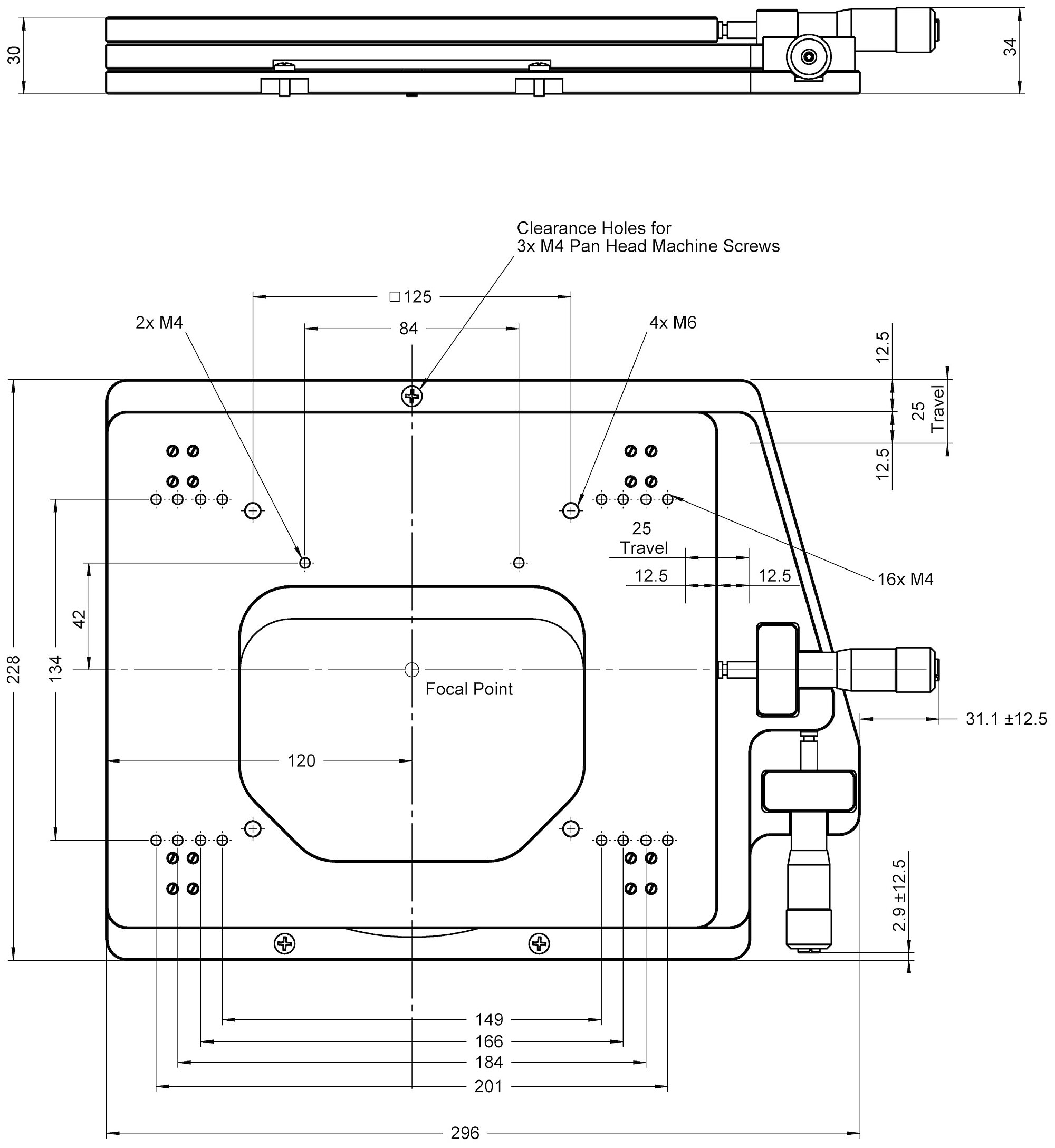

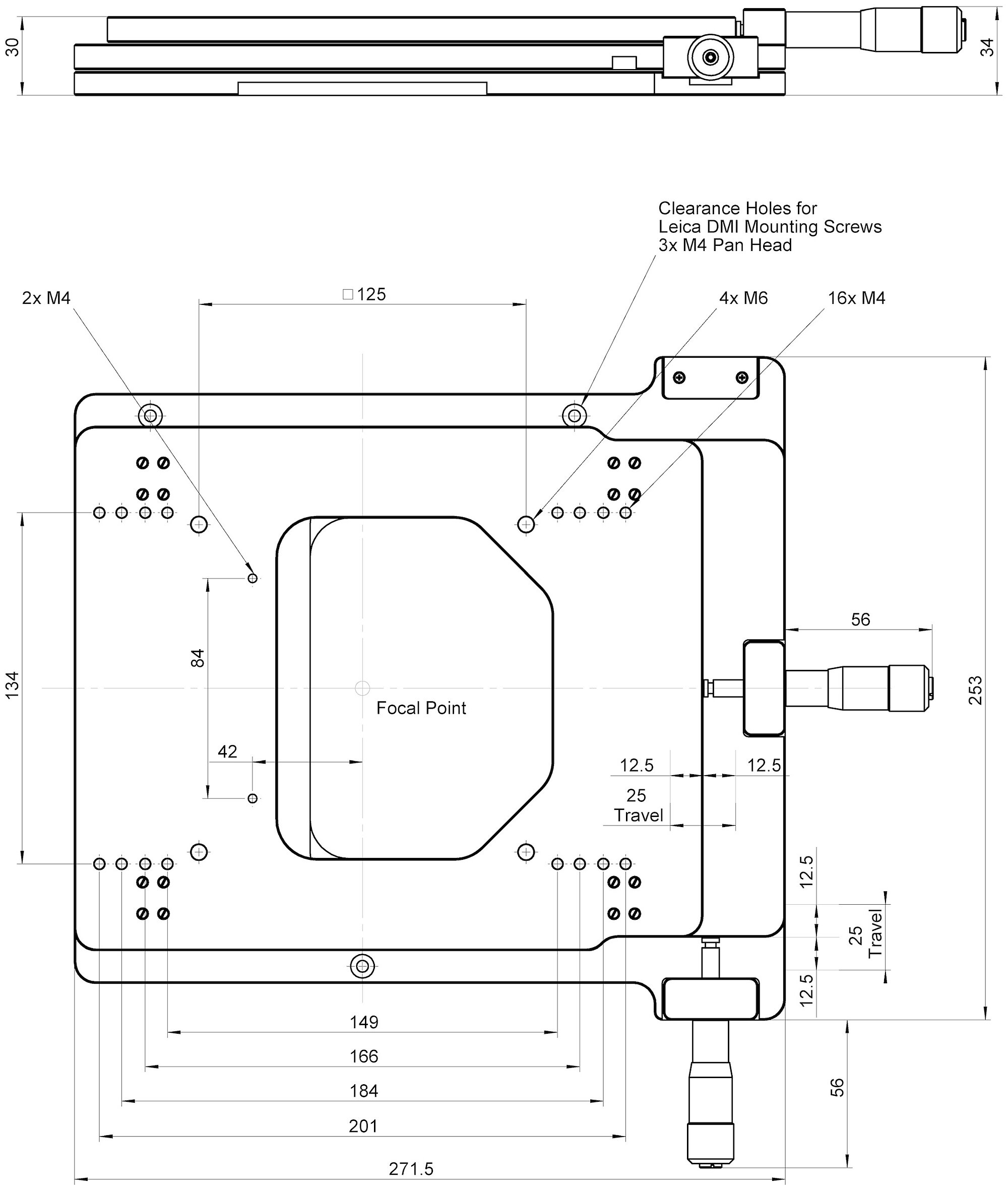

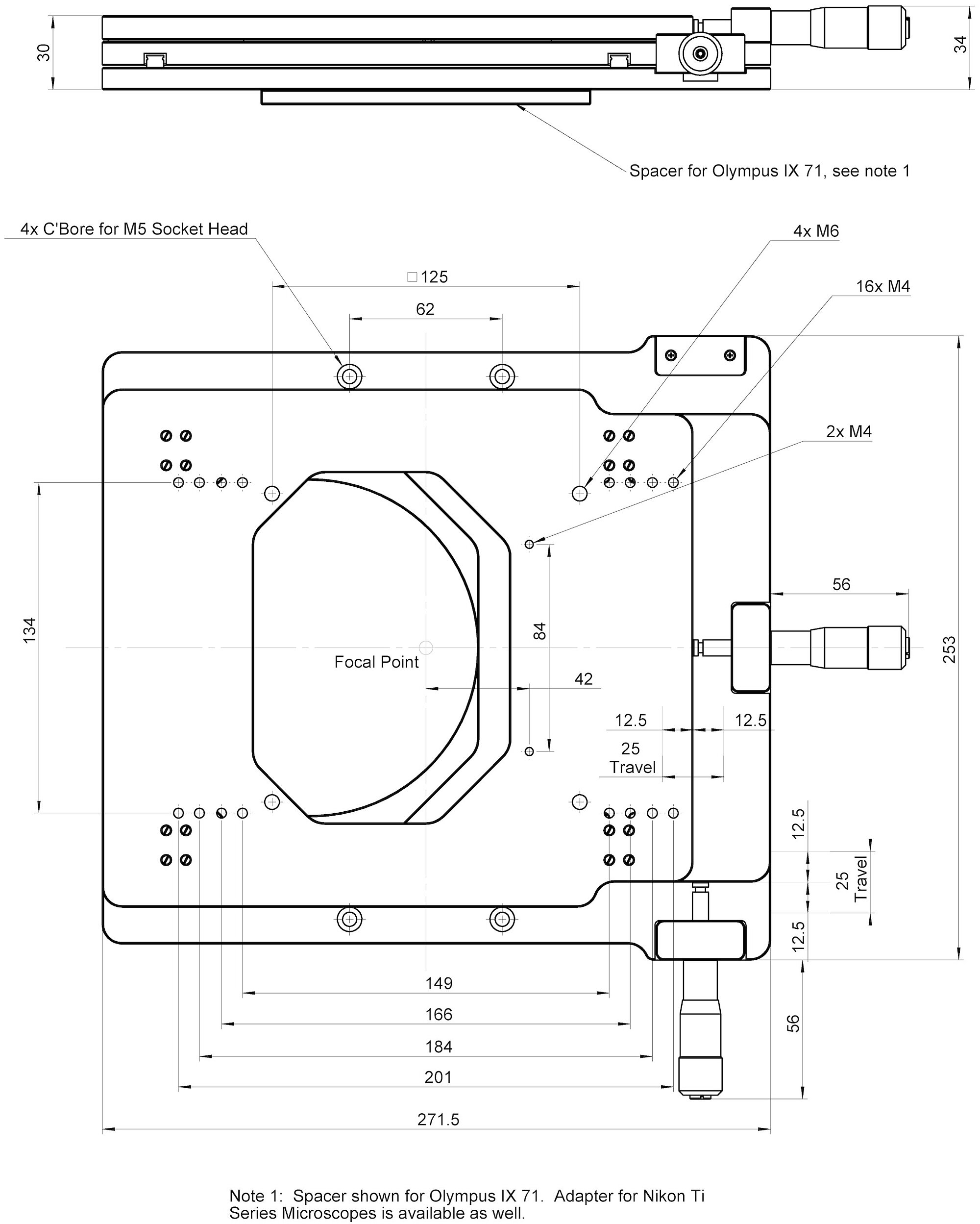

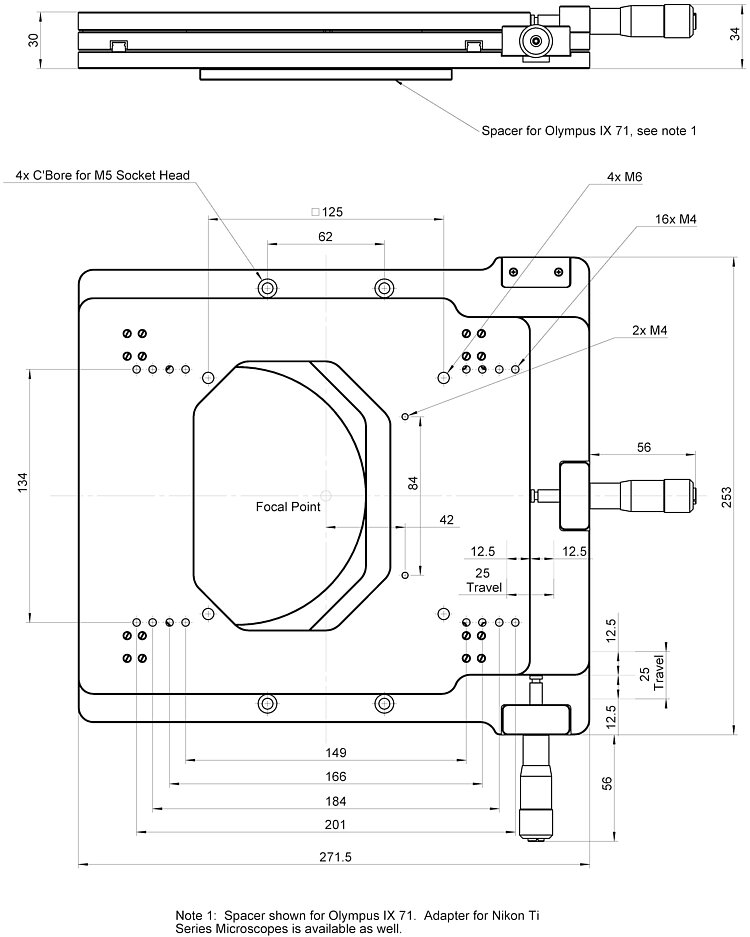

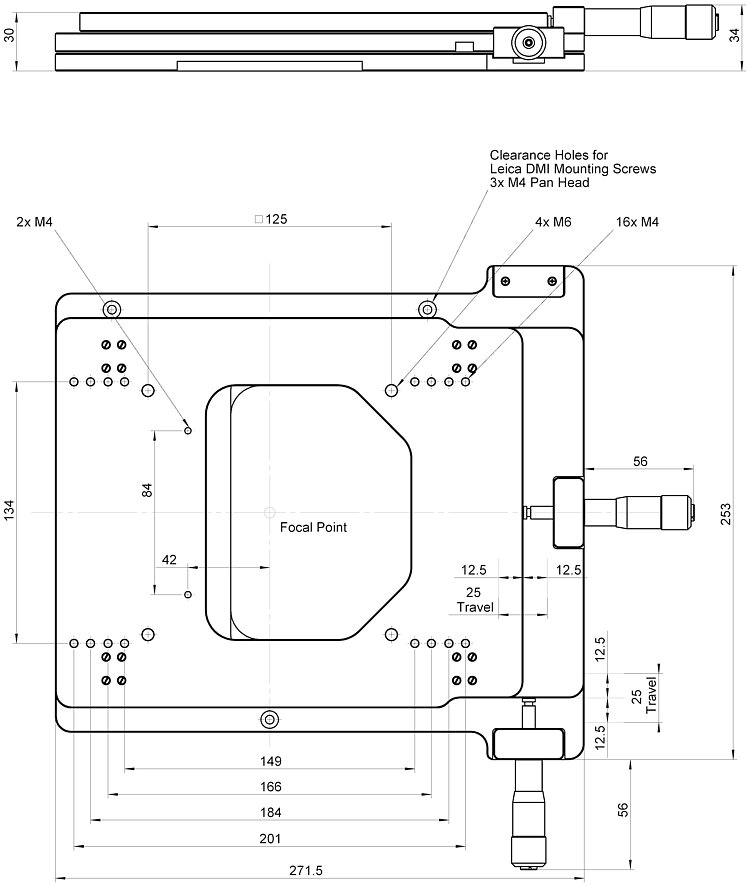

Specifications

Datasheet

Datasheet M-545

버전 / 날짜
2019-02-12
버전 / 날짜
2019-02-12
버전 / 날짜
2019-09-12
문서 언어
pdf - 1 MB
pdf - 1 MB
pdf - 1,016 KB

Separate connection cable required for motor and sensor connection respectively.

Downloads

Datasheet

Datasheet

Datasheet M-545

버전 / 날짜
2019-02-12
버전 / 날짜
2019-02-12
버전 / 날짜
2019-09-12
문서 언어
pdf - 1 MB
pdf - 1 MB
pdf - 1,016 KB

Documentation

Documentation

Installation Instructions M545T0001

M-545.USG / M-545.USC Drive Set for M-545 XY Stage
버전 / 날짜
2020-02-10
문서 언어 영어
Request download link
Documentation

Short Instructions MP119EK

Positioners with Electric Motors: M-06x, M-11x, M-12x, M-4xx, M-5xx
버전 / 날짜
3.2.0 01/2021
버전 / 날짜
3.2.0 01/2021
문서 언어
pdf - 1 MB
pdf - 1 MB
Documentation

User Manual PZA02

M-545 Series Microscope Stages
버전 / 날짜
3.2.0 2020-03-04
문서 언어 영어
Request download link

3-D Models

3-D Models

M-545 3-D model

버전 / 날짜
2020-01-15
Request download link

Brochure

Brochure

Microscope Stage Configurator

Sample Stages and Holders for Inverted Microscopes
버전 / 날짜
BRO70E R3D
문서 언어 영어
pdf - 4 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly

Accessories

Specimen holders

Adapter plates

Stepper motor drive sets (optional; for all models except M-545.2MZ)

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
