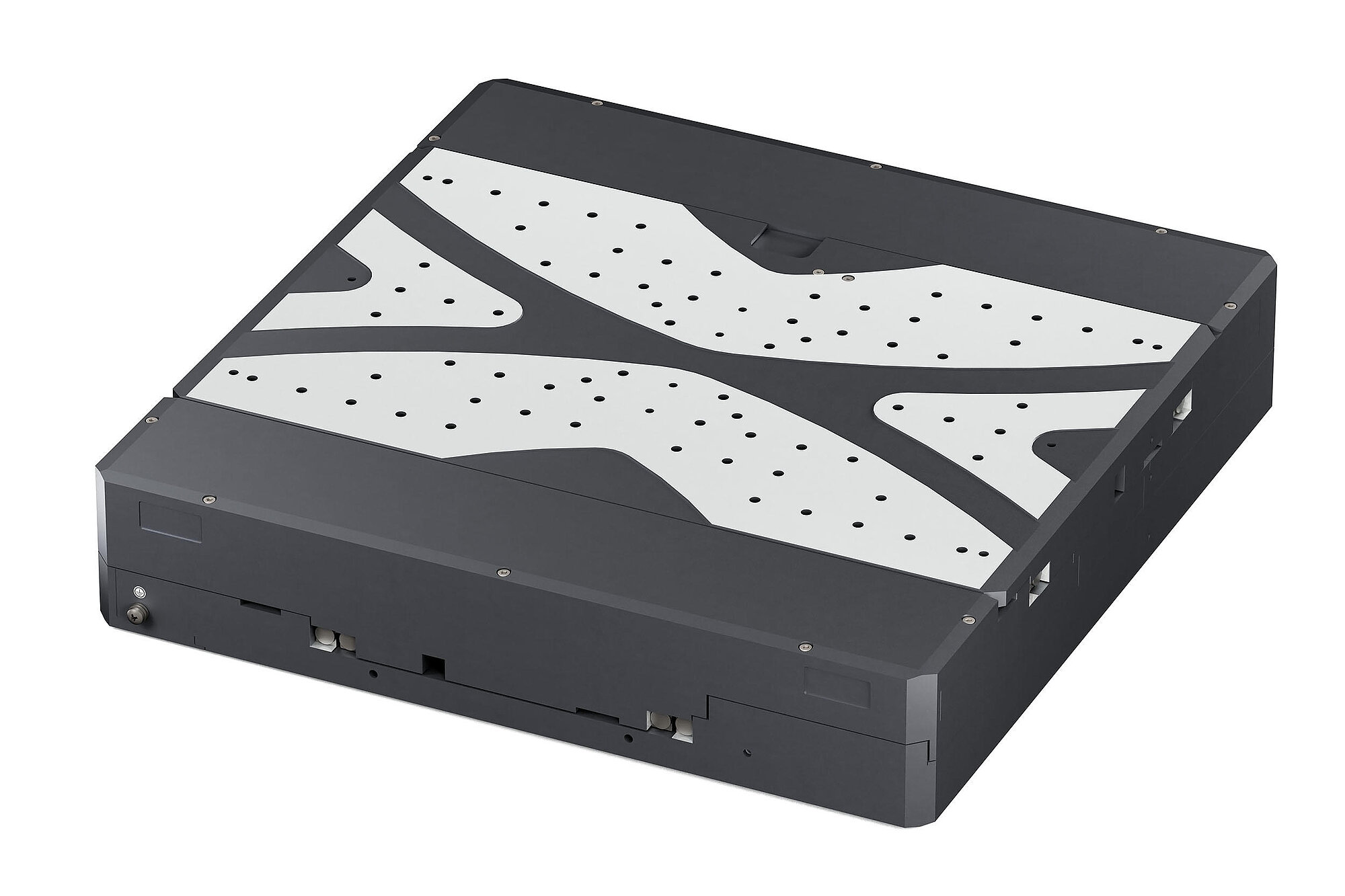

L-741 Precision XY Stage

High Travel Accuracy and Stability, 305 × 305 mm Travel Range

  • Travel range 305 mm × 305 mm (12'')
  • Unidirectional repeatability to 0.05 µm
  • Velocity to 90 mm/s
  • 2-phase stepper motor or DC motors
  • Incremental linear encoder with 1 nm resolution
  • Rotary encoder with 20000 impulses/revolution
L-741 Precision XY Stage
제품 설명 사양 다운로드 견적 / 주문

Highly accurate position measuring with incremental linear encoder

Noncontact optical linear encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement. Optical limit and reference switches. More travel ranges on request.

Crossed roller guide

With crossed roller guides, the point contact of the balls in ball guides is replaced by line contact of the hardened rollers. Consequently, they are considerably stiffer and need less preload, which reduces friction and allows smoother running. Crossed roller guides are also distinguished by high guide accuracy and load capacity. Force-guided rolling element cages prevent cage creep.

Drive types

  • 2-phase stepper motor for high torque even at low velocities and higher resolution
  • DC motor for high velocity constancy, low vibration, and high velocities

Application fields

Medical industry. Laser cutting. Biotechnology. Measuring technology. Laser inscription.

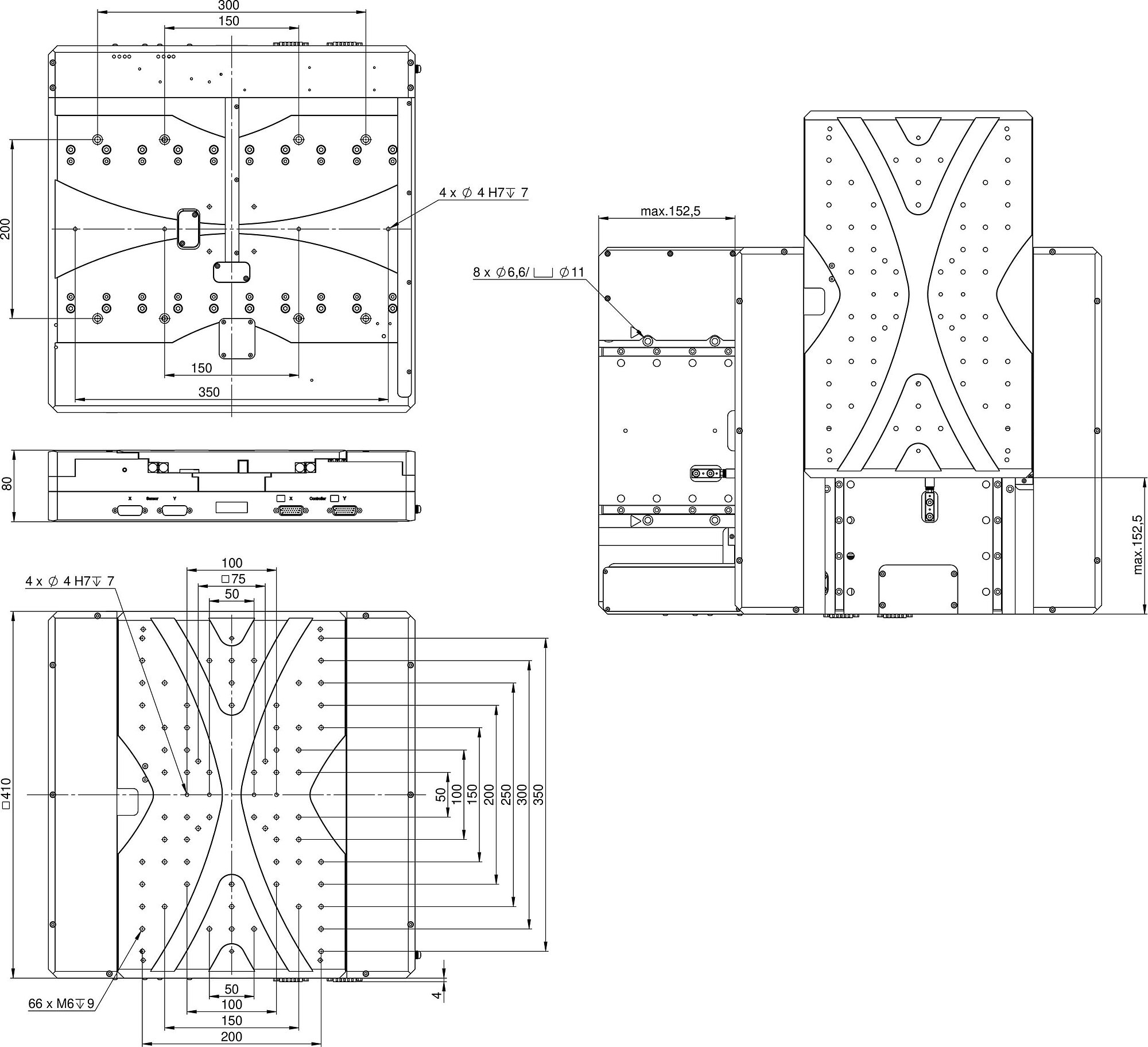

Specifications

Datasheet

Datasheet L-741

버전 / 날짜
2023-05-22
pdf - 1 MB
버전 / 날짜
2023-05-22
pdf - 1 MB
버전 / 날짜
2018-07-16
pdf - 818 KB

Downloads

Datasheet

Datasheet

Datasheet L-741

버전 / 날짜
2023-05-22
pdf - 1 MB
버전 / 날짜
2023-05-22
pdf - 1 MB
버전 / 날짜
2018-07-16
pdf - 818 KB

Documentation

Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx

버전 / 날짜
3.0.0 2024-01-15
pdf - 261 KB
버전 / 날짜
3.0.0 2024-01-15
pdf - 295 KB
Documentation

User Manual MP184

L-741 / V-741 Precision XY Stage

버전 / 날짜
1.2.0 2024-01-18
pdf - 2 MB
버전 / 날짜
1.2.0 2024-01-18
pdf - 2 MB

3-D Models

3-D Models

L-741 3-D model

zip - 13 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

L-741.131111

Precision XY stage; 2-phase stepper motor; 305 mm × 305 mm travel range (X × Y); 200 N load capacity; 45 mm/s × 45 mm/s maximum velocity; ball screw; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak

L-741.131112

Precision XY stage; 2-phase stepper motor; 305 mm x 305 mm travel range (X × Y); 200 N load capacity; 45 mm/s × 45 mm/s maximum velocity; ball screw; incremental linear encoder, 10 nm sensor resolution, A/B quadrature, RS-422

L-741.133111

Precision XY stage; DC motor; 305 mm × 305 mm travel range (X × Y); 200 N load capacity; 50 mm/s × 50 mm/s maximum velocity; ball screw; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak

L-741.133112

Precision XY stage; DC motor; 305 mm x 305 mm travel range (X × Y); 200 N load capacity; 50 mm/s × 50 mm/s maximum velocity; ball screw; incremental linear encoder, 10 nm sensor resolution, A/B quadrature, RS-422

L-741.133132

Precision XY stage; DC motor; 305 mm × 305 mm travel range (X × Y); 200 N load capacity; 90 mm/s × 90 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev sensor resolution, A/B quadrature, RS-422
