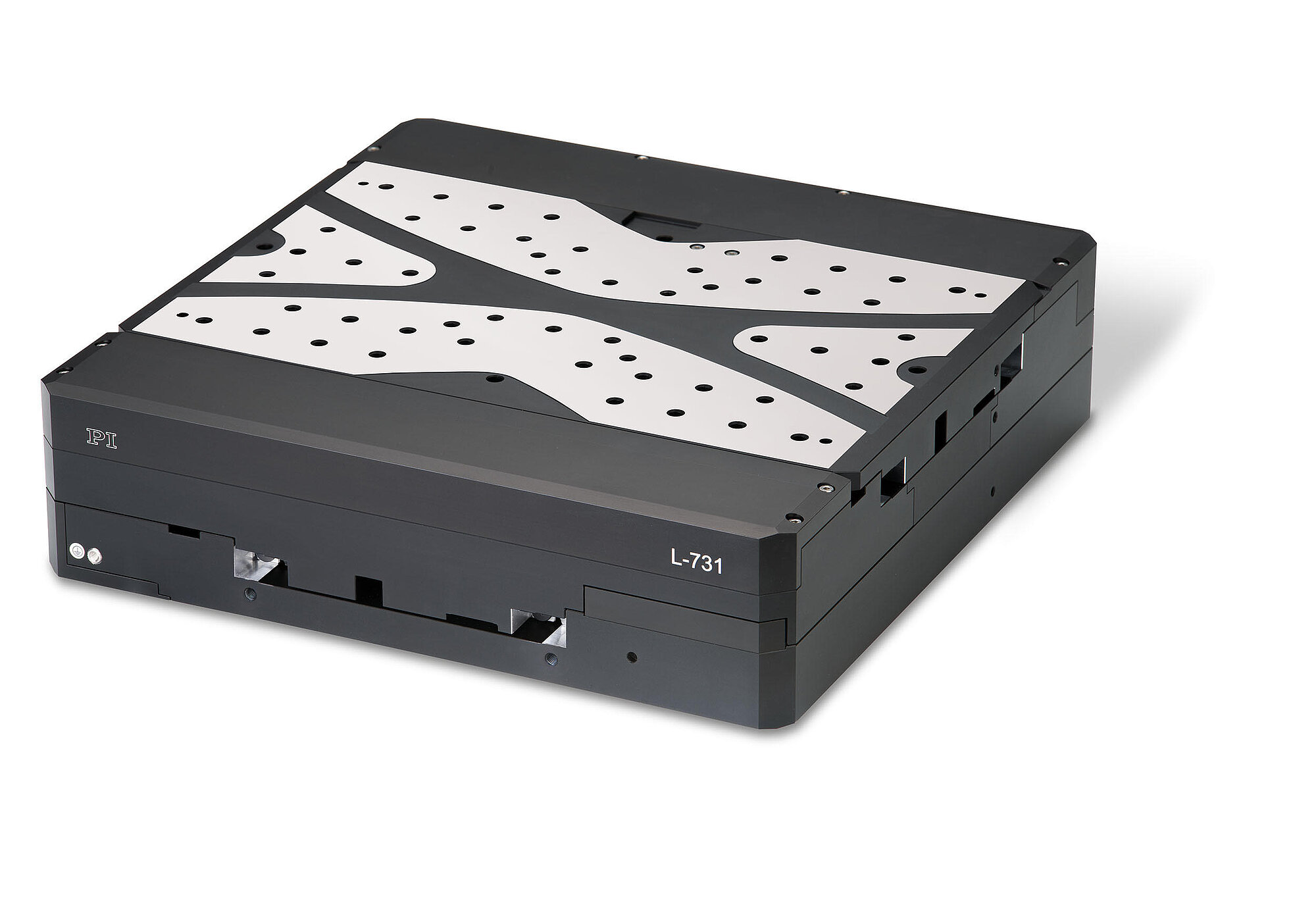

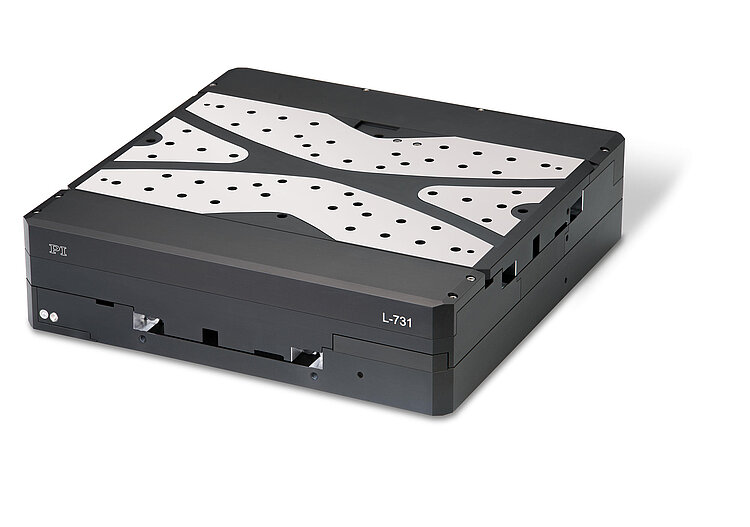

L-731 Precision XY Stage

High Travel Accuracy and Stability

  • Travel range 205 mm × 205 mm (8")
  • Unidirectional repeatability to 0.025 µm
  • Velocity to 90 mm/s
  • 2-phase stepper motor or DC motors
  • Incremental linear encoder with 1 nm resolution
  • Rotary encoder with 20000 impulses/revolution
L-731 Precision XY Stage
제품 설명 사양 다운로드 견적 / 주문

Highly accurate position measuring with incremental linear encoder

Noncontact optical linear encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement. Optical limit and reference switches. More travel ranges on request.

Kreuzrollenführung

With crossed roller guides, the point contact of the balls in ball guides is replaced by line contact of the hardened rollers. Consequently, they are considerably stiffer and need less preload, which reduces friction and allows smoother running. Crossed roller guides are also distinguished by high guiding accuracy and load capacity. Force-guided rolling element cages prevent cage creep.

Drive types

  • 2-phase stepper motor for high torque even at low velocities and higher resolution
  • DC motor for high velocity constancy, low vibration, and high velocities

Application fields

Medical industry. Laser cutting. Biotechnology. Measuring technology. Laser inscription.

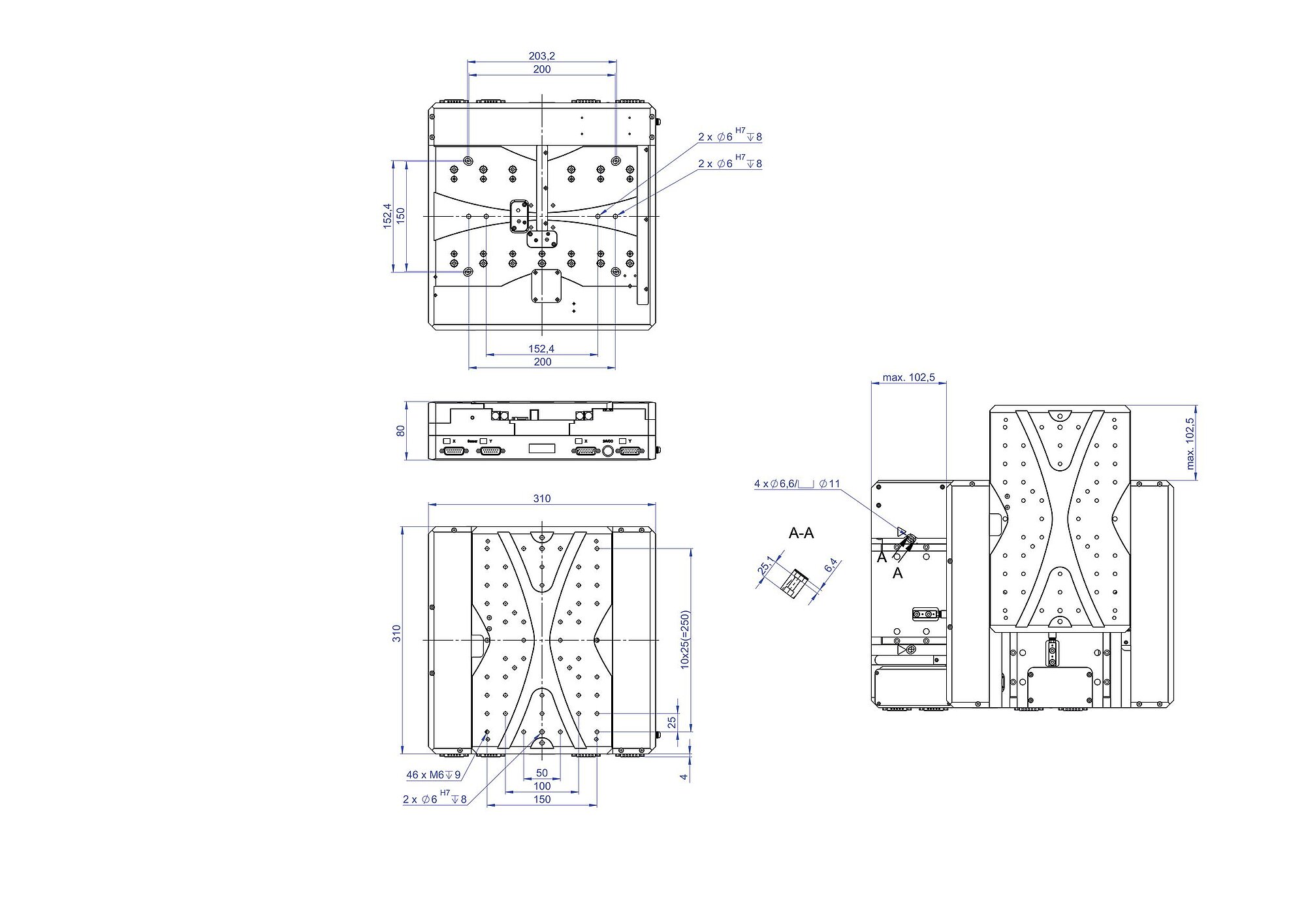

Specifications

Datasheet

Datasheet L-731

버전 / 날짜
2024-02-14
pdf - 1 MB
버전 / 날짜
2024-02-14
pdf - 1 MB
버전 / 날짜
2021-01-18
pdf - 485 KB

Downloads

Product Note

Product Note

Product Change Notification Motor Driven Products

버전 / 날짜
2021-04-19
pdf - 917 KB
영어

Datasheet

Datasheet

Datasheet L-731

버전 / 날짜
2024-02-14
pdf - 1 MB
버전 / 날짜
2024-02-14
pdf - 1 MB
버전 / 날짜
2021-01-18
pdf - 485 KB

Documentation

Documentation

User Manual MP158

L-731 / V-731 Precision XY Stage

버전 / 날짜
1.2.0 2024-01-18
pdf - 2 MB
버전 / 날짜
1.2.0 2024-01-18
pdf - 2 MB
Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx

버전 / 날짜
3.0.0 2024-01-15
pdf - 261 KB
버전 / 날짜
3.0.0 2024-01-15
pdf - 295 KB

3-D Models

3-D Models

L-731 3-D model

zip - 9 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

L-731.093111

Precision XY stage; DC motor; 205 mm × 205 mm travel range (X × Y); 200 N load capacity; 50 mm/s × 50 mm/s maximum velocity; ball screw; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak

L-731.093112

Precision XY stage; DC motor; 205 mm x 205 mm travel range (X × Y); 200 N load capacity; 50 mm/s × 50 mm/s maximum velocity; ball screw; incremental linear encoder, A/B quadrature, RS-422

L-731.093132

Precision XY stage; DC motor; 205 mm × 205 mm travel range (X × Y); 200 N load capacity; 90 mm/s × 90 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev sensor resolution, A/B quadrature, RS-422

L-731.44SD

Precision XY stage; 2-phase stepper motor; 205 mm x 205 mm travel range (X × Y); 200 N load capacity; 45 mm/s × 45 mm/s maximum velocity; ball screw; incremental linear encoder, A/B quadrature, RS-422

L-731.4ASD

Precision XY stage; 2-phase stepper motor; 205 mm × 205 mm travel range (X × Y); 200 N load capacity; 45 mm/s × 45 mm/s maximum velocity; ball screw; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak
