P-841 Preloaded Piezo Actuators

Compact Actuators for High Loads and Forces, with Position Sensor

P-841 Preloaded Piezo Actuators
제품 설명 사양 다운로드 견적 / 주문
  • Outstanding lifetime due to PICMA® piezo actuators
  • Travel range to 90 µm
  • Compact housing
  • Push force capacity to 1000 N
  • Pull force capacity to 50 N
  • µs response time

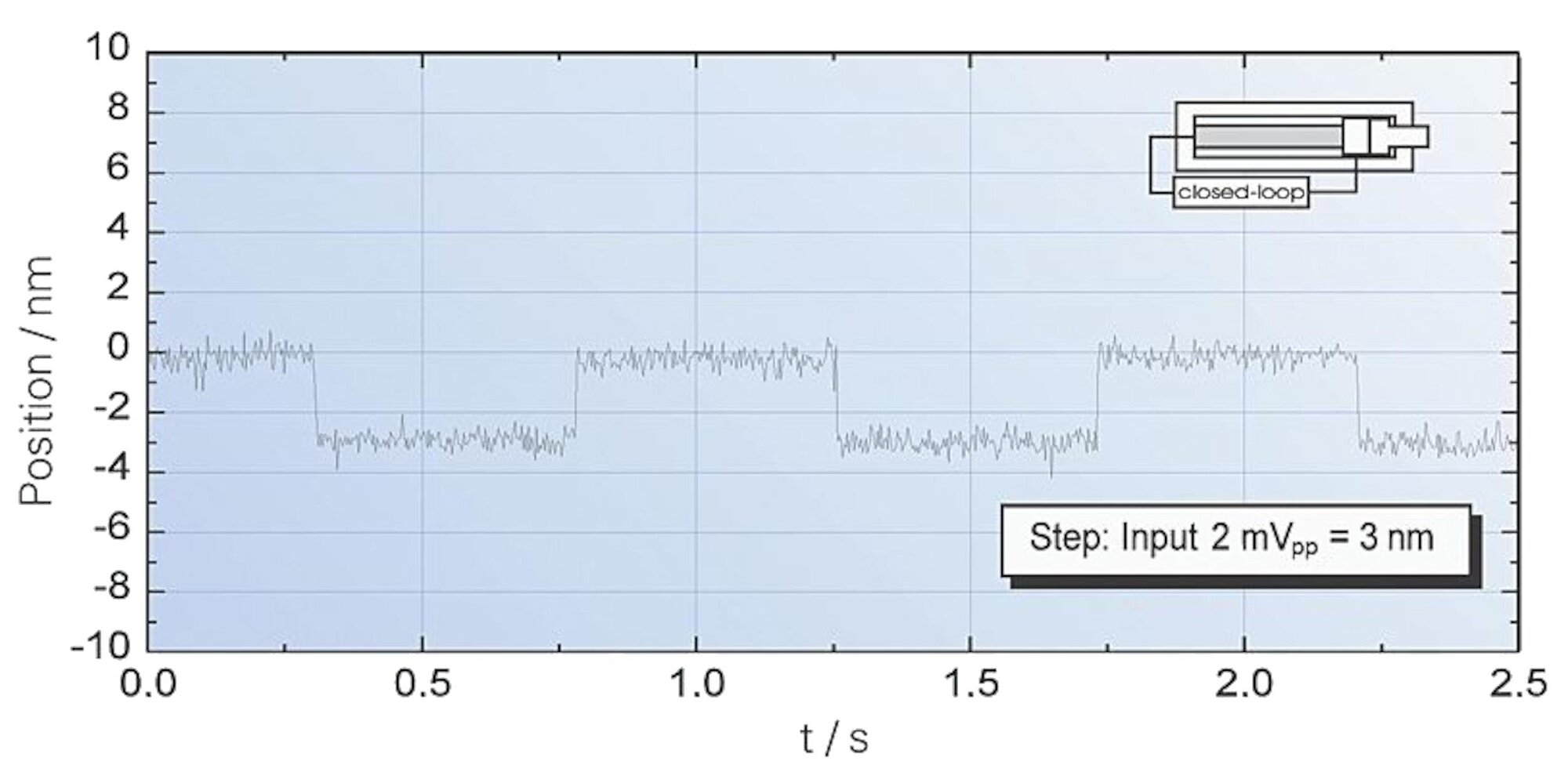

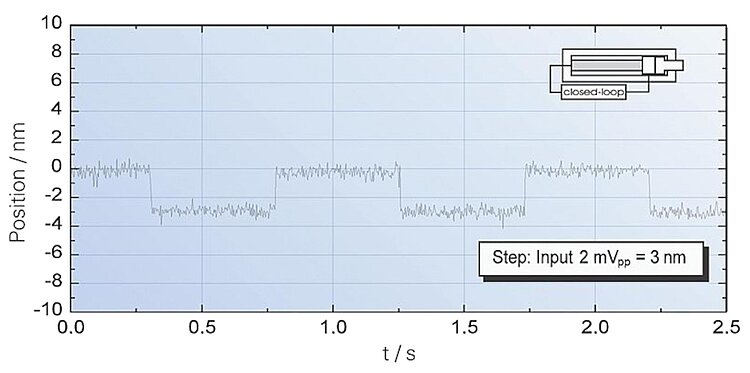

  • Subnanometer resolution
  • Versions with ball tip, vacuum versions

Application fields

  • Static and dynamic precision positioning
  • Fiber positioning
  • Laser tuning
  • Nanotechnology

Outstanding lifetime thanks to PICMA® piezo actuators

The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Suitable for sophisticated vacuum applications

Piezo actuators do not require lubrication and do not cause abrasion. The all-ceramic isolated PICMA® actuators also do not require polymer isolation and are therefore ideal for vacuum applications.

Specifications

Datasheet

Datasheet P-841

버전 / 날짜
2020-04-22
버전 / 날짜
2020-04-22
버전 / 날짜
2018-05-22
문서 언어
pdf - 477 KB
pdf - 480 KB
pdf - 708 KB

Downloads

Datasheet

Datasheet

Datasheet P-841

버전 / 날짜
2020-04-22
버전 / 날짜
2020-04-22
버전 / 날짜
2018-05-22
문서 언어
pdf - 477 KB
pdf - 480 KB
pdf - 708 KB

Documentation

Documentation

Short Instructions PZ303

Housed PICMA® Actuators to 100 V
버전 / 날짜
1.1.0 12/2019
버전 / 날짜
1.1.0 12/2019
문서 언어
pdf - 957 KB
pdf - 960 KB
Documentation

User Manual P841M0001

P-841 Preloaded piezo actuators
버전 / 날짜
2020-04-23
버전 / 날짜
2020-04-23
문서 언어
Request download link
Documentation

User Manual P841M0002

P-841.xxV Preloaded piezo actuators (vacuum versions)
버전 / 날짜
2020-04-23
버전 / 날짜
2020-04-23
문서 언어
Request download link

3-D Models

3-D Models

P-840 P-841 3-D model

Request download link

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly

Actuators with sensor

Actuators with sensor, vacuum compatible

Actuators with sensor, with tip

Actuators with sensor, with tip, vacuum compatible
