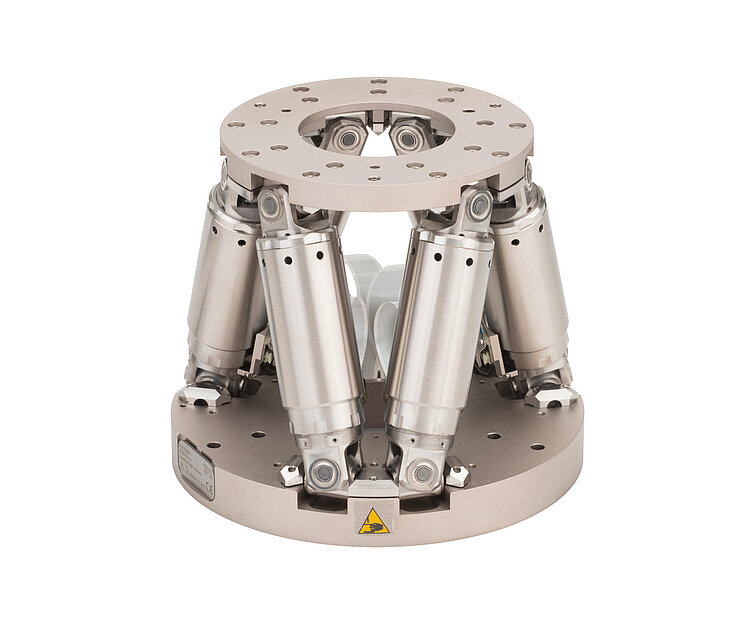

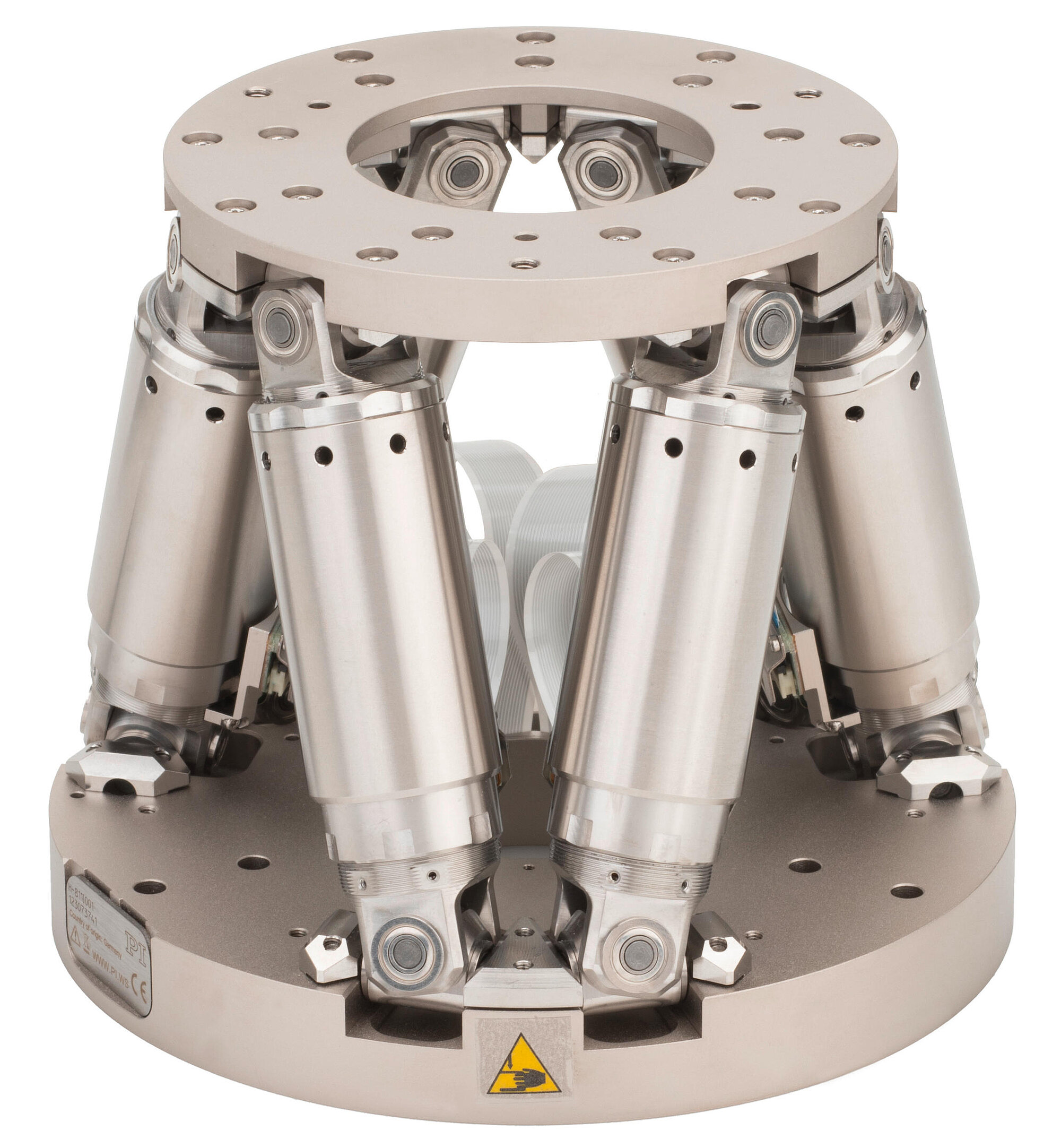

H-811.S2 6-Axis Motion Hexapod

Fast and Compact for High Dynamics Applications

  • CIPA certified
  • Travel ranges to ±17 mm / ±21°
  • Velocity to 10 mm/s

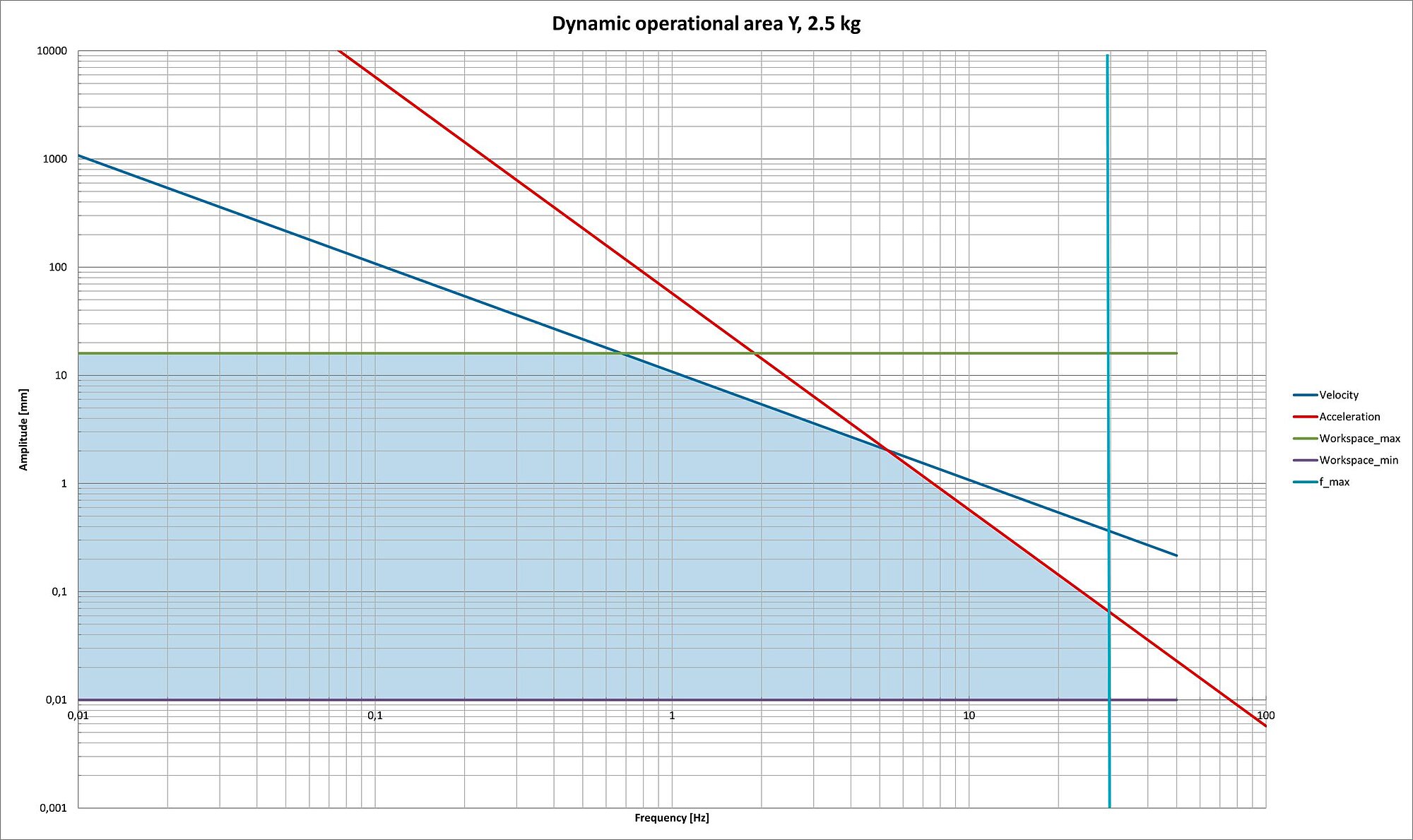

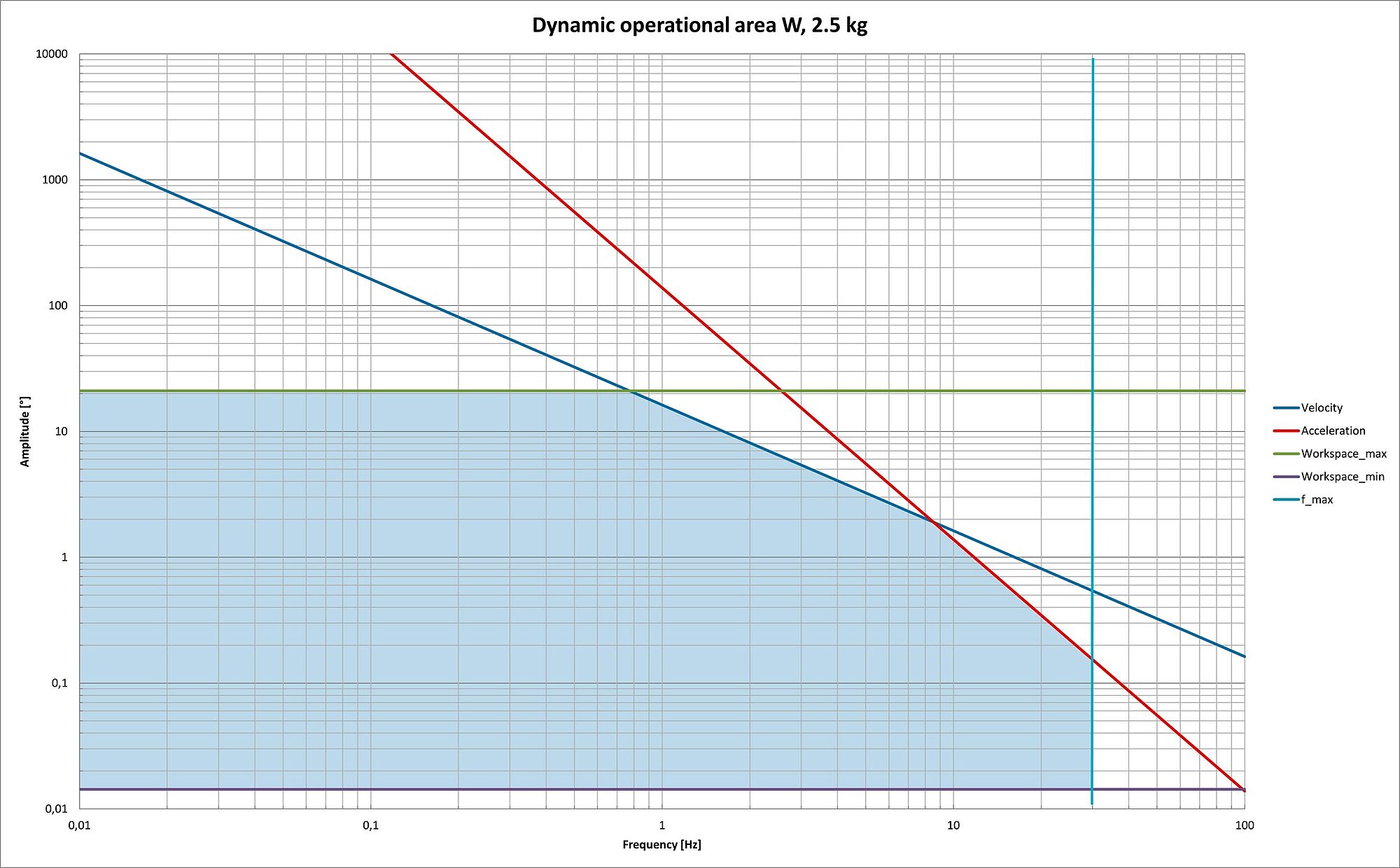

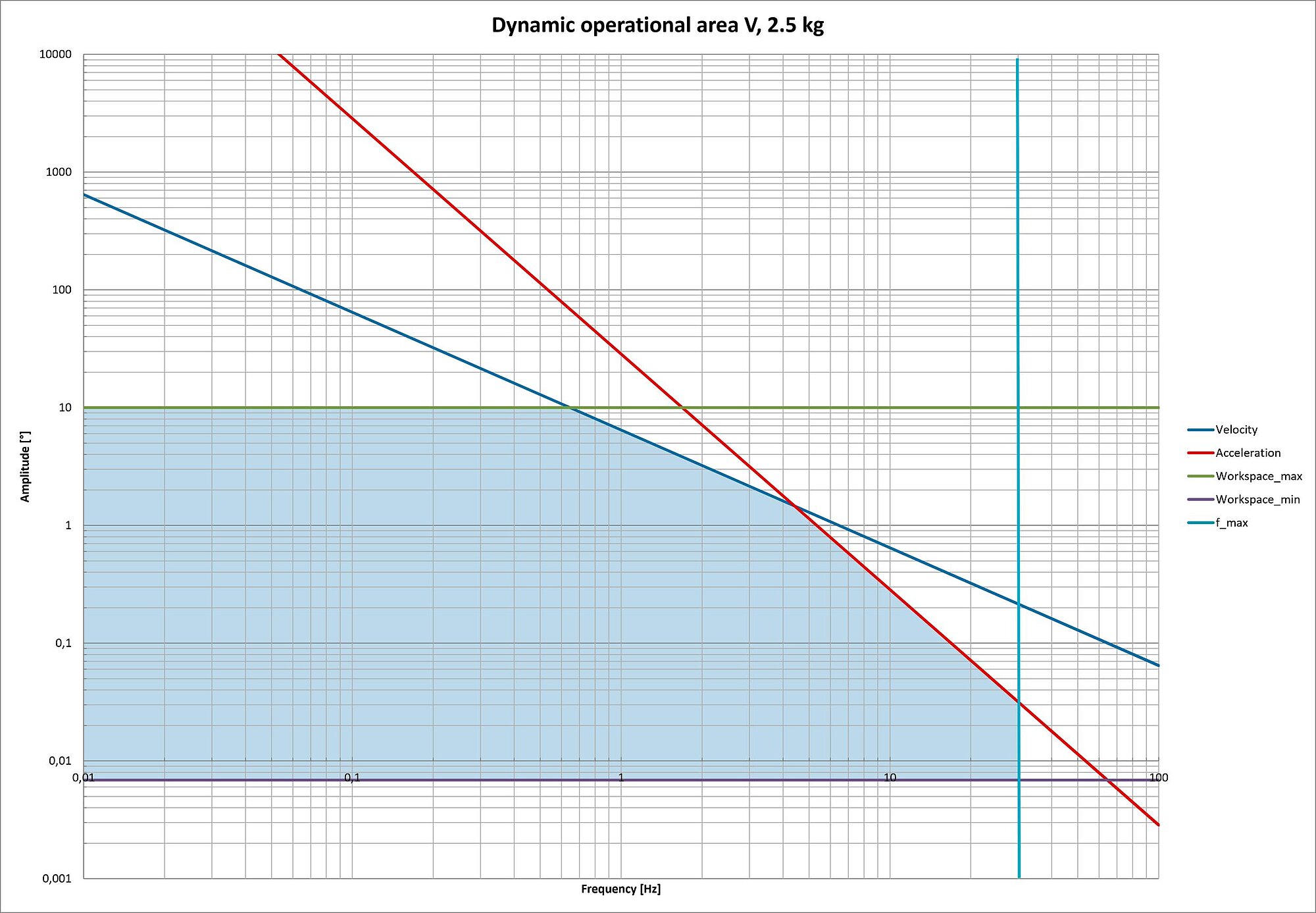

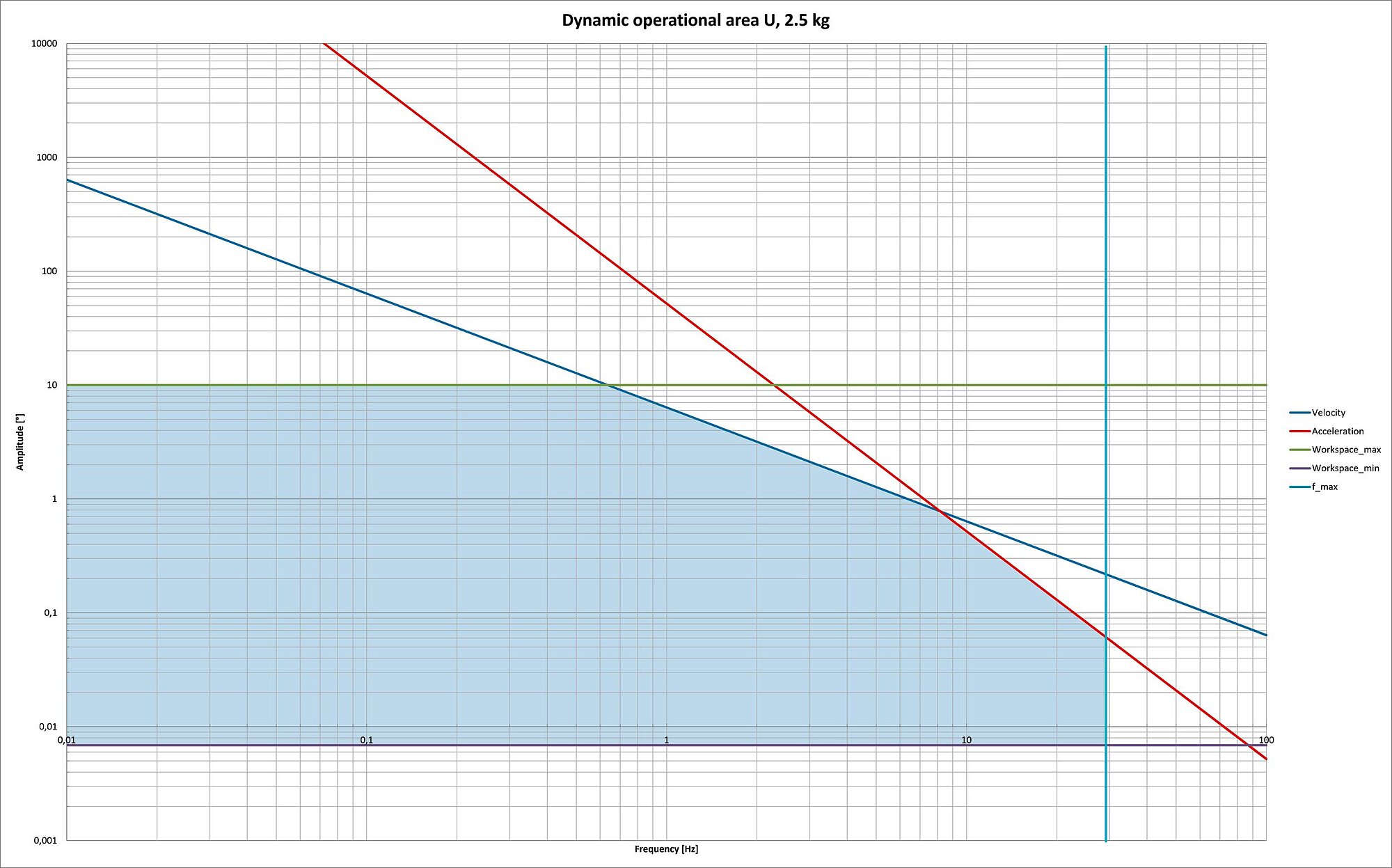

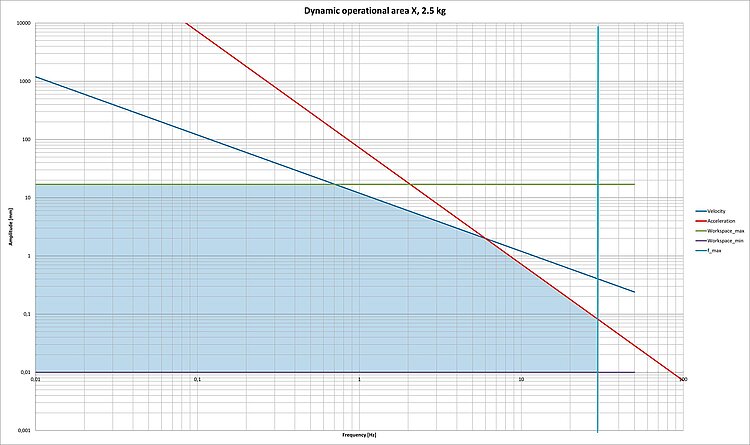

  • Dynamics to 25 Hz over 0.1° travel range
  • Developed for image stabilization inspection systems
H-811.S2 6-Axis Motion Hexapod
제품 설명 사양 다운로드 견적 / 주문

Reference-class 6-axis positioning system

Parallel-kinematic design for six degrees of freedom making it significantly more compact and stiff than serial-kinematic systems, higher dynamic range, no moved cables: Higher reliability, reduced friction.

Brushless DC motor (BLDC)

Brushless DC motors are particularly suitable for high rotational speeds. They can be controlled very accurately and ensure high precision. Because they dispense with sliding contacts, they run smoothly, are wear-free and therefore achieve a long lifetime.

PI Hexapod Simulation Tool

The simulation software simulates the limits of the workspace and load capacity of a hexapod. Therefore, even before making a purchase, you can check whether a particular hexapod model can handle the loads, forces, and torques occurring in an application. For this purpose, the simulation tool takes into account the position and motion of the hexapod as well as the pivot point and several reference coordinate systems.

Fields of application

Research and industry, test systems, e.g., for image stabilization in cameras and mobile devices

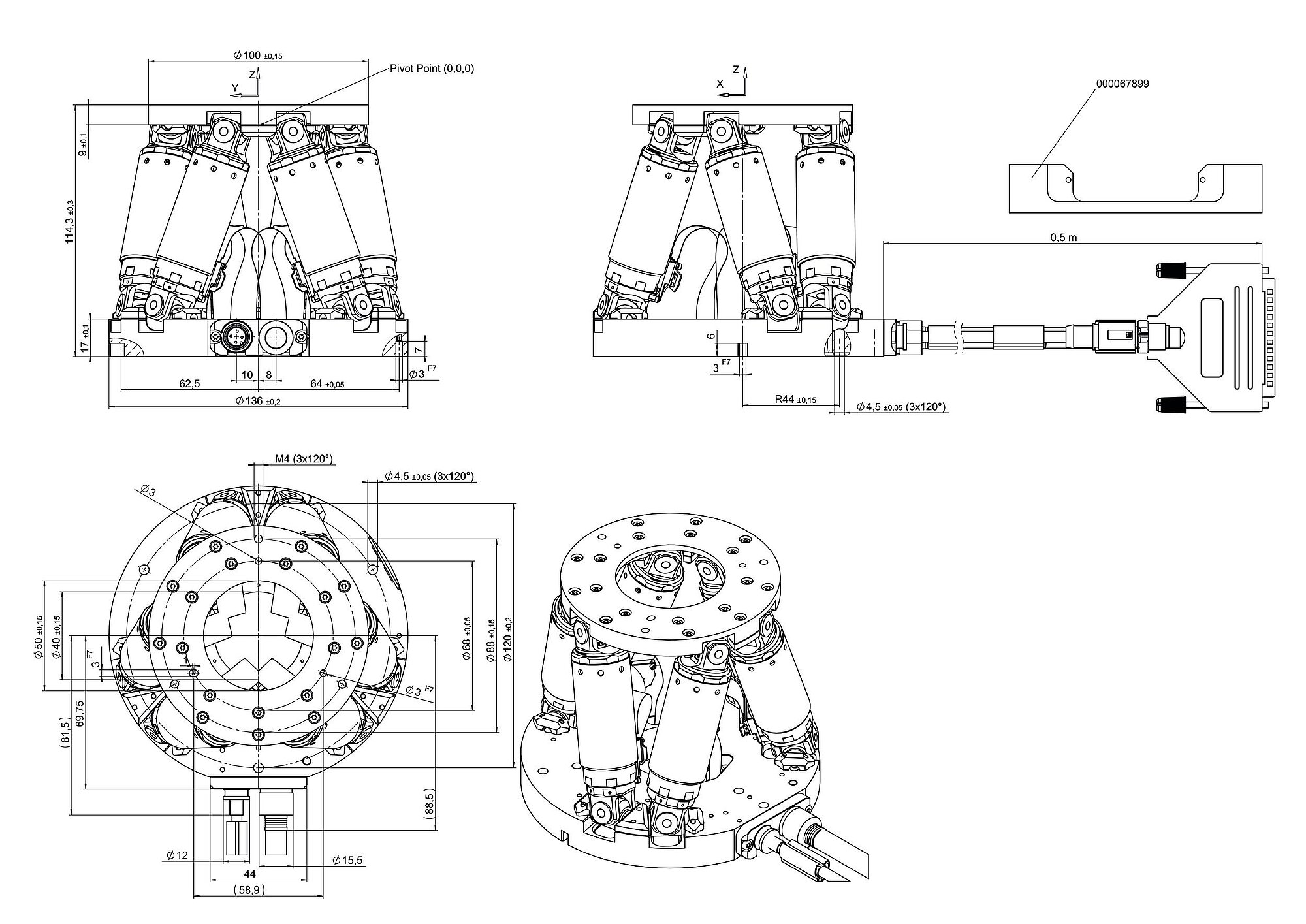

Specifications

Datasheet

Datasheet H-811.S2

버전 / 날짜
2020-12-10
pdf - 811 KB
버전 / 날짜
2020-12-10
pdf - 829 KB

Downloads

Product Note

Product Note

Product Change Notification Hexapod Cables

버전 / 날짜
2021-01-15
pdf - 186 KB
영어
Product Note

Product Change Notification Motor Driven Products

버전 / 날짜
2021-04-19
pdf - 917 KB
영어
Product Note

Product Change Notification H-811 Series

버전 / 날짜
2020-10-15
pdf - 81 KB
영어
Product Note

Product Change Notification Cable Change H-811.S2/H-811.F2

버전 / 날짜
2019-05-10
pdf - 196 KB
영어
Product Note

Product Change Notification H-811 Vent Holes

버전 / 날짜
2019-03-04
pdf - 206 KB
영어

Datasheet

Datasheet

Datasheet H-811.S2

버전 / 날짜
2020-12-10
pdf - 811 KB
버전 / 날짜
2020-12-10
pdf - 829 KB

Documentation

Documentation

Short Instructions MS247EK

Hexapod Systems: H-xxx Hexapod with C-887.5xx Controller

버전 / 날짜
2.0.0 06/2020
pdf - 2 MB
버전 / 날짜
2.0.0 06/2020
pdf - 2 MB
Documentation

User Manual MS235

H-811.I2, H-811.I2V, H-811.F2, and H-811.S2 miniature hexapods

버전 / 날짜
2.4.0 2021-08-24
pdf - 8 MB
버전 / 날짜
2.4.0 2021-08-24
pdf - 8 MB

3-D Models

3-D Models

H-811.x2x 3-D model

버전 / 날짜
2020-09-24
zip - 3 MB

Software Files

Software Files

Hexapod Simulation Tool

버전 / 날짜
2020-02-10
zip - 4 MB

Certificate

Certificate

PI Certificate of Registration of Vibratory Apparatus H-811

Certification of Registration of Vibratory Apparatus

pdf - 583 KB
영어
Separate connection cable required for power supply and data transmission. Connecting cables are not in the scope of delivery, although this may be stated otherwise in the manual. The manual is currently being revised.

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly

H-811.S2
Miniature hexapod microrobot for high dynamics applications, direct drive, 10 mm/s max. velocity, 1.5 kg load, 0.5 m cable length. Connecting cables are not in the scope of delivery and must be ordered separately.

Data transmission cables in other lengths

Power supply cables in other lengths

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
