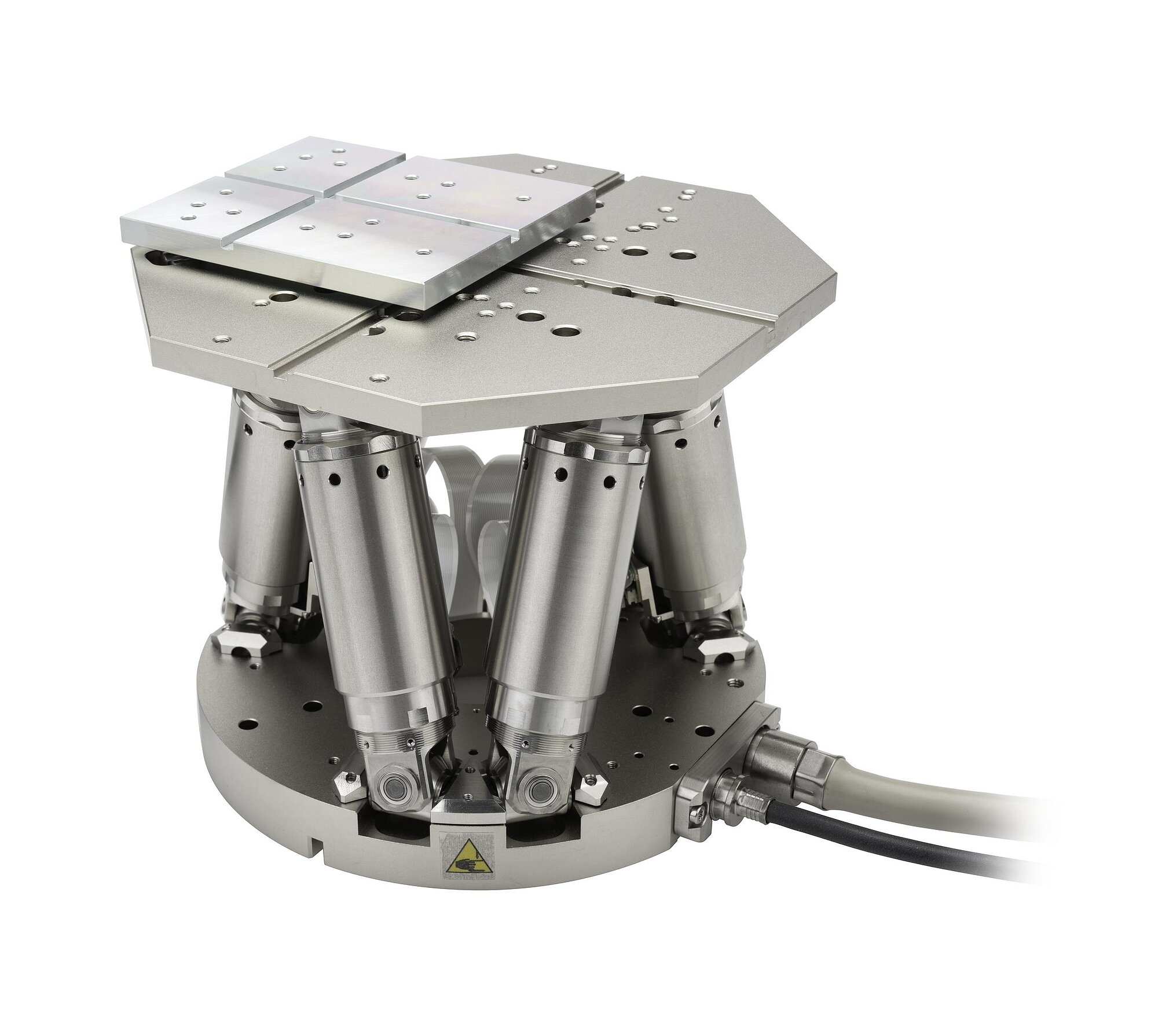

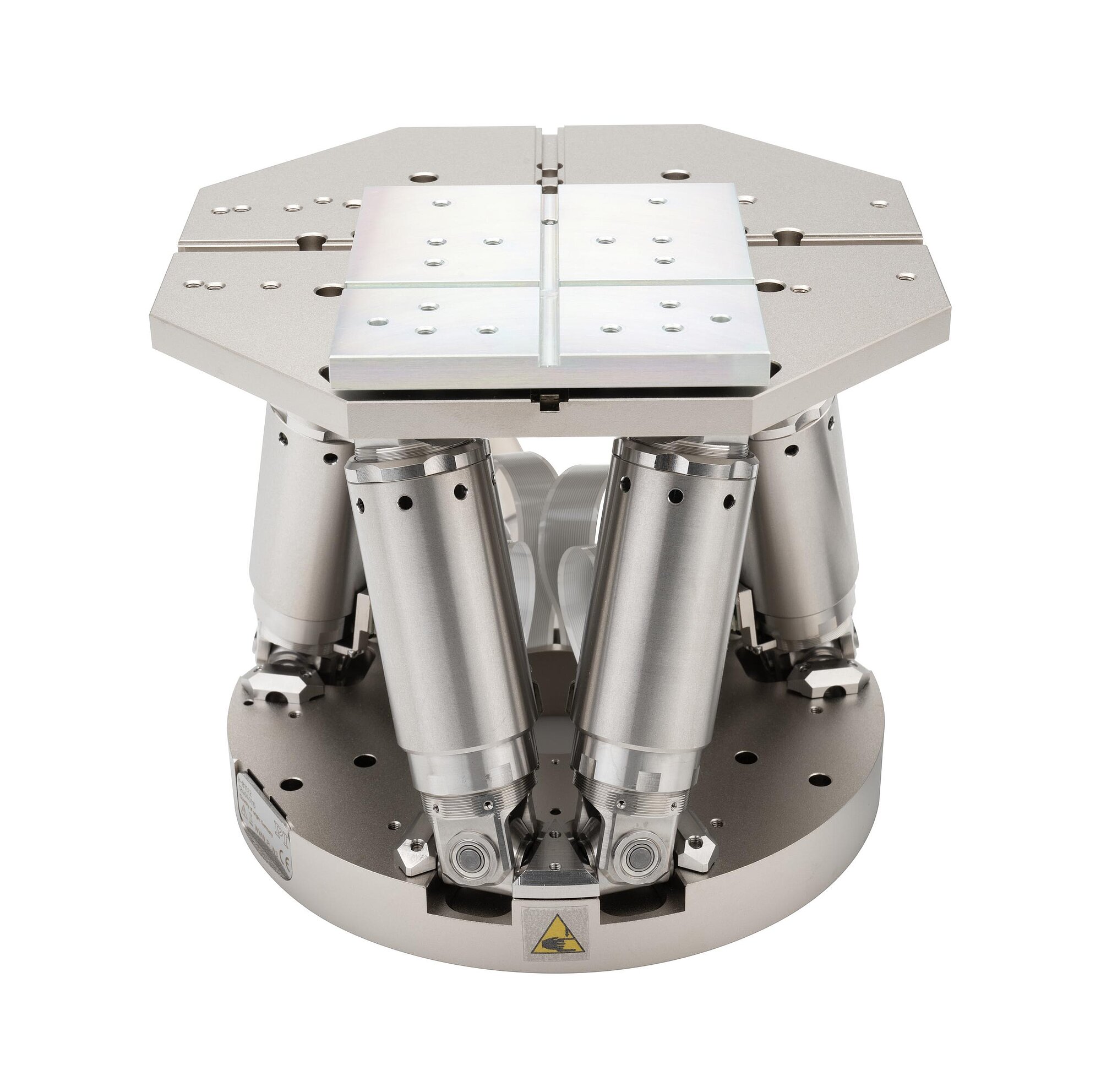

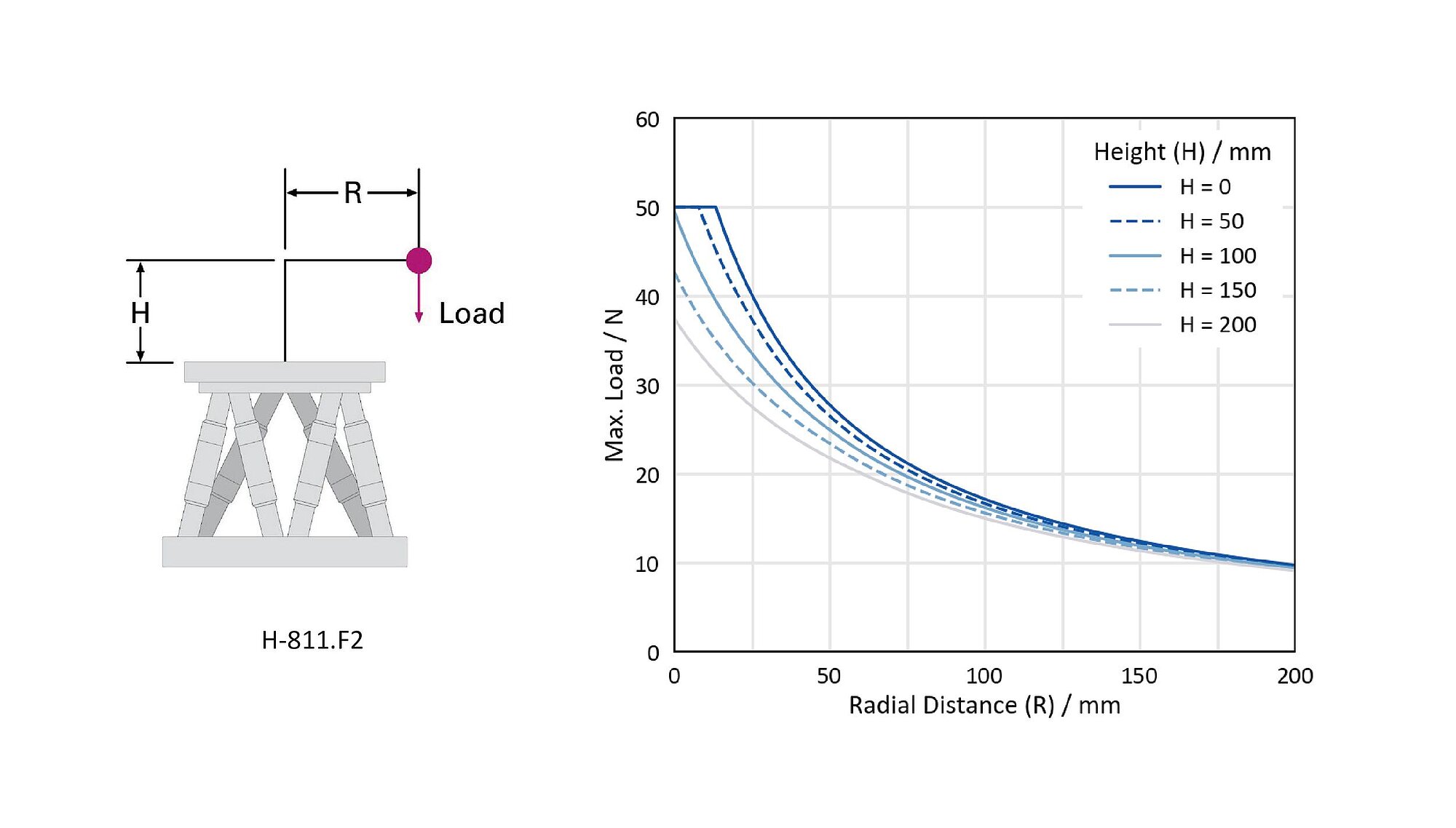

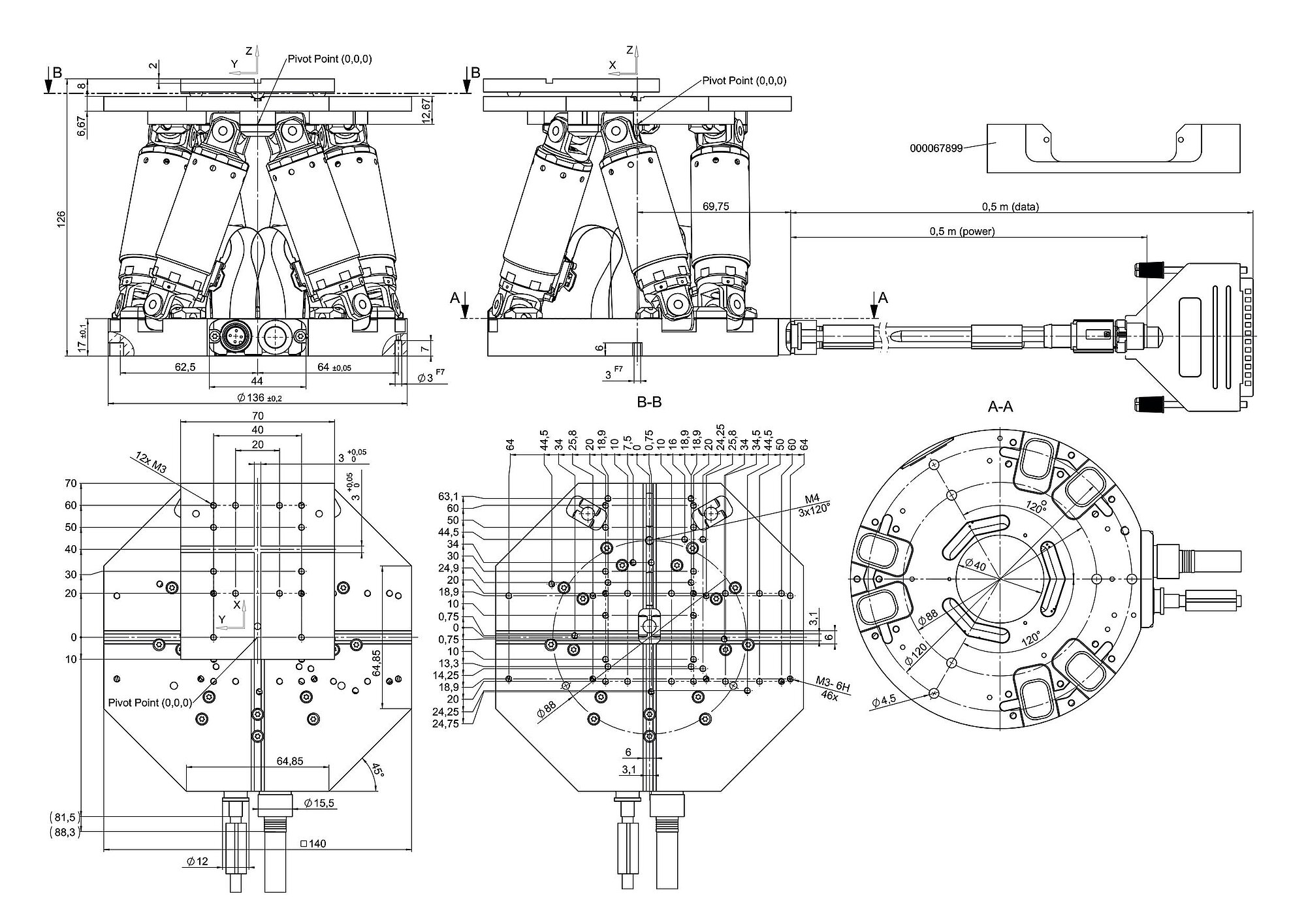

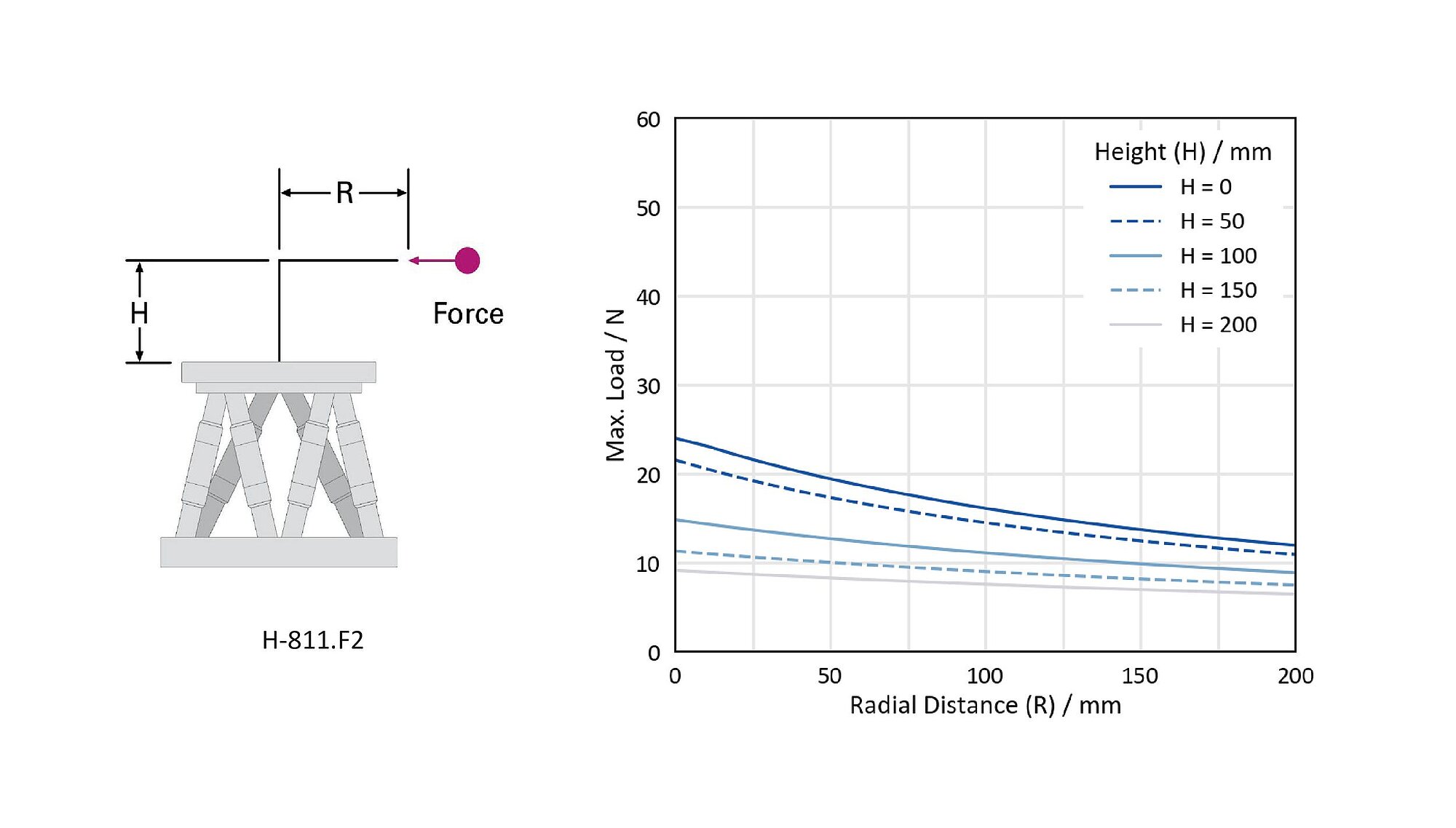

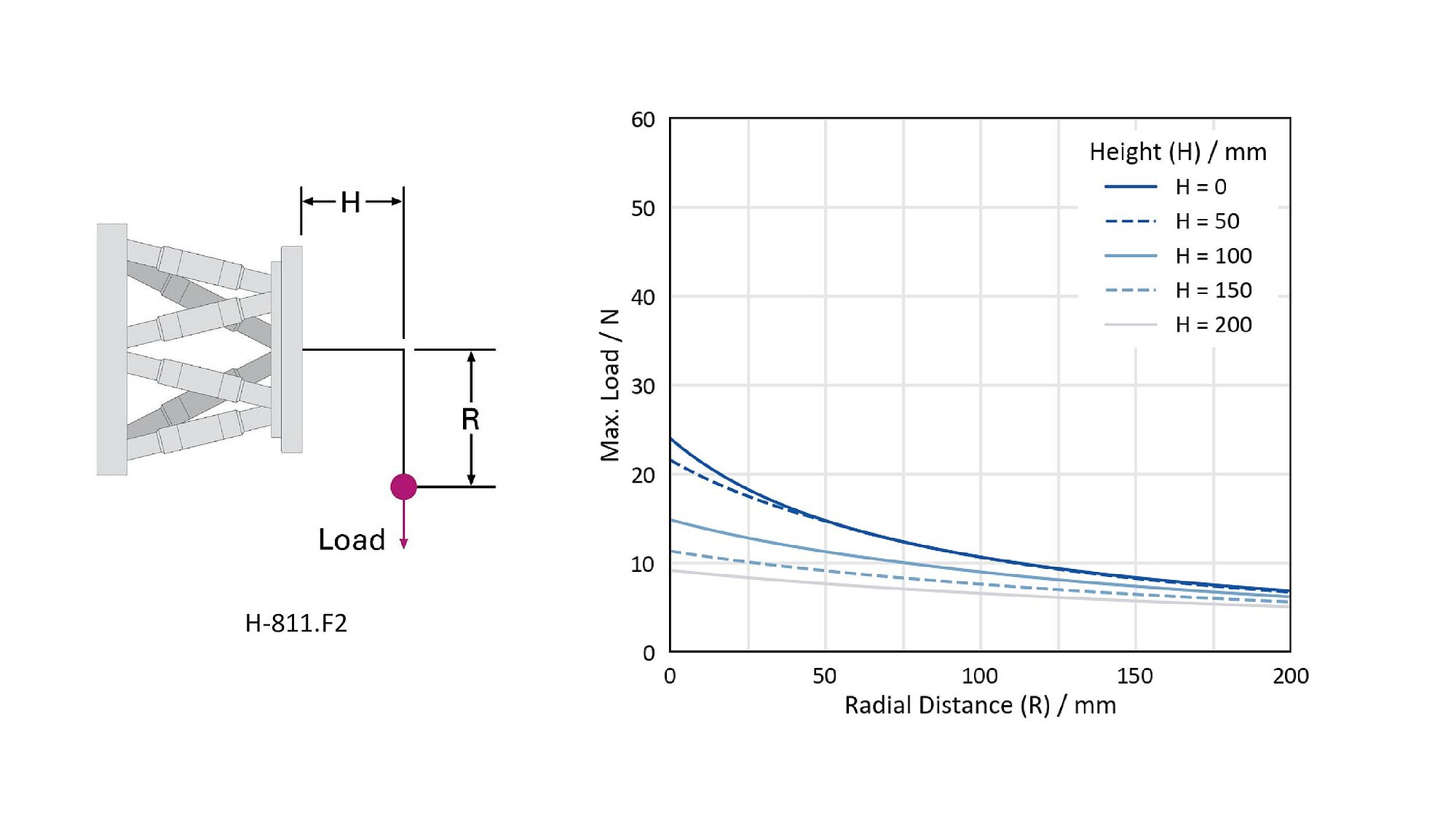

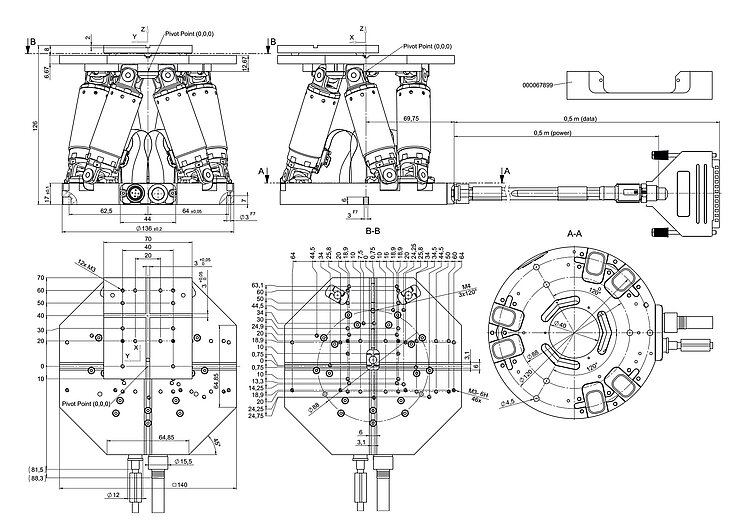

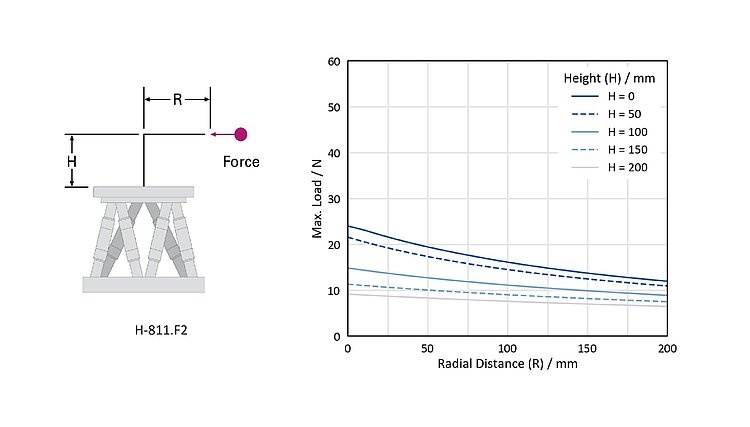

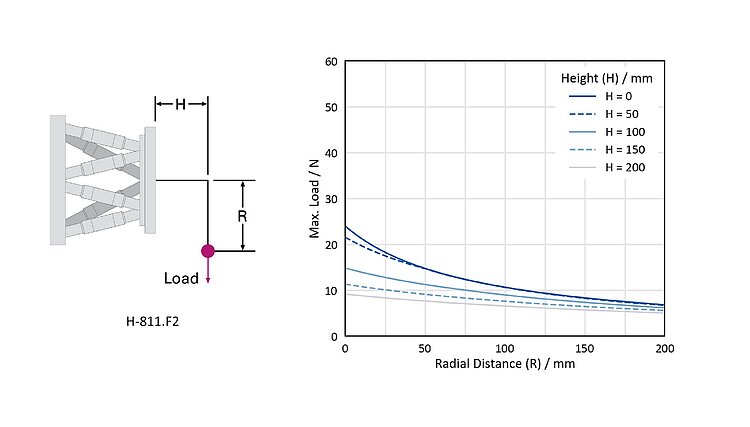

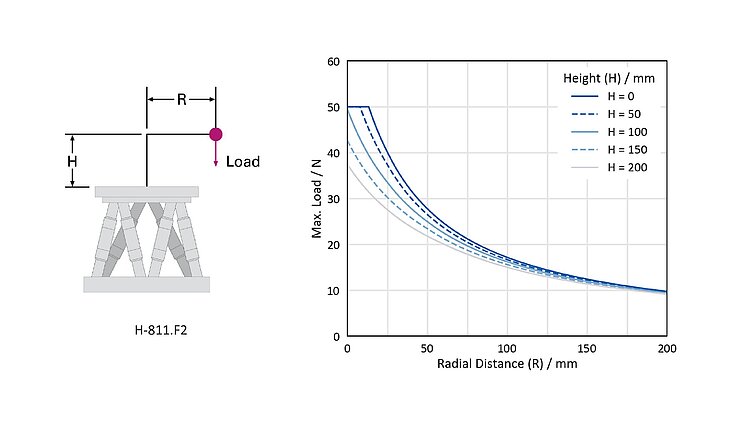

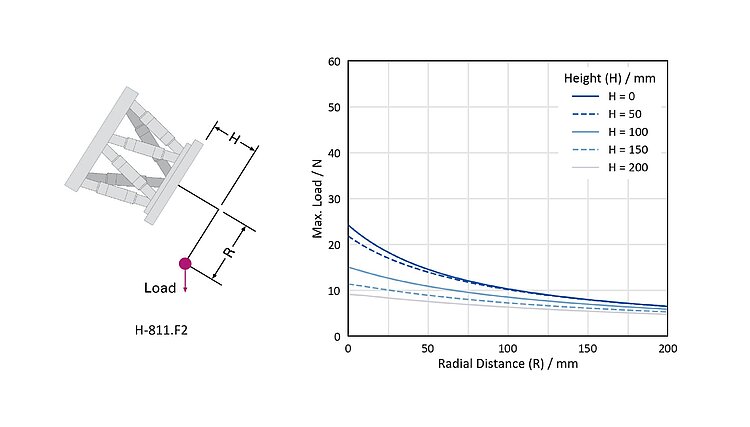

H-811.F2 6-Axis Miniature Hexapod

Ideal for Fiber Alignment

H-811.F2 6-Axis Miniature Hexapod
제품 설명 사양 다운로드 견적 / 주문
  • Travel ranges to ±17 mm / ±21°
  • Compact design
  • Removable magnetic plate
  • High dynamics and precision
  • Freely programmable, virtual pivot point
  • Superior lifetime

Parallel-kinematic design for six degrees of freedom making it significantly more compact and stiff than serial-kinematic systems, higher dynamic range, no moved cables: Higher reliability, reduced friction.

Extensive Software Package

The software package supplied in the scope of delivery allows integration of the system into virtually any environment. All common operating systems such as Windows, Linux, and macOS as well as a large number of common programming languages are supported including Python, MATLAB and NI LabVIEW. Thanks to sophisticated program examples and the use of software tools such as PIMikroMove, the time between starting integrating and productive operation is shortened considerably.

Brushless DC motor (BLDC)

Brushless DC motors are particularly suitable for high rotational speeds. They can be controlled very accurately and ensure high precision. Because they dispense with sliding contacts, they run smoothly, are wear-free and therefore achieve a long lifetime.

Removable magnetic plate

Accelerate your workflows. The next workpiece can be prepared parallel to our automated process step. The removable magnetic plate can be disassembled quickly without tools and subsequently reassembled accurately each time.

Fields of application

Research and industry, micromanufacturing, fiber alignment, and alignment of optical components.
