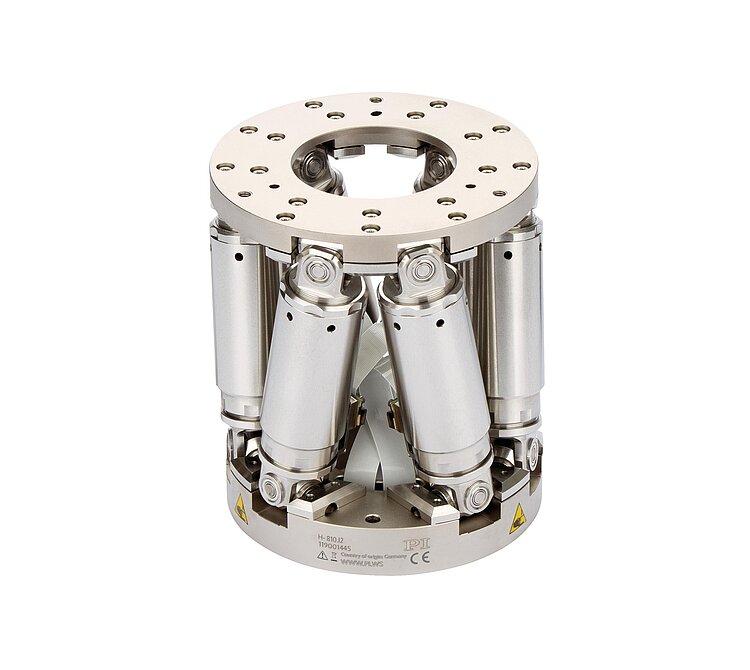

H-810.I2 6-Axis Miniature Hexapod

High Precision in the Smallest Space

H-810.I2 6-Axis Miniature Hexapod
제품 설명 사양 다운로드 견적 / 주문
  • Travel ranges to ±20 mm / ±30°
  • Load capacity to 3 kg
  • Repeatability to ±0.08 µm
  • Velocity to 6 mm/s
  • Works in any orientation
  • Virtual pivot point

Parallel-kinematic design for six degrees of freedom making it significantly more compact and stiff than serial-kinematic systems, higher dynamic range, no moved cables: Higher reliability, reduced friction.

Brushless DC motor (BLDC)

Brushless DC motors are particularly suitable for high rotational speeds. They can be controlled very accurately and ensure high precision. Because they dispense with sliding contacts, they run smoothly, are wear-free and therefore achieve a long lifetime.

PI Hexapod Simulation Tool

The simulation software simulates the limits of the workspace and load capacity of a hexapod. Therefore, even before making a purchase, you can check whether a particular hexapod model can handle the loads, forces, and torques occurring in an application. For this purpose, the simulation tool takes into account the position and motion of the hexapod as well as the pivot point and several reference coordinate systems.

Fields of application

Research and industry. For micromanipulation, biomedical engineering, tool inspection.

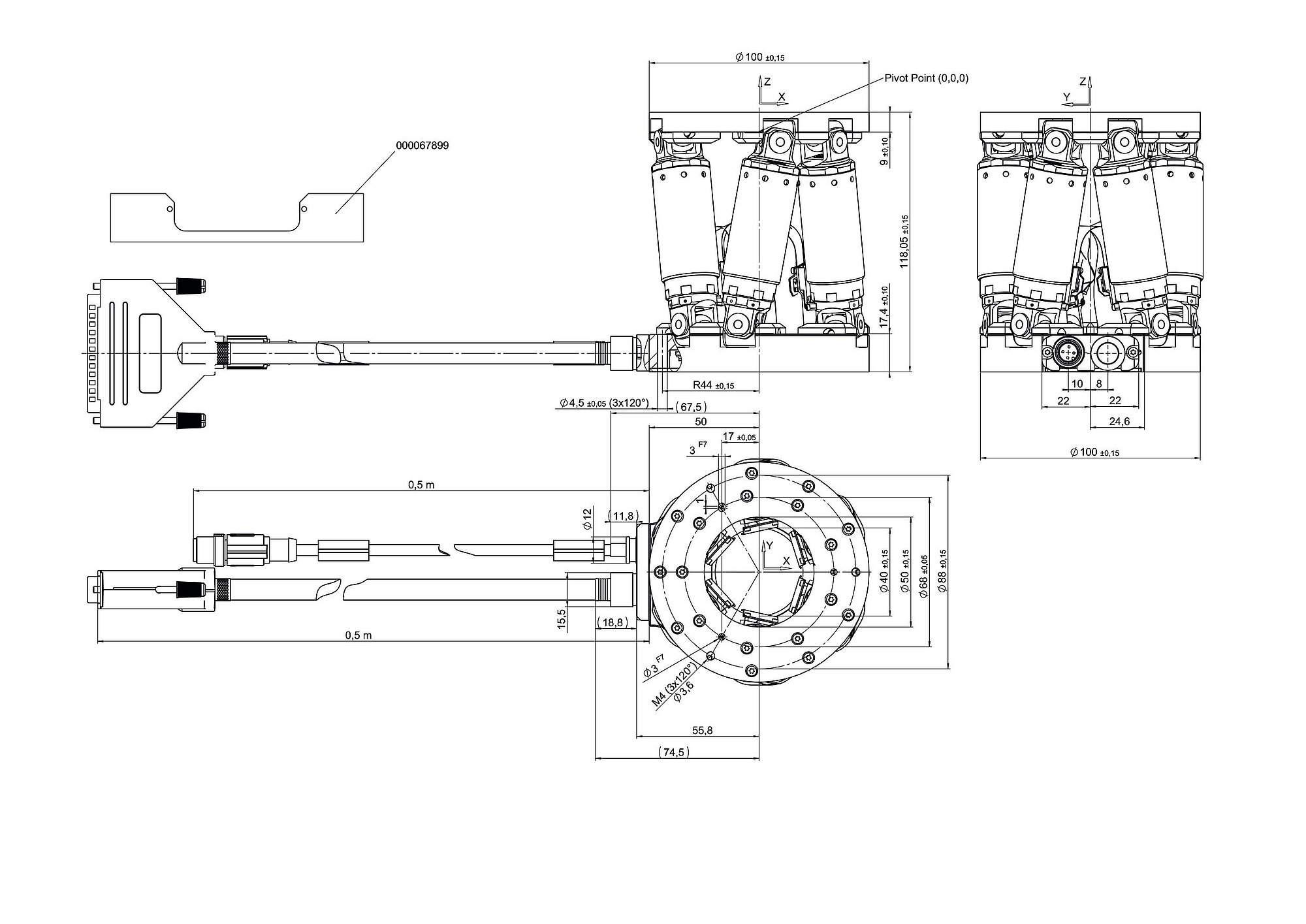

Specifications

Datasheet

Datasheet H-810.I2

버전 / 날짜
2021-03-15
버전 / 날짜
2021-03-15
문서 언어
pdf - 1 MB
pdf - 1 MB

Downloads

Product Note

Product Note

Product Change Notification Hexapod Cables

버전 / 날짜
2021-01-15
문서 언어 영어
pdf - 186 KB

Datasheet

Datasheet

Datasheet H-810.I2

버전 / 날짜
2021-03-15
버전 / 날짜
2021-03-15
문서 언어
pdf - 1 MB
pdf - 1 MB

Documentation

Documentation

User Manual MS252

H-810.I2 Hexapod Microrobot
버전 / 날짜
1.0.0 2019-12-02
버전 / 날짜
2019-12-05
문서 언어
Request download link

3-D Models

3-D Models

3-D model H-810.I2

버전 / 날짜
2020-09-24
Request download link

Software Files

Software Files

Hexapod Simulation Tool

버전 / 날짜
2020-02-10
Request download link

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly

H-810.I2
Miniature hexapod microrobot for six degrees of motion freedom, brushless DC motors, 3 kg load capacity, 6 mm/s velocity, 0.5m cable length. Connecting cables are not in the scope of delivery and must be ordered separately.

Data transmission cables in other lengths

Power supply cables in other lengths

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.

Separate connection cable required for power supply and data transmission.
Connecting cables are not in the scope of delivery, although this may be stated otherwise in the manual. The manual is currently being revised
