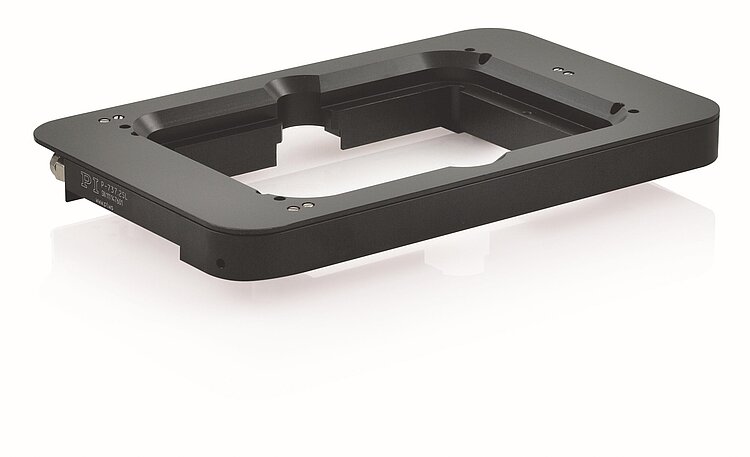

P-737 PIFOC Specimen Z Positioner

With Large Aperture and Low Profile

P-737 PIFOC Specimen Z Positioner
제품 설명 사양 다운로드 견적 / 주문
  • Travel ranges to 500 µm
  • Clear aperture 128.5 mm × 86.5 mm to accommodate well plates
  • Low profile 20 mm
  • Compatible with MetaMorph imaging software

Fields of application

  • Super-resolution microscopy
  • Light disc microscopy
  • Confocal microscopy
  • 3-D imaging
  • Screening
  • Interferometry
  • Measuring technology
  • Autofocus systems
  • Biotechnology
  • Semiconductor tests

Outstanding lifetime thanks to PICMA® piezo actuators

The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

High guiding accuracy due to zero-play flexure guides

Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They are 100 % vacuum compatible and work in a wide temperature range.

Specifications

Datasheet

Datasheet P-737

버전 / 날짜
2018-04-16
버전 / 날짜
2018-04-16
버전 / 날짜
2018-10-24
버전 / 날짜
2018-04-16
문서 언어
pdf - 636 KB
pdf - 642 KB
pdf - 799 KB
pdf - 724 KB

Downloads

Datasheet

Datasheet

Datasheet P-737

버전 / 날짜
2018-04-16
버전 / 날짜
2018-04-16
버전 / 날짜
2018-10-24
버전 / 날짜
2018-04-16
문서 언어
pdf - 636 KB
pdf - 642 KB
pdf - 799 KB
pdf - 724 KB

Documentation

Documentation

User Manual P737T0001

P-737 PIFOC® Low-Profile, Long-Range Piezo Z Nanopositioner for Microscopy Samples
버전 / 날짜
2017-05-24
문서 언어 영어
pdf - 2 MB
Documentation

Technical Note P737T0004

Unpacking Instructions for P-737.1SL, P-737.2SL, P-737.5SL
버전 / 날짜
2017-05-24
문서 언어 영어
pdf - 747 KB
Documentation

Overview Microscopy Accessories

PI Microscopy Sample Holders and Adapter Plates for Microscope Stages
버전 / 날짜
2018-05-16
버전 / 날짜
2018-05-16
문서 언어
pdf - 138 KB
pdf - 150 KB
Documentation

Short Instructions PZ240

Piezo Positioning Systems: P-5xx / P-6xx / P-7xx
버전 / 날짜
5.0.0 09/2018
문서 언어 영어
pdf - 908 KB

3-D Models

3-D Models

P-737 3-D model

Brochure

Brochure

Microscope Stage Configurator

Sample Stages and Holders for Inverted Microscopes
버전 / 날짜
BRO70E R3D
문서 언어 영어
pdf - 1 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly
