VT-80 Linear Stage

Basic Version for Universal Fields of Use

VT-80 Linear Stage
제품 설명 사양 다운로드 견적 / 주문

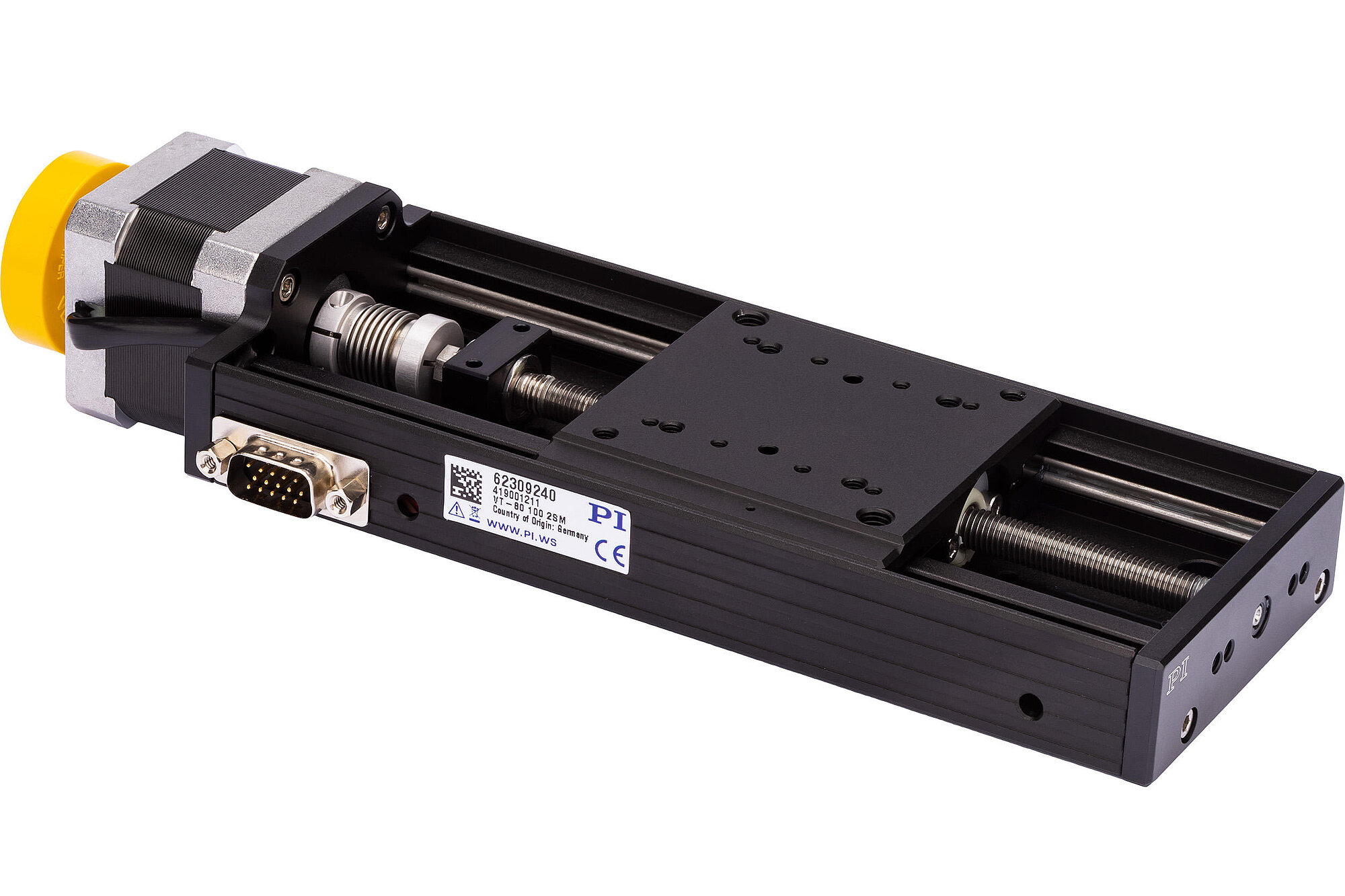

Standard-class linear stage

Recirculating ball bearings and precision leadscrew for smooth and even feed. Stress-relieved aluminum base for highest stability. Mechanical limit switches.

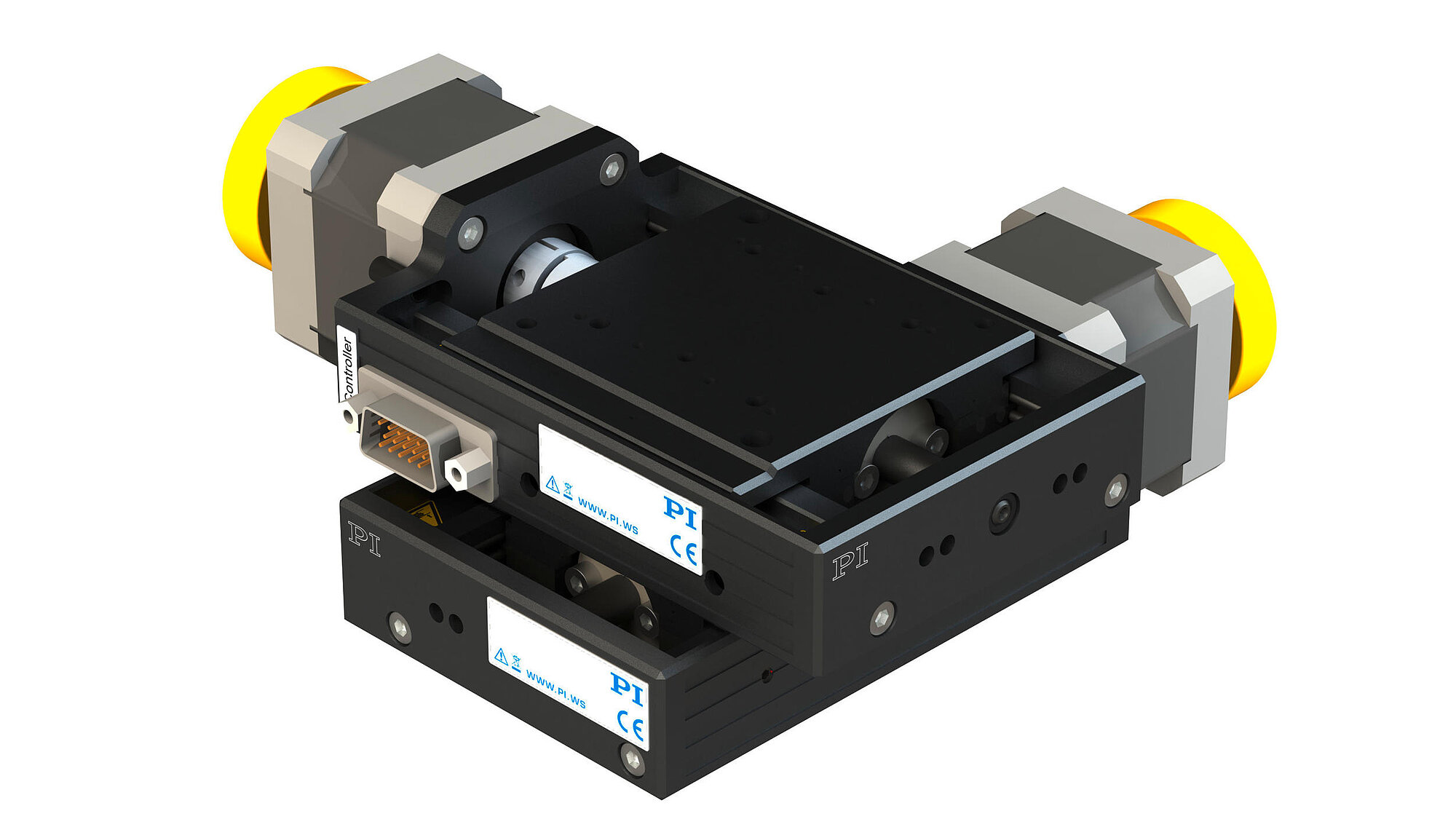

XY combinations

XY combinations of VT-80 linear stages are possible without an adapter. The compact XY variant with 25 mm travel range per axis is available for both motor types as factory option (preassembled at the factory). All other travel range variants can be combined to XY combinations by the customer.

Drive types

  • Closed-loop DC motor with rotary encoder on the motor shaft
  • 2-phase stepper motor for high torque even at low velocities and high resolution

Recirculating ball bearings

When carefully assembled, recirculating ball bearings are distinguished by a beneficial combination of high load capacity, lifetime, maintenance-free operation, and guiding accuracy. The moving part of the stages is supported by four preloaded linear ball bearing units which run on two guide rails. Each bearing unit is made up of two independent rows of circulating ball bearings.

Application fields

Positioning tasks with low duty cycle in industry and research.

Specifications

Datasheet

Datasheet VT-80

버전 / 날짜
2021-03-26
버전 / 날짜
2021-03-21
버전 / 날짜
2021-01-26
문서 언어
pdf - 2 MB
pdf - 2 MB
pdf - 860 KB

Downloads

Product Note

Product Note

Product Change Notification Stepper Motor VT-80 / DT-80

버전 / 날짜
2019-04-23
문서 언어 영어
pdf - 238 KB

Datasheet

Datasheet

Datasheet VT-80

버전 / 날짜
2021-03-26
버전 / 날짜
2021-03-21
버전 / 날짜
2021-01-26
문서 언어
pdf - 2 MB
pdf - 2 MB
pdf - 860 KB

Documentation

Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / MTS-65 / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx
버전 / 날짜
1.5.0 October 2017
pdf - 395 KB
Documentation

User Manual VT-80

Linear Stage
버전 / 날짜
2019-12-04
버전 / 날짜
2019-12-05
문서 언어
Request download link

3-D Models

3-D Models

VT-80 3-D model

VT-80 3-D model
버전 / 날짜
2021-03-26
Request download link

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly

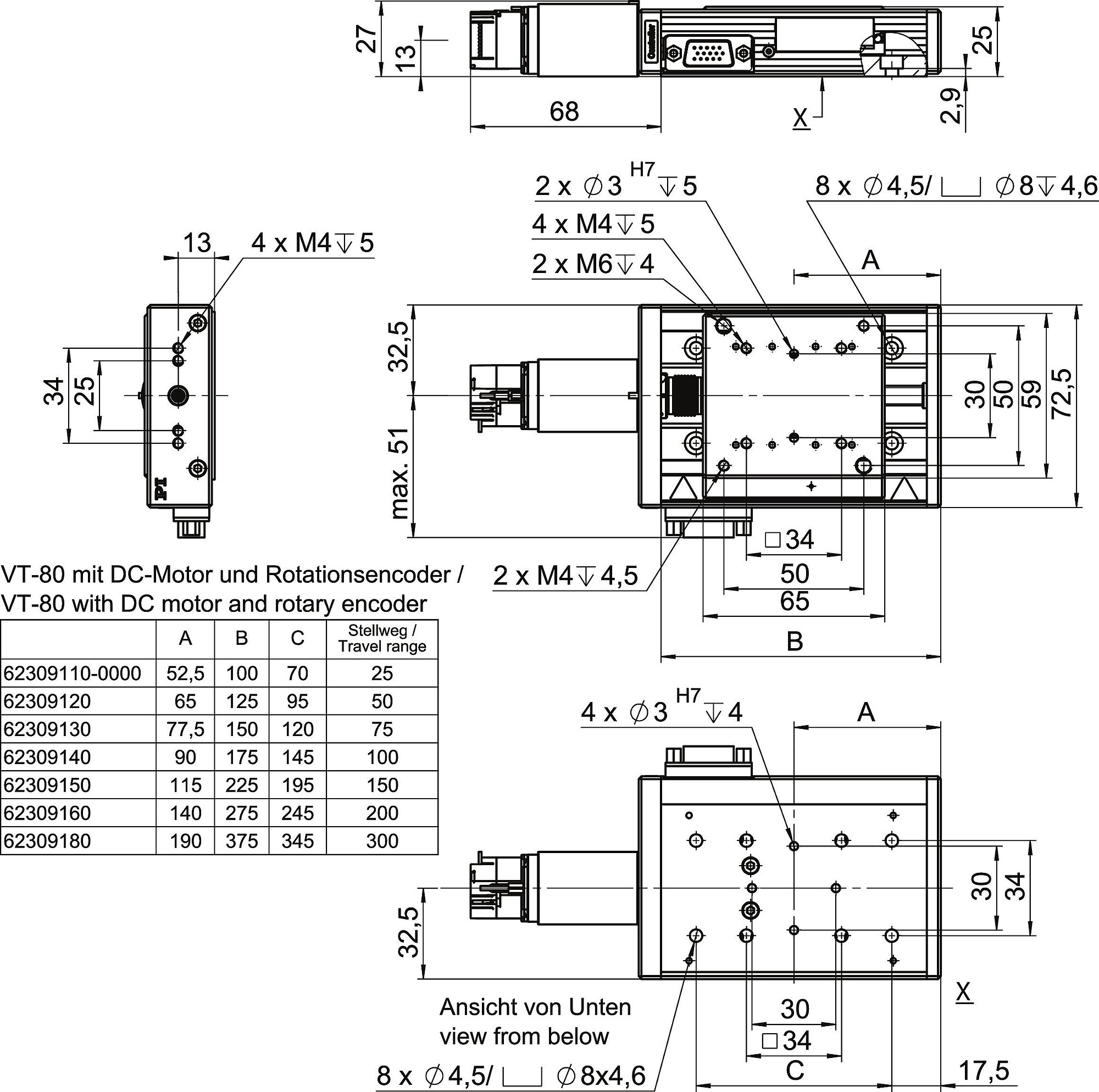

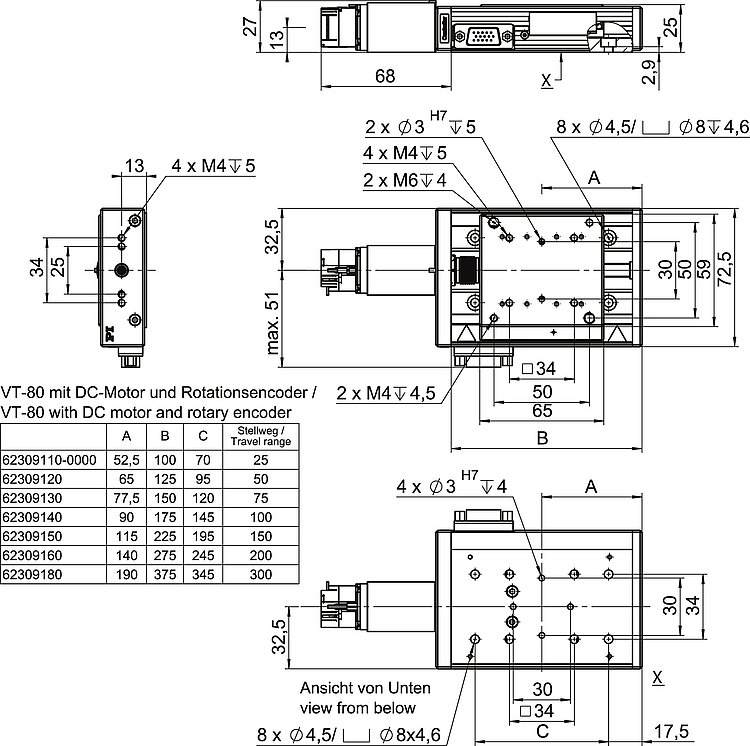

62309110-0000
Linear stage; DC motor; 25 mm travel range; 50 N load capacity; 20 mm/s maximum velocity; trapezoidal drive screw; incremental rotary encoder, 2000 counts/rev sensor resolution, A/B quadrature, RS-422
62309120
Linear stage; DC motor; 50 mm travel range; 50 N load capacity; 20 mm/s maximum velocity; trapezoidal drive screw; incremental rotary encoder, 2000 counts/rev sensor resolution, A/B quadrature, RS-422
62309130
Linear stage; DC motor; 75 mm travel range; 50 N load capacity; 20 mm/s maximum velocity; trapezoidal drive screw; incremental rotary encoder, 2000 counts/rev sensor resolution, A/B quadrature, RS-422
62309140
Linear stage; DC motor; 100 mm travel range; 50 N load capacity; 20 mm/s maximum velocity; trapezoidal drive screw; incremental rotary encoder, 2000 counts/rev sensor resolution, A/B quadrature, RS-422
62309150
Linear stage; DC motor; 150 mm travel range; 50 N load capacity; 20 mm/s maximum velocity; trapezoidal drive screw; incremental rotary encoder, 2000 counts/rev sensor resolution, A/B quadrature, RS-422
62309160
Linear stage; DC motor; 200 mm travel range; 50 N load capacity; 20 mm/s maximum velocity; trapezoidal drive screw; incremental rotary encoder, 2000 counts/rev sensor resolution, A/B quadrature, RS-422
62309180
Linear stage; DC motor; 300 mm travel range; 50 N load capacity; 20 mm/s maximum velocity; trapezoidal drive screw; incremental rotary encoder, 2000 counts/rev sensor resolution, A/B quadrature, RS-422
62309211

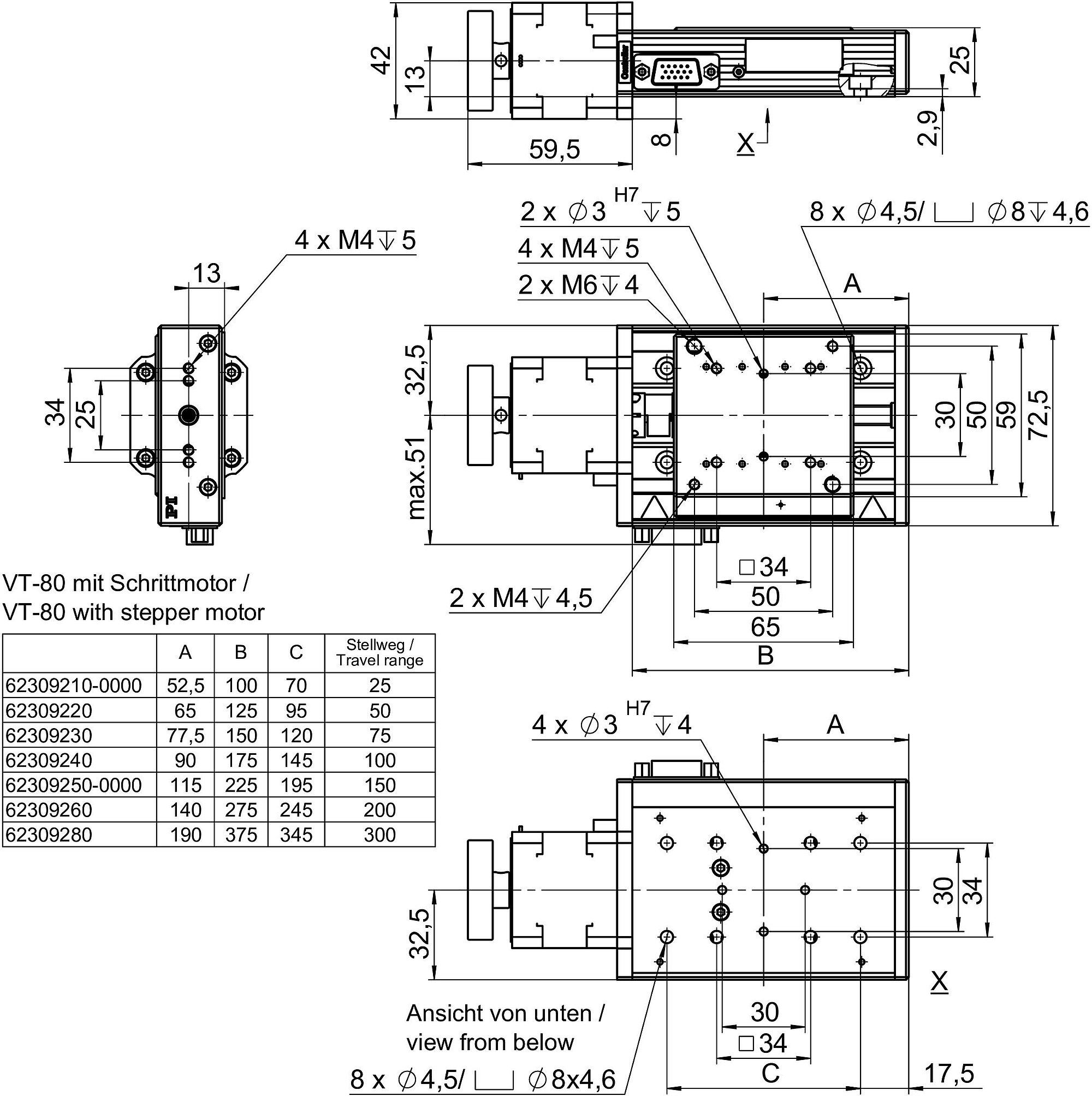

VT-80 XY linear stage, stepper motor, 80 mm width, 25 mm travel range, mechanical limit switches, preassembled XY combination of two 62309210-0000 linear stages

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.

Separate connection cable required for motor and sensor connection respectively.
