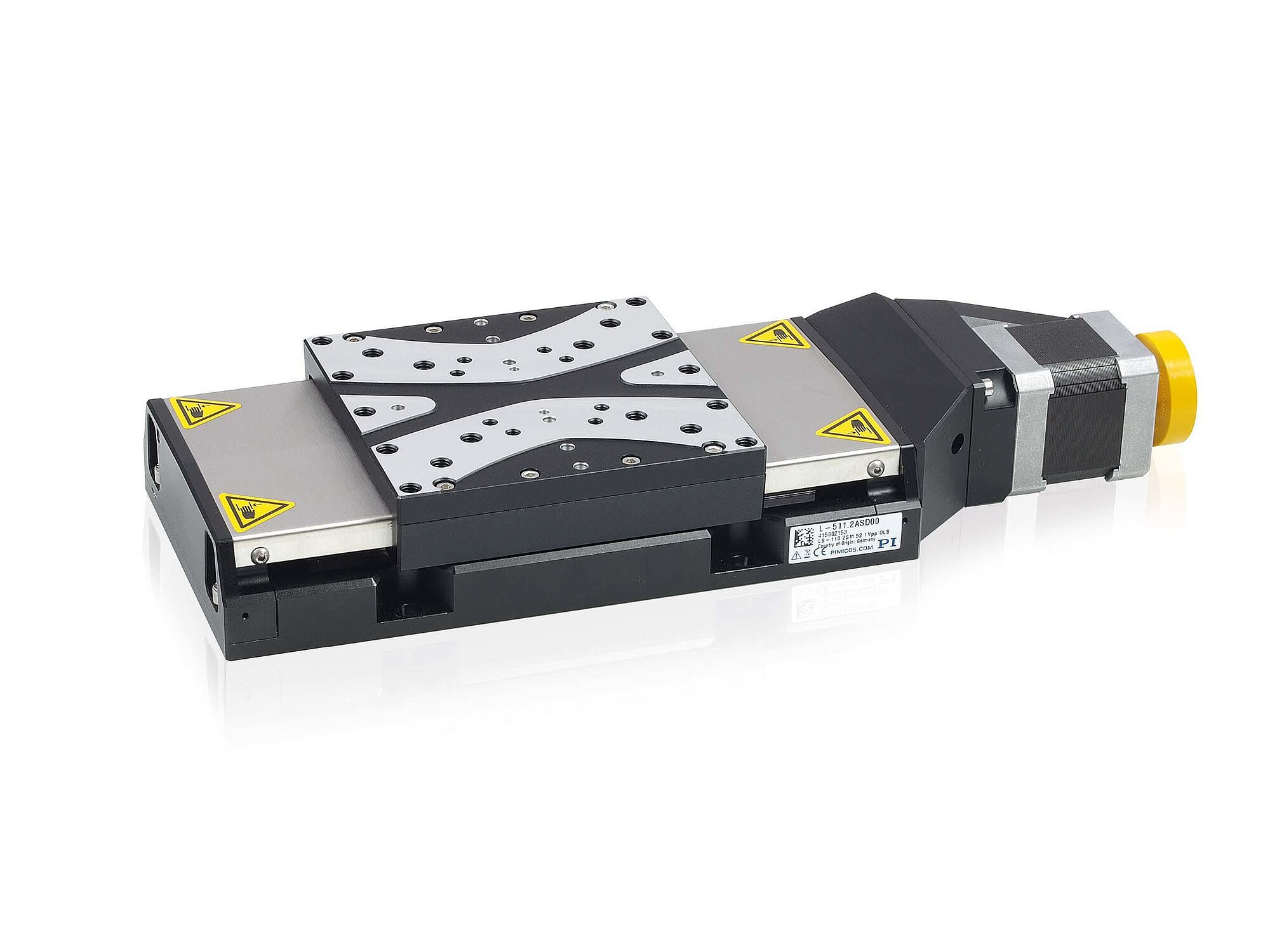

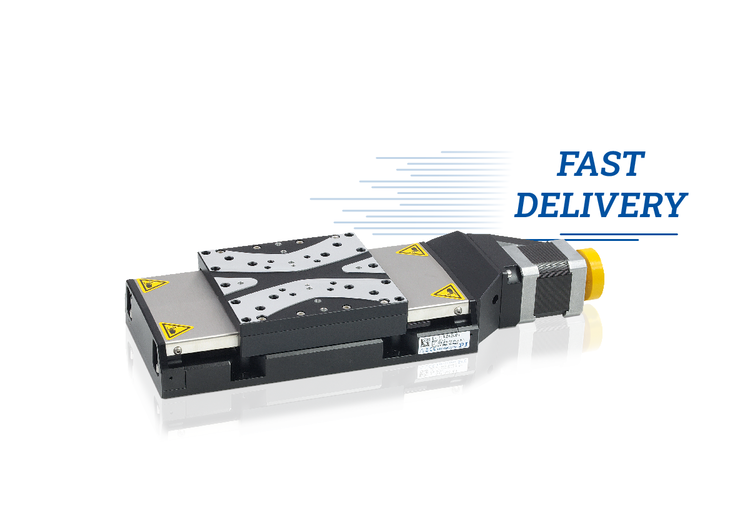

L-511 High-Precision Linear Stage

High Travel Accuracy

  • Travel ranges from 52 to 155 mm (2" to 6")

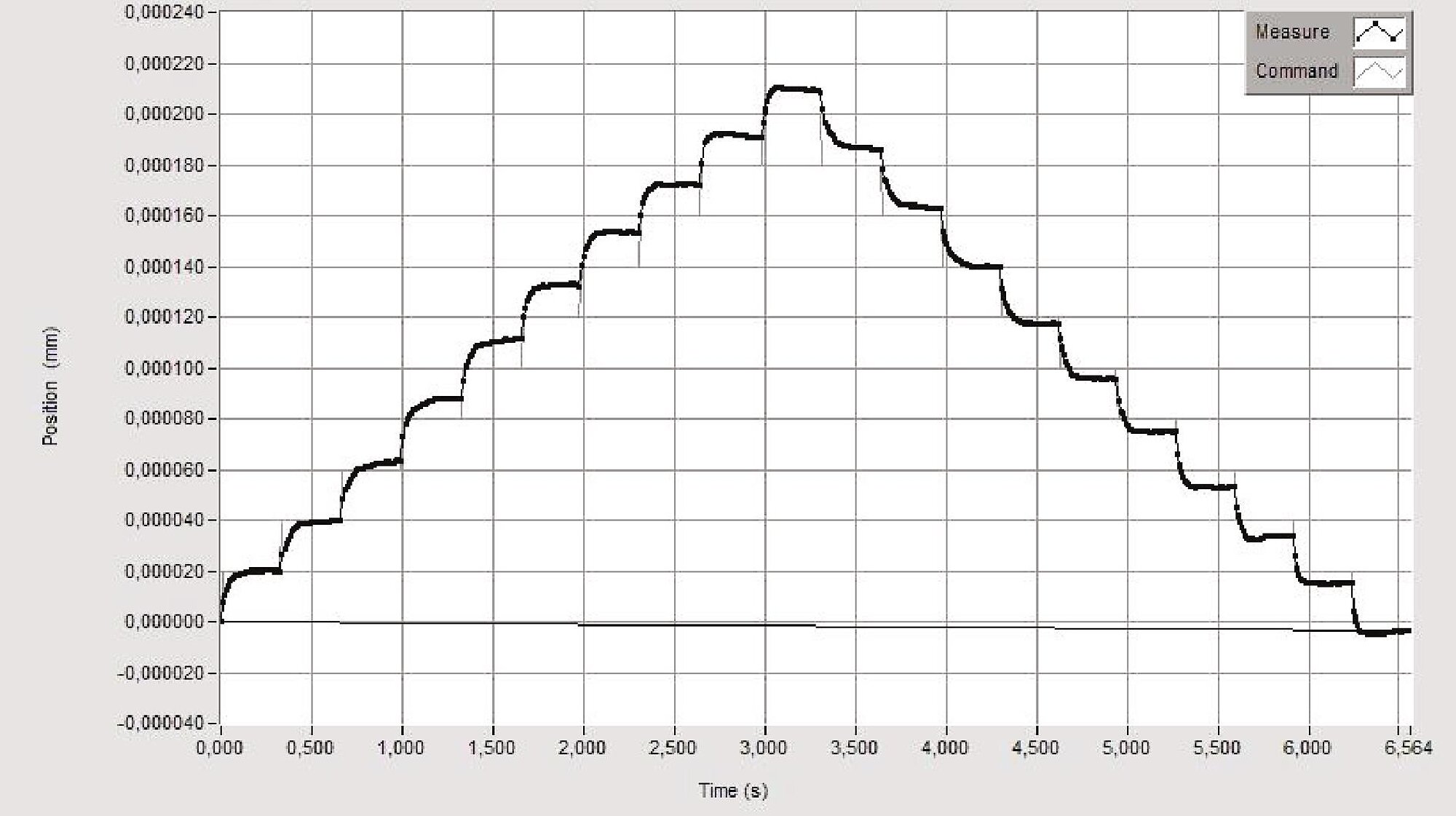

  • Repeatability to 0.1 µm
  • Active Drive DC, BLDC, and DC gear motor
  • Stepper motor
  • Optional: Linear encoder for direct position measuring
  • Direction-sensing reference switch
L-511 High-Precision Linear Stage
제품 설명 사양 다운로드 견적 / 주문

Reference-class linear stage

High travel accuracy and load capacity thanks to recirculating ball bearing guides. Precision ball screw with 2 mm pitch. Stress-relieved aluminum base for high stability. Noncontact optical limit switches. Noncontact optical reference switch with direction sensing in the middle of the travel range.

Motor types available

  • ActiveDrive DC motor for high velocity: Control via pulse-width-modulated (PWM) signals, the operating voltage is achieved via an amplifier integrated in the motor housing
  • DC servo motor with gearhead for high torques and resolution at low motor power
  • Brushless DC motor: For applications with a high duty cycle. Use a controller with sine commutation for an exceptionally smooth synchronous motion and low vibrations even at a very low velocity.
  • 2-phase stepper motor for low velocity and high resolution

Types of position measuring

  • Without encoder (open loop)
  • Integrated rotary encoder on the motor shaft
  • Incremental linear encoder

Highly accurate position measuring with incremental linear encoder

Noncontact optical linear encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.

Application fields

Autofocus. Laser cutting. Research. Biotechnology. Automation. Optical alignment.

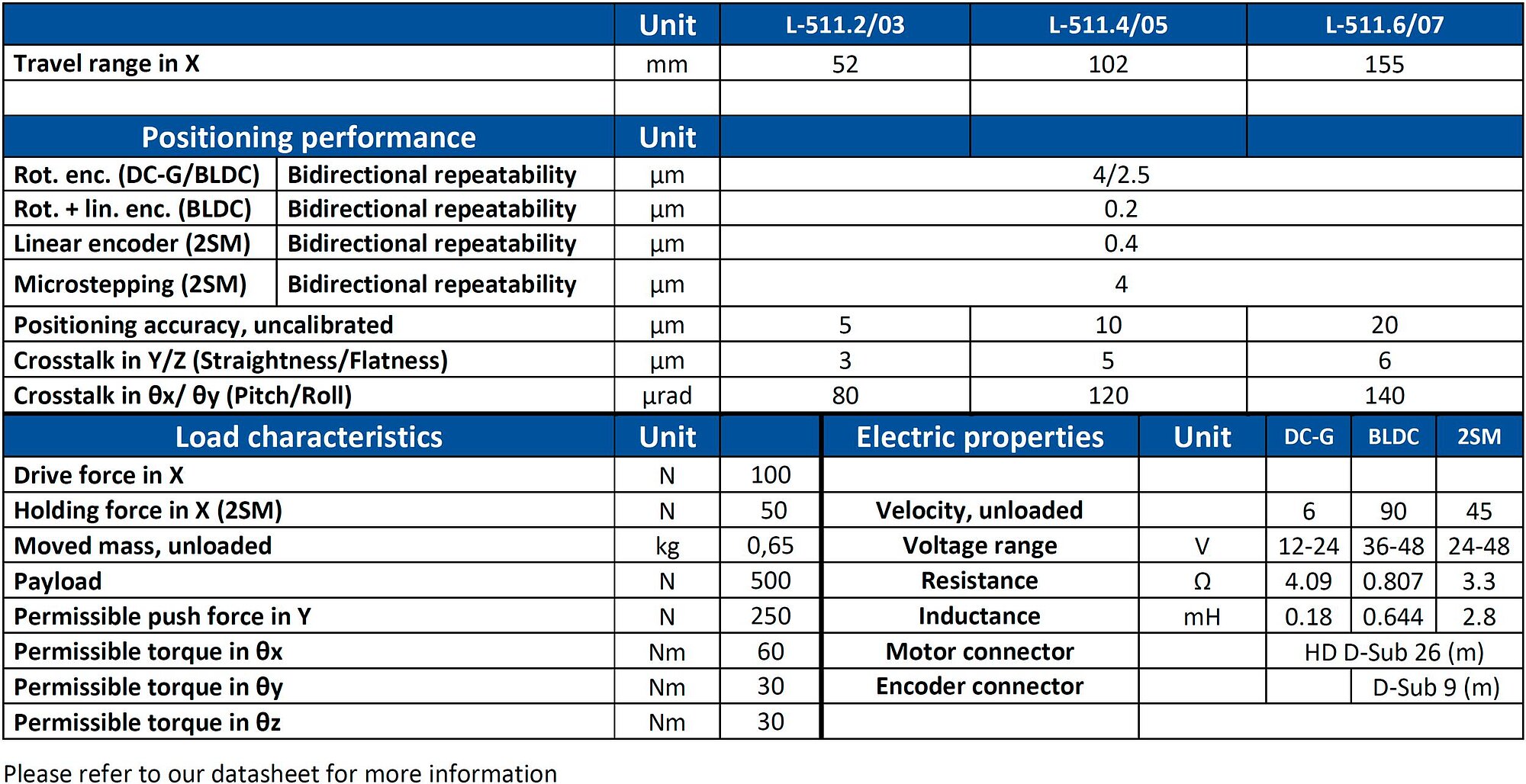

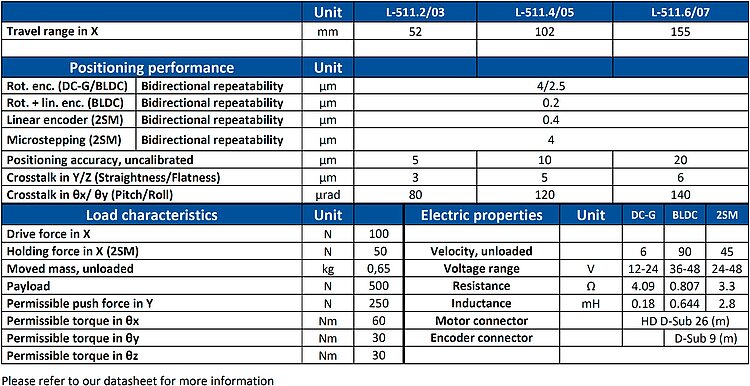

Specifications

Datasheet

Datasheet L-511

버전 / 날짜
2022-11-14
pdf - 6 MB
버전 / 날짜
2022-11-14
pdf - 6 MB
버전 / 날짜
2018-11-27
pdf - 2 MB

Downloads

Product Note

Product Note

Product Change Notification Motor Driven Products

버전 / 날짜
2021-04-19
pdf - 917 KB
영어

Datasheet

Datasheet

Datasheet L-511

버전 / 날짜
2022-11-14
pdf - 6 MB
버전 / 날짜
2022-11-14
pdf - 6 MB
버전 / 날짜
2018-11-27
pdf - 2 MB

Documentation

Documentation

User Manual MP140

L-511 High-Precision Linear Stage

버전 / 날짜
1.7.0 2022-11-14
pdf - 3 MB
버전 / 날짜
1.7.0 2022-11-14
pdf - 3 MB
Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx

버전 / 날짜
3.0.0 2024-01-15
pdf - 261 KB
버전 / 날짜
3.0.0 2024-01-15
pdf - 295 KB

3-D Models

3-D Models

3-D model L-511.xxADx0

L-511.xxADx0 3D Model

zip - 15 MB
3-D Models

3-D model L-511.x0DG10

L-511.x0DG10 3D Model

zip - 6 MB
3-D Models

3-D model L-511.0xx111

L-511.0xx111 3D Model

zip - 13 MB
3-D Models

3-D model L-511.0xx132

L-511.0xx132 3D Model

zip - 9 MB
3-D Models

3-D model-L-511.xxSD00

L-511.xxSD00 3D Model

zip - 12 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

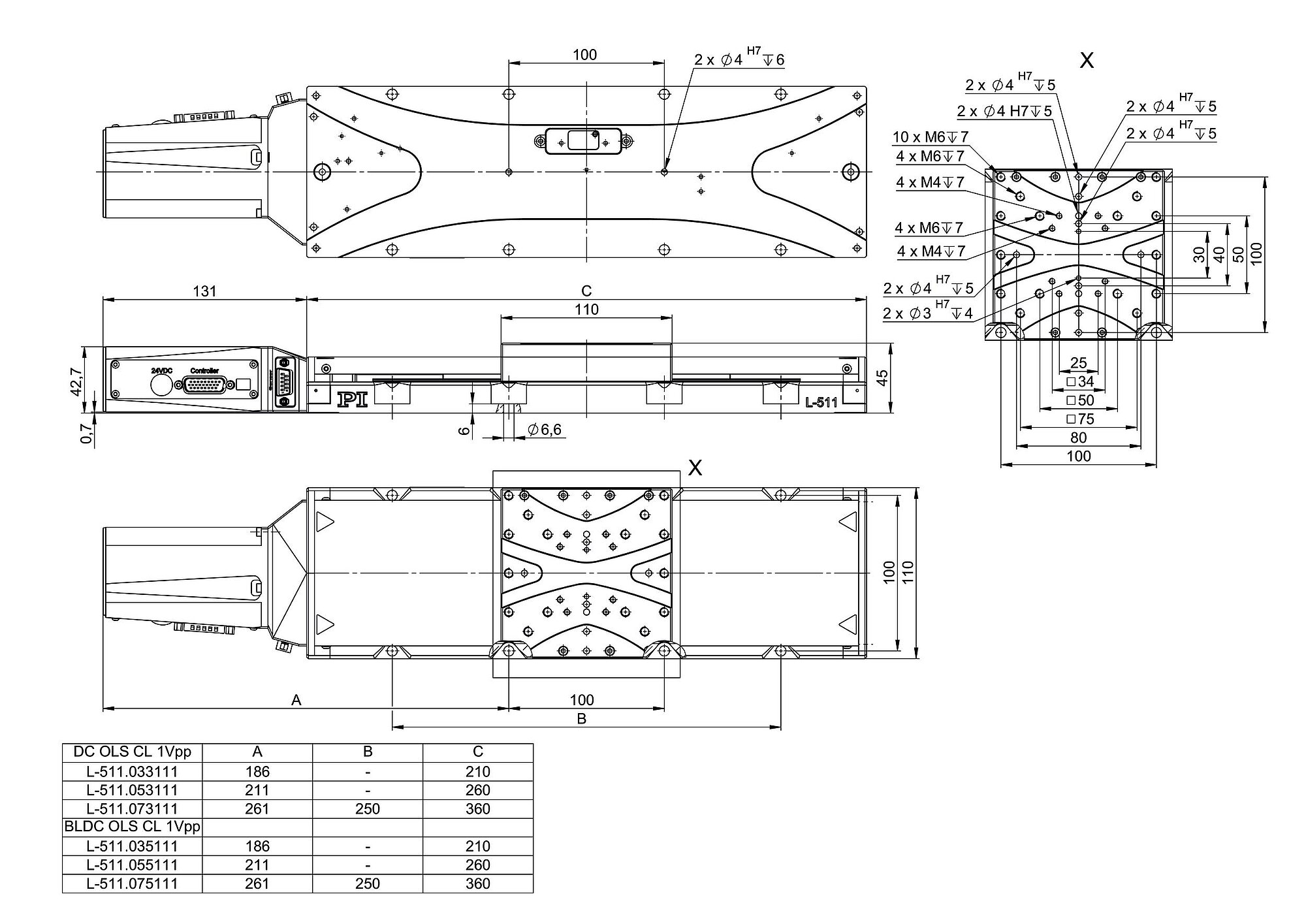

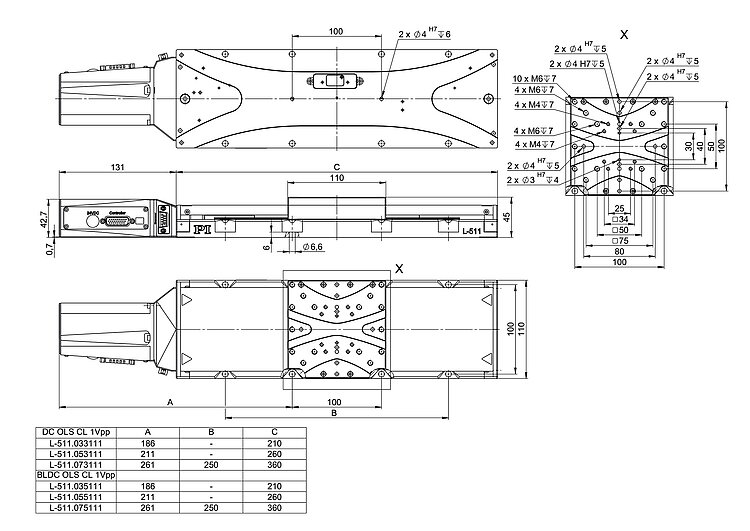

L-511.033111

High-precision linear stage; DC motor; 52 mm travel range; 500 N load capacity; 90 mm/s maximum velocity; ball screw; incremental linear encoder, sin/cos, 1 V peak-peak

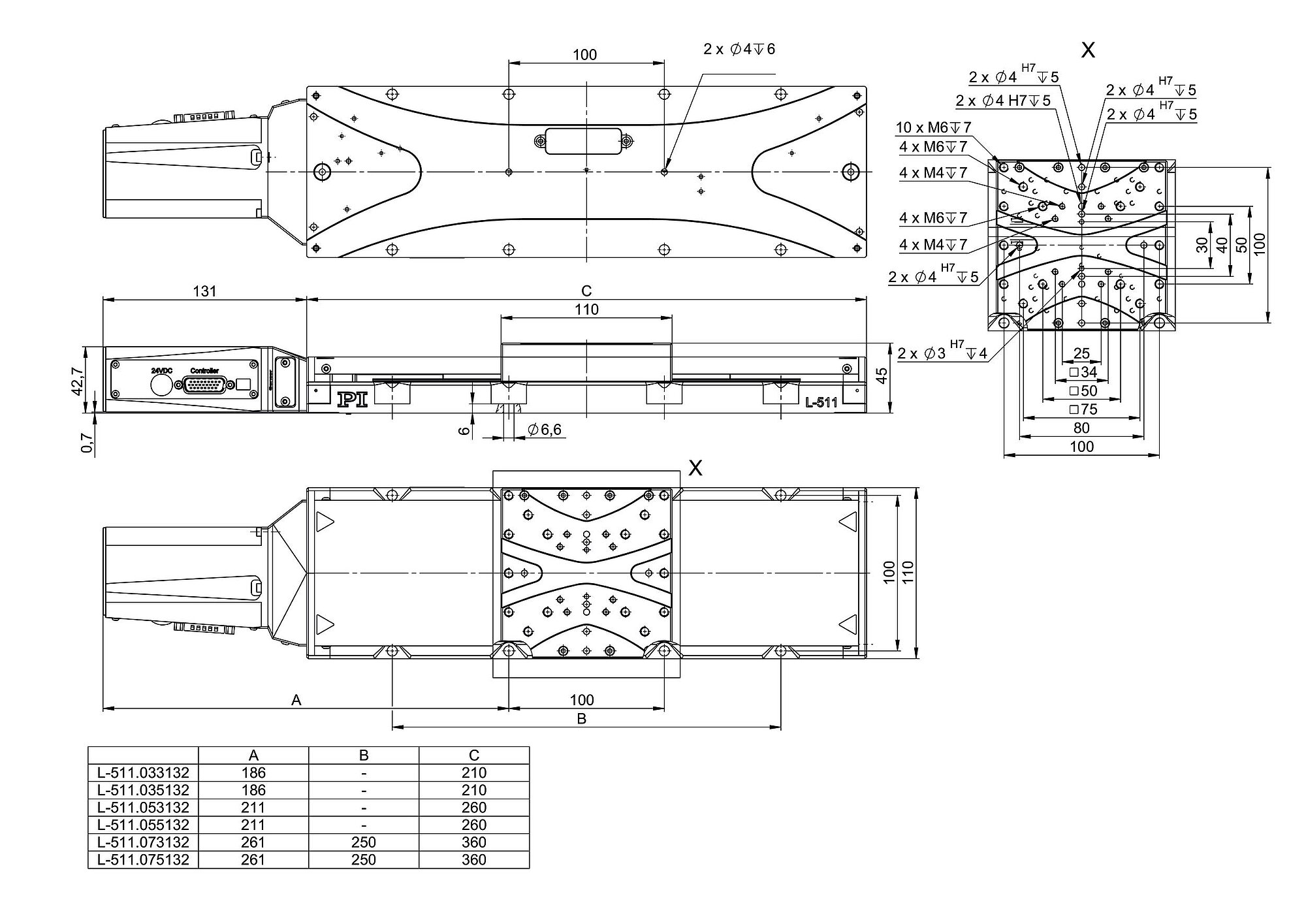

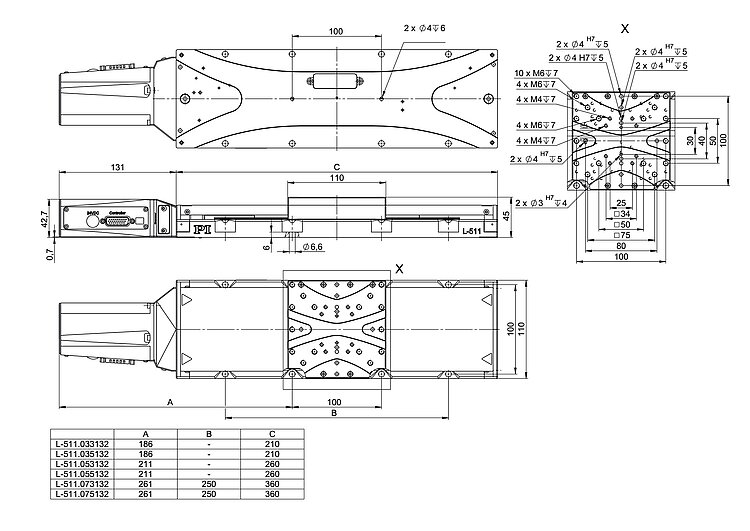

L-511.033132

High-precision linear stage; DC motor; 52 mm travel range; 500 N load capacity; 90 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev sensor resolution, A/B quadrature, RS-422

L-511.035111

High-precision linear stage; brushless DC motor; 52 mm travel range; 500 N load capacity; 90 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 cts./rev. resolution, A/B quadrature, RS-422; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak

L-511.035132

High-precision linear stage; brushless DC motor; 52 mm travel range; 500 N load capacity; 90 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 cts./rev. resolution; incremental rotary encoder, 20000 counts/rev sensor resolution, A/B quadrature, RS-422

L-511.053111

High-precision linear stage; DC motor; 102 mm travel range; 500 N load capacity; 90 mm/s maximum velocity; ball screw; incremental linear encoder, sin/cos, 1 V peak-peak

L-511.053132

High-precision linear stage; DC motor; 102 mm travel range; 500 N load capacity; 90 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev sensor resolution, A/B quadrature, RS-422

L-511.055111

High-precision linear stage; brushless DC motor; 102 mm travel range; 500 N load capacity; 90 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 cts./rev. resolution, A/B quadrature, RS-422; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak

L-511.055132

High-precision linear stage; brushless DC motor; 102 mm travel range; 500 N load capacity; 90 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 cts./rev. resolution; incremental rotary encoder, 20000 counts/rev sensor resolution, A/B quadrature, RS-422

L-511.073111

High-precision linear stage; DC motor; 155 mm travel range; 500 N load capacity; 90 mm/s maximum velocity; ball screw; incremental linear encoder, sin/cos, 1 V peak-peak

L-511.073132

High-precision linear stage; DC motor; 155 mm travel range; 500 N load capacity; 90 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev sensor resolution, A/B quadrature, RS-422

L-511.075111

High-precision linear stage; brushless DC motor; 155 mm travel range; 500 N load capacity; 90 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 cts./rev. resolution, A/B quadrature, RS-422; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak

L-511.075132

High-precision linear stage; brushless DC motor; 155 mm travel range; 500 N load capacity; 90 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 cts./rev. resolution; incremental rotary encoder, 20000 counts/rev sensor resolution, A/B quadrature, RS-422

L-511.20AD10

High-precision linear stage; DC motor with ActiveDrive; 52 mm travel range; 500 N load capacity; 90 mm/s maximum velocity; ball screw; incremental rotary encoder, 16384 counts/rev sensor resolution, A/B quadrature, RS-422

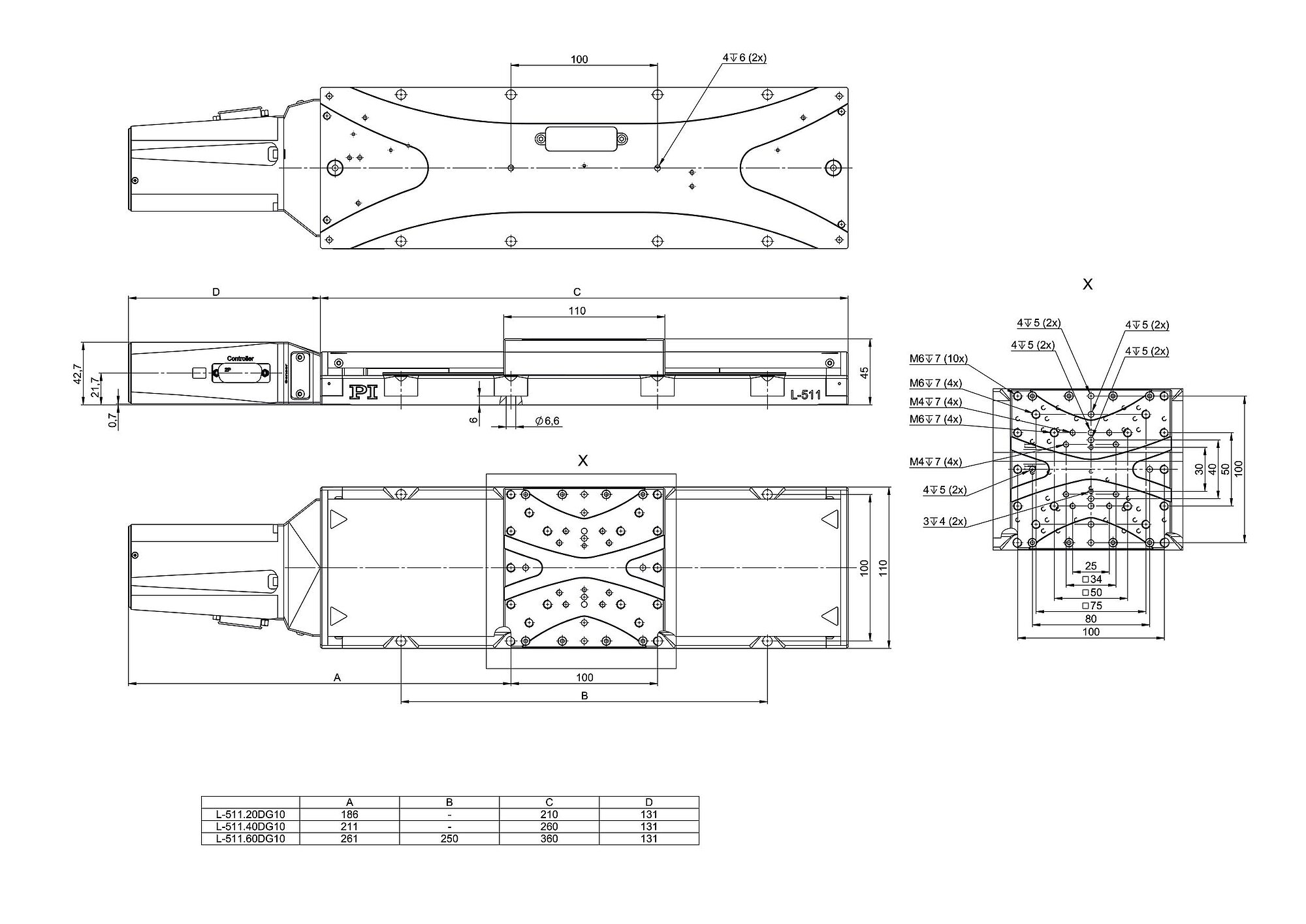

L-511.20DG10

High-precision linear stage; DC gear motor; 52 mm travel range; 500 N load capacity; 6 mm/s maximum velocity; ball screw; incremental rotary encoder, 4096 counts/rev sensor resolution, A/B quadrature, RS-422

L-511.24AD00

High-precision linear stage; DC motor with ActiveDrive; 52 mm travel range; 500 N load capacity; 90 mm/s maximum velocity; ball screw; incremental linear encoder, 50 nm sensor resolution, A/B quadrature, RS-422

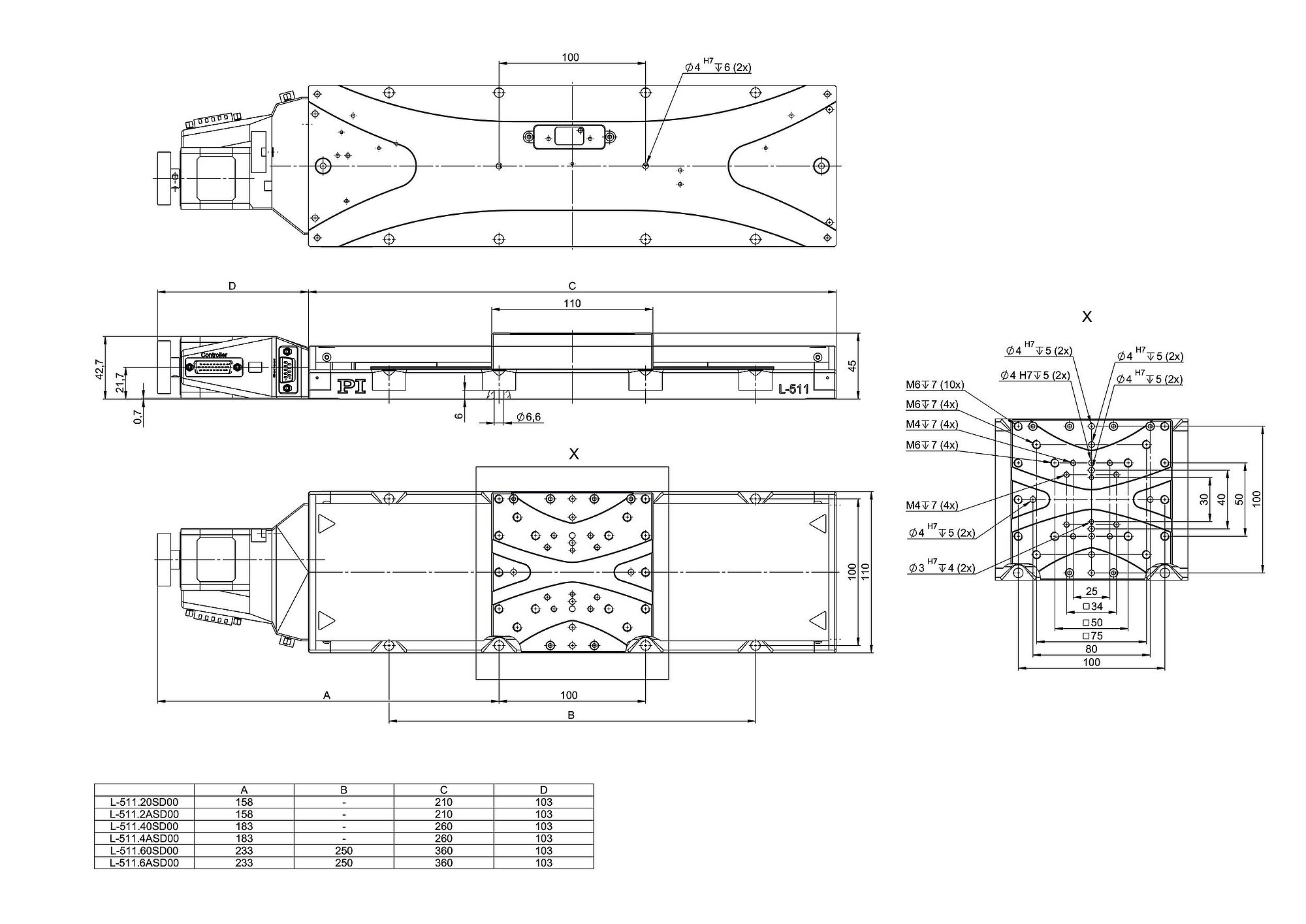

L-511.2ASD00

High-precision linear stage; 2-phase stepper motor; 52 mm travel range; 500 N load capacity; 45 mm/s maximum velocity; ball screw; incremental linear encoder, 5 nm sensor resolution, sin/cos, 1 V peak-peak

L-511.40AD10

High-precision linear stage; DC motor with ActiveDrive; 102 mm travel range; 500 N load capacity; 90 mm/s maximum velocity; ball screw; incremental rotary encoder, 16384 counts/rev sensor resolution, A/B quadrature, RS-422

L-511.40DG10

High-precision linear stage; DC gear motor; 102 mm travel range; 500 N load capacity; 6 mm/s maximum velocity; ball screw; incremental rotary encoder, 4096 counts/rev sensor resolution, A/B quadrature, RS-422

L-511.44AD00

High-precision linear stage; DC motor with ActiveDrive; 102 mm travel range; 500 N load capacity; 90 mm/s maximum velocity; ball screw; incremental linear encoder, 50 nm sensor resolution, A/B quadrature, RS-422

L-511.4ASD00

High-precision linear stage; 2-phase stepper motor; 102 mm travel range; 500 N load capacity; 45 mm/s maximum velocity; ball screw; incremental linear encoder, 5 nm sensor resolution, sin/cos, 1 V peak-peak

L-511.60AD10

High-precision linear stage; DC motor with ActiveDrive; 155 mm travel range; 500 N load capacity; 90 mm/s maximum velocity; ball screw; incremental rotary encoder, 16384 counts/rev sensor resolution, A/B quadrature, RS-422

L-511.60DG10

High-precision linear stage; DC gear motor; 155 mm travel range; 500 N load capacity; 6 mm/s maximum velocity; ball screw; incremental rotary encoder, 4096 counts/rev sensor resolution, A/B quadrature, RS-422

L-511.64AD00

High-precision linear stage; DC motor with ActiveDrive; 155 mm travel range; 500 N load capacity; 90 mm/s maximum velocity; ball screw; incremental linear encoder, 50 nm sensor resolution, A/B quadrature, RS-422

L-511.6ASD00

High-precision linear stage; 2-phase stepper motor; 155 mm travel range; 500 N load capacity; 45 mm/s maximum velocity; ball screw; incremental linear encoder, 5 nm sensor resolution, sin/cos, 1 V peak-peak
