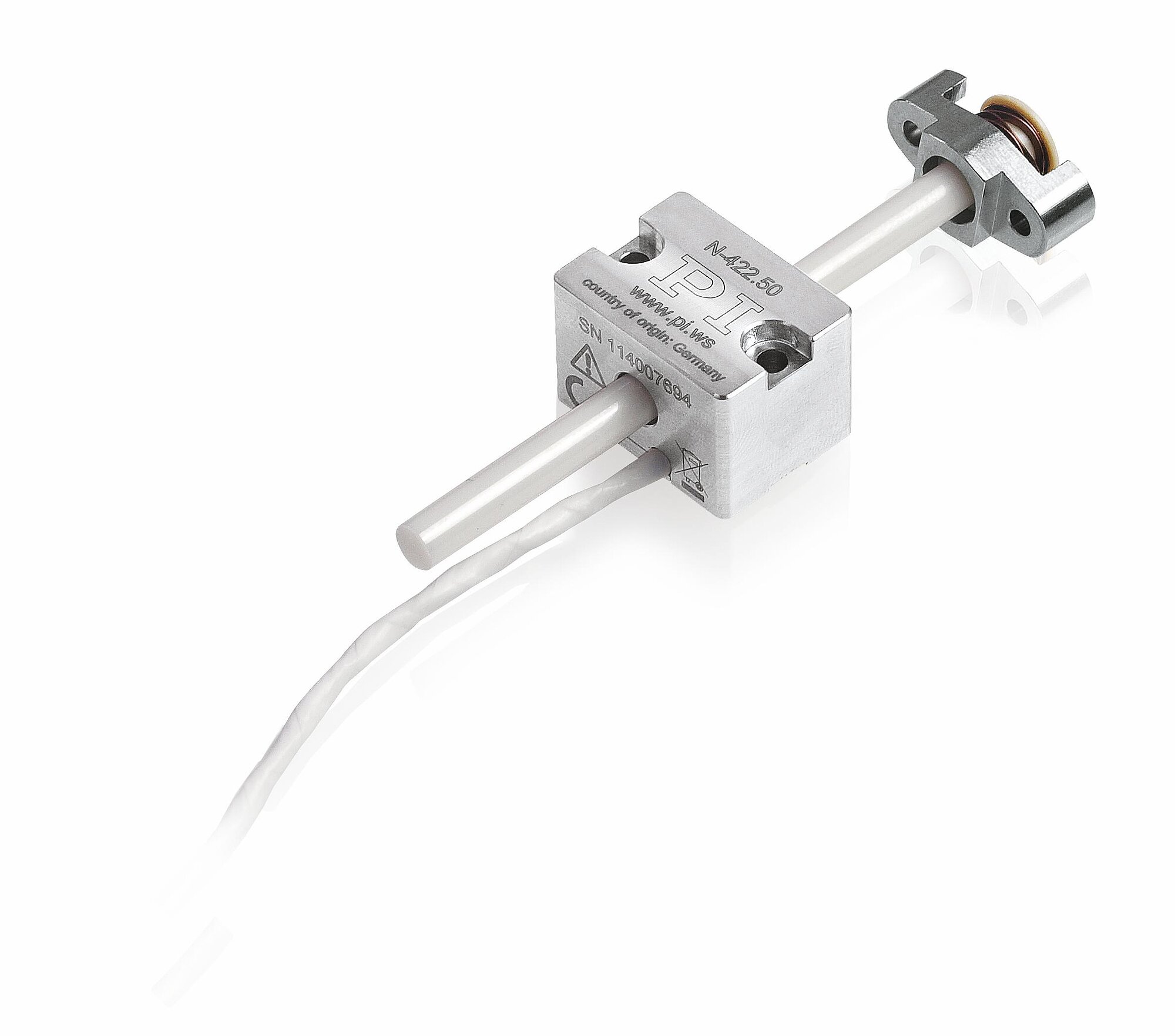

N-422 Linear Actuator with Piezo Motor

Inexpensive and Easy to Integrate

N-422 Linear Actuator with Piezo Motor
제품 설명 사양 다운로드 견적 / 주문
  • Easy integration: Two mounting versions
  • Silent: Operating frequency to >20 kHz
  • Velocity over 5 mm/s
  • Submicron resolution
  • Holding force to 10 N

Piezo motor direct drive

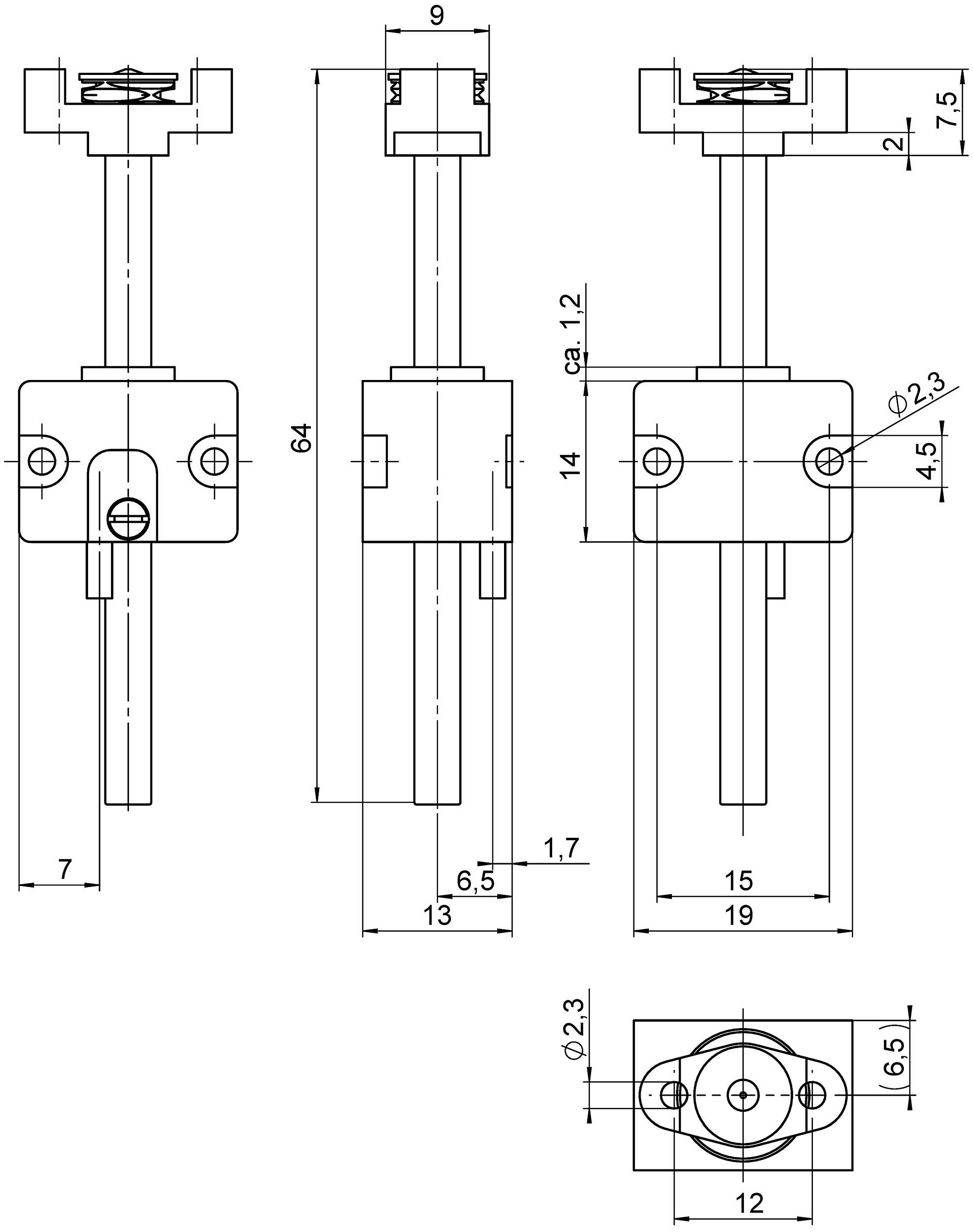

OEM actuator without position sensor. Continuous motion with step frequencies in the ultrasound range. Mounting via thread on the front or on a level surface perpendicular to the direction of motion.

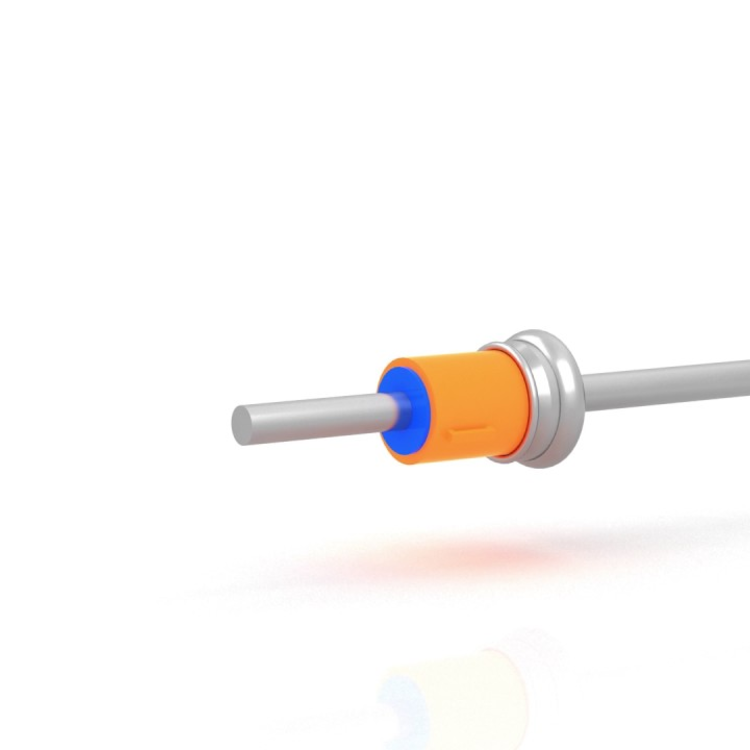

Inertia drive

Self-locking, no heat generation at rest. Noiseless drive with operating frequencies over 20 kHz. Resolution in step mode approx. 300 nm, open loop.

Fields of application

Industry and research. Alignment of optical elements, micromanipulation, biotechnology, cell manipulation, medical technology.

Specifications

Datasheet

Datasheet N-422

버전 / 날짜
2018-11-22
버전 / 날짜
2018-08-16
문서 언어
pdf - 543 KB
pdf - 553 KB

Downloads

Datasheet

Datasheet

Datasheet N-422

버전 / 날짜
2018-11-22
버전 / 날짜
2018-08-16
문서 언어
pdf - 543 KB
pdf - 553 KB

Documentation

Documentation

User Manual MP116

N-422 PIShift OEM Linear Drive
버전 / 날짜
2014-12-11
버전 / 날짜
2014-12-11
문서 언어

3-D Models

3-D Models

N-422 3-D model

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly
