P-844 Preloaded Piezo Actuators

For Very High Loads and Forces

  • Outstanding lifetime due to PICMA® piezo actuators
  • Travel range to 90 µm
  • Push force capacity to 3000 N
  • Pull force capacity to 700 N
  • µs response time
  • Subnanometer resolution
  • Optional water-resistant housing; vacuum versions available on request
P-844 Preloaded Piezo Actuators
제품 설명 사양 다운로드 견적 / 주문

Application fields

  • Static and dynamic precision positioning
  • Fiber positioning
  • Laser tuning
  • Nanotechnology

Outstanding lifetime thanks to PICMA® piezo actuators

The PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Specifications

Datasheet

Datasheet P-844

버전 / 날짜
2023-12-11
pdf - 556 KB
버전 / 날짜
2023-12-11
pdf - 558 KB
버전 / 날짜
2018-06-15
pdf - 681 KB

Downloads

Datasheet

Datasheet

Datasheet P-844

버전 / 날짜
2023-12-11
pdf - 556 KB
버전 / 날짜
2023-12-11
pdf - 558 KB
버전 / 날짜
2018-06-15
pdf - 681 KB

Documentation

Documentation

Short Instructions PZ303

Housed PICMA® Actuators to 100 V

버전 / 날짜
1.2.0 11/2020
pdf - 958 KB
버전 / 날짜
1.2.0 11/2020
pdf - 961 KB
Documentation

User Manual P844M0001

P-844 Preloaded piezo actuators

버전 / 날짜
2021-01-29
pdf - 2 MB
버전 / 날짜
2021-01-29
pdf - 2 MB

3-D Models

3-D Models

P-844 / P-845 3-D model

zip - 92 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

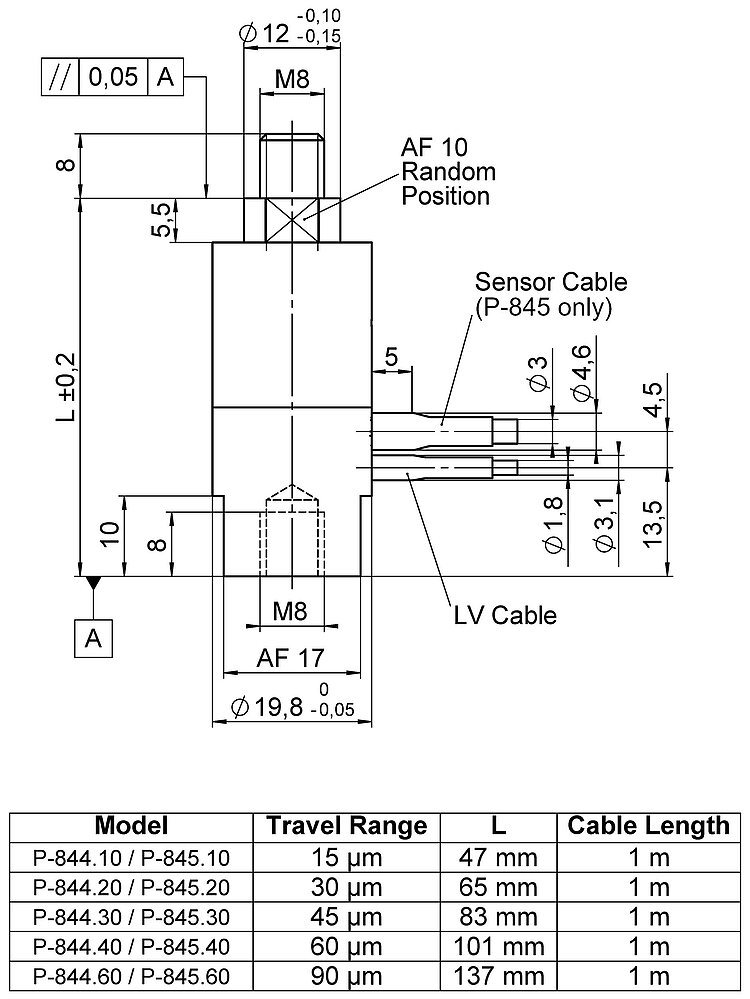

P-844.10

Preloaded piezo actuator; PICMA® piezo actuator drive; 15 µm travel range (open loop); 47 mm length; push force capacity 3000 N; pull force capacity 700 N; LEMO connector; 1 m cable length

P-844.20

Preloaded piezo actuator; PICMA® piezo actuator drive; 30 µm travel range (open loop); 65 mm length; push force capacity 3000 N; pull force capacity 700 N; LEMO connector; 1 m cable length

P-844.30

Preloaded piezo actuator; PICMA® piezo actuator drive; 45 µm travel range (open loop); 83 mm length; push force capacity 3000 N; pull force capacity 700 N; LEMO connector; 1 m cable length

P-844.40

Preloaded piezo actuator; PICMA® piezo actuator drive; 60 µm travel range (open loop); 101 mm length; push force capacity 3000 N; pull force capacity 700 N; LEMO connector; 1 m cable length

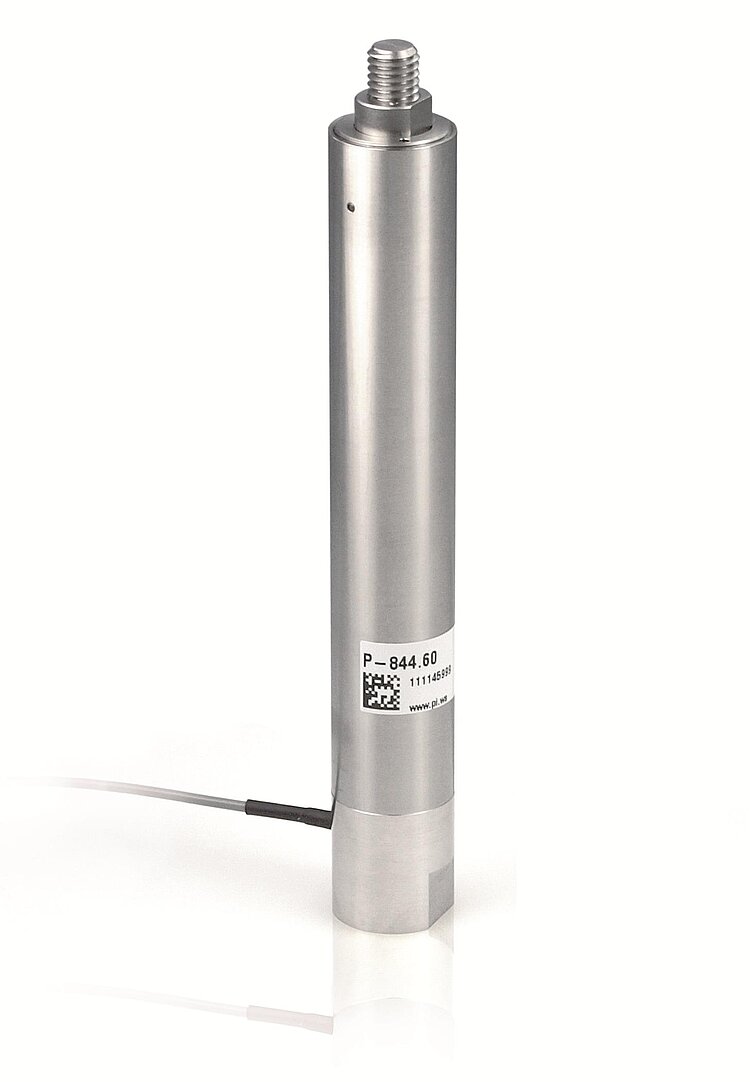

P-844.60

Preloaded piezo actuator; PICMA® piezo actuator drive; 90 µm travel range (open loop); 137 mm length; push force capacity 3000 N; pull force capacity 700 N; LEMO connector; 1 m cable length
