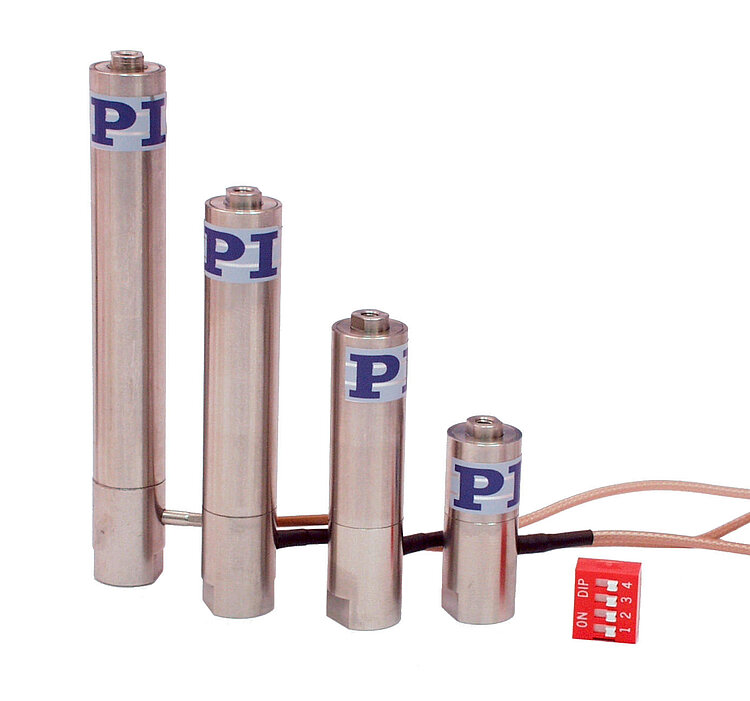

P-840 Preloaded Piezo Actuators

Compact Actuators for High Loads and Forces

P-840 Preloaded Piezo Actuators
제품 설명 사양 다운로드 견적 / 주문
  • Outstanding lifetime due to PICMA® piezo actuators
  • Travel range to 90 µm
  • Compact housing
  • Push force capacity to 1000 N
  • Pull force capacity to 50 N
  • µs response time
  • Subnanometer resolution
  • Versions with ball tip, vacuum versions

Fields of application

  • Static and dynamic precision positioning
  • Fiber positioning
  • Laser tuning
  • Nanotechnology

Outstanding lifetime thanks to PICMA® piezo actuators

The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Suitable for sophisticated vacuum applications

Piezo actuators do not require lubrication and do not cause abrasion. The all-ceramic isolated PICMA® actuators also do not require polymer isolation and are therefore ideal for vacuum applications.

Specifications

Datasheet

Datasheet P-840

버전 / 날짜
2018-05-22
버전 / 날짜
2018-05-22
버전 / 날짜
2018-05-22
문서 언어
pdf - 738 KB
pdf - 679 KB
pdf - 658 KB

Downloads

Datasheet

Datasheet

Datasheet P-840

버전 / 날짜
2018-05-22
버전 / 날짜
2018-05-22
버전 / 날짜
2018-05-22
문서 언어
pdf - 738 KB
pdf - 679 KB
pdf - 658 KB

Documentation

Documentation

Short Instructions PZ303

Housed PICMA® Actuators to 100 V
버전 / 날짜
1.1.0 12/2019
버전 / 날짜
1.1.0 12/2019
문서 언어
pdf - 957 KB
pdf - 960 KB
Documentation

User Manual P840M0001

P-840 Preloaded piezo actuators
버전 / 날짜
2018-11-13
버전 / 날짜
2018-11-13
문서 언어
Documentation

User Manual P840M0002

P-840.xxV Preloaded piezo actuators (vacuum versions)
버전 / 날짜
2018-11-13
버전 / 날짜
2018-11-13
문서 언어

3-D Models

3-D Models

P-840 P-841 3-D model

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly

Actuators without sensor

Actuators without sensor, vacuum compatible

Actuators without sensor, with tip

Actuators without sensor, with tip, vacuum compatible
