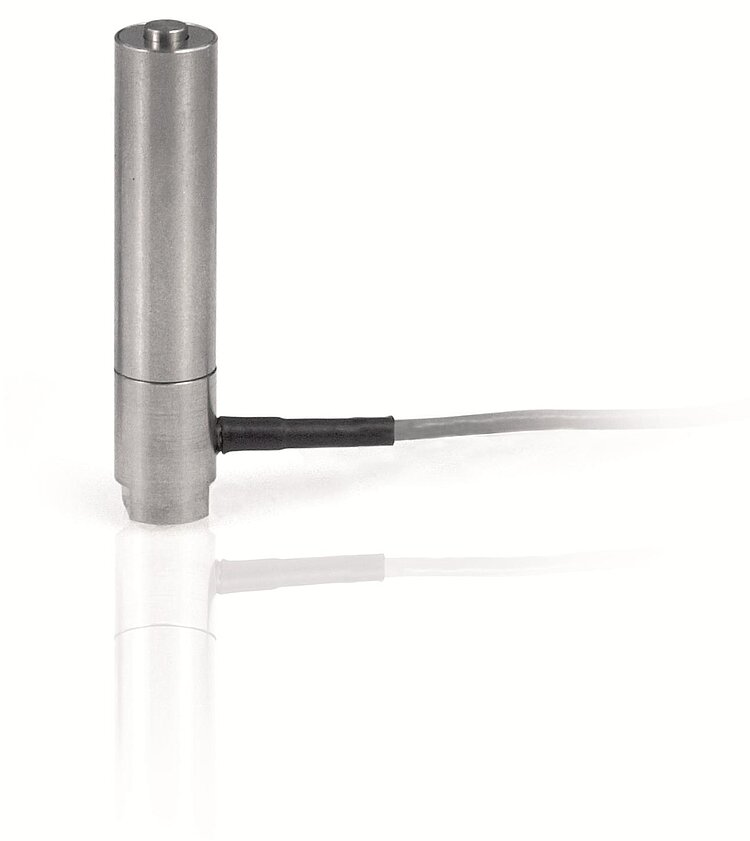

P-820 Preloaded Piezo Actuators

For Light and Medium Loads

  • Outstanding lifetime due to PICMA® piezo actuators
  • Travel range to 45 µm
  • Push force capacity to 50 N
  • Pull force capacity to 10 N
  • µs response time, sub-nm resolution
  • Variants with ball tip
P-820 Preloaded Piezo Actuators
제품 설명 사양 다운로드 견적 / 주문

Application fields

  • Static and dynamic precision positioning
  • Fiber positioning
  • Laser tuning
  • Nanotechnology

Outstanding lifetime thanks to PICMA® piezo actuators

The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Specifications

Datasheet

Datasheet P-820

버전 / 날짜
2020-04-22
pdf - 2 MB
버전 / 날짜
2020-04-22
pdf - 2 MB
버전 / 날짜
2018-06-15
pdf - 655 KB

Downloads

Datasheet

Datasheet

Datasheet P-820

버전 / 날짜
2020-04-22
pdf - 2 MB
버전 / 날짜
2020-04-22
pdf - 2 MB
버전 / 날짜
2018-06-15
pdf - 655 KB

Documentation

Documentation

Short Instructions PZ303

Housed PICMA® Actuators to 100 V

버전 / 날짜
1.2.0 11/2020
pdf - 958 KB
버전 / 날짜
1.2.0 11/2020
pdf - 961 KB
Documentation

User Manual P820M0001

P-820 Preloaded piezo actuators for light and medium loads

버전 / 날짜
2020-04-23
pdf - 2 MB
버전 / 날짜
2020-04-23
pdf - 2 MB

3-D Models

3-D Models

3-D-model P-820.x0

zip - 79 KB
3-D Models

3-D-model P-820.xB

zip - 95 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.

Compatible Electronics Compatible Accessories
