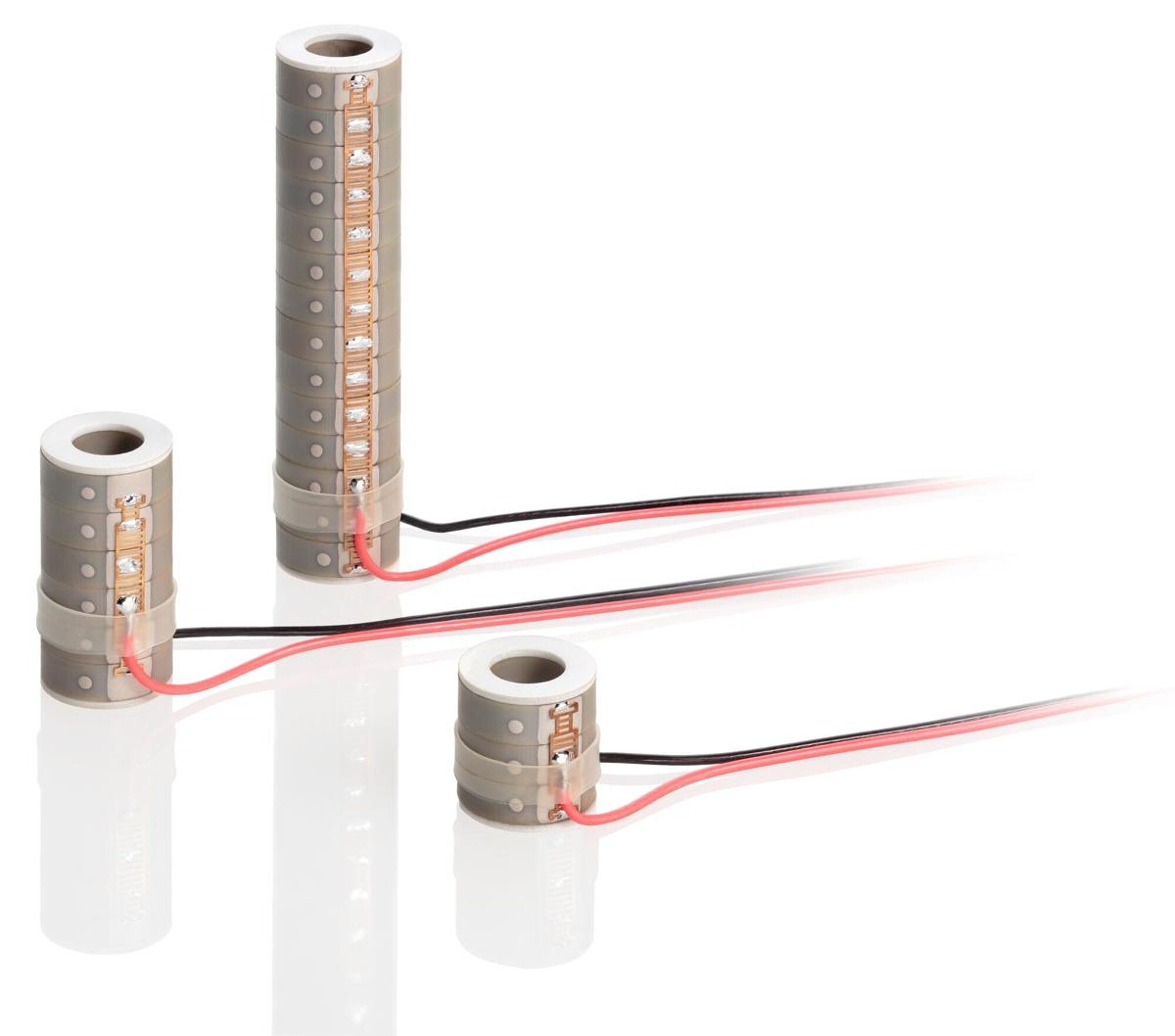

P-080 PICMA® Stack Multilayer Ring Actuator

With Inner Hole

  • Inner hole for preload or as aperture for optical applications
  • Superior lifetime
  • Ideal for dynamic operation
  • Microsecond response
  • Subnanometer resolution
  • UHV-compatible to 10-9 hPa
P-080 PICMA® Stack Multilayer Ring Actuator
제품 설명 사양 다운로드 견적 / 주문

Multilayer stack actuators

Flexible travel range up to 30 µm. Round cross section for easy integration.

UHV-compatible to 10-9 hPa, no outgassing, high bakeout temperature.



PICMA® piezo linear actuators

Low operating voltage -20 to 100 V. Ceramic insulation. High reliability, long lifetime.



Possible modifications

Different heights, fast mounting according to customer requirements. Variety of shapes. Precision-ground end plates for reduced tolerances



Fields of application

Industry and research. For laser tuning, microdispensing, life sciences.

Specifications

Datasheet

Datasheet P-080

버전 / 날짜
2017-08-31
pdf - 752 KB
버전 / 날짜
2017-08-31
pdf - 356 KB

Downloads

Datasheet

Datasheet

Datasheet P-080

버전 / 날짜
2017-08-31
pdf - 752 KB
버전 / 날짜
2017-08-31
pdf - 356 KB

Documentation

Documentation

User Manual PZ259

P-882 – P-888 PICMA® Stack multilayer piezo actuators, P-080 PICMA® Stack multilayer ring actuators with inner hole, P-088 PICMA® Stack multilayer piezo actuators, round cross section

버전 / 날짜
1.1.0 2021-09-27
pdf - 3 MB
버전 / 날짜
1.1.0 2021-09-27
pdf - 3 MB
Documentation

Short Instructions PZ264

PICMA® Multilayer Piezo Actuators: P-08x, P-88x, PD0xx, PD410, PL0xx, PL1xx, PICMA® Stack, PICMA® Chip, PICMA® Bender

버전 / 날짜
3.0.0 04/2020
pdf - 826 KB
버전 / 날짜
3.0.0 04/2020
pdf - 761 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly

Actuators with PTFE-insulated stranded wires

Actuators with solderable contacts
