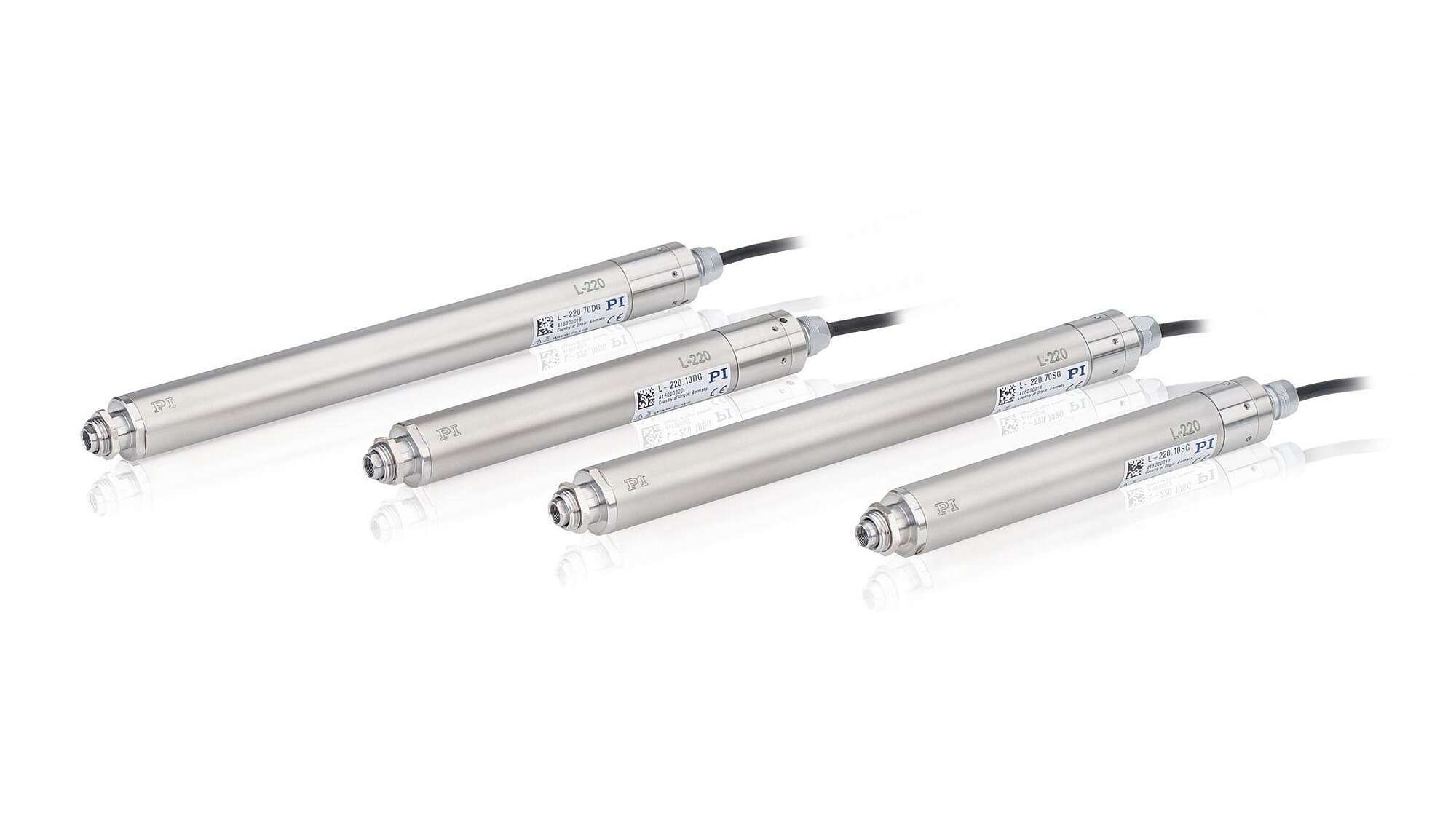

L-220 High-Resolution Linear Actuator

Suitable for High Cycle Numbers

  • Forces to 125 N
  • Travel ranges 13 to 77 mm (½" to 3")
  • DC or stepper motor
  • Vacuum-compatible variants available
L-220 High-Resolution Linear Actuator
제품 설명 사양 다운로드 견적 / 주문

Reference-class linear drive

Combines high precision, high forces, and high dynamics. Versions available for vacuum environments to 10-9 hPa.

High-quality components

Ball screw for smooth feed. Nonrotating tip for uniform motion prevents wobble, torque, and wear at the point of contact. Incl. flat and spherical tip for decoupling forces. Noncontact limit switches protect the mechanics. A direction-sensing reference switch supports automation applications. Position-controlled variants with differential encoder driver in the connector for safe signal transfer over distances up to 10 m.

Motor variants

  • Position-controlled DC motors with a gearhead and high-resolution rotary encoders allow for incremental motion of just 100 nm
  • High-performance and low-vibration 2-phase stepper motors with gear ratio allow precision positioning even without position control

Application fields

Research. Automation. Optical alignment.

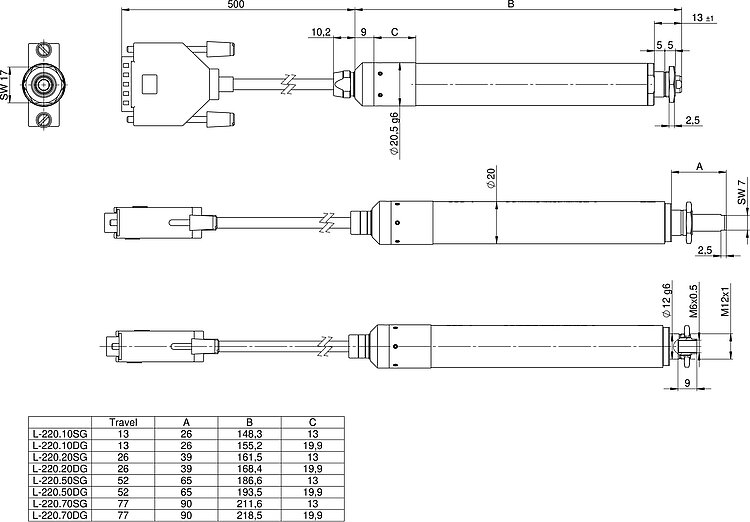

Specifications

Datasheet

Datasheet L-220

버전 / 날짜
2023-03-09
pdf - 877 KB
버전 / 날짜
2021-01-26
pdf - 472 KB

Downloads

Datasheet

Datasheet

Datasheet L-220

버전 / 날짜
2023-03-09
pdf - 877 KB
버전 / 날짜
2021-01-26
pdf - 472 KB

Documentation

Documentation

User Manual MP149

L-220 High-Resolution Linear Actuator

버전 / 날짜
1.5.0 2023-01-16
pdf - 951 KB
버전 / 날짜
1.5.0 2023-01-16
pdf - 949 KB
Documentation

Short Instructions MP159EK

Linear Actuators: L-2xx

버전 / 날짜
2.1.0 2023.08
pdf - 358 KB
버전 / 날짜
2.1.0 2023.08
pdf - 609 KB

3-D Models

3-D Models

L-220 3-D model

zip - 16 MB
Separate connection cable required for motor and sensor connection respectively.

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

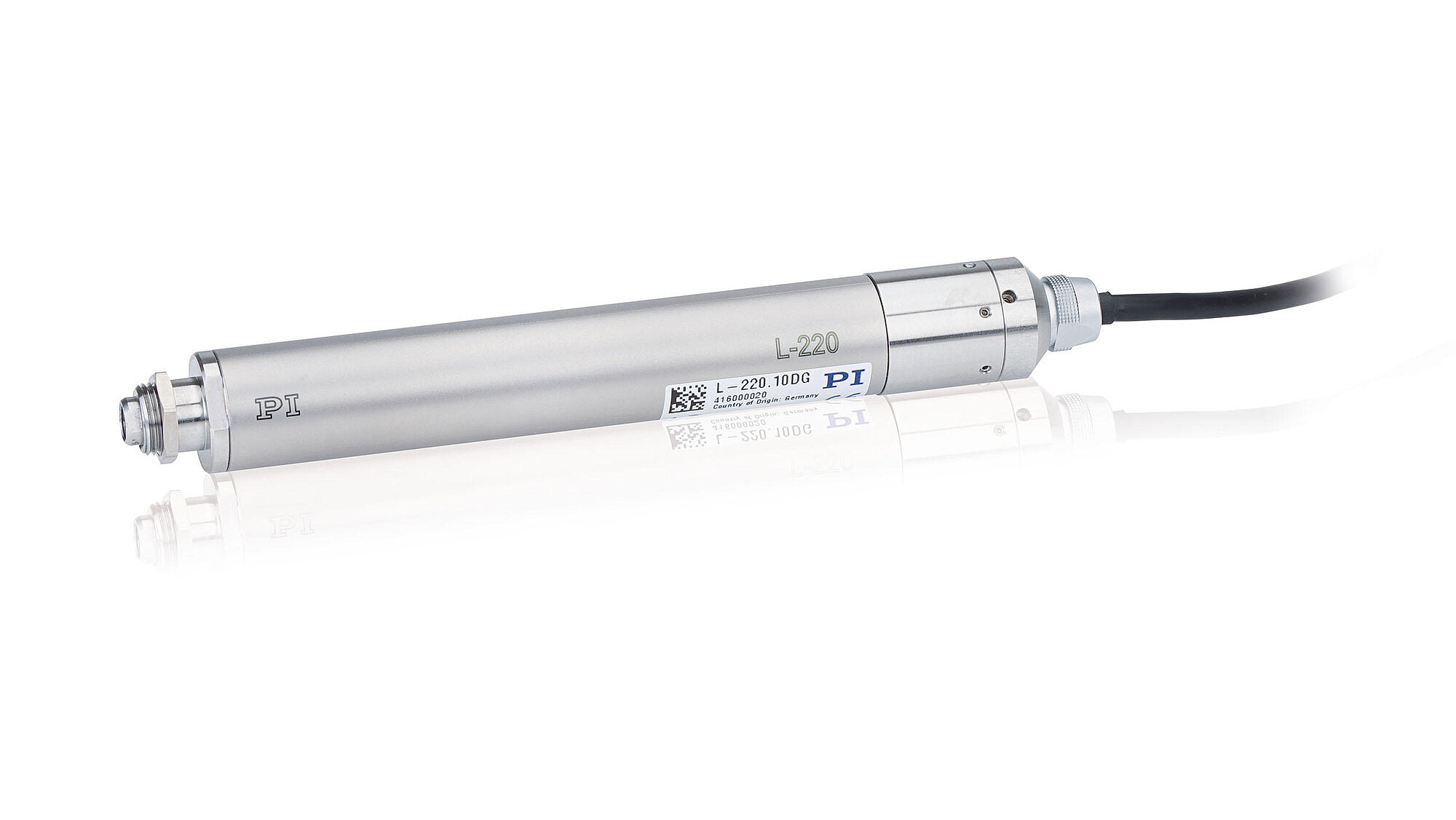

L-220.10DG

High-resolution linear actuator, DC gear motor, 13 mm travel range, 125 N feed force; 3.5 mm/s maximum velocity; ball screw; incremental rotary encoder, 512 counts/rev. resolution, A/B quadrature, RS-422; limit switch: Hall effect, N/C contact, 5 V, NPN; 0.5 m cable length

L-220.20DG

High-resolution linear actuator, DC gear motor, 26 mm travel range, 125 N feed force; 3.5 mm/s maximum velocity; ball screw; incremental rotary encoder, 512 counts/rev. resolution, A/B quadrature, RS-422; limit switch: Hall effect, N/C contact, 5 V, NPN; 0.5 m cable length

L-220.50DG

High-resolution linear actuator, DC gear motor, 52 mm travel range, 125 N feed force; 3.5 mm/s maximum velocity; ball screw; incremental rotary encoder, 512 counts/rev. resolution, A/B quadrature, RS-422; limit switch: Hall effect, N/C contact, 5 V, NPN; 0.5 m cable length

L-220.70DG

High-resolution linear actuator, DC gear motor, 77 mm travel range, 125 N feed force; 3.5 mm/s maximum velocity; ball screw; incremental rotary encoder, 512 counts/rev. resolution, A/B quadrature, RS-422; limit switch: Hall effect, N/C contact, 5 V, NPN; 0.5 m cable length

L-220.10SG

High-resolution linear actuator; 2-phase stepper motor with gearhead; 13 mm travel range; 125 N feed force; 0.8 mm/s maximum velocity; ball screw; limit switch: Hall effect, N/C contact, 5 V, NPN; 0.5 cable length

L-220.20SG

High-resolution linear actuator; 2-phase stepper motor with gearhead; 26 mm travel range; 125 N feed force; 0.8 mm/s maximum velocity; ball screw; limit switch: Hall effect, N/C contact, 5 V, NPN; 0.5 cable length

L-220.50SG

High-resolution linear actuator; 2-phase stepper motor with gearhead; 52 mm travel range; 125 N feed force; 0.8 mm/s maximum velocity; ball screw; limit switch: Hall effect, N/C contact, 5 V, NPN; 0.5 cable length

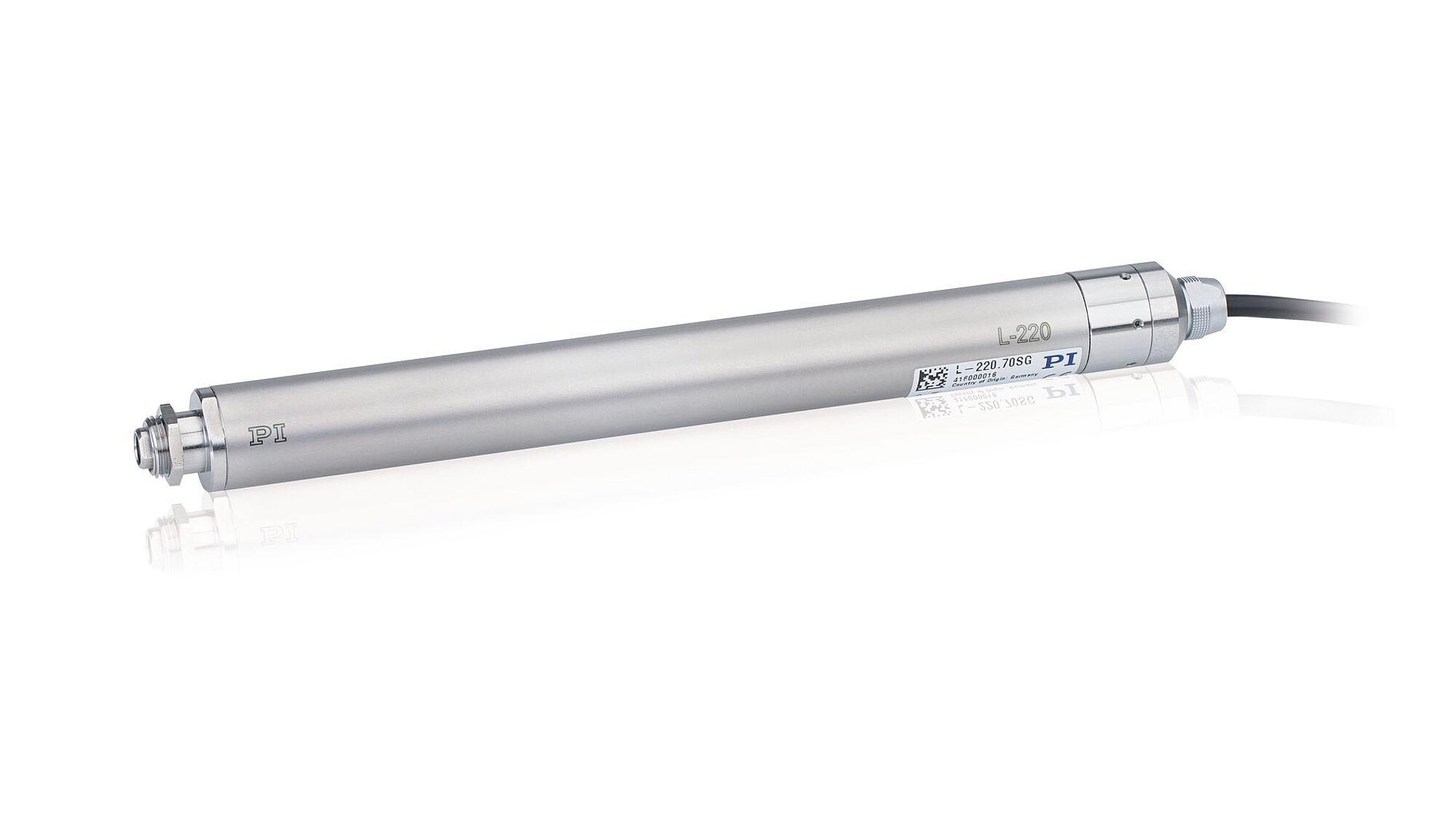

L-220.70SG

High-resolution linear actuator; 2-phase stepper motor with gearhead; 77 mm travel range; 125 N feed force; 0.8 mm/s maximum velocity; ball screw; limit switch: Hall effect, N/C contact, 5 V, NPN; 0.5 m cable length
