E-709 Compact and Cost-Optimized Digital Piezo Controller

For SGS, Piezoresistive and Capacitive Sensors, 1 Axis

E-709 Compact and Cost-Optimized Digital Piezo Controller
제품 설명 사양 다운로드 견적 / 주문

Fast digital servo controller

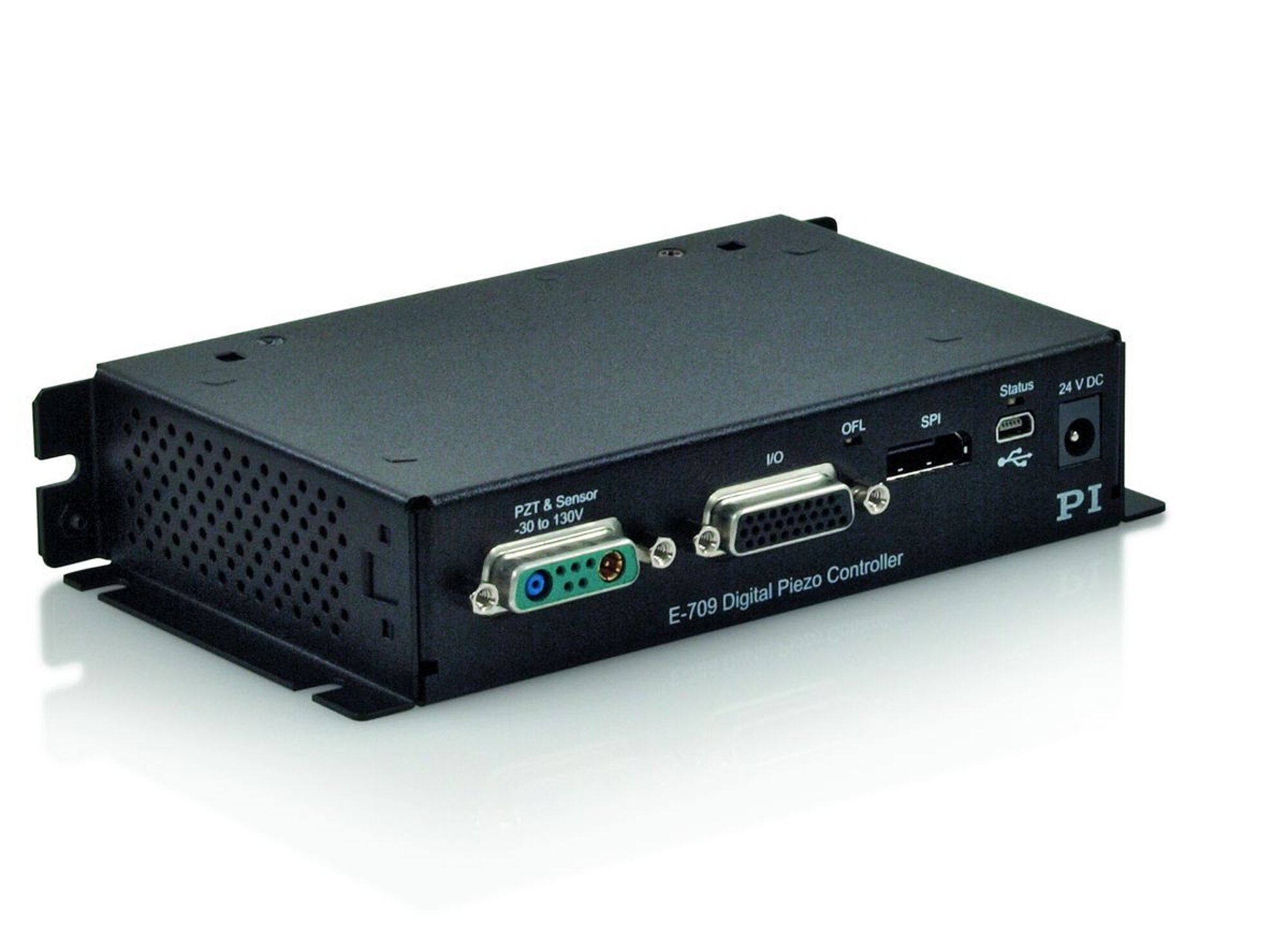

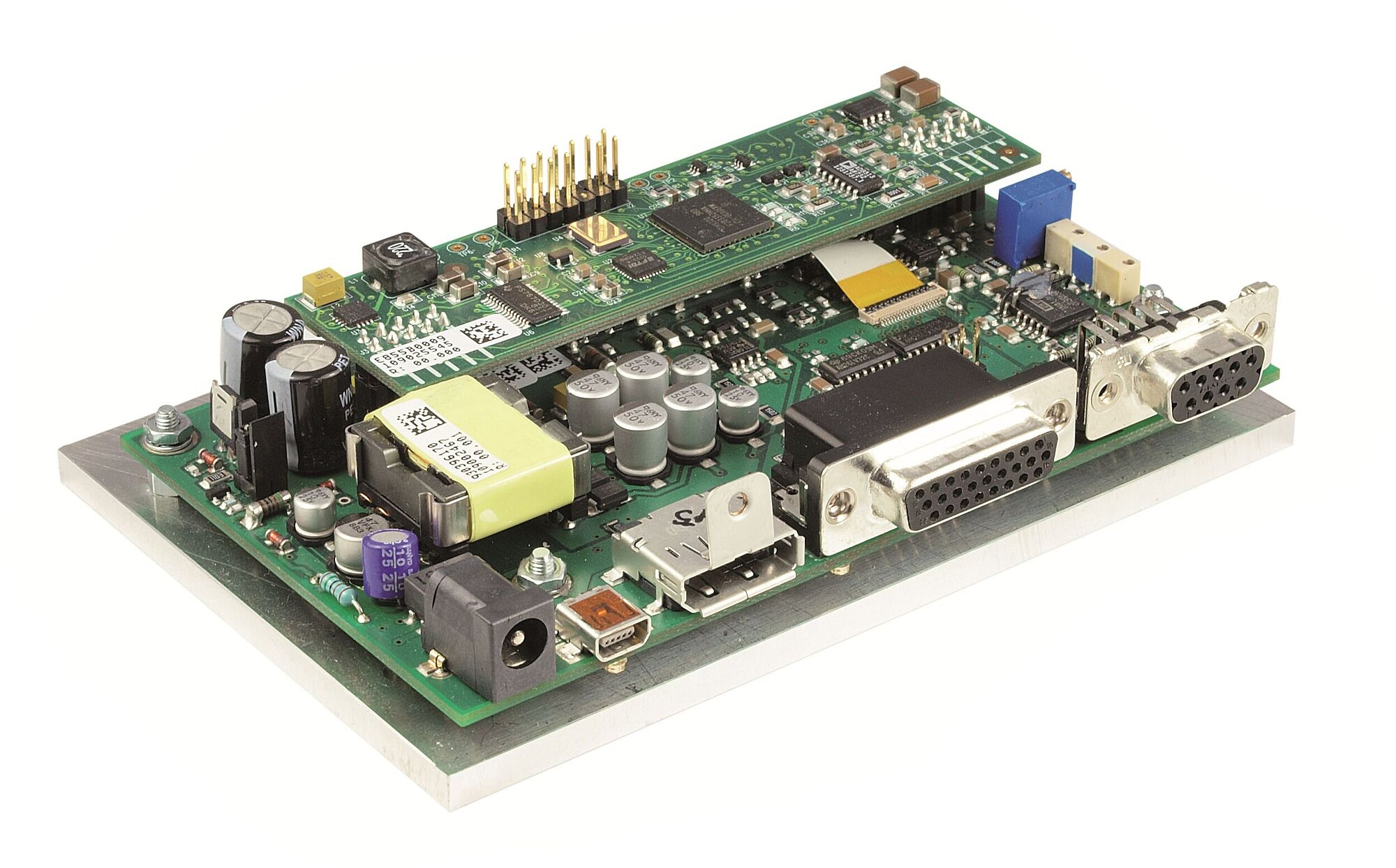

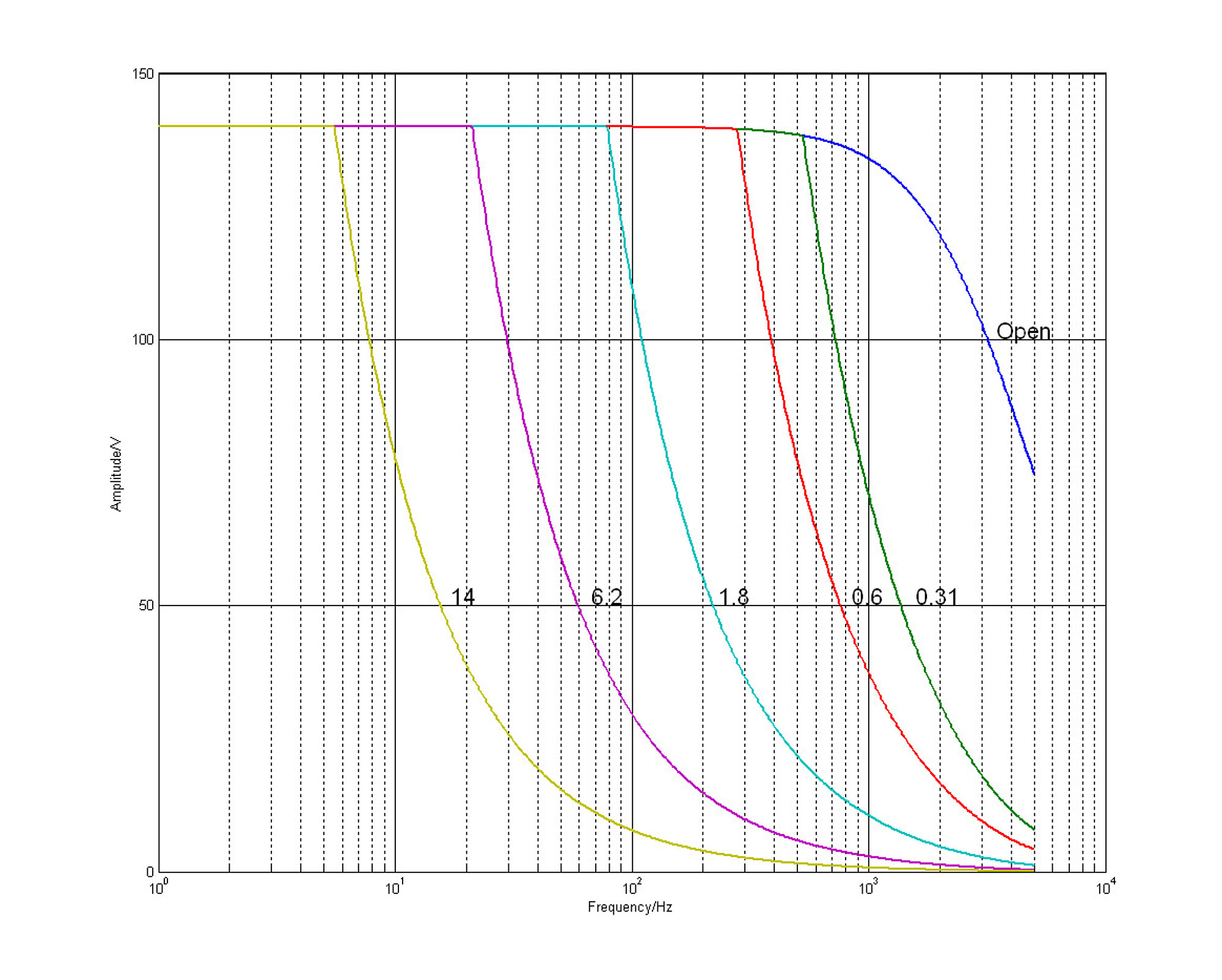

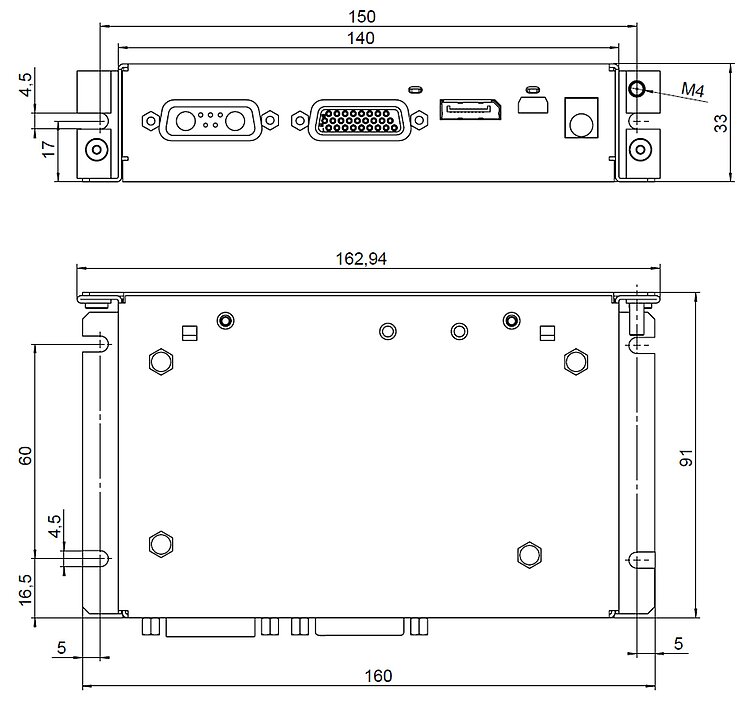

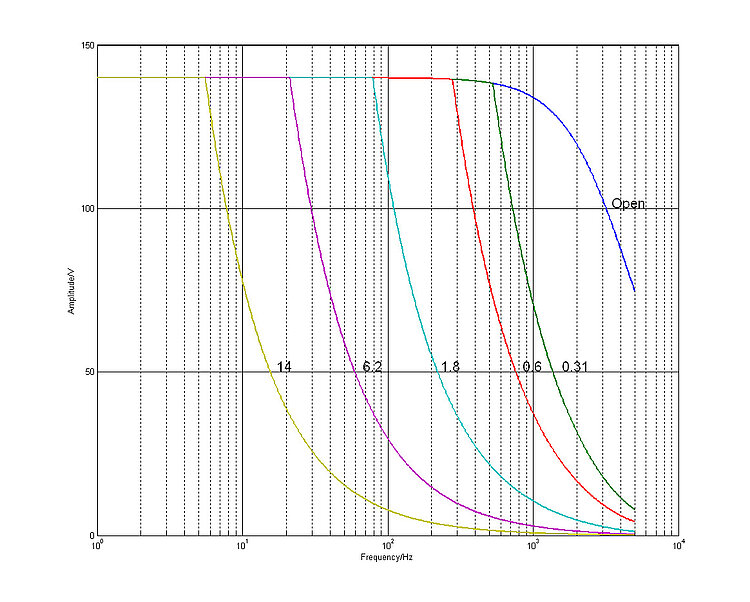

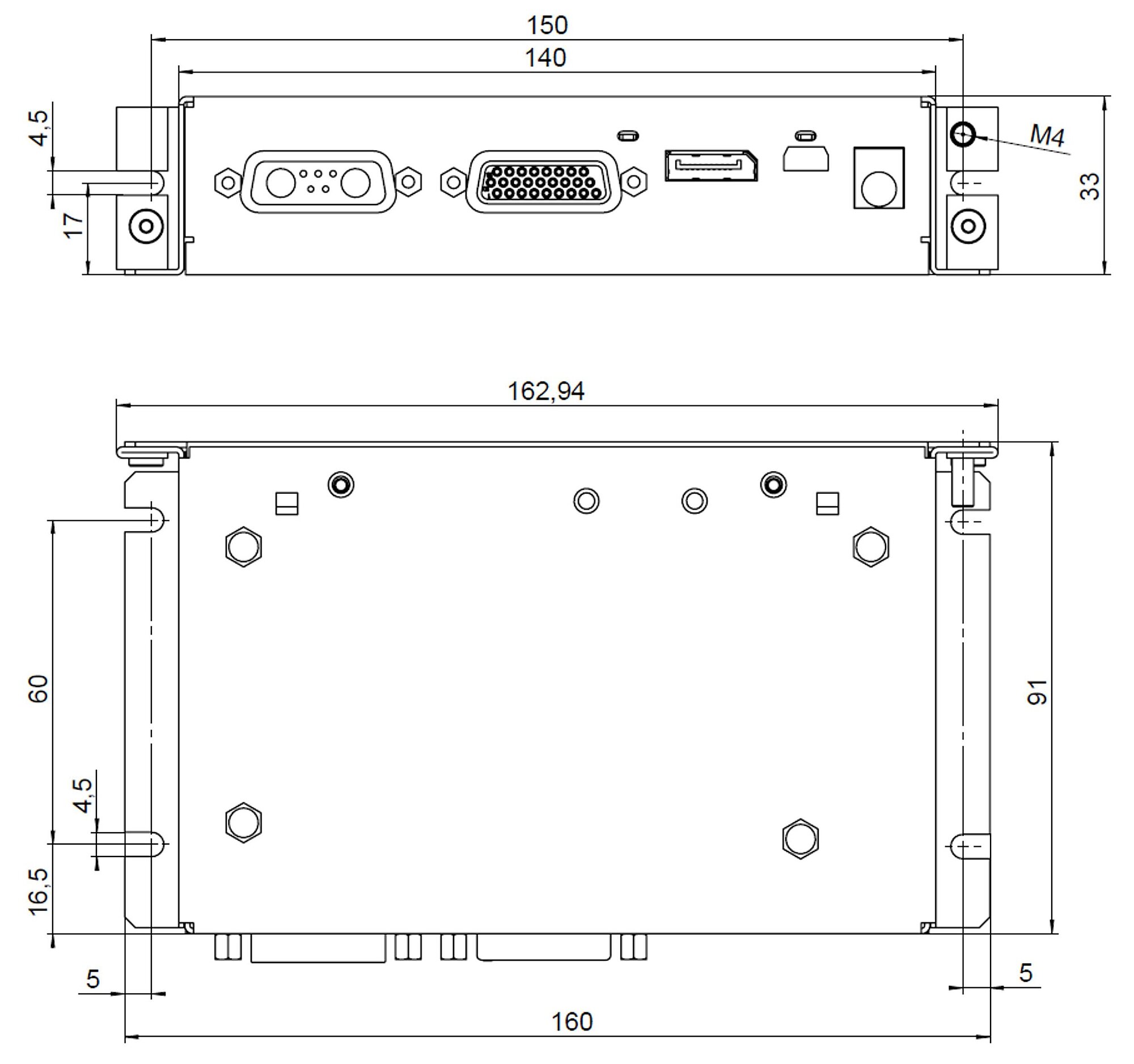

Benchtop (.xRG) or OEM board (.xR). Voltage range -30 to 130 V.

Interfaces

USB, digital RS-232, fast serial interface with up to 25 MBit/s. Additional high-bandwidth analog control input / sensor input. Analog output, e.g., for external amplifiers.

User software and functions

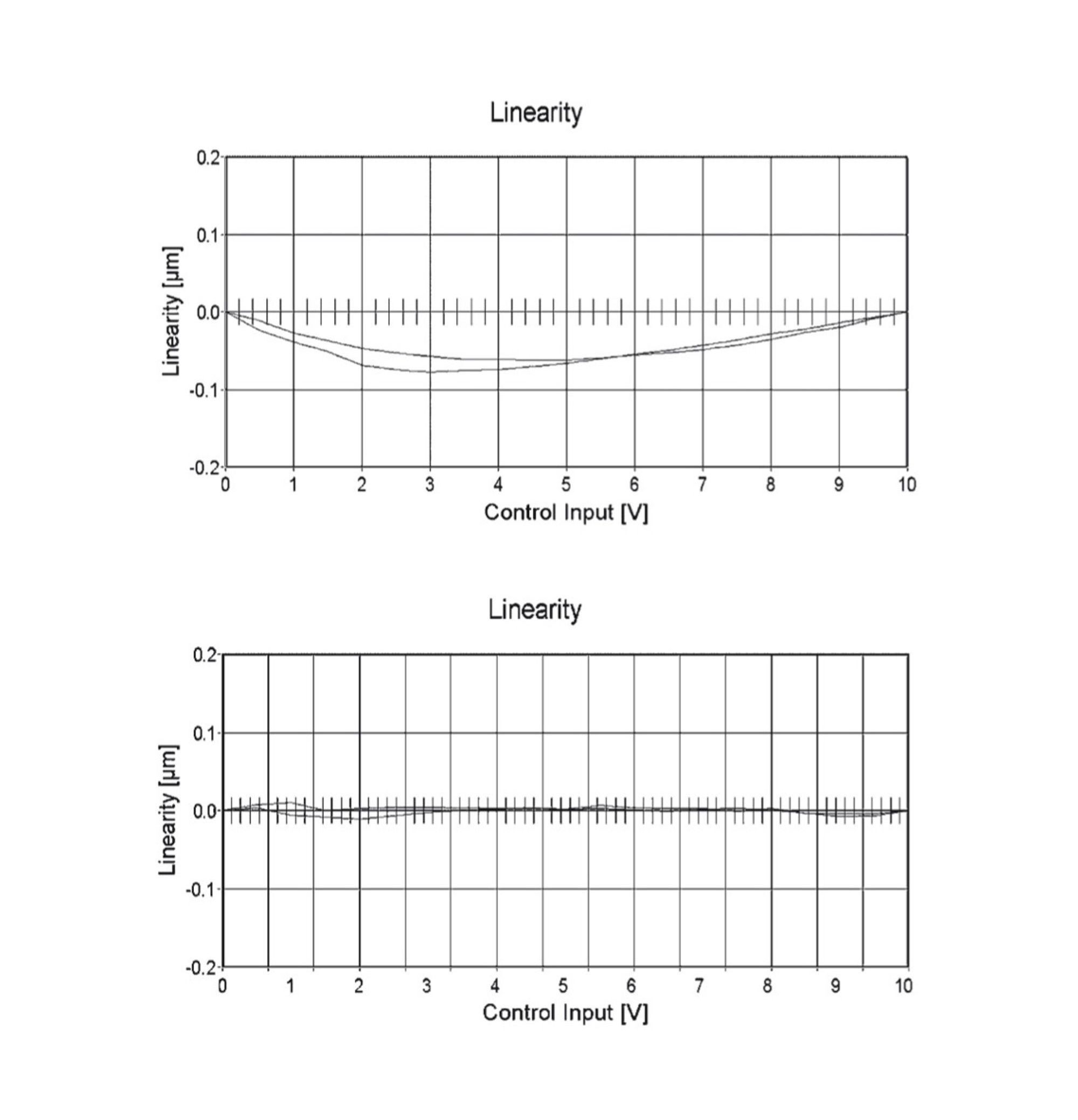

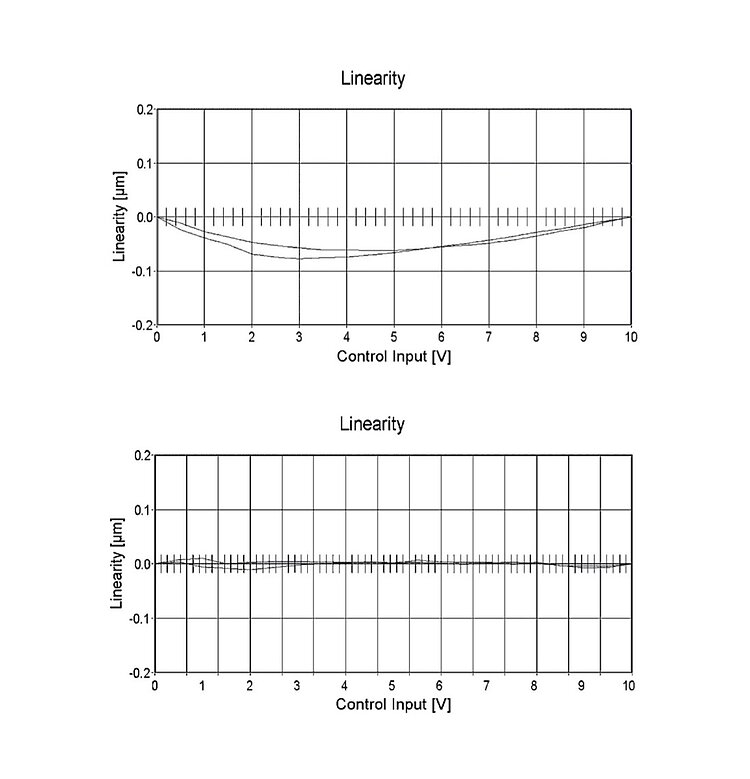

PIMikroMove, PI General Command Set (GCS). Drivers for NI LabVIEW, shared libraries for Windows and Linux. Compatible with µManager, MetaMorph, MATLAB. Wave generator. Linearization. Data recorder. Autozero. Trigger I/O. Software-configurable parameters.

Application fields

  • Multiphoton microscopy, confocal microscopy
  • 3-D imaging
  • Screening
  • Autofocus systems
  • Surface analysis
  • Wafer inspection

Specifications

Datasheet

Datasheet E-709
